CAT4 Industrial 4g ODU outdoor cpe 4g lte wireless router poe with sim card slot

Share on:

Price:RUB 75.82 - RUB 6,065.44
Price in USD:Details


Product Overview


CAT4 Industrial 4g ODU outdoor cpe 4g lte wireless router poe with sim card slot



Production  brief introdution:

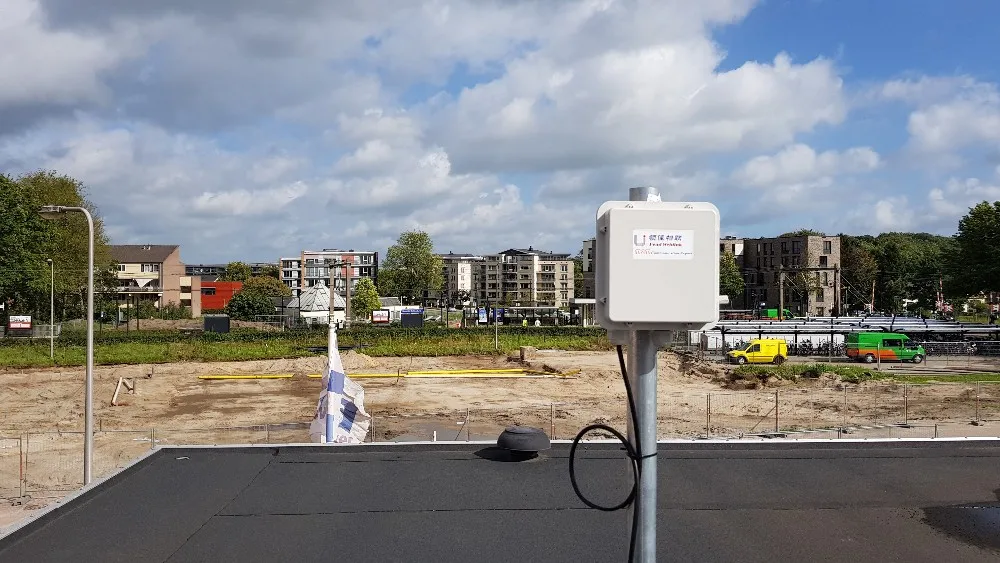

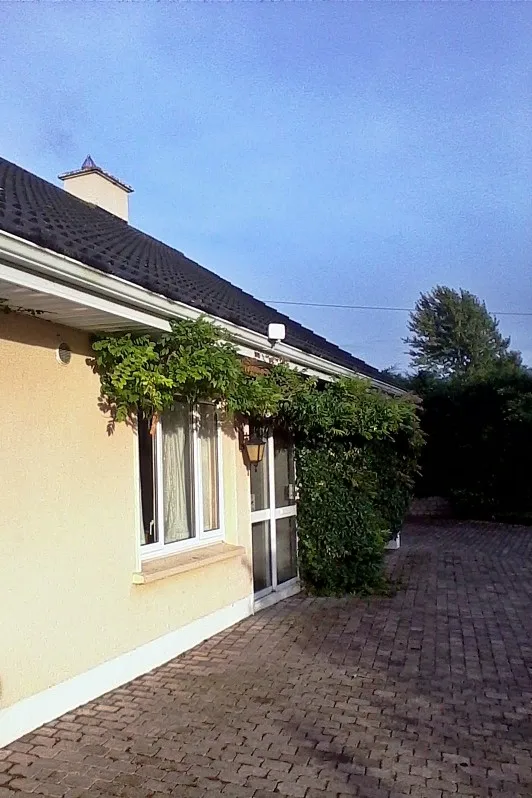

It adopts the high performance professional router chipset and 3G/4G LTE wireless module. It is based on embedded real-time operating system as software support platform, meanwhile provides a LAN port. It can connect through POE adapter. It can achieve high gain 3G/4G LTE antenna. It can be mounted on the roof.

It designed waterproof, dustproof, lighting protection feature. It provides stable and reliable data connection for user device. it can cover every lot industry field in each aspect, such as RTU, finance, transport , security, environmental protection, agriculture, forestry, water, coal mine and petrochemical and so on.




Product feature.


• 4G LTE data transmission;

• Active auto connect;

• Embedded watchdog , Auto recovery;

• 2*2  4G/WIFI MIMO antenna;

• 4G LTE antenna gain: >10DBi

• Integrate 4G LTE feature;

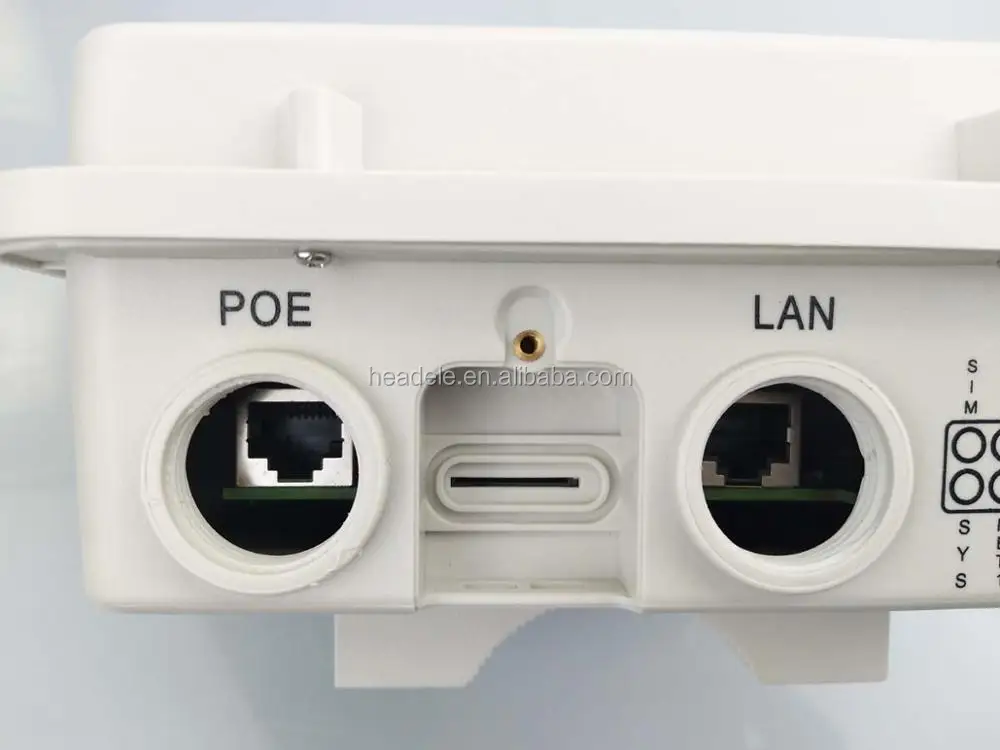

• One LAN port;

• Supported communication protocols: PPTP,L2TP,IPSEC VPN,DDNS,TR-069,GRE,DHCP,HTTP,HTTPS, SSH,TCP,UDP,Open VPN,SNMP;

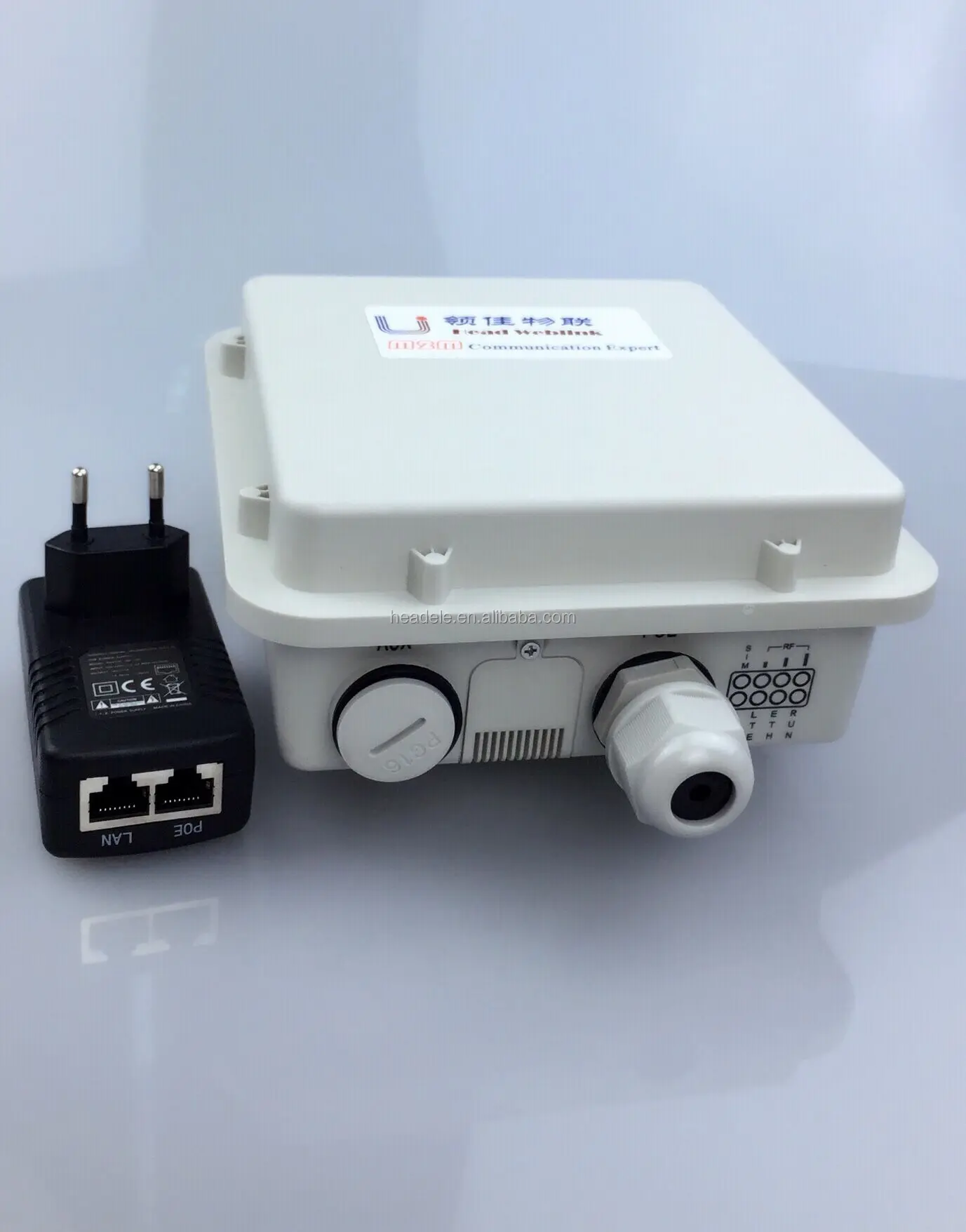

• POE power supply,

• With SIM card slot;

• Remote management platform;

• Firmware version:  Linux;

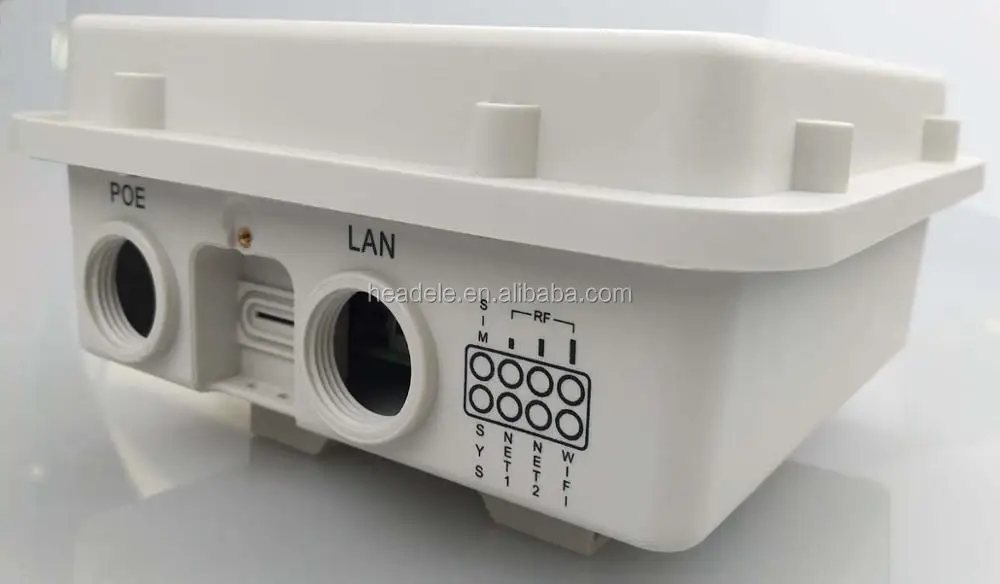

• Waterproof,dustproof,lightning protection. Protection level, IP67

• Operating Temperature.  -40℃ -- +80℃

• Operating humidity. 5%--95%



Frequency bands

  Version A

      LTE FDD. B2,4,5,17

      UMTS. 850/1900MHz


  Version E

      LTE FDD. B1,3,7,8,20

      LTE TDD B38, B40

      UMTS. 900/2100MHz

      GSM. 900/1800MHz


  Version C

      LTE FDD. B1,3,7,8

      LTE TDD B38, B39, B40, B41

      UMTS. 900/2100MHz

      TD-SCDMA. 1880~1920MHz & 2010~2025MHz

      GSM. 900/1800MHz


  Version JC

      LTE FDD. B1,B3,B8,B18,B19

      LTE TDD. B41

      UMTS. B1,B6,B8

      GSM. 900/1800MHz


  Version JE

      LTE FDD. B1,B8

      UMTS. B1,B8

      GSM. 900/1800MHz



        We can provide customized frequency bands for customers.


 Data rate

         FDD LTE. DL,100Mbps  UL,50Mbps

        TDD LTE. DL,50Mbps    UL,25Mbps

        WCDMA. DL 42Mbps   UL5.76Mbps

        TD-SCDMA.  DL 2.8Mbps  UL 2.2Mbps




HDR100 L1-003













1LAN router  2








Company Information:


Head Weblink Corporation founded in 2008.We are expert of wireless M2M products and total solutions supplier in China. Since our foundation, we focused on M2M data transmission field. In addition, we are the professional industrial 3G/4G LTE router,3G/4G CPE,2G/3G/4G LTE modem manufacturer and 2G/3G/4G LTE wireless module distributor. Our products and solutions are widely used in finance, transportation, telecom, electricity, power meter, water conservancy and other industrial applications. Up to now, we have exported our products more than 70 countries and regions world widely.


Head Weblink commit to provide products with high-reliable quality  and providing best service for our customers and help them to stay competitive in their business market.



Uphold the faith of 'quality first, professional focus, service first' , Head Weblink continue to strengthen the research and development of communication technology, innovation, improve their own products, rich products, to ensure that customers get efficient, stable, long-term service and supply security.


Contact us if you need more info., you are always welcome!
