Keya - DC 48RT50BL-XW is a kind of intelligent high-power DC motor driver. This driver uses high-performance MCU, adopts advanced motion control algorithm and is applicable to situations having special functional requirements and has external analog quantity, pulse-width control and potentiometer speed governing functions. It can sets soft start and stop as well as maximum current and motor torque, separately selects forward and backward rotations of motor and separately controls forward limit and backward limit. This driver is also equipped with fault alarm output end to effectively protect the reliability and safety of device package and can be widely used in automation control industry.
II. Specifications and Model:
Max. Max. DC voltage
Output current Output voltage Input range
Model AC: (A) DC: (V) DC: (V)
DC 48RT50BL-XW 100 55 10- 55
III. Characteristics:
Small size.
II. Specifications and Model:
Max. Max. DC voltage
Output current Output voltage Input range
Model AC: (A) DC: (V) DC: (V)
DC 48RT50BL-XW 100 55 10- 55
III. Characteristics:
Small size.
Wide voltage input.
Multiple control modes: Potentiometer, analog control, pulse-width control
Independent forward & backward control.
Multiple control modes: Potentiometer, analog control, pulse-width control
Independent forward & backward control.
Independent forward &backward limit
Brake control.
Maximum current limit.
Protections started under abnormal conditions: Over-current, over-heat, over-voltage, under-voltage, short circuit, etc.
LED fault alarm status indicator, fault alarm output.
IV. Performance index:
1. Supply voltage: 10—55VDC.
2. Standby current: 15mA.
3. Continue working current: 30A High instant current: 50A-10S.
4. Working frequency: 2KHZ.
5. Out+5VDC Power supply (can be supplied to potentiometer): 5V DC 20mA
6. Input range of analog quantity: 0-- 5VDC
7. Soft starting time: 0-5S
8. Soft stopping time: 0-5S
9. Pulse input frequency: 250Hz
10. Input range of duty ratio: 20％-- 100%
11. Digital quantity output interface: Maximum load capacity is 50v 1A.
12. Temperature protection status: stops output at 80℃
13. Operating temperature:-40℃-- +60℃
14. Environment humidity: relative humidity≤80RH.
15. Boundary dimension: L * W * H = 123mm * 85mm * 42mm
Brake control.
Maximum current limit.
Protections started under abnormal conditions: Over-current, over-heat, over-voltage, under-voltage, short circuit, etc.
LED fault alarm status indicator, fault alarm output.
IV. Performance index:
1. Supply voltage: 10—55VDC.
2. Standby current: 15mA.
3. Continue working current: 30A High instant current: 50A-10S.
4. Working frequency: 2KHZ.
5. Out+5VDC Power supply (can be supplied to potentiometer): 5V DC 20mA
6. Input range of analog quantity: 0-- 5VDC
7. Soft starting time: 0-5S
8. Soft stopping time: 0-5S
9. Pulse input frequency: 250Hz
10. Input range of duty ratio: 20％-- 100%
11. Digital quantity output interface: Maximum load capacity is 50v 1A.
12. Temperature protection status: stops output at 80℃
13. Operating temperature:-40℃-- +60℃
14. Environment humidity: relative humidity≤80RH.
15. Boundary dimension: L * W * H = 123mm * 85mm * 42mm
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
Products Show
DC24RT30BL
DC24RT50BL
DC24RT100BL
Our Service
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Our Company

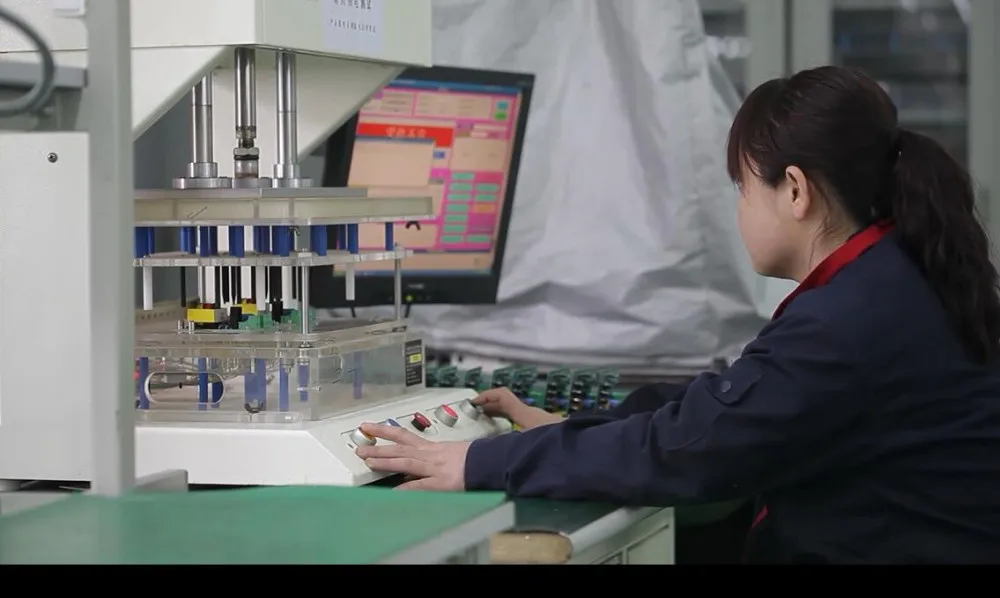

Factory
Our Factory

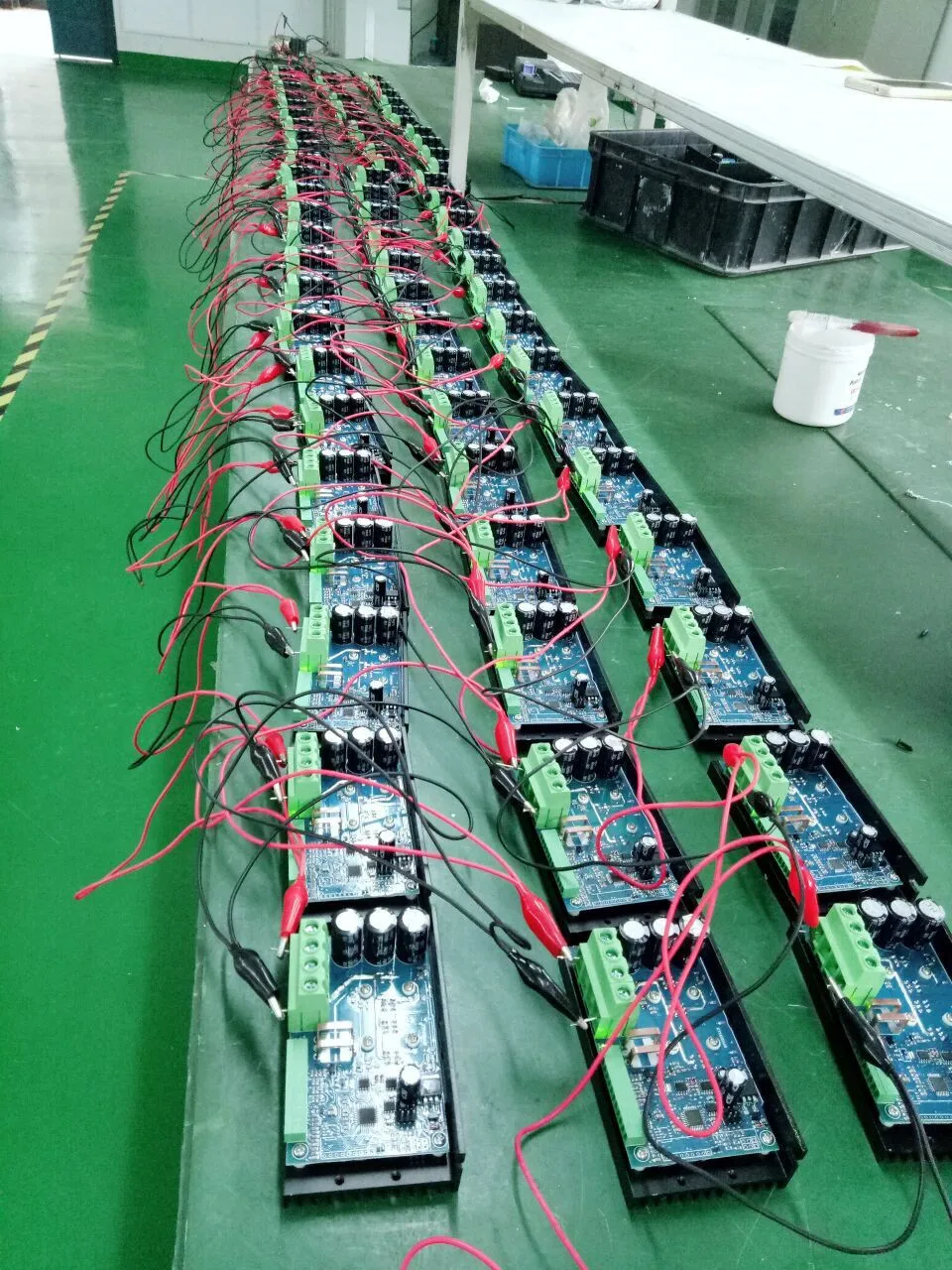

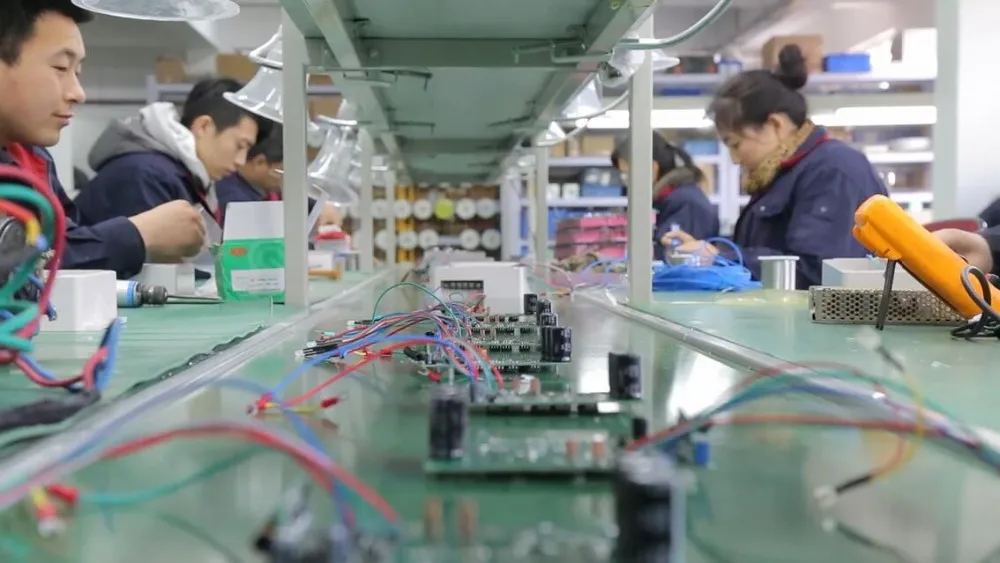

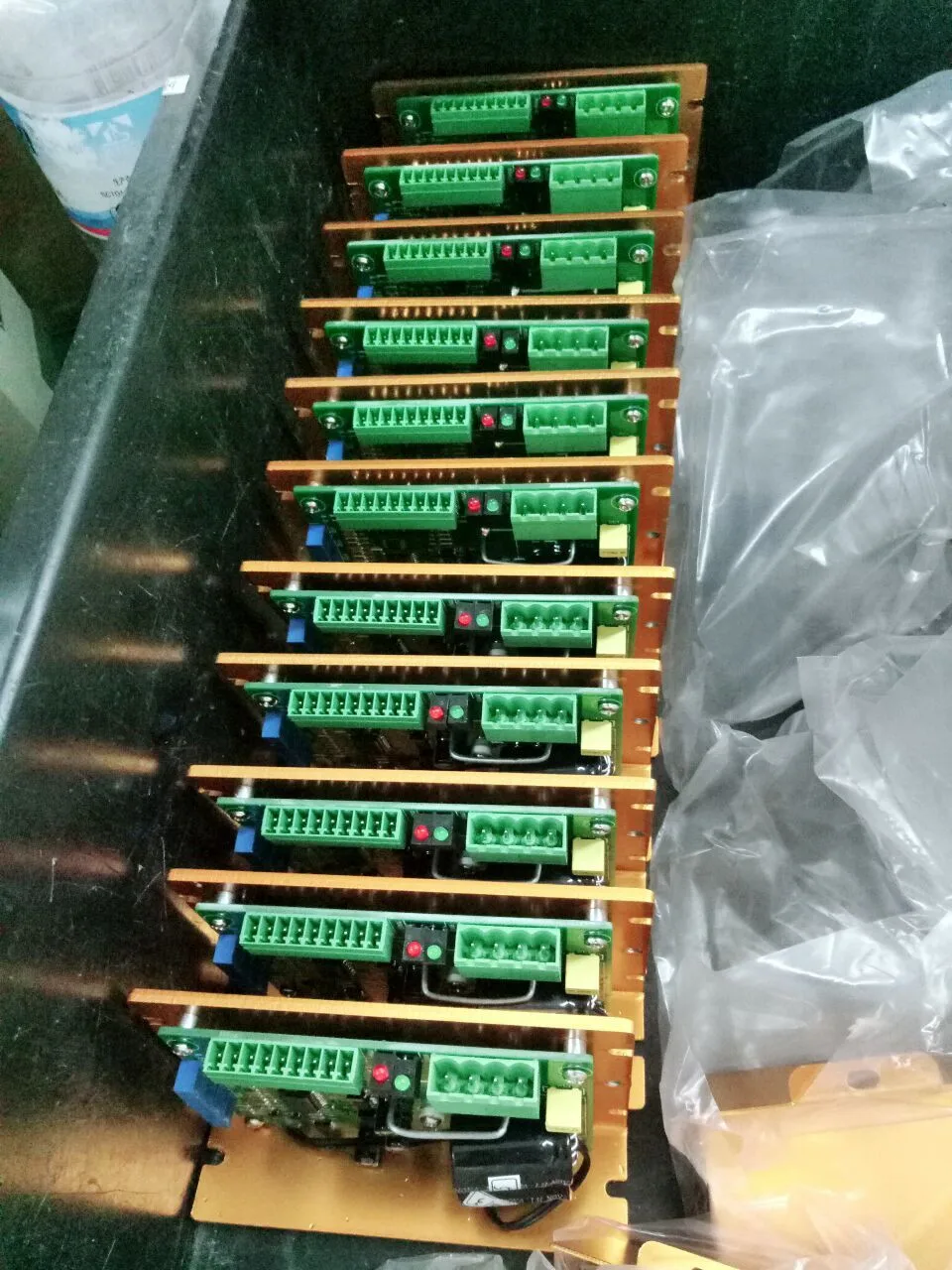

Workshop
Our Workshop

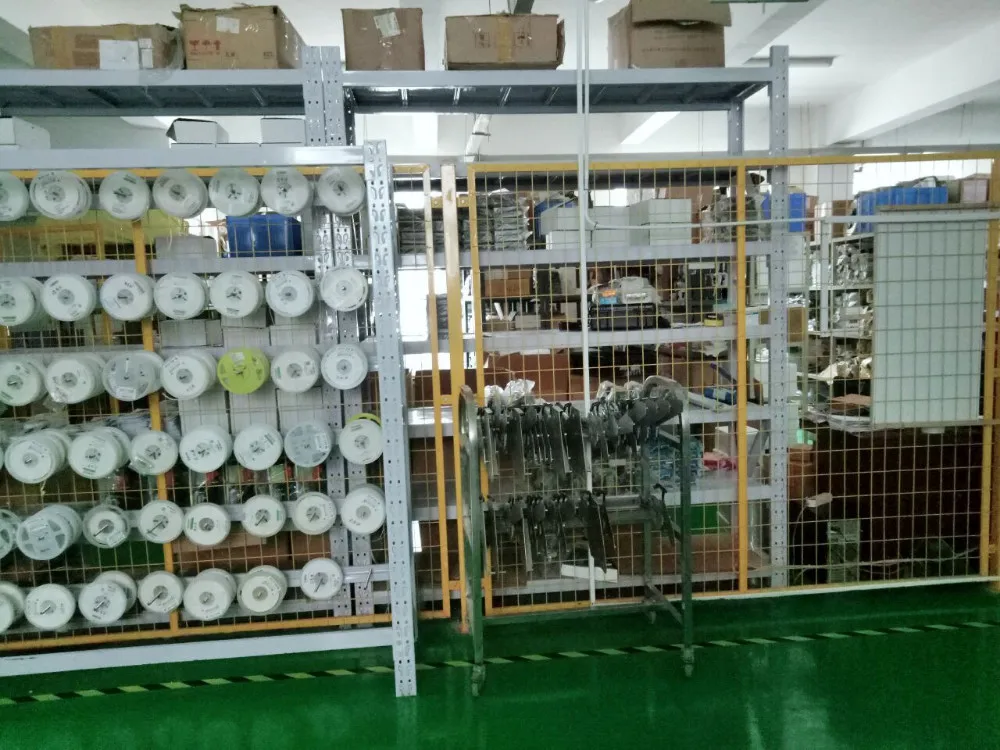

Warehouse
Our Warehouse
Team
Our Team
Packing & Delivery
Packing Details : Packing, solid bicycle saddle, 50pcs/carton
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film

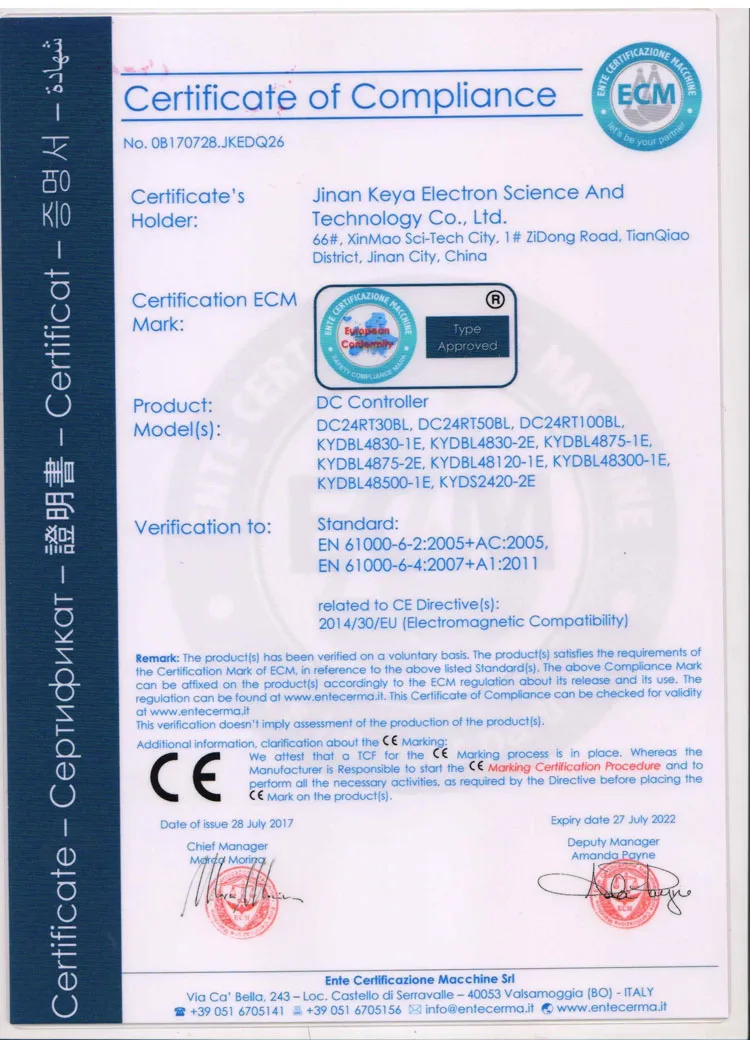

Our Certifications

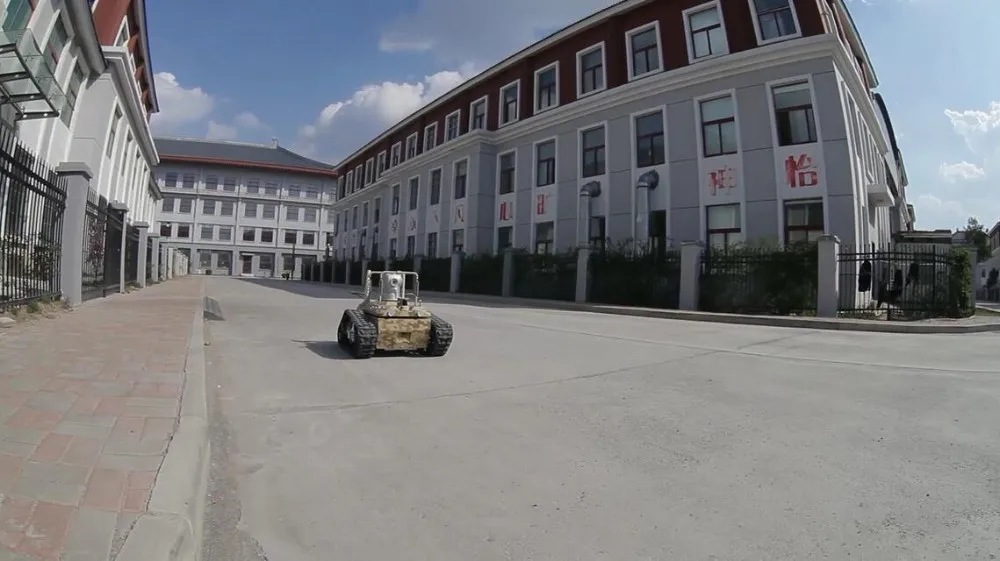

Customer Photo
