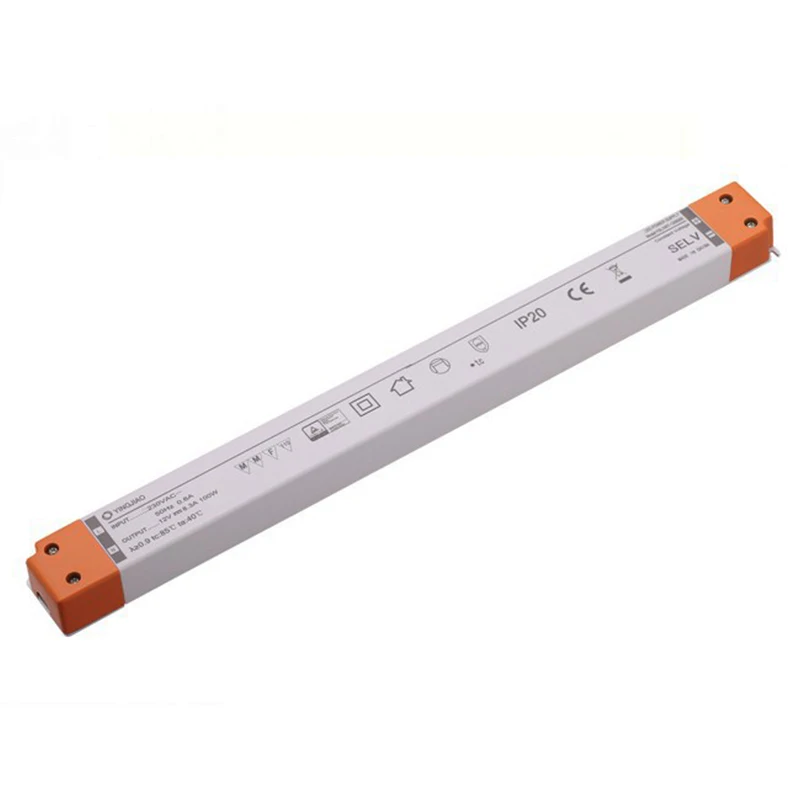

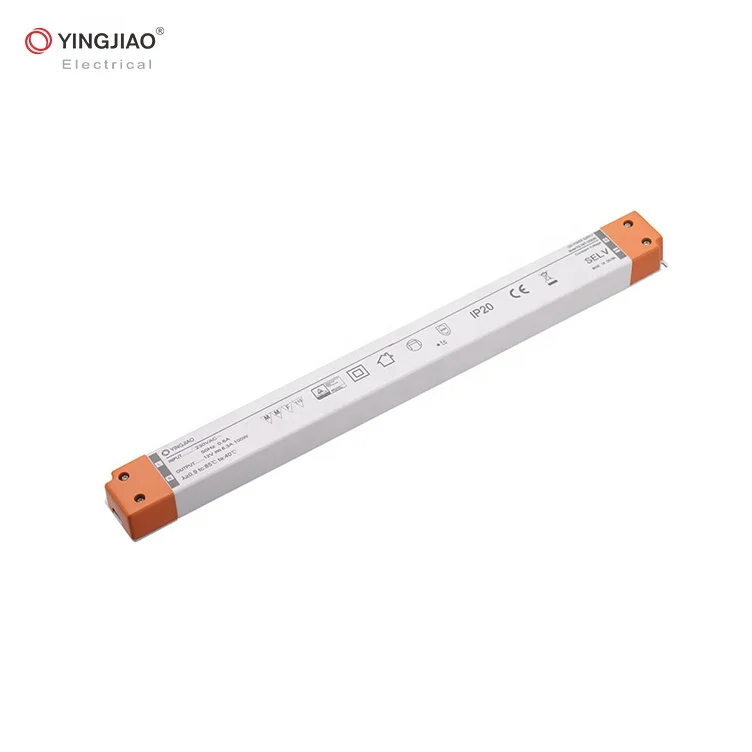

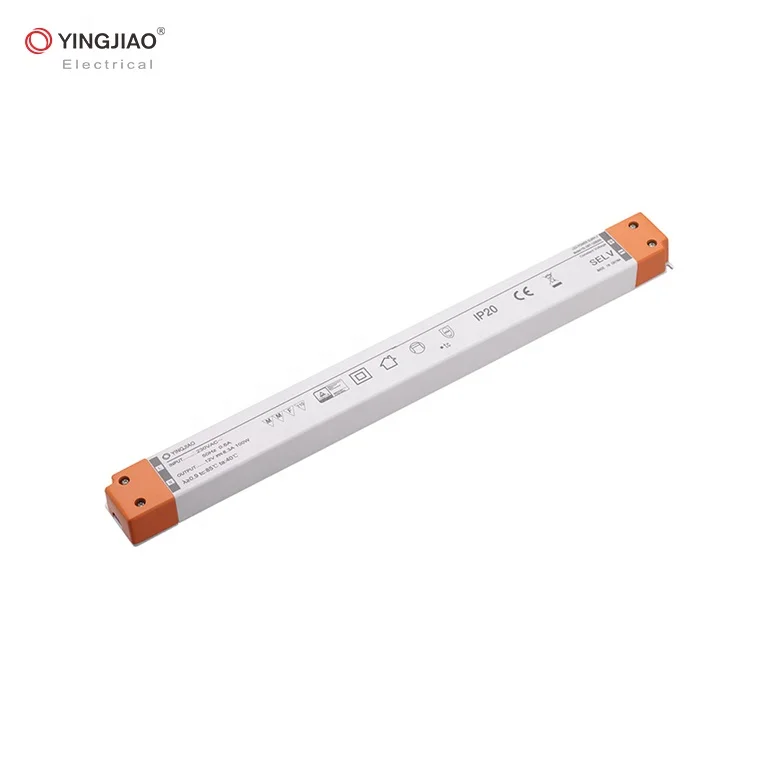

Led Lighting Driver Slim Power Supply 150W 12V 24V 36V 48V DC Constant Voltage Led Driver
- Category: >>>
- Supplier: Ninghai Yingjiao Electrical Co. Ltd.
Share on (60731298438):
Product Overview
Description
Led Lighting Driver Slim Power Supply 150W 12V 24V 36V 48V DC Constant Voltage Led Driver
PRODUCT SHOW
Specification:
| Model: | YSL150 constant voltage |
| Power: | 150W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 12-48V |
| Output Current: | 100MA-8300MA |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 2.5mA Max. at 264VAC input |
| No Load Power Consumption : | <0.5W |
| Protections: | Short Circuit /Over Current /Over Voltage/over temperature protection |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Certificates and approvals: | TUV-GS CB |
| EMI EMISSION: | Conducted disturbance at mains terminals:EN 55015 Radiation Test&Conduction Test: EN 55015 Magnetic Emission:EN55015:2013 |
| EMS IMMUNITY: | ESD Test:IEC 61000-4-2 magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25℃ ambient |
| Life: | 3-5 years alternative |
| Dimension: | 180*66*32mm |
| Weight: | 280g |
| Packing: | 50PCS/CTN,39*38.5*21.5cm |
Details:
| Model: | YSL150-1201250 | YSL150-2406250 | YSL150-3604160 | YSL100-4803125 |
| DC Voltage: | 12V | 24V | 36V | 48V |
| Rated Current: | 11A | 6250A | 4.16A | 3.125A |
| Current Range: | 0-11A | 0-6.25A | 0-4.16A | 0-3.125A |
| Rated Power: | 132W | 150W | 150W | 150W |
| Ripple & Noise(max.): | <1% | <1% | <1% | <1% |
| Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% | ±5% |
| Efficiency: | 92% | 92% | 92% | 92% |
| Setup,Rise time | 1 second max./40 MS max. | |||
