Frp Grating Machine 1220*2440*38mm

Share on:

Price:$4,000.00 - $6,000.00
Price in USD:Details


Product Overview


Product Description

38*38 Fiberglass FRP Grating Machine, FRP Molded Grating Making Machine Price
Product name: frp/grp molded grating making machine
Material: Fiberglass roving,resin,filler
Voltage: 110V, 220V, 380V
Mold size: 1000*4000mm, 1200*3660mm, customized
Certificate: ISO 9001:2008
Original: China
Loading Port: Tianjin,Qingdao,Shanghai.

Equipment inculded of FRP molded grating production line:
- FRP Molded Grating Machine
- Mixer
- Storage tank
- Hydraulic pump
- Grinding machine
- Water-circulating pump
- SS hot water tank
- Air source heating pump
- Cooling tower
- 2.2KW motor,10T Hydraulic force.
We provide full set of frp grating machines together with technology of producing if required.


Mesh Size
Grating Panel
Size LxWxH (mm)
38 x 38
1220 x 3660 x 38
38 x 38
1220 x 3660 x 30
38 x 38
1220 x 3660 x 25
50 x 50
1220 x 3660 x 50
38 x 38
1000 x 4038 x 38
38 x 38
1000 x 4038 x 25

P.S.: We can also provide customized mold sizes per client's request.

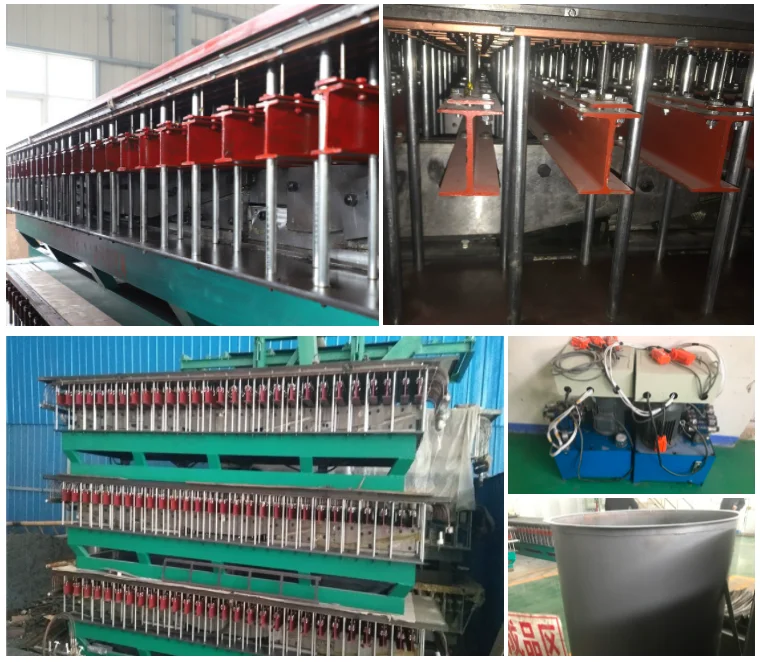

Details Images

Molded grid mold has the following characteristics:

1. Demoulding rod lift parallel to the use of double-cylinder, smooth action, no left and right swing phenomenon. Stripping lift system from the die rod fixed on the I-beam, lifting process parallel to solid. Hydraulic press for the company design and production of special hydraulic press, durable.

2. Demoulding rod made of steel after the fire made of grinding, smooth and smooth surface, hard, wear-resistant. With the lifting device up and down automatically up and down, easy to replace, repair.

3. Module with 45 steel, grinding and polishing after processing, polishing, surface plating, with anti-corrosion, smooth, easy mold release characteristics. Upper screw locking, easy to adjust, easy to replace.

4. Module heating and cooling heat exchange using copper pipe, with the module contact area, the temperature rise and fall speed. As the heat exchanger tube layout is reasonable, the four sides of the module can be uniform heat transfer. The catcher is connected to the brass joint and is easy to disassemble.

Company Profile

Our company
Hengshui Aoliande Trading Co., Ltd is a professional sales of FRP pipe, FRP tanks, FRP pultrusion profiles, FRP molded products and complete sets of glass fiber reinforced plastic production equipment professional company, through the professional and technical development and the introduction, the company relies on advanced technology, exquisite craft, reliable quality and perfect service, and passed the ISO9001, ISO14001, OHSAS18001 management system certification, the company existing staff more than 50 people, annual sales of glass fiber reinforced plastic series of products 6000 tons, the products have been sold to all over the world,and other countries have won the support and trust of new and old customers.

Our plant founded in 1992 with annual capacity of 60000 tons, is located in biggest FRP production base of China - Hengshui City .
With high quality and reliable and professional service, our frp products have been exported to all over the world including USA, Japan, Brazil, Germany, Egypt, India, Malaysia and won good fame and trust from new and old clients.
Meantime we have made good cooperation with many firms of top 500 of the world, such as BAYER, BASF, Rohm and Haas, DOW Chemical, Fluor, etc.

Customer Photos

Packing and Shipping


Q: Are you trading company or manufacturer ?
A: We are a company with trading company and factory together. Our trading company is named Hengshui Aoliande Trading Co., Ltd and factory named Hengshui Jiubo Composites Co., Ltd.

Q: I didn't see dimension info or find the size I need, can you make it per my requirements?
A: For FRP products, all dimesion can be customized. We can make it per client's requirement.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls send inquiry to us directly.
