G NiceRF Lora6103AES AES encrypted 433MHz sx1278/sx1276 1W 8Km LoRa long range usb data rf module

Share on (60731494411):


Price:

Quantity:


Product Overview

Description


probanner

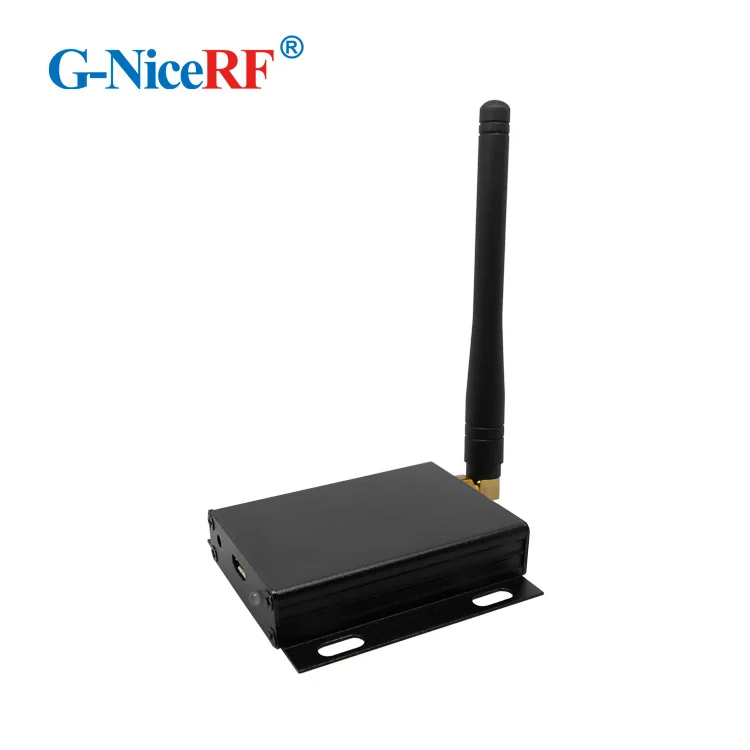

Lora6103AESLora6103AES - AES encrypted 433MHz sx1278/sx1276 1W 8Km LoRa long range usb data rf module





Product Description

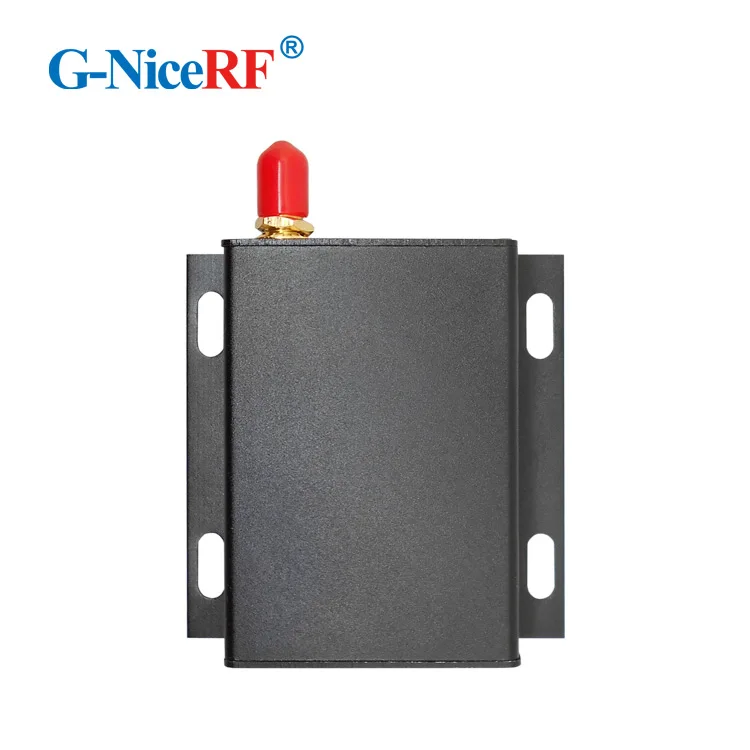

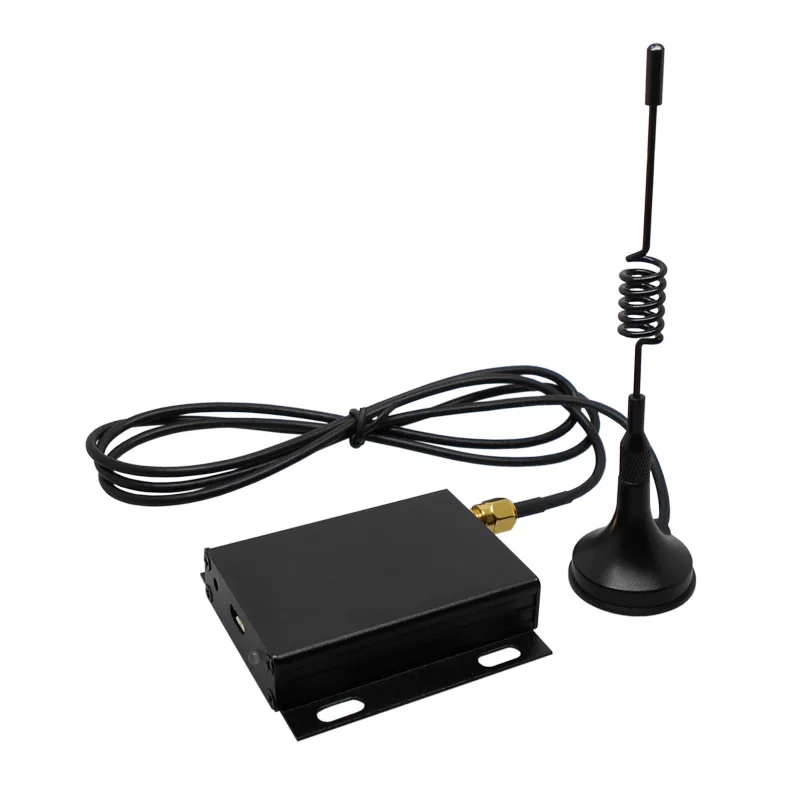

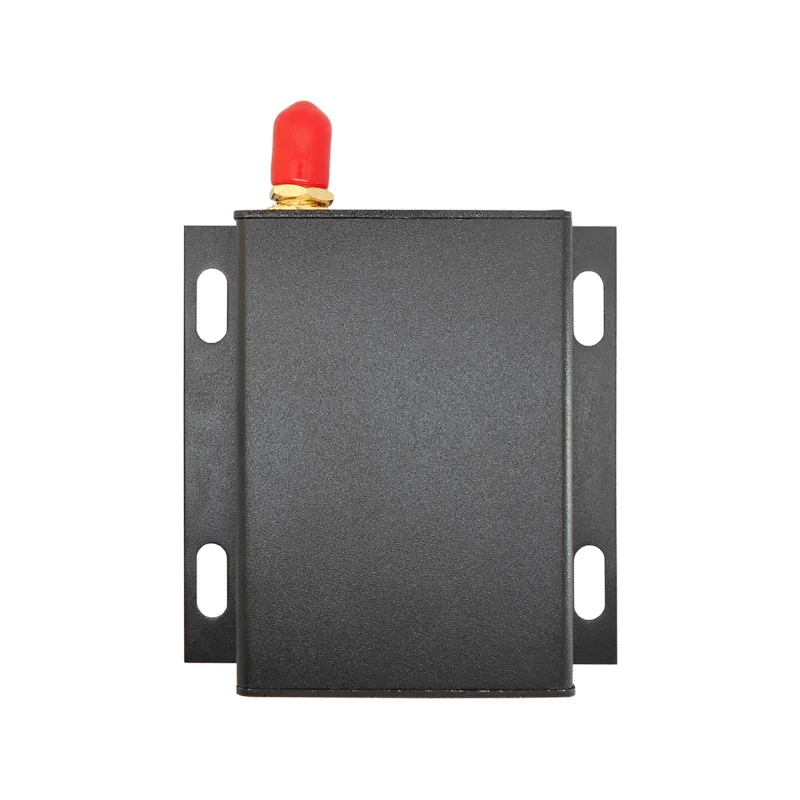

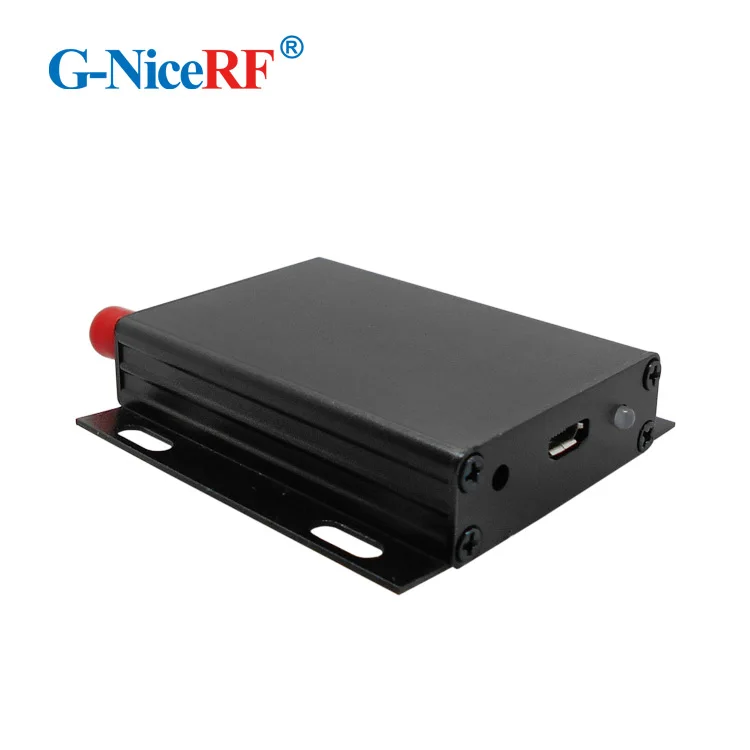

Lora6103AES is an industrial class wireless transceiver data transmission module with aluminum housing , based on SX1276/1278 chips from Semtech. This module adopts LORA technology to achieve high effective sensitivity and superior anti-interference. For better security, the module uses AES128 encryption. Lora6103AES has 1W output power and USB interface available. It is widely applied in meter reading, remote industrial control, etc



Feature

  • Transmission distance in open area up to
  • 8000 meters @ 91bps
  • 433/470 (1W) MHz
  • 868/915 (500Mw) MHz
  • 40 channels
  • LoRa modulation

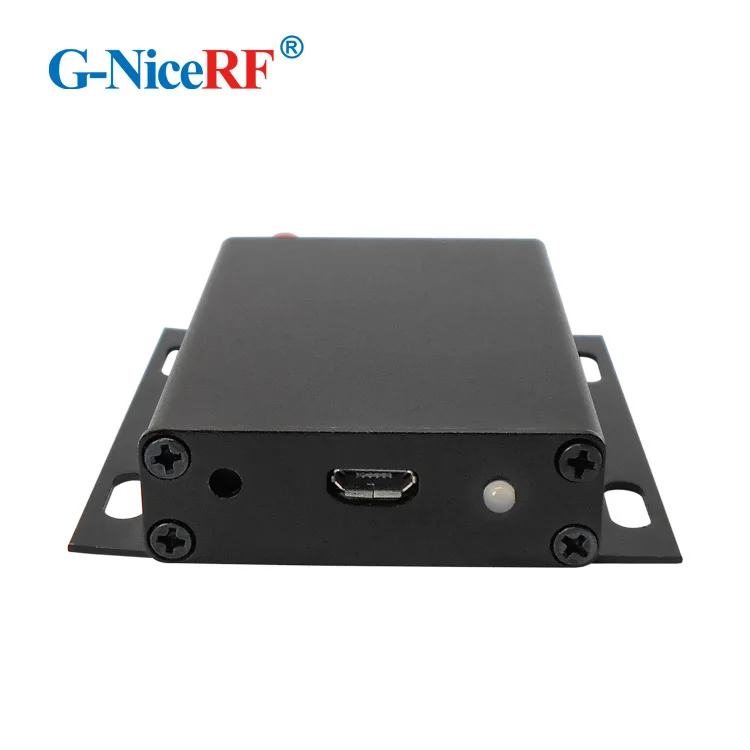

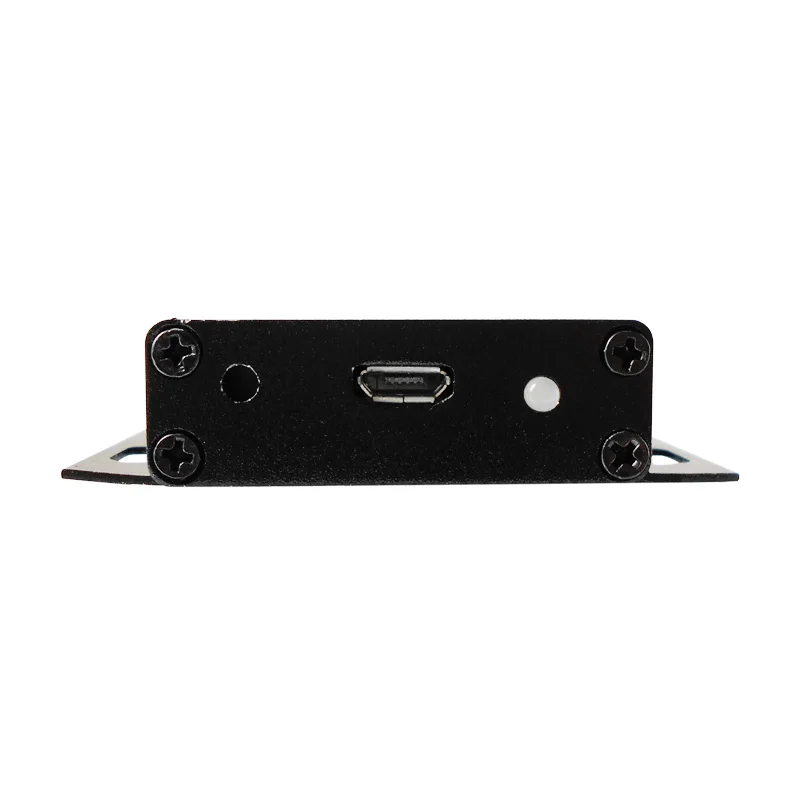

  • USB Interface
  • Sensitivity: -139 dBm
  • Max output power: 1W/500mW(+30dBm/+27dBm)
  • Working voltage:4.5~5.5 V
  • Working temperature:-40~+85 °C


Application

  • Remote control telemetry
  • Remote meter reading
  • Security system
  • Industrial data acquisition
  • Home automation
  • Wireless data communication
  • Access system
  • Robot control

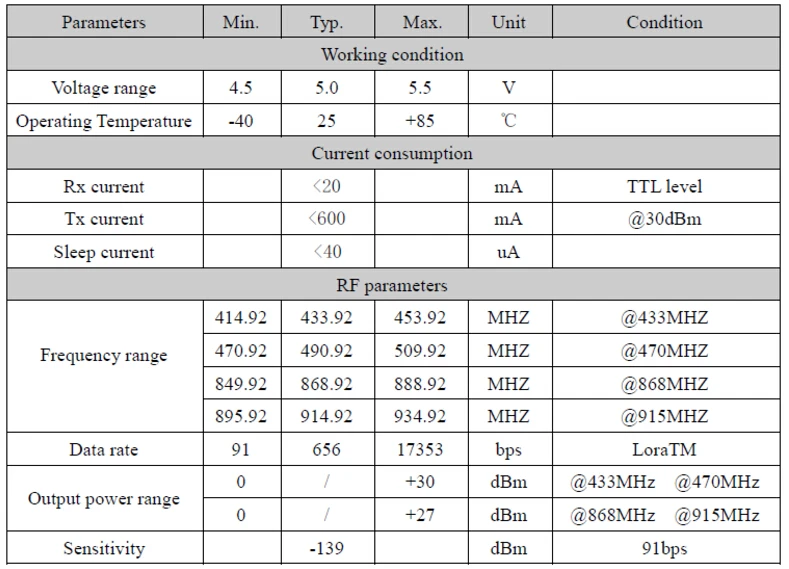

Specification:

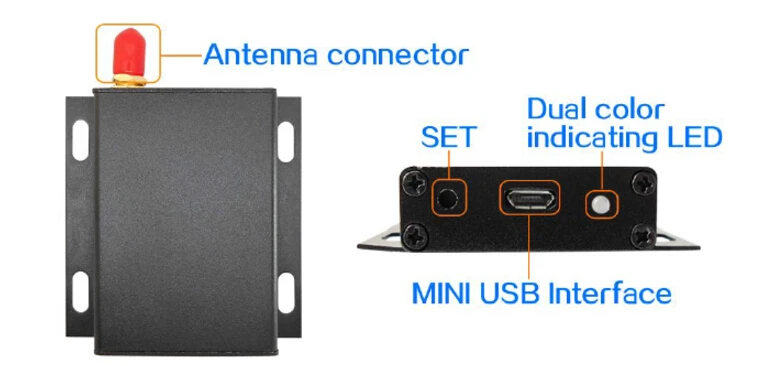

Pin definition

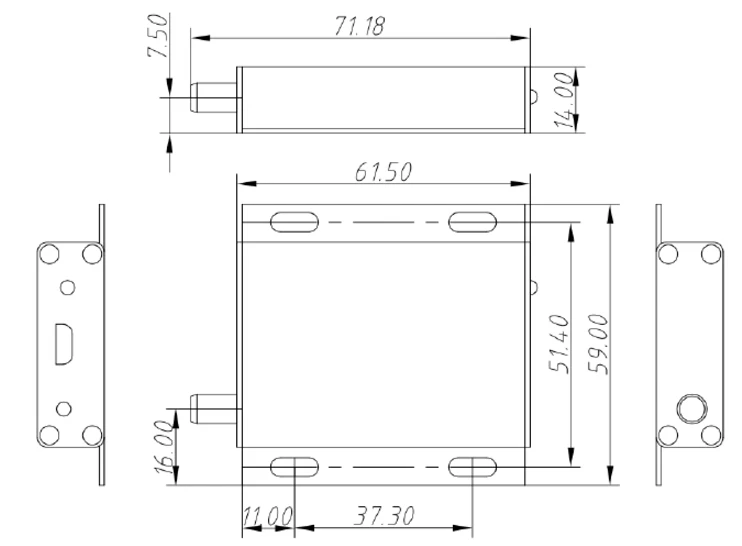

Mechanical dimension












Packaging & Shipping

.jpg

Shipping

1.  Items will be shipped within 3~5 days after we receive the full payment.

2.  We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.

3.  If you do not receive item within 60 working days (10 weeks), please contact us to investigate the case.

4.  Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.



We can provide EMS, DHL, Fedex, TNT China Register Post Air Mail and etc.

* All free shipping on our store are mostly China Registered Post Air Mail.

* If you need fast shipping like DHL or other, you will need extra payment, pls contact sales to evaluate the price





Our Services

1.Any inquiries will be replied in 12 hours.

2.OEM/ODM service.


* Customer's own logo is available;
* We help customer realize their own thinking, idea, design;



3. After-sale Service.
* All products passed QC before shipping;
* All products will be well-packed before shipping;
* All products have 1 year guarantee. Damaged item is free to change or return in warranty period.



4.Payment Terms:

T/T,Western Union/paypal/MoneyGram.


5.Shipping Company:

China air post/HK,Singapore post/EMS/DHL/FEDEX.
