Product Overview
Description

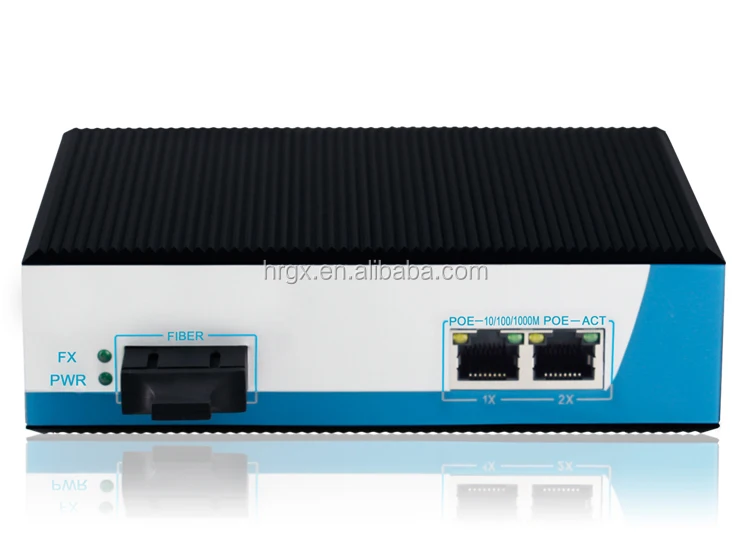

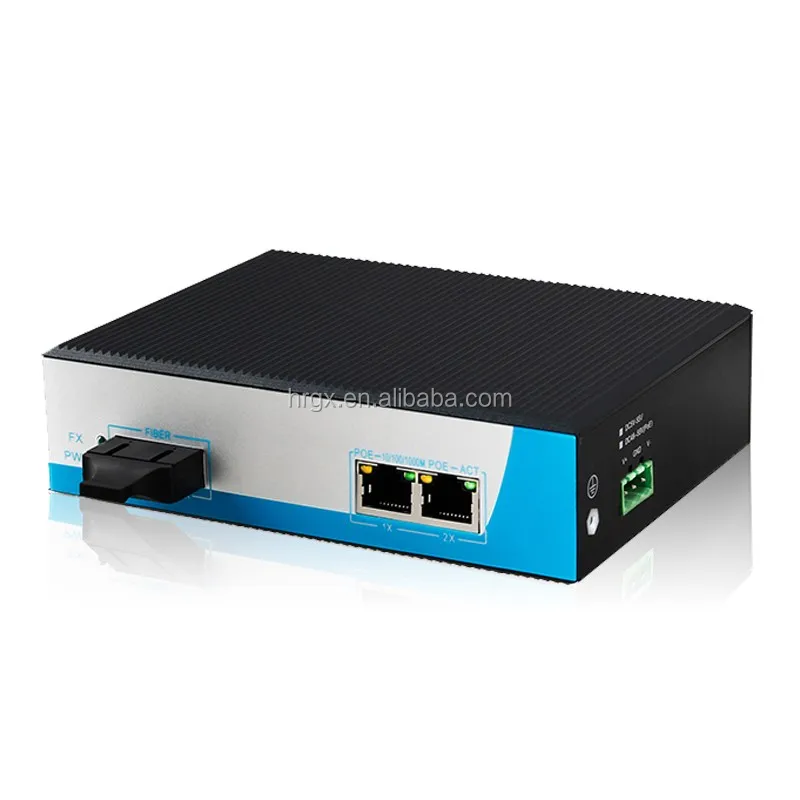

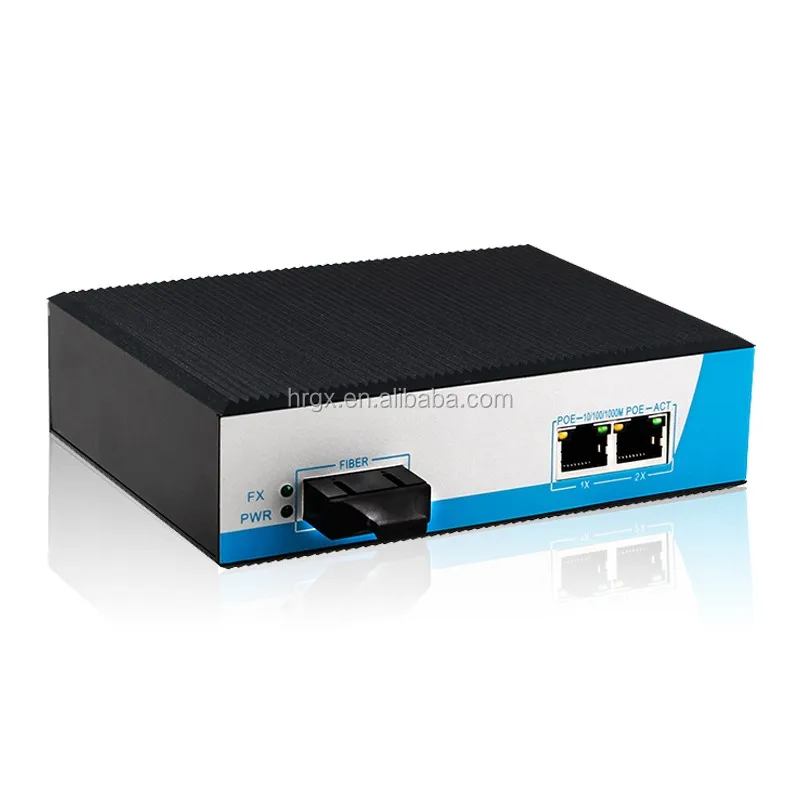

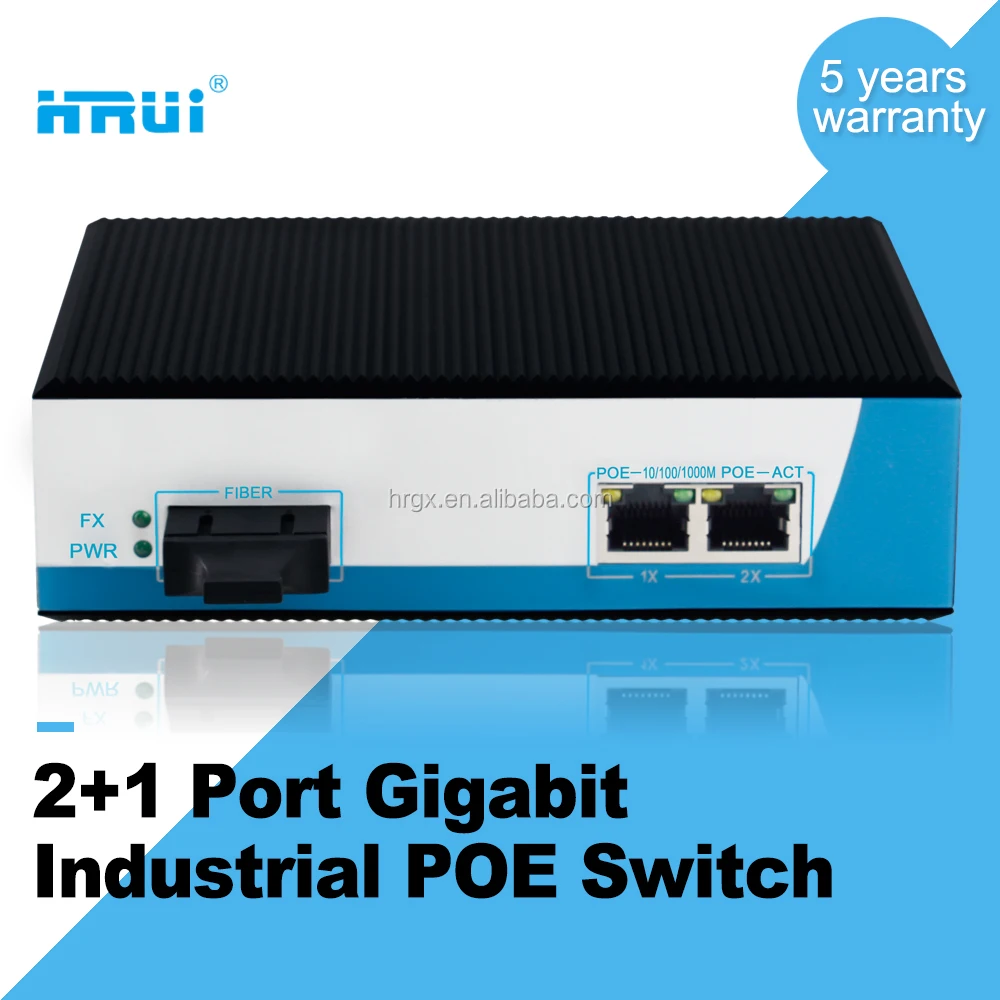

All port ant-thunder 6000V din rial 3 port industrial gigabit switch poe for ptz ip camera
2*1000M PoE port +1*1000M single fiber port
Support IEEE802.3af/at Each port Max30W
Technical Parameter
| Product Name | 3 ports Industrial PoE Switch/Media Converter |
| Model | HR600-AFG-21F |
| Interface | 2x 10/1000M copper RJ-45 ports, 1x 1000M SC Optical Single Fiber Port |
| Network Protocols | Support IEEE802.3,IEEE802.3u,IEEE802.3x |
| PoE Specification | PoE Standard: Supports both IEEE802.3af and IEEE802.3at Single PoE Port Power Output:Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) PoE port Auto detect AF/AT devices PoE Port Output Voltage: 48V Power Pin Assignment:1/2+;3/6- |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode: 1310nm, 2Km Single-mode: 1310nm, 20/40 Km 1550nm, 60/80/100/120Km |
| Performance Specification | Bandwidth: 12Gbps Packet Buffer Memory:1M 100M Packet Forwarding Rate:148800pps/port Address Table:2K MTBF: 300,000 hours |
| Forwarding Mode | Store-And-Forward |
| LED Display | Uplink Run indicator: FX Power supply indicator: PWR PoE ACT indicator: LED-Yellow PoE LINK indicator: LED-Green |
| Power Supply | Input Voltage: 5-55V Type of input:3 bits terminal block No-load consumption: MAX 5W@ DC52V0.1A Full-load consumption: MAX 65W@ DC52V1.25A (802.3af/at) |
| Working Environment | Working temperature: -40~85℃ Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
| Industry Standard | EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |

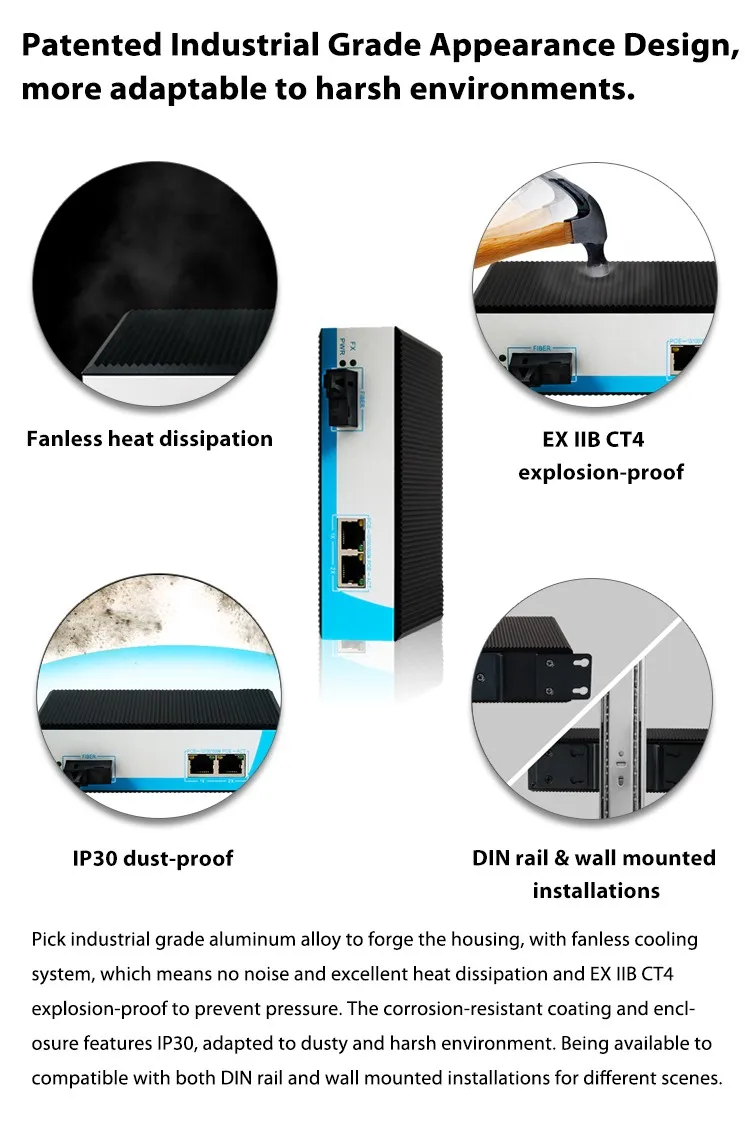

| Mechanical Structure | Shell: IP30 protect grade, metal shell Installation: DIN-Rail or Wall mounts |
| Certification | CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B |
| Warranty | 5 years |
| Size | 14.5cm*12cm*4cm(Net wight:0.5kg) |
Related Product
| HR600-AF-11F | 1*100Base-Tx to 1*10/100Base-Fx Fiber port, Single mode, 20Km, SC/FC/ST,802.3af |
| HR600-AF-21F | 2*100Base-Tx to 1*10/100Base-Fx Fiber port, Single mode, 20Km, SC/FC/ST,802.3af |
| HR600-AF-41F | 4*100Base-Tx to 1*10/100Base-Fx Fiber port, Single mode, 20Km, SC/FC/ST,802.3af |
| HR600-AF-41 | 4*10/100Base-Tx POE+1 100M Uplink Ethernet port, 802.3af |
| HR600-AFG-41 | 4*10/100/1000Base-Tx POE+1 1000M Uplink Ethernet port, 802.3af |
| HR600-AFG-41F | 4*1000Base-Tx to 1*Gigabit Base-Fx Fiber port, Single mode, 20Km, SC/FC/ST connector optional,802.3af |
| HR600-AFG-42F | 2 Gigabit SFP Slot to 4*10/100/1000Base-Tx PoE, LC,802.3af |
| HR600M-AFG-44F | 4 Gigabit SFP Slot to 4*10/100/1000Base-Tx PoE, LC,Managed,L2,Ring,802.3af |
| HR600M-AFG-82F | 2 Gigabit SFP Slot to 8*10/100/1000Base-Tx PoE, LC,Managed,L2,Ring,802.3af |
| HR600M-AFG-84F | 4 Gigabit SFP Slot to 8*10/100/1000Base-Tx PoE, LC,Managed,L2,Ring,802.3af |
FAQ
Q1: What is the warranty for your product ?
We guaranteed for 3 year for our product and 5 year for industrial Switch. Any quality problem happened in this period for our reason, we will send the replacement parts in next order.
Q2: How soon can I get samples for test to check quality?
We can provide 1-3pcs samples. The lead time for our regular products within 5~10 days. We will also offer customized products to meet your requirement.
Q3: Can you accept OEM&ODM service business?
Yes, we can.We have a strong R&D team and professional production lines.Our R&D team
can customize the special items as your needs. You can visit our website to learn more about our excellent R & D team, and you will believe you can get satisfied product
Q4: Do you accept small quantity orders?
Yes, we accept. But no doubt that the more the amount of your order, more discounts you will get. If you have a regular monthly order volume, we also would like to give you the appropriate discount.
Q5: Why we choose HRUI?
We have professional R & D staff and a complete set of product testing process. All the producing procedures are operated under strict ISO quality management system. our factory staffs are experienced and responsible on work. So we have the ability to ensure the quality of your products.
