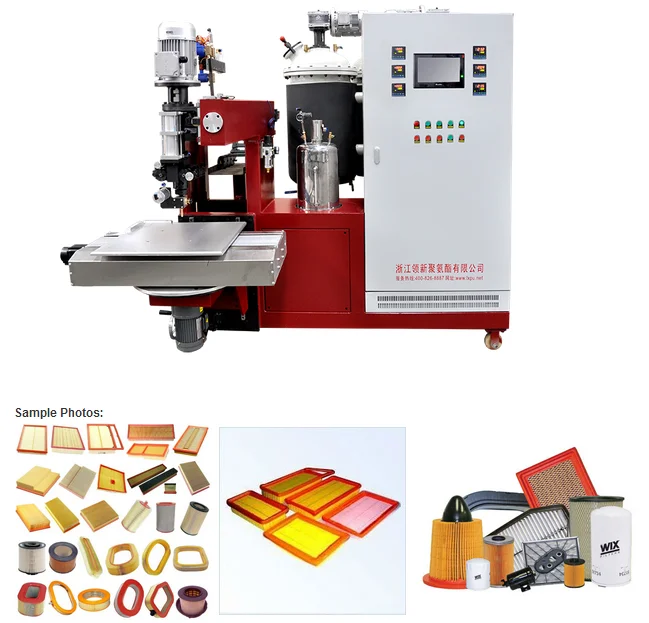

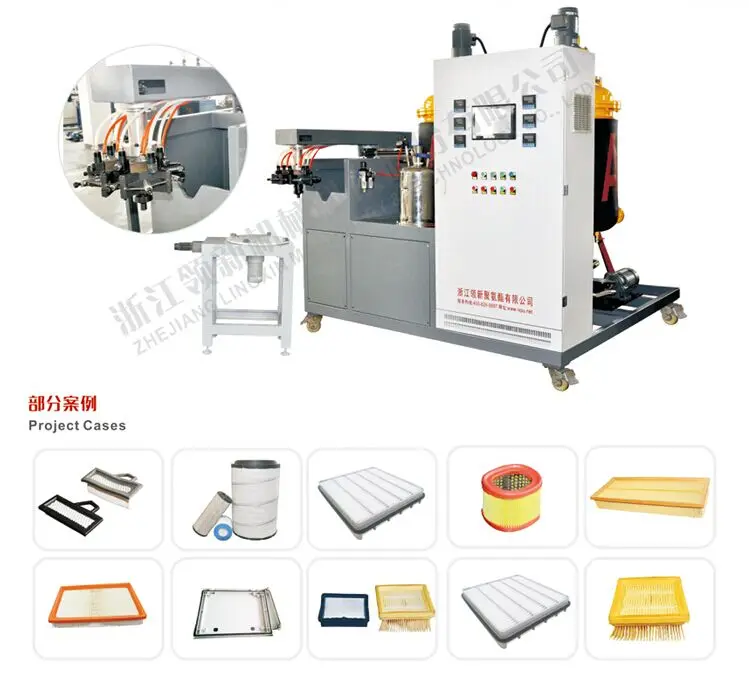

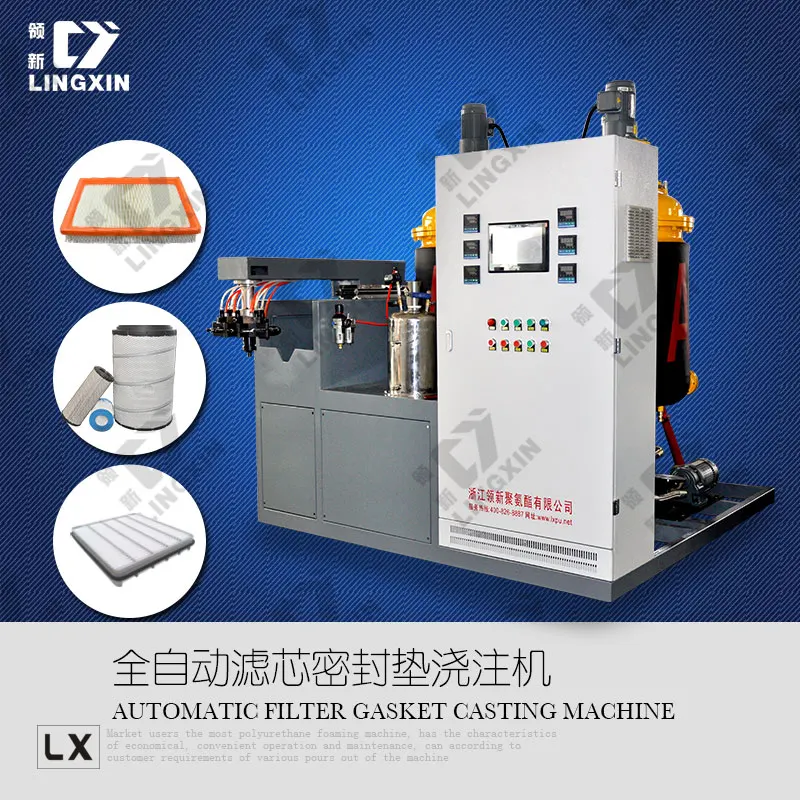

Polyurethane PU Filter Gasket Casting Machine /Filter Gasket Pouring Machine /Filter Gasket Making Machine

Product Overview

Description

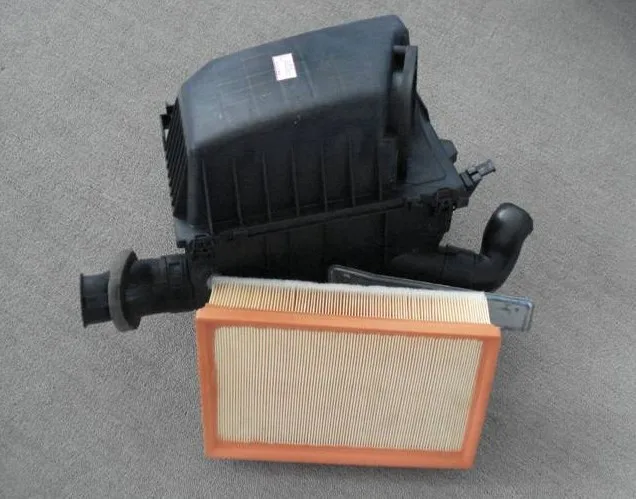

Air filter is one of three filters which are indispensable for internal combustion engines. With fast development of car industry, taking polyether low density microporous elastomer as air filter cover is adopted excessively by car industry. The filter gasket casting machines manufactured by our company have easy operation, convenient maintenance, high level automation and stable performance.



Equipment Features:

The equipment is dedicated to the casting of sealing for car air filter, industrial filter, air purifier;
High precision metering pump, accurate metering, random error within±0.5%;
High performance anti drooling mix device with flowback adjusting function,

accurate material output synchronization and even mix;
Fully automatic control of material injecting time, cleaning frequency, automatic cleaning flush and air purge;
Adopting PLC, touch screen man-machine interface, and servosystem to control casting, move as per preset track, accurate positioning, which can meet the production need of round, rectangle, and special irregular shape items, high production efficiency, stable performance.
Additional functions optional: remote control, automatic feeding, high viscosity feeding pump, automatic cycle during shutdown , mixing head water flush, etc.;



Technical Parameter:

Total power: 20KW

Power: supply: 380V 50HZ

Compressed air: more than 0.6MPa

Casting Flow Rate: 1-50g/s

Weight: 1800kg

Rotated speed: 6000rpm

Mix type: Dynamic

Material tank volume: 80L

Mix range: B: A=25-70

Measure accuracy: around 0.5%

Our company:

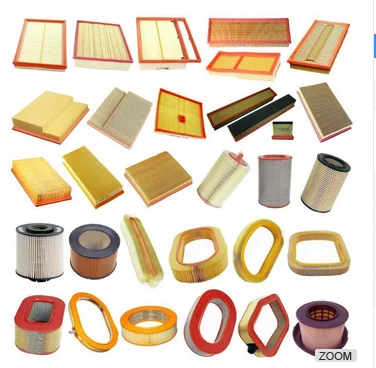

Part of PU Products can be made by our machines:
