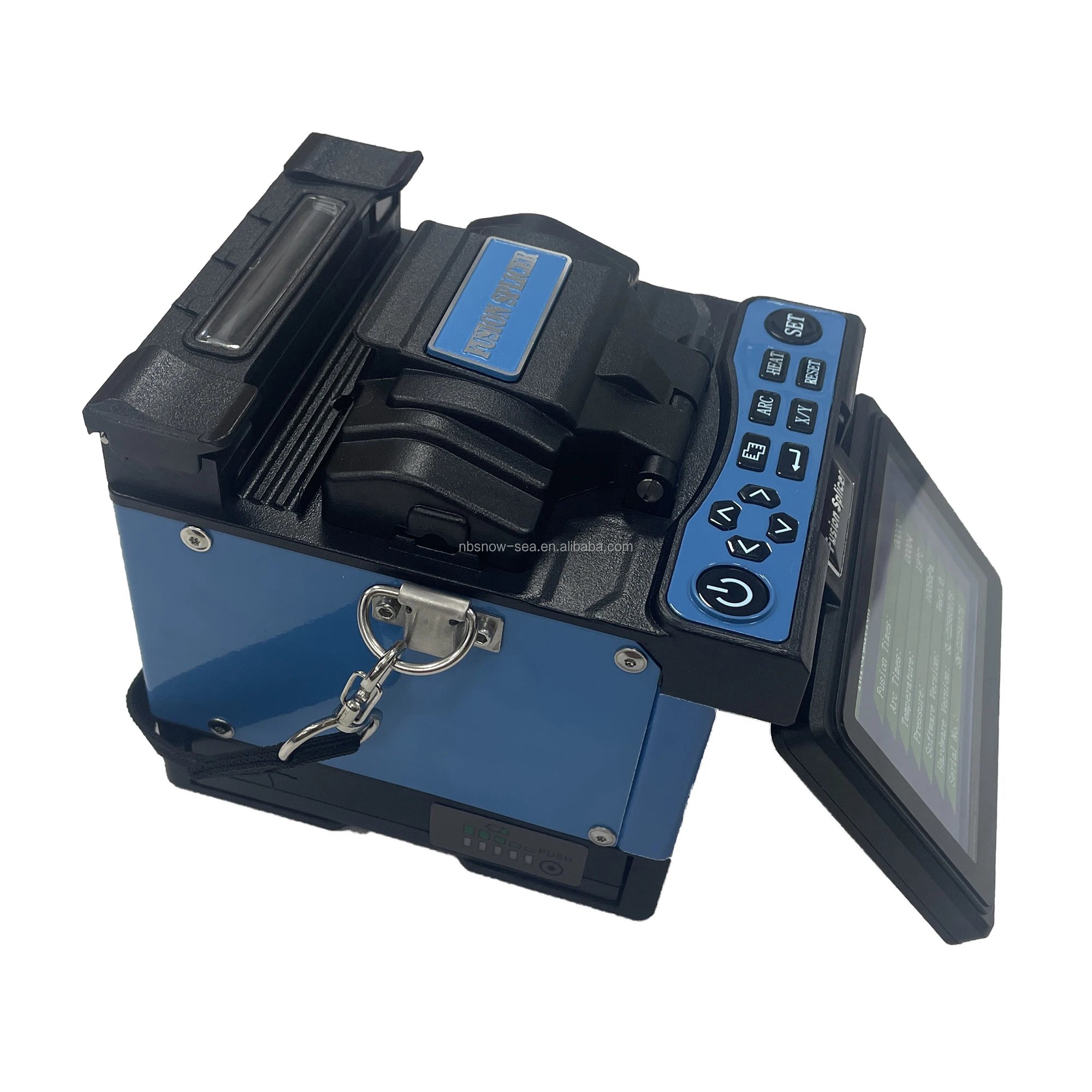

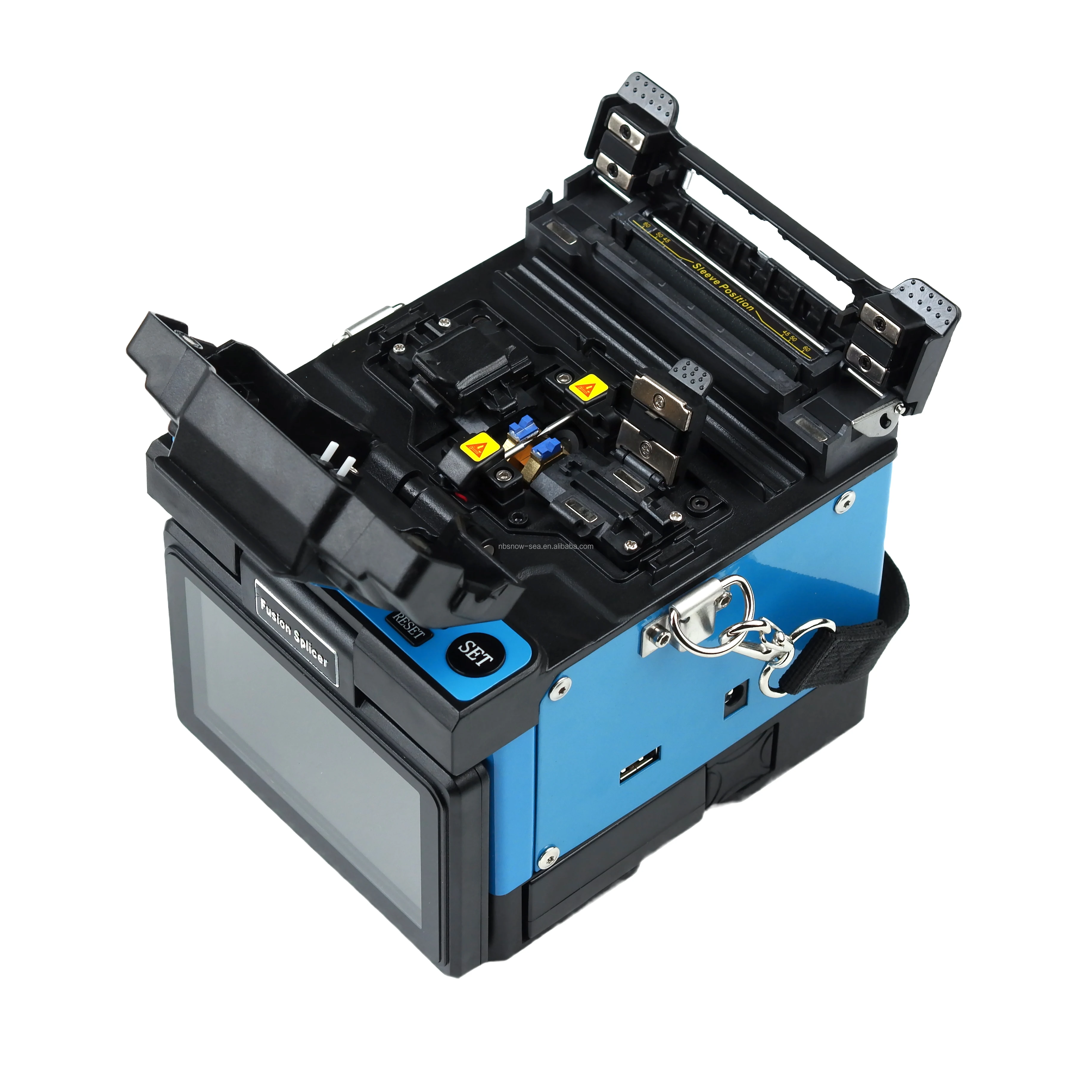

FTTH Small Size High Precision Optic Fiber Joint Machine with Dual Heating Groove
- Category: >>>
- Supplier: Ningbo Snow Sea Optoelectronic Technology Co. Ltd.
Share on (60731650438):
Product Overview
Description

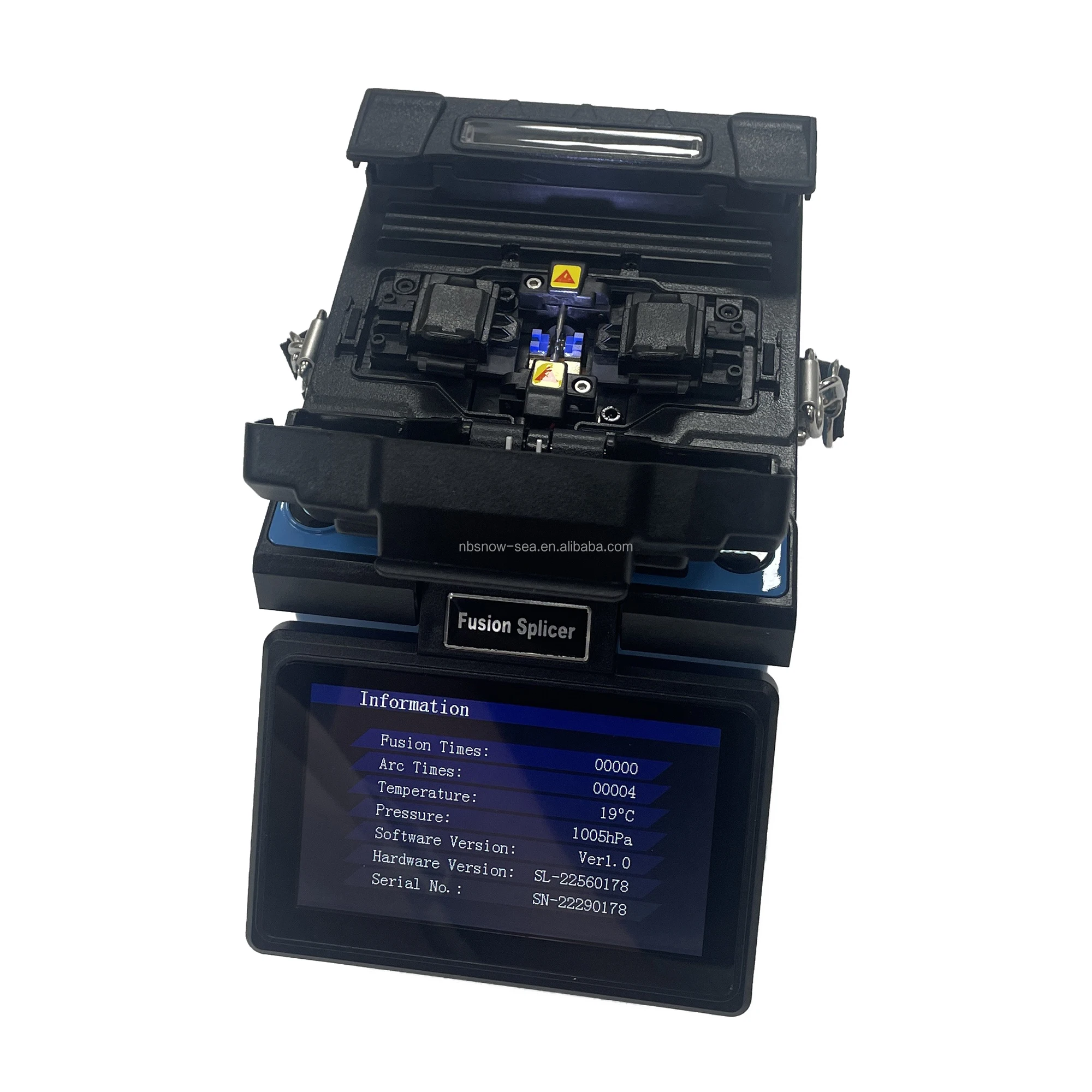

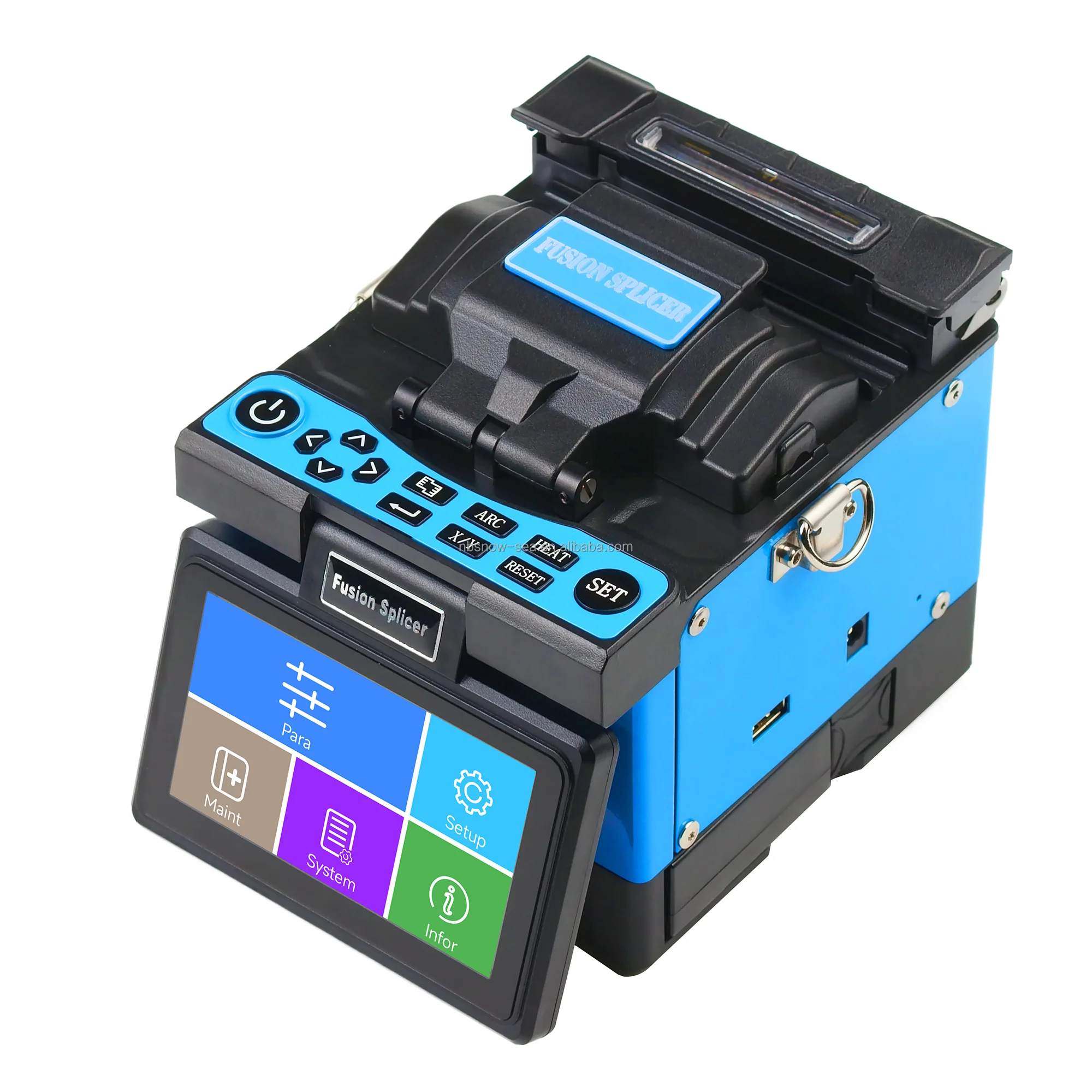

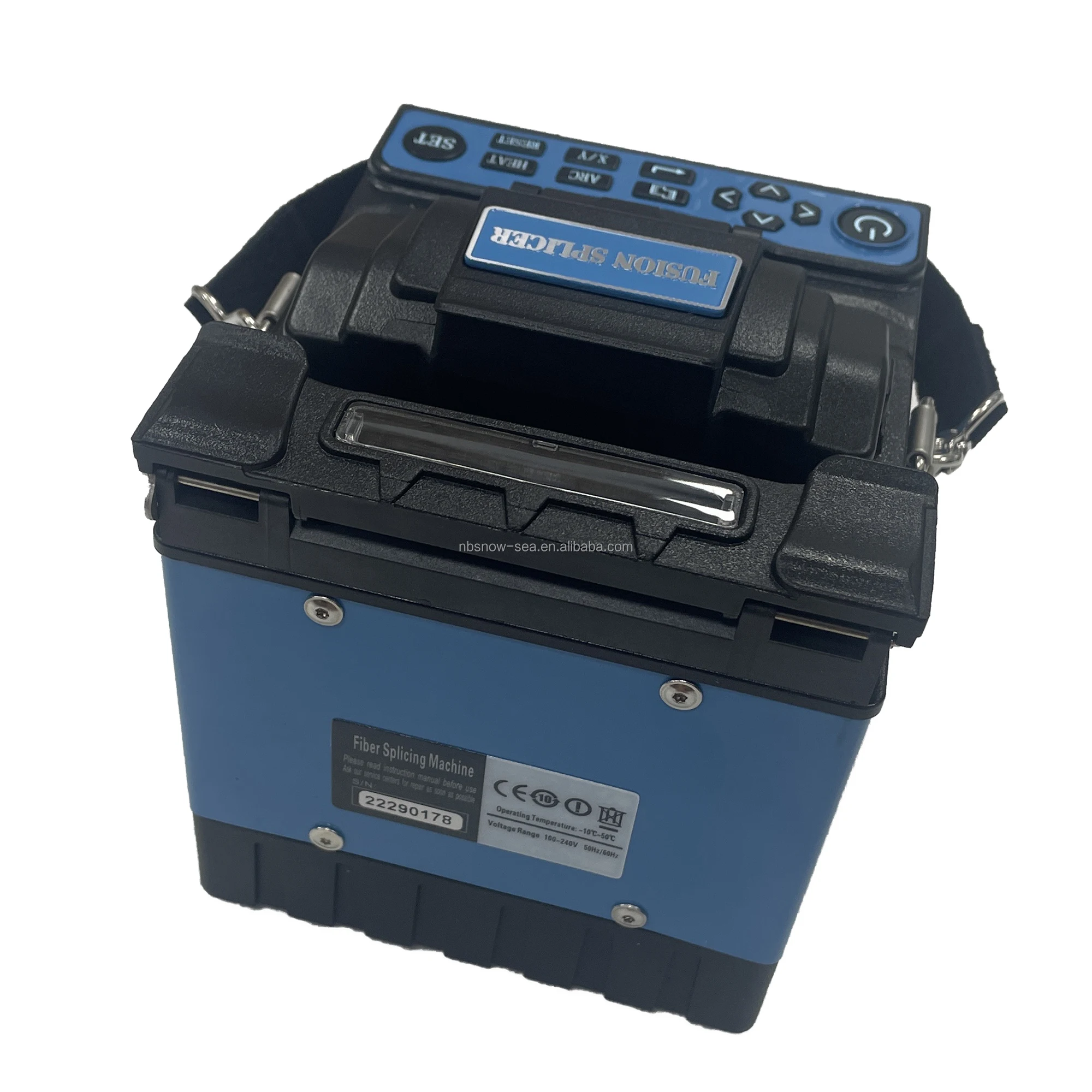

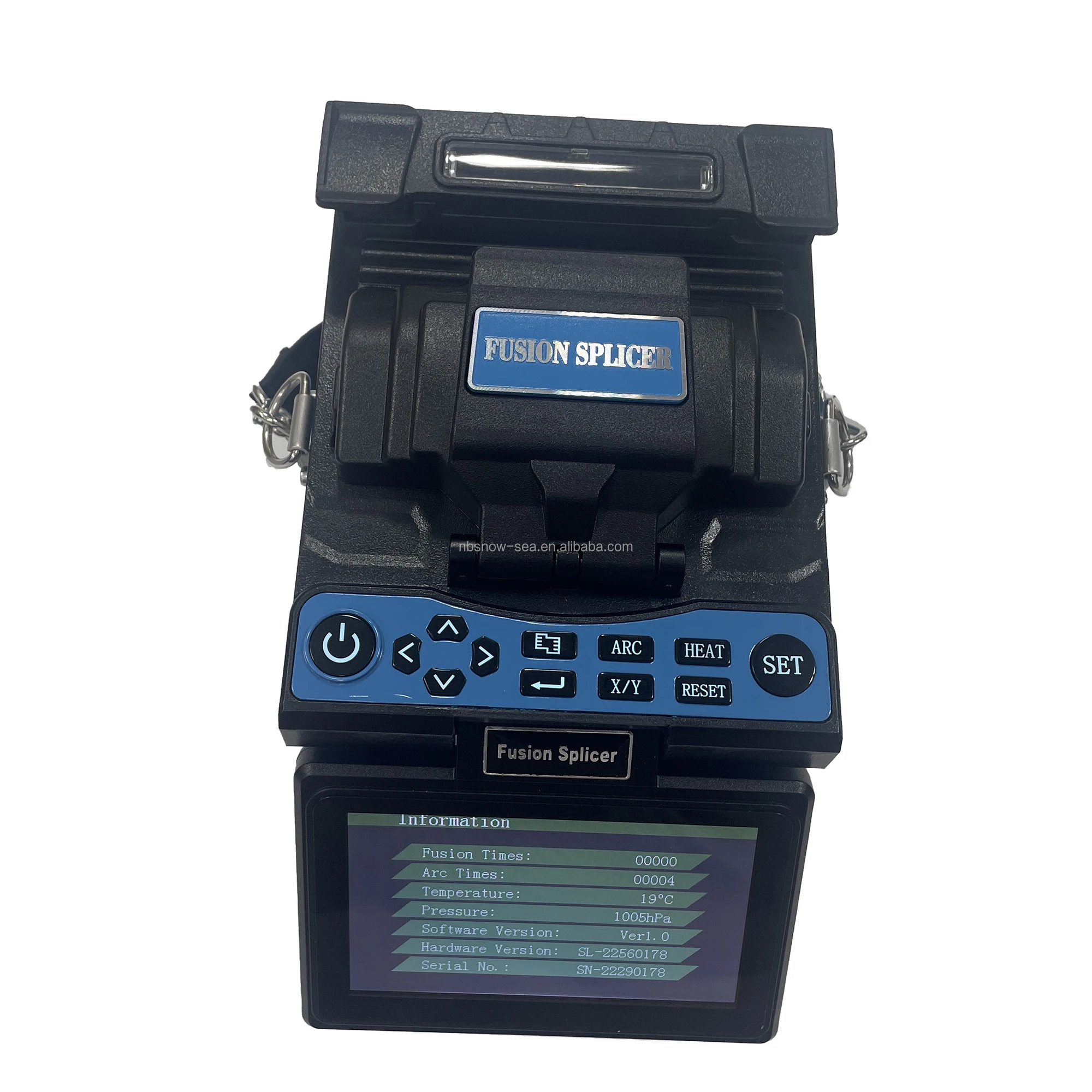

SNP4108L FTTH Economical Type High Precision Fiber Optic Splicing Machine
Description
SNP4108 FTTH High Precision Optical Fusion Splicer, with high performance price ratio, is the main product of our company.
With smart appearance, reliable quality, SNP4108 is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.
Features
Support 9 languages, it's simplified Chinese, traditional Chinese, English, Italian, French, Spanish, Portugues, Russian and Indonesian language
Used for FTTH and ordinary fiber project
Core to core alignment by PAS technology
8 sec splicing time and 30 sec heat time
300 X or Y view, 200 X and Y view

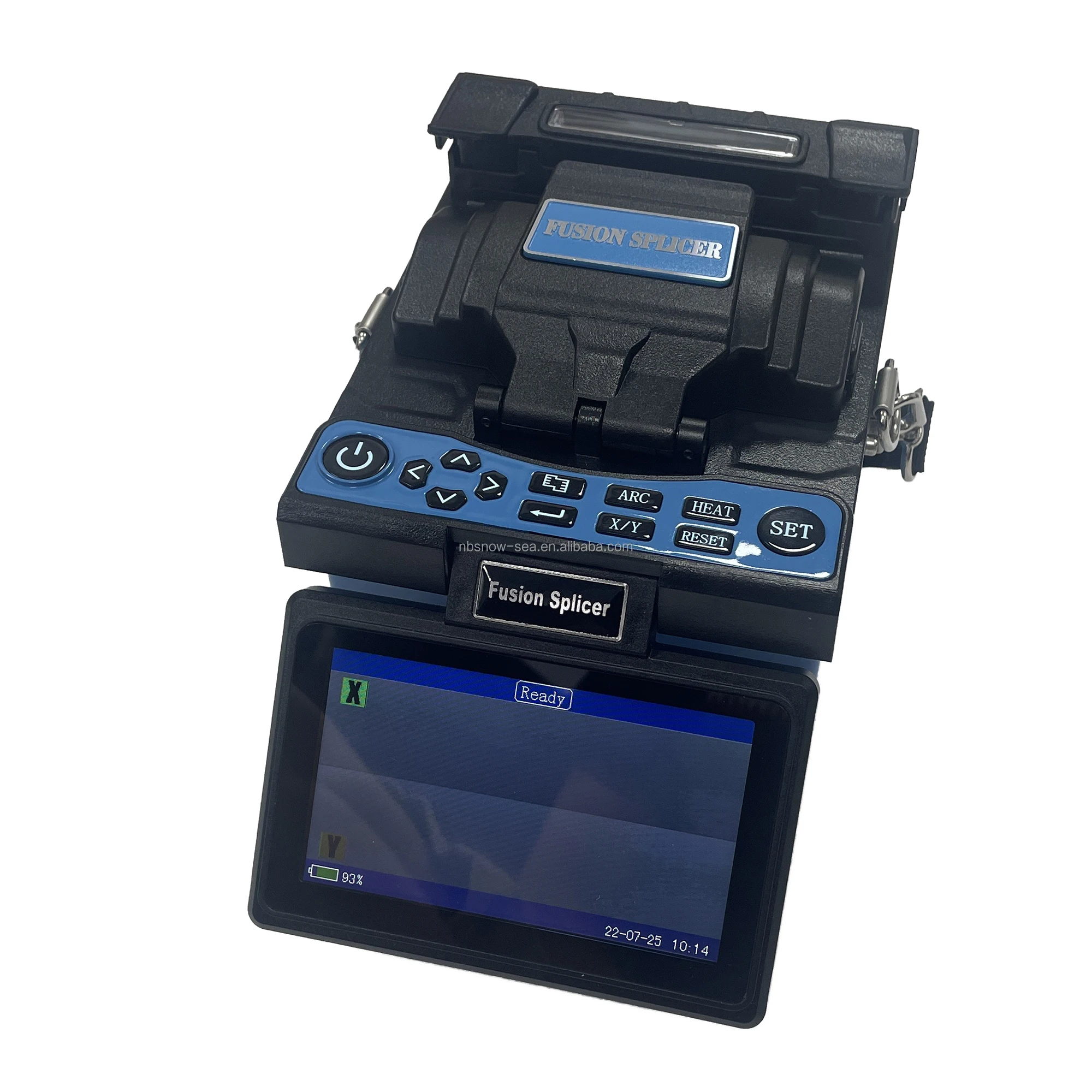

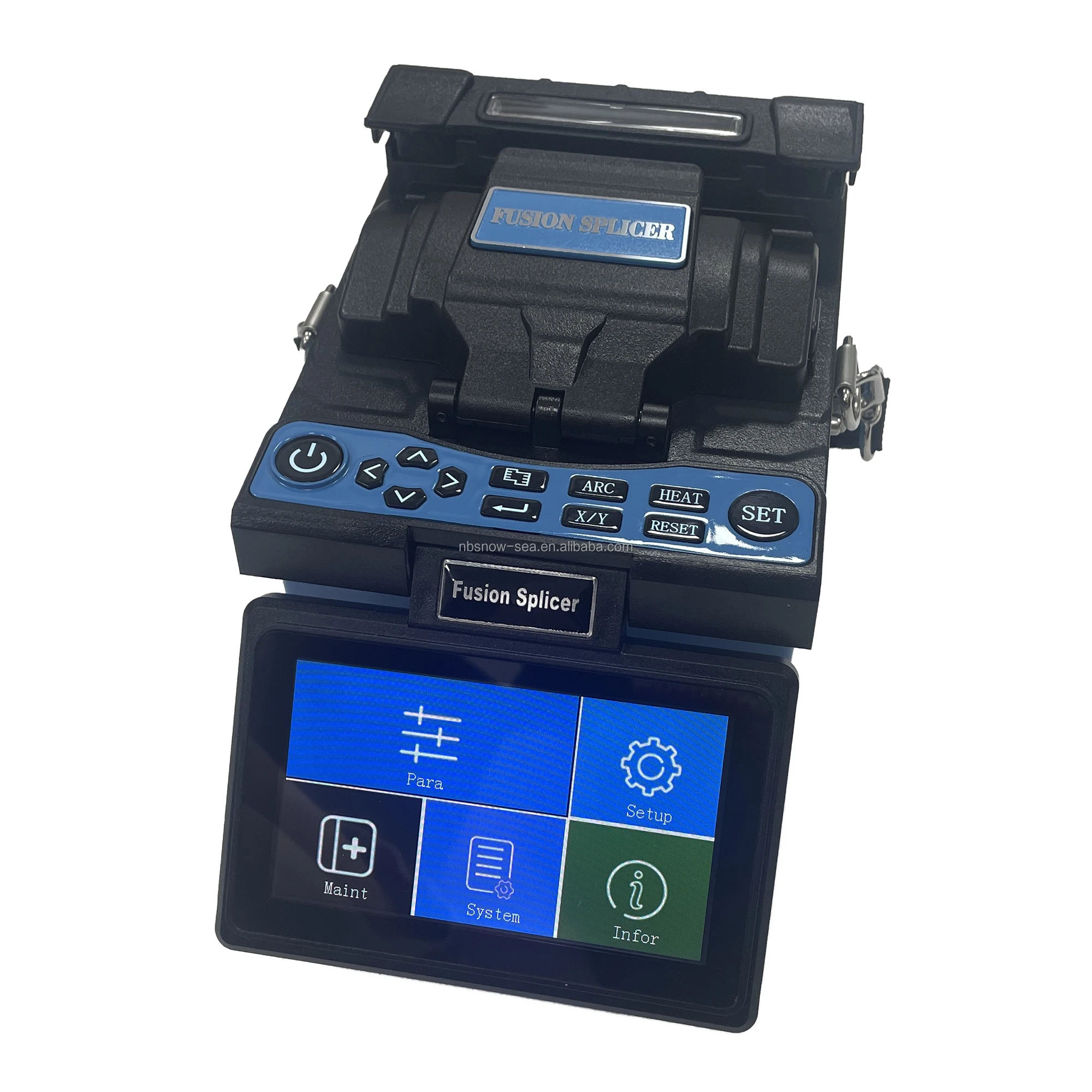

5 inch digital high-quality LCD screen, observe X and Y view at same time

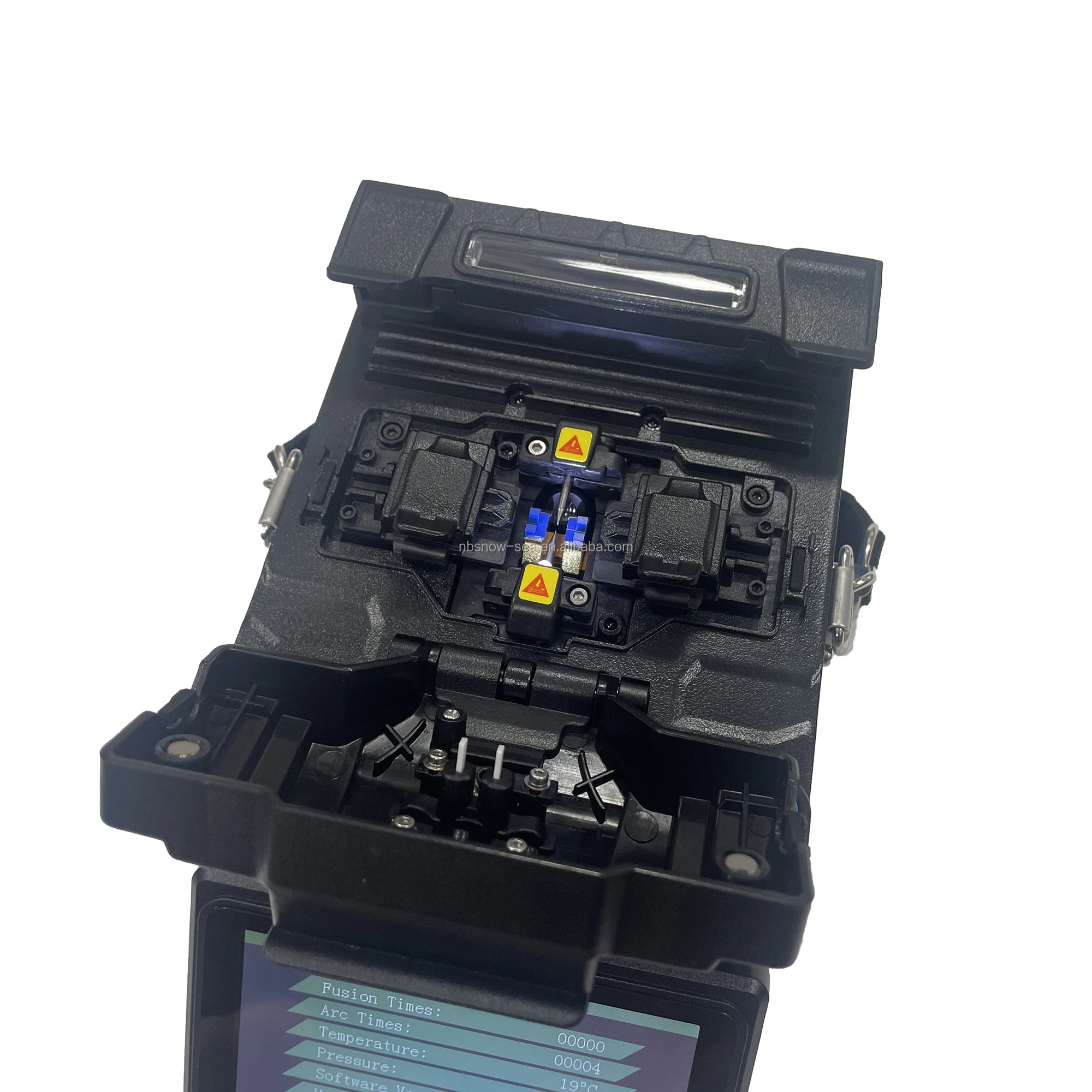

Three in one fixture, splicing single fiber, cable indoor and pig tail
Applicable Fiber: bare fiber, 0.9/2.0/3.0mm patch cord, drop cable.
Built in large capacity lithium battery of 200 times splicing and heating
Small size and light weight, 2.1KG including battery
With dual heating groove (optional), it can heat 2pcs heat shrink sleeve for fiber optic fusion splice at the same time, it can reduce the heating time and greatly improve work efficiency.

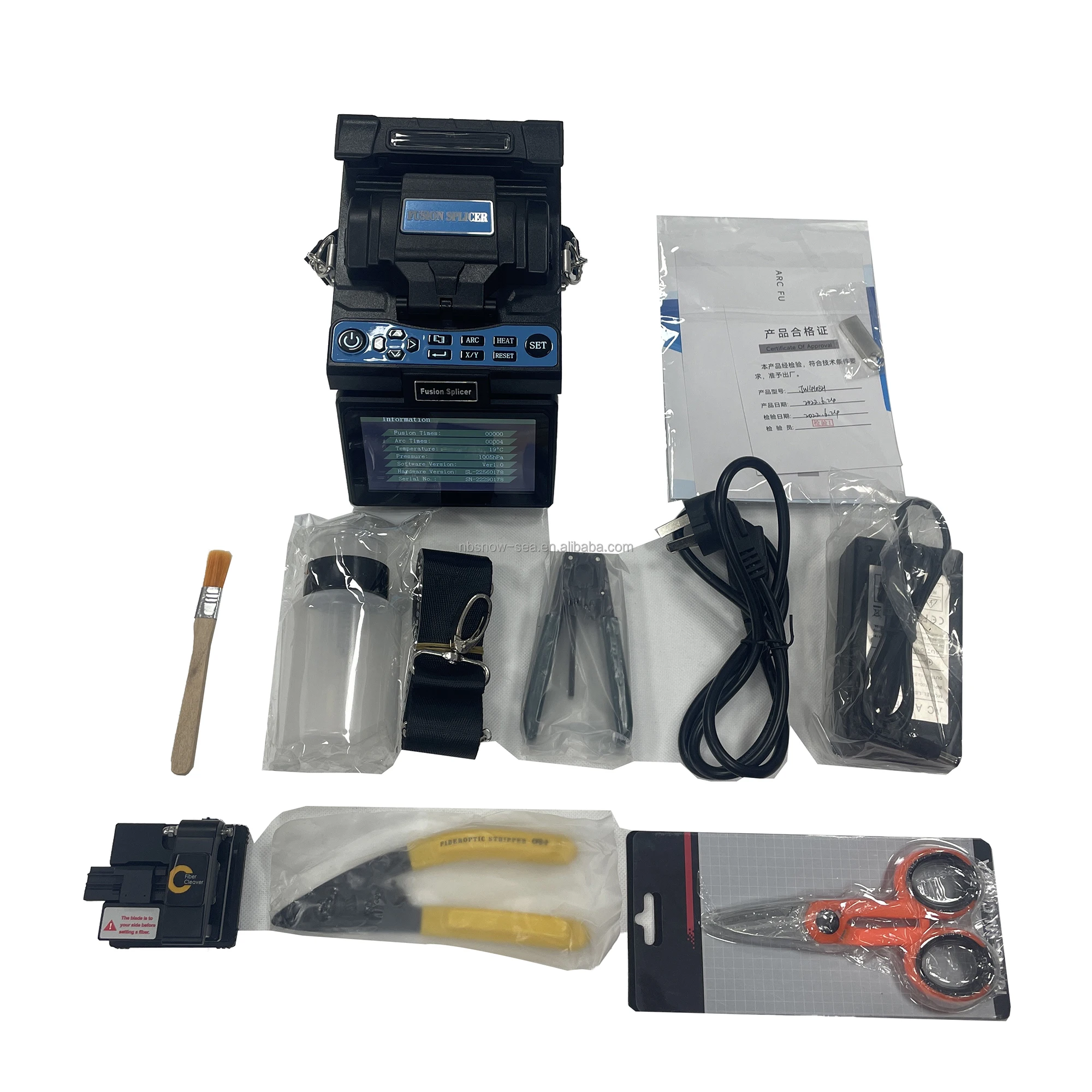

Standard Configuration
No | Name | Qty |
1 | Fusion Splicer (SNP4108S) | 1 set |
2 | Fiber Cleaver | 1 pc |
3 | Fiber Stripper | 1 pc |
4 | AC Adapter | 1 pc |
5 | Li Battery | 1 pc |
6 | Charger | 1 pc |
7 | Spare Electrodes | 1 pair |
8 | Cooling Tray | 1 pc |
9 | User Manual CD | 1 pc |

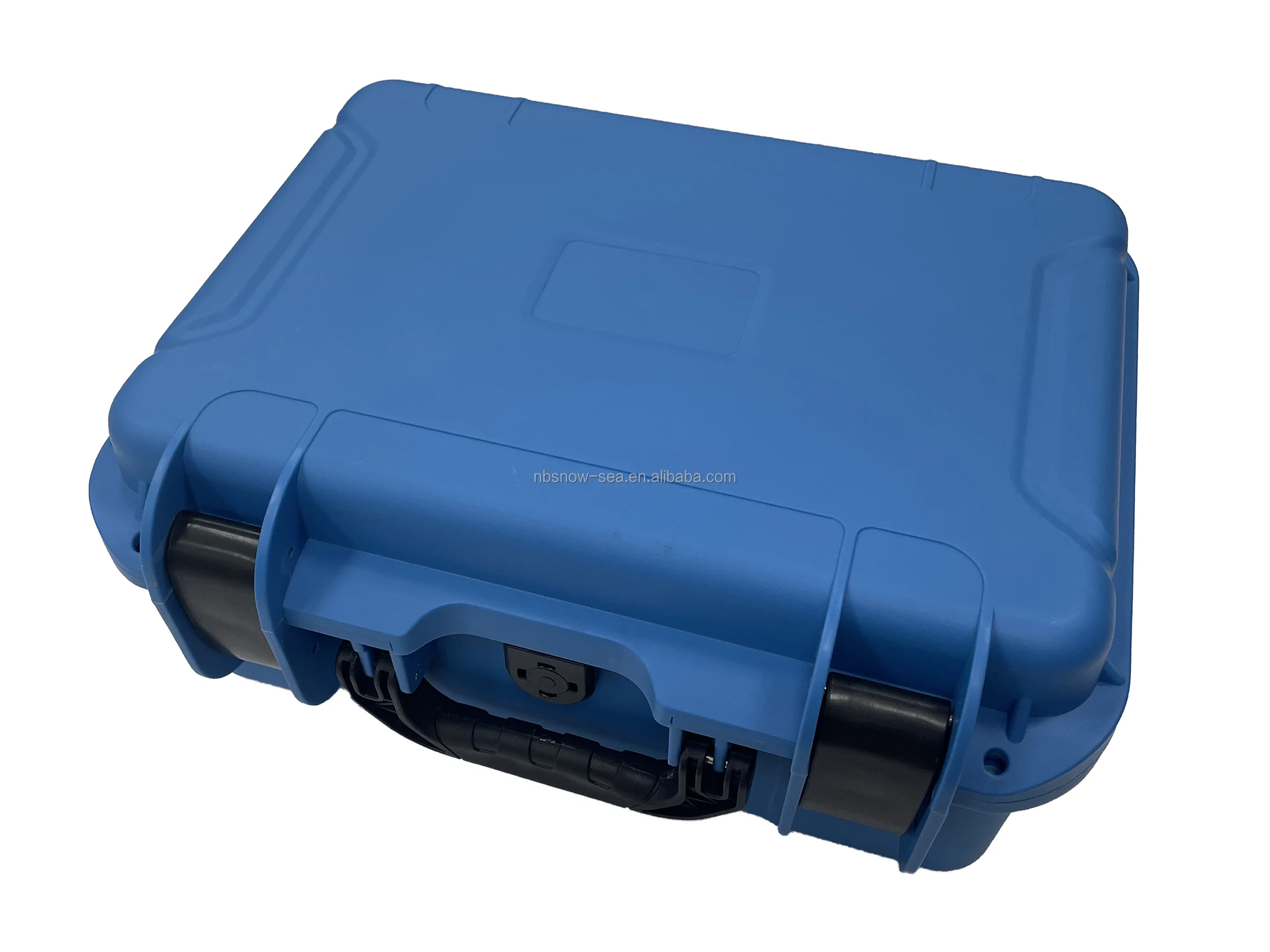

10 | Carrying Case | 1 pc |
Specifications
Model | SNP4108 FTTH Fusion Splicer |
Splicing Type | SM, MM, DS, NZDS |
Splicing Loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS) |
Return Loss | >60dB |
Splicing Mode | Manual, Half Auto, Auto |
Fiber Alignment | Core to Core Alignment by PAS technology |
Applicable Fiber | Cable indoor and 0.25mm, 0.9mm fiber, SC fast connector |
Splicing Time | ≤9s |
Heat Time | ≤30s |
Cleaved Length | 8~16mm |
Fiber Image/ Magnification | 300/200 |
View Display | 5 inch digital high-quality LCD screen |
Tension Test | Standard 2N (option) |
Heat Shrinkable Sleeve | 60mm, 40mm and serials heat Shrinkable Sleeve |
Battery Capacity | 200 cycles splicing and heating, 3 hours charging time (splicing and charging at same time) |
Battery Life | Cycling charge 300-500 times, easy to replace battery |
Electrodes Life | 3000, easy to replace electrodes |
Power Source | ≤20W |
Interface | USB Convenient data download and software update |
Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night |
Power supply | Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
Operating Condition | 0-5000m above sea level, Temperature: -10-60℃, Humidity:0~95%RH (No dew) |
Weight (including battery) | 2.1 KG (including battery) |
Dimension (LxWxH) | 135mm(L)×158mm(W)×155mm(H) |
