Handheld 400X Magnification Field Optical Microscope for 1.25mm and 2.5mm Fiber Optic Connector

Product Overview

Description

SNP5003 Field 400x Magnification Fiber Optic Connector Inspection Microscope with 2.5 & 1.25mm Adapter

Description

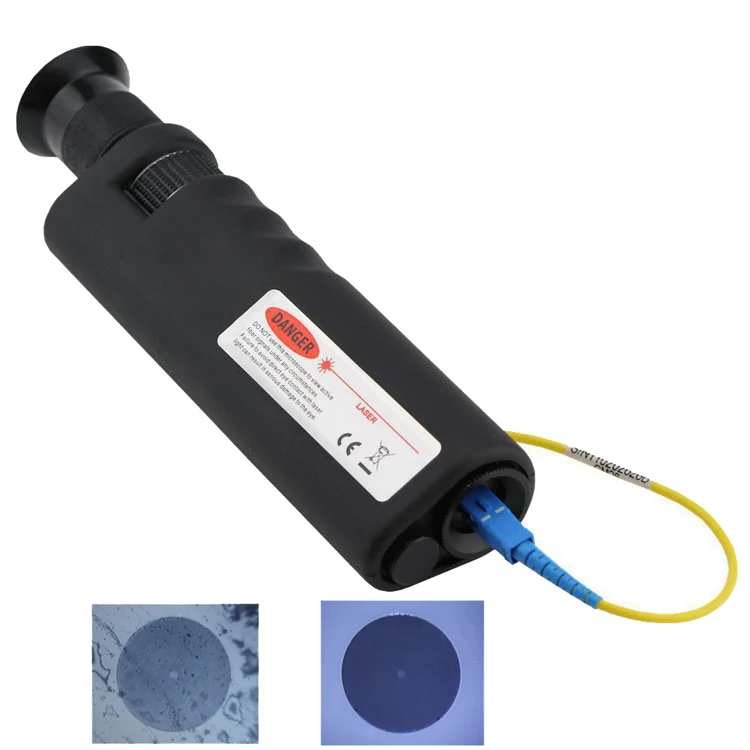

SNP5003 Field Fiber Microscope is a low cost and high quality fiber inspection tool which is available in 400X magnification and the white LED light to provide coaxial illumination to connector end-faces. This is method of illumination products high-resolution detail of end-face scratches, defects and contamination.



Features

Portable and easy to use, ideal for filed operation

Magnification: 400 times, can be used in both SM and MM fibers

Optical Connector: 2.5mmuniversal adapter, 1.25mm universal adapter

Color: Black or white

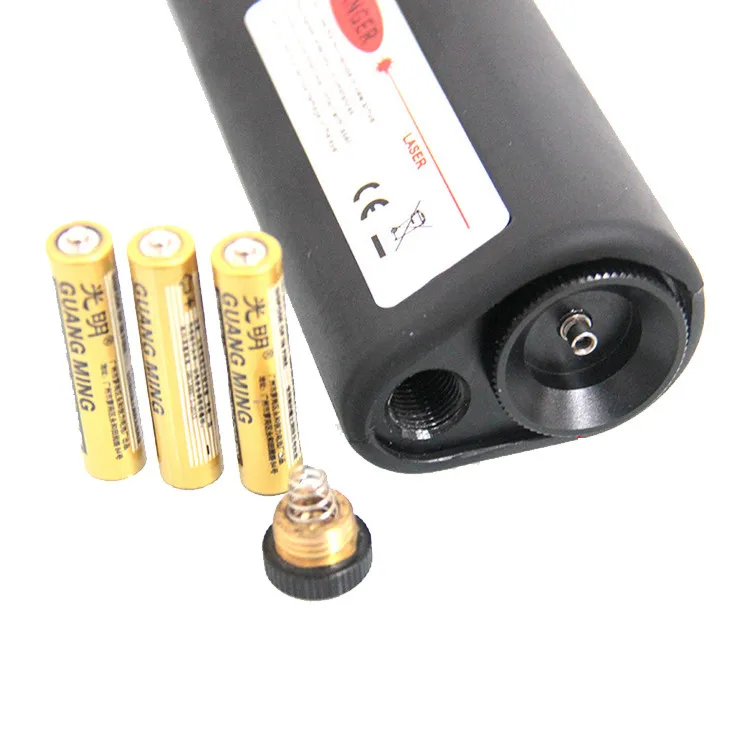

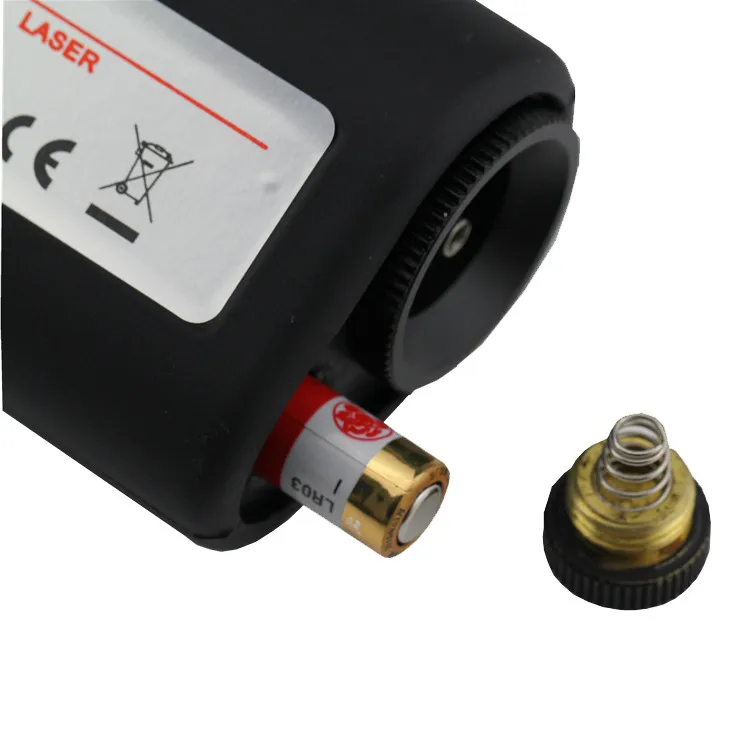

Power Supply: AAA batteries

Battery Life: 40hours

A specialized design to protect the eyesight



Applications

The Fiber Microscopes are used for inspecting fiber terminations in the field. With their good optical performance and integrated laser safety filters, they provide the most critical view of fiber end faces. This renders scratches highly visible and is the clear choice for field termination in sensitive installations.



Operation Step

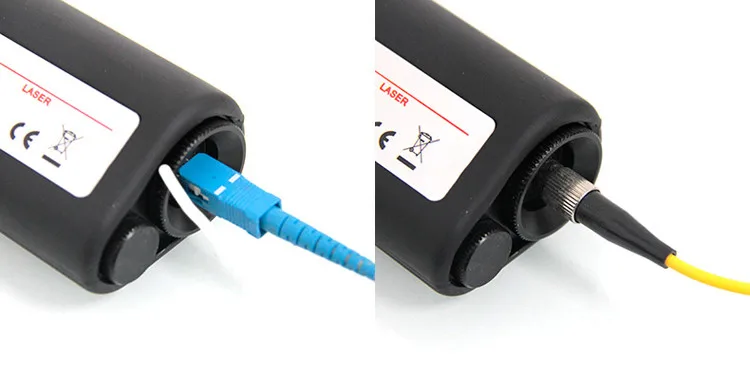

Step1: input the fiber which will be checked into the fiber insert Entrance, insert another fiber connector the light source entrance

Step2: see from the eyepiece and press on the on/off LED switch (illumination)

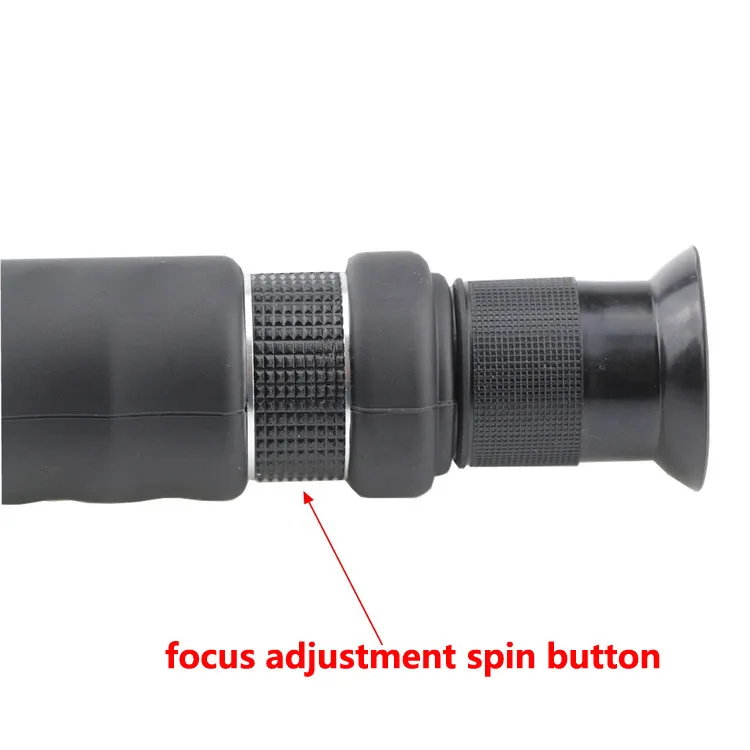

Step3: adjust the focus control, just to find the clearest viewing
