Термостатический смесительный клапан HEAPE WRAS TMV2

Product Overview

Description

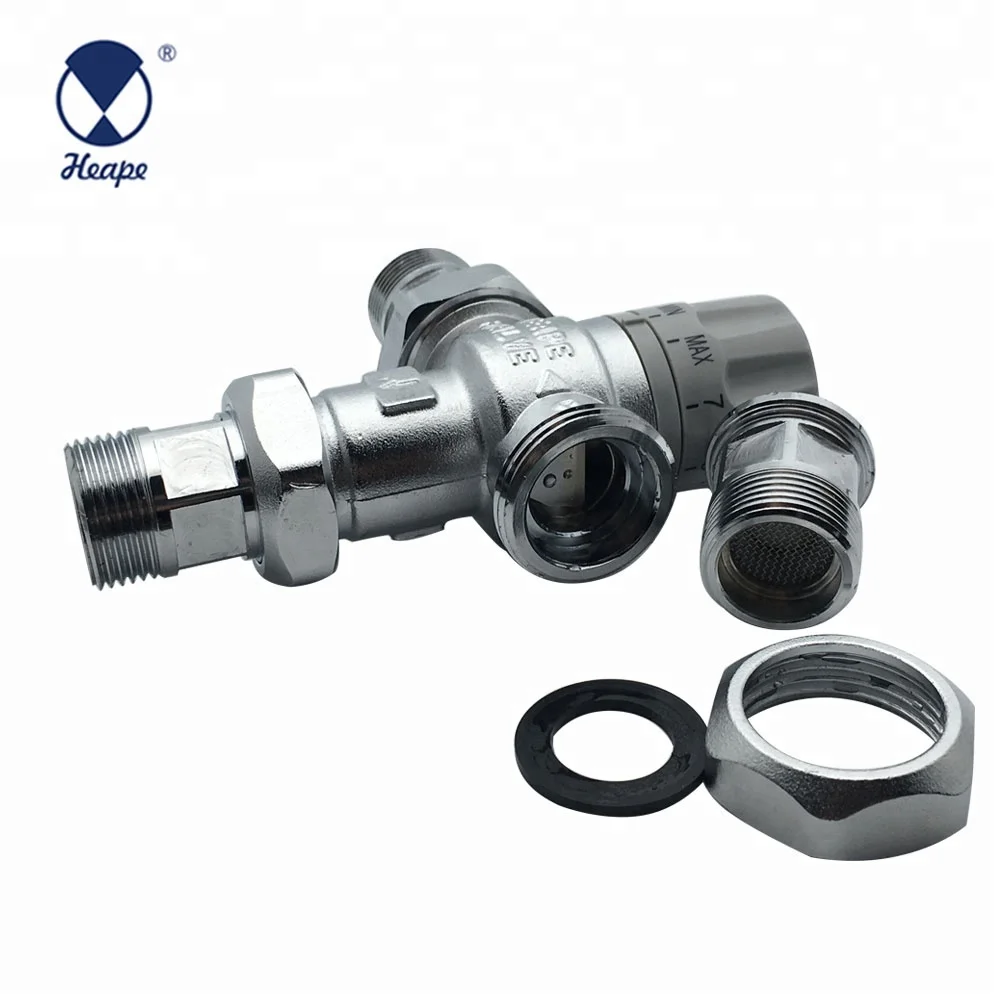

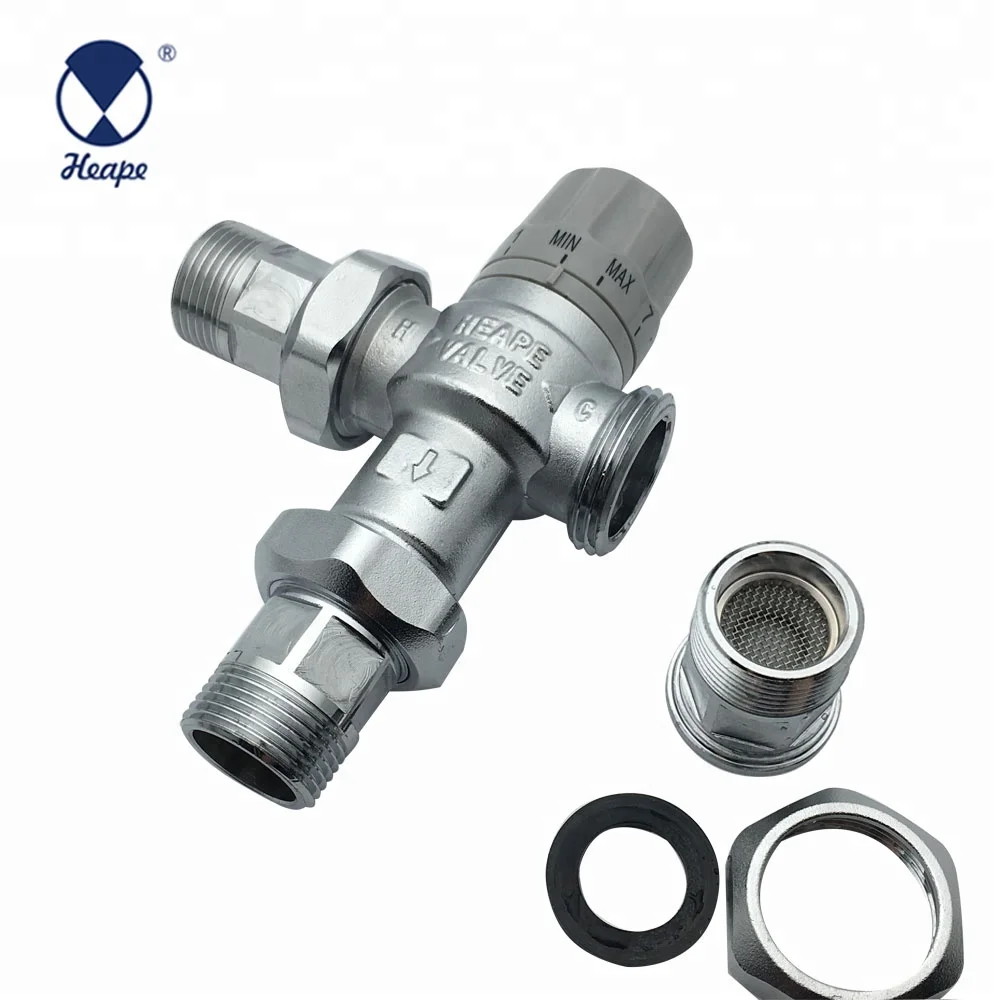

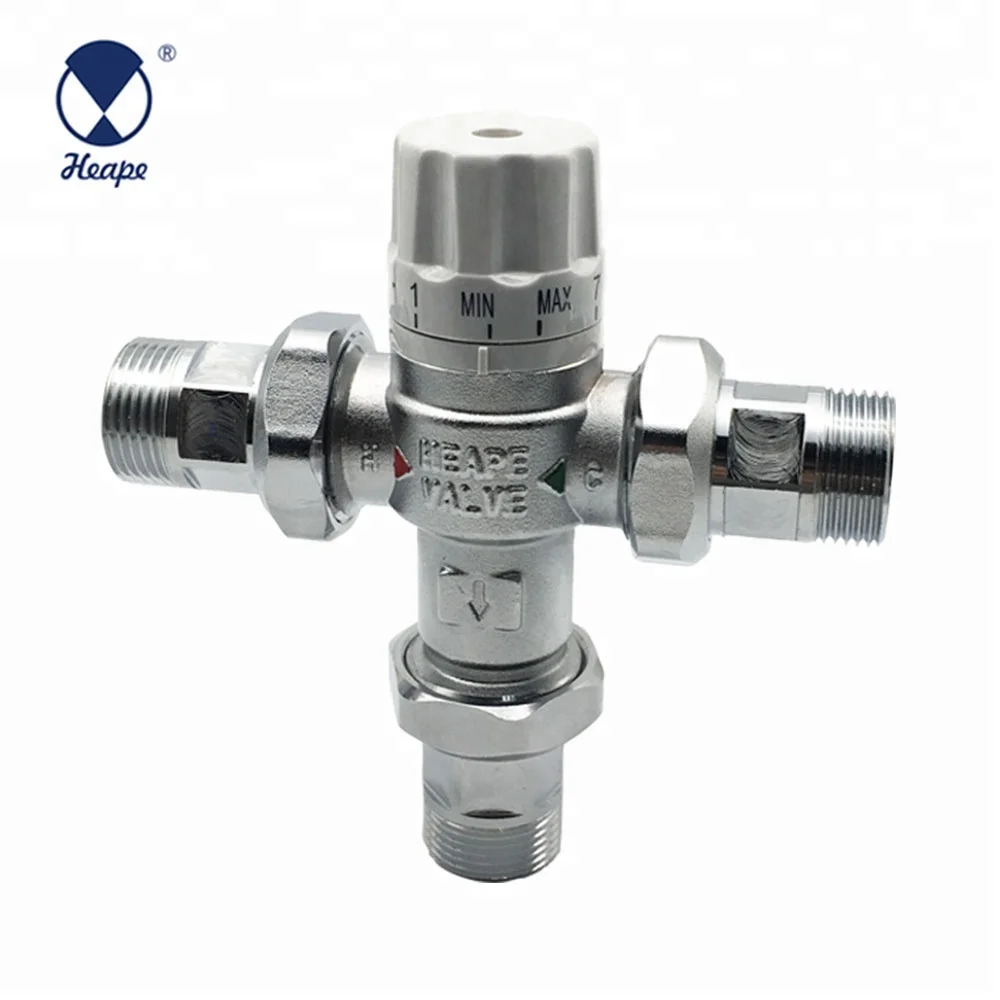

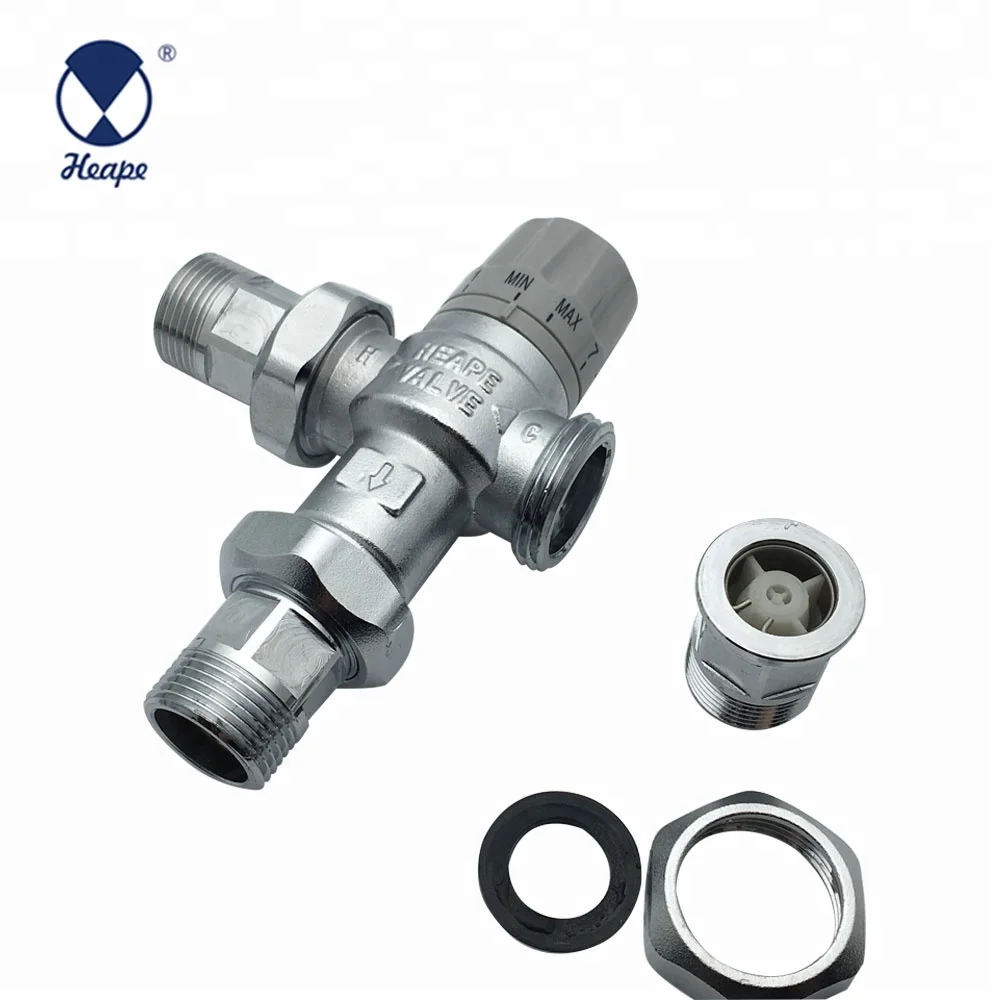

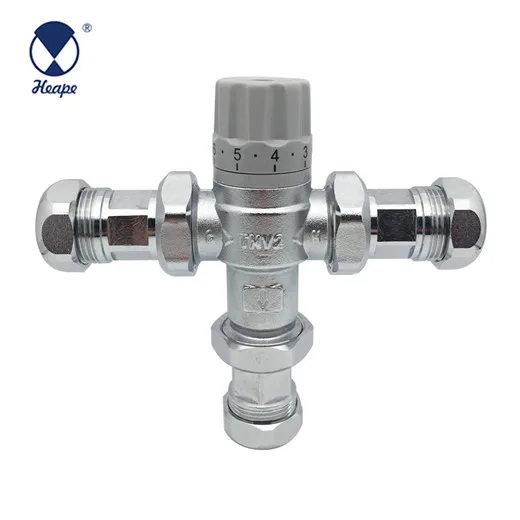

HEAPE WRAS TMV2 Thermostatic Mixing Valve
	Item Number
	HPT12
	Material
	H59-1
	Thread Size
	DN15-DN25,15MM-22MM
	Tempetature Range
	38-46℃ or custom
	Certification
	TMV2 WRAS
	View This Category







Technical specifications	Material	59-1 Brass
	Obturator	PSU
	Spring	Stainless Steel
	Seal Components	EPDM
	Control Knob	ABS
Performance	Adjustment range	35–55℃,38–46℃ or custom
	Accuracy	±2℃
	Max. working pressure (static)	10 Bar
	Max. working pressure (dynamic)	5 Bar
	Max. inlet temperature	100℃
	Max. inlet pressure ratio (H/C or C/H)	2:1
	Min. flow rate for stable operation	3.7 l/min
	Performance to standards	EN1111,EN 1287
	Connections	15mm-22mm 1/2” -1''
	Minimumtemperature difference between the inlet hot water and the outlet mixed water to ensure anti-scald performance	10°C
