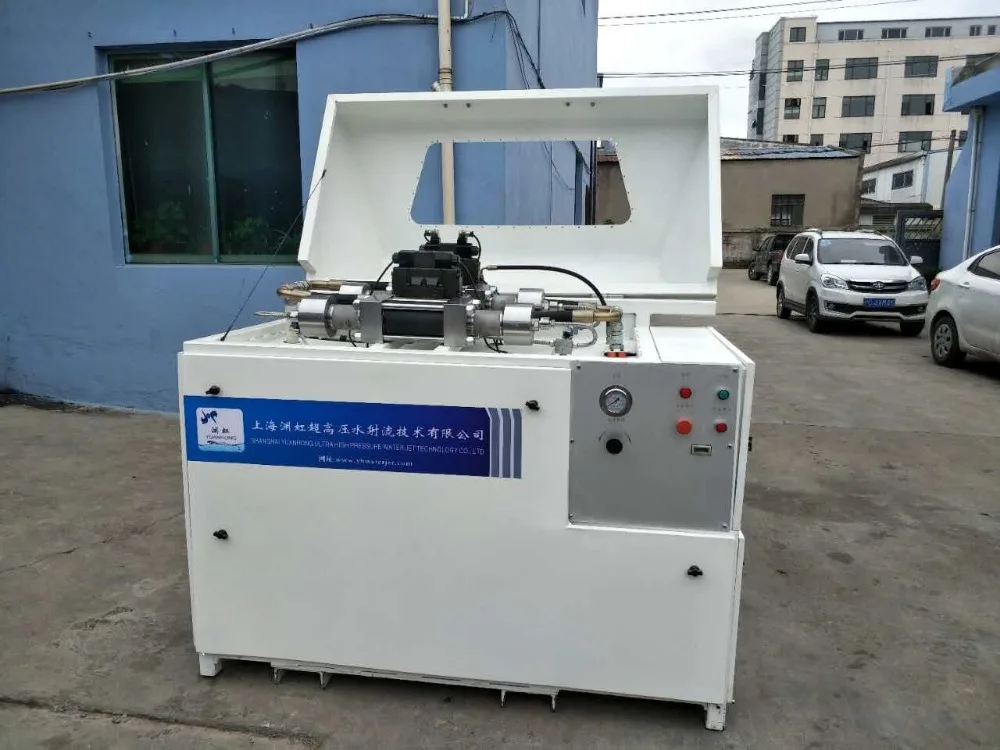

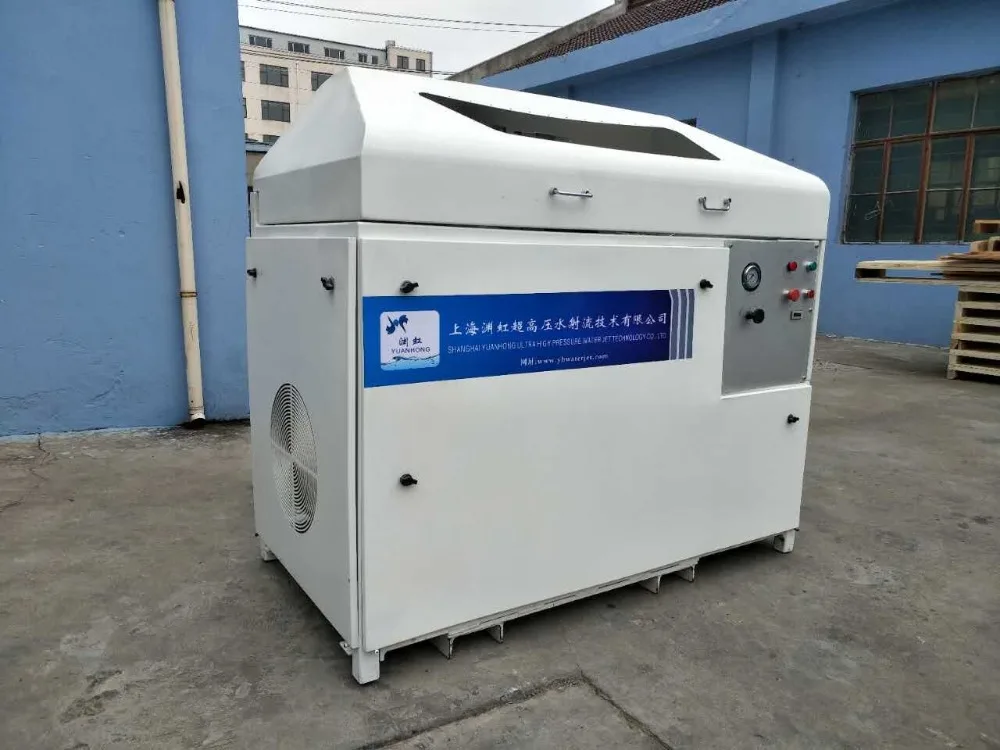

YH 420 Mpa waterjet cutting YH high pressure double intensifier water pump price
- Category: >>>
- Supplier: Shanghai Yuanhong Ultra High Pressure Waterjet Technology Co. Ltd.
Share on (60731851963):
Product Overview
Description

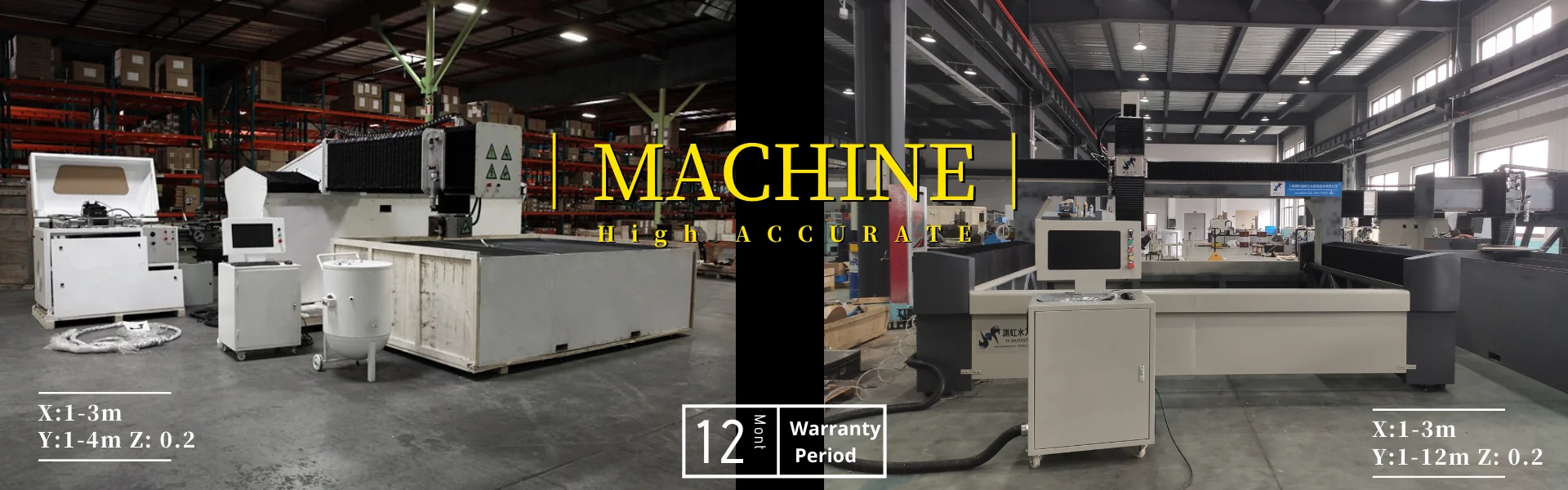

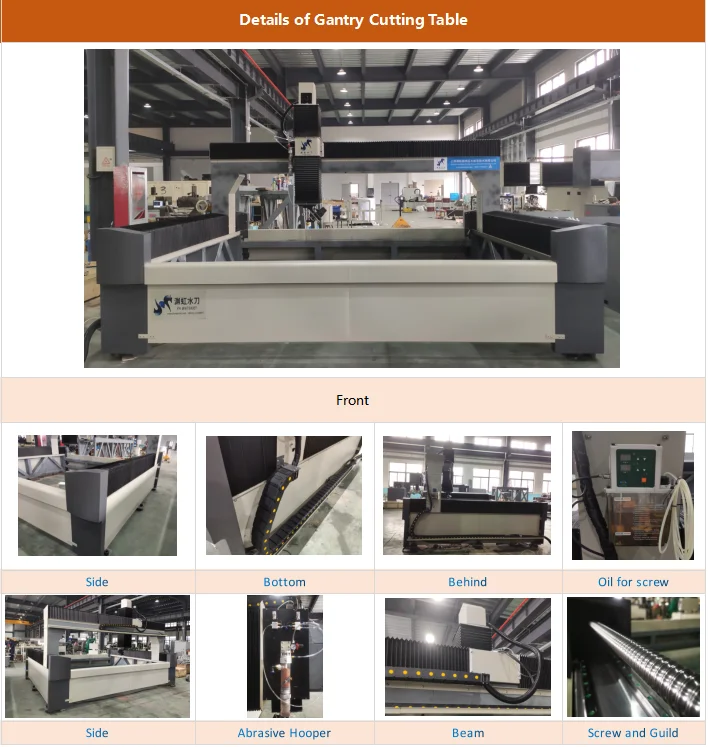

Waterjet Machine

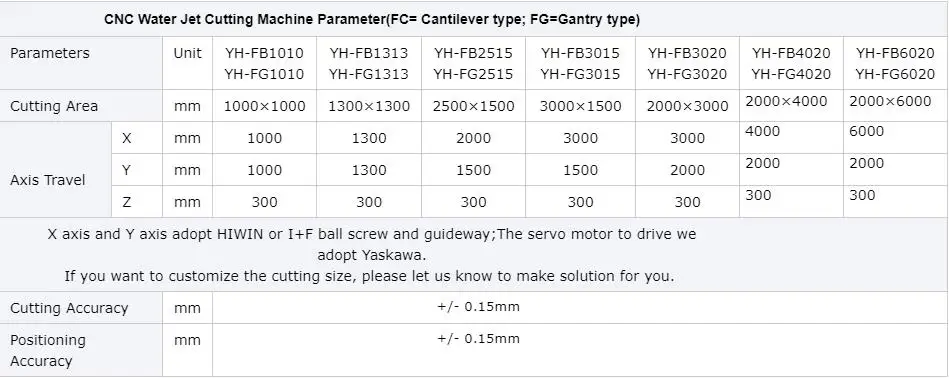

For Waterhet machine YH2515
Travel Stroke | X axis 2500mm Y axis 1500mm Z axis 300mm |
Linear Straightness Accuracy | .025mm/m |
Repeatability | .025m |
Maximum rapid traverse speed | 7.6m/min |
Maximum contour speed | 5m/min |
Z travel | 305mm |
Bridge (x-axis ) | 1.5m |
Base (Y axis) | 1.5m |
Machine Accuracy | Cutting Accuracy:+/- 0.15mm Linear positioning accuracy:+/- 0.15mm Linear positioning repeatability :+/- 0.10mm |
Note: Due to the precise pneumatic valve components in the X-Y and cutting head control device, the customer is responsible for providing clean, dry compressed air to maintain good operation. | |

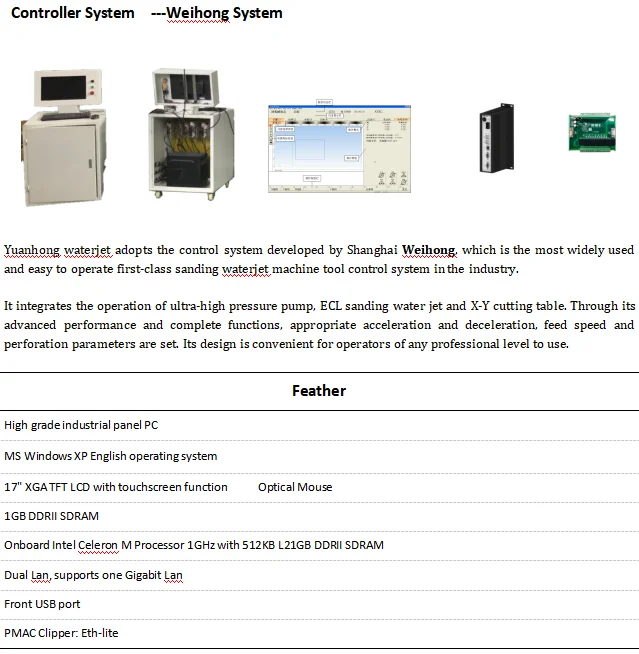

CNC :
Yuanhong waterjet adopts the control system developed by Shanghai Weihong, which is the most widely used and easy to operate first-class sanding waterjet machine tool control system in the industry.

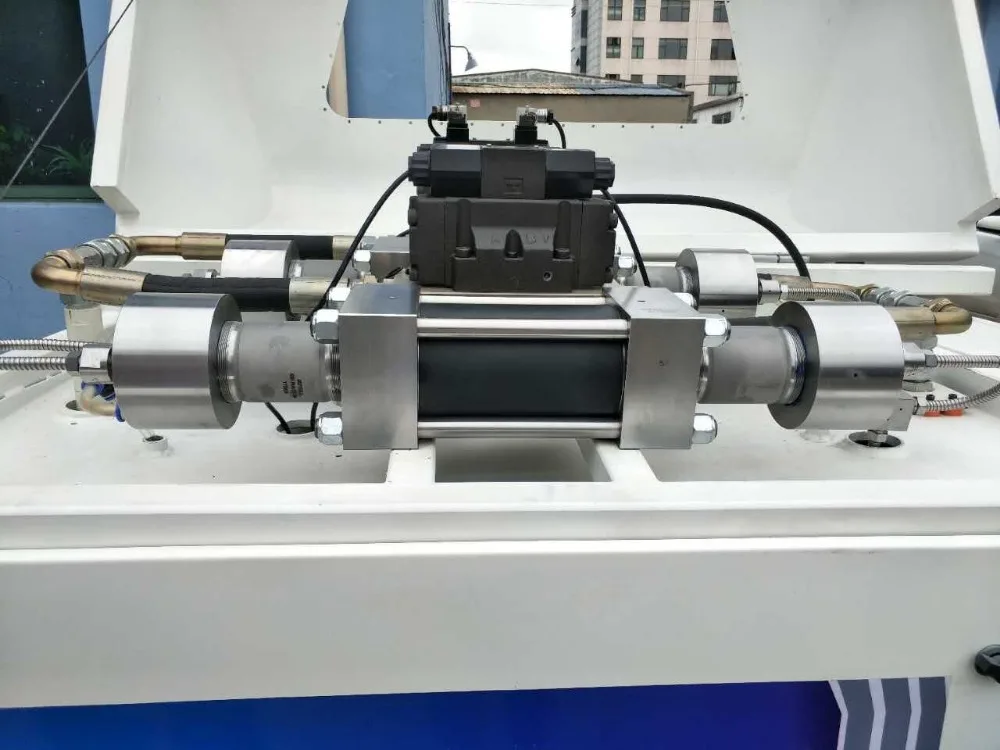

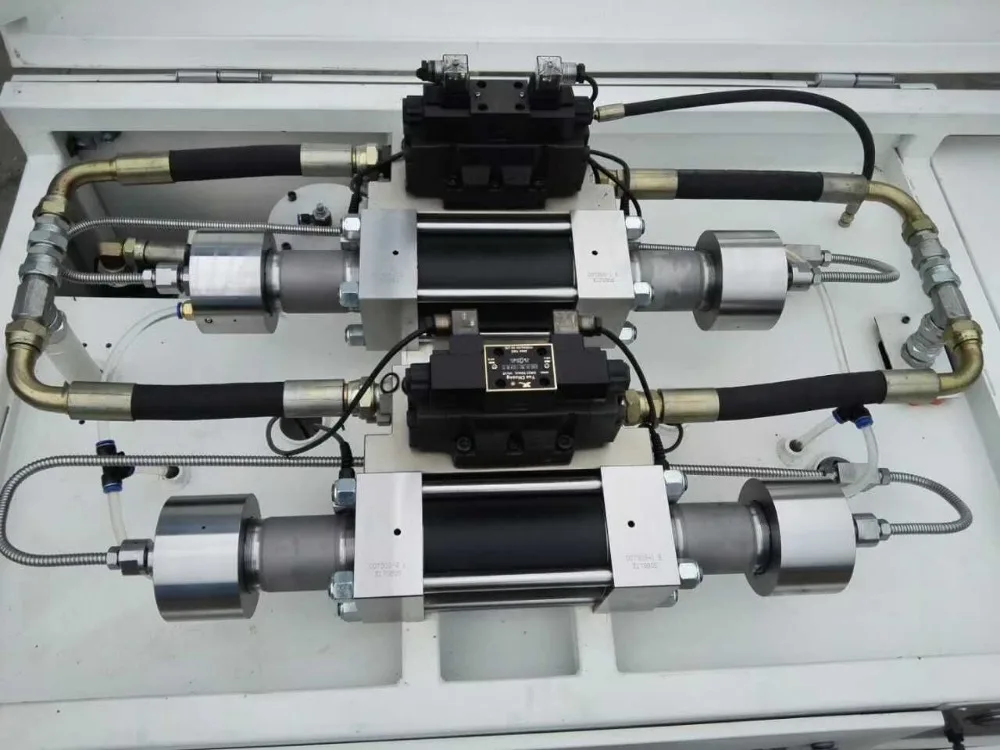

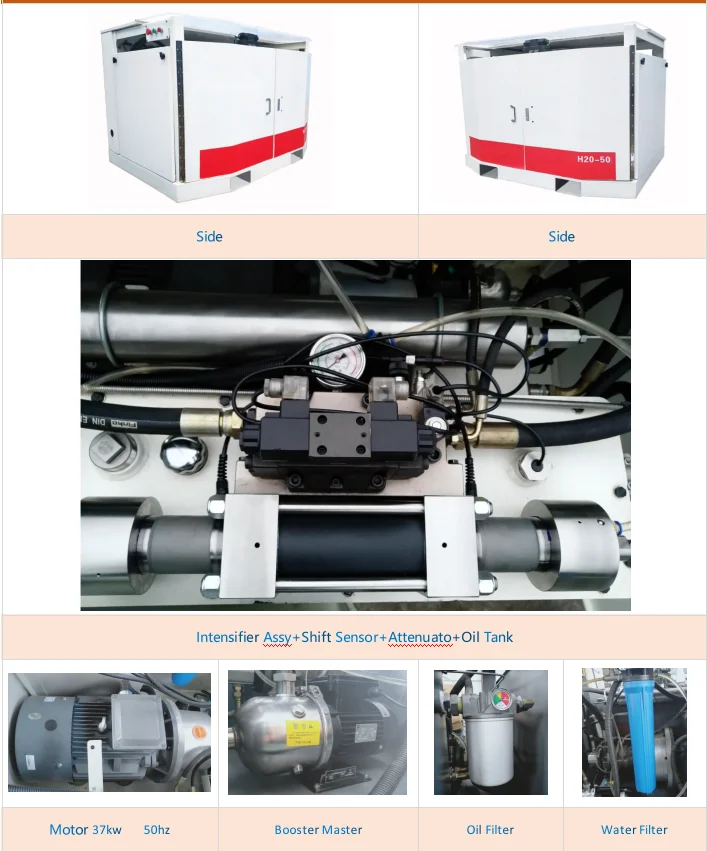

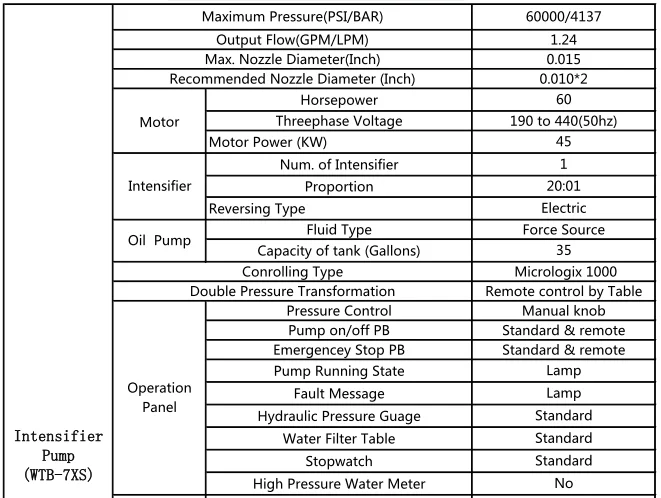

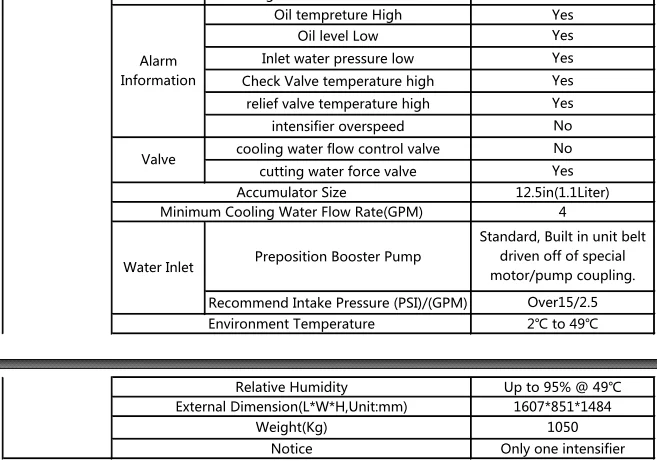

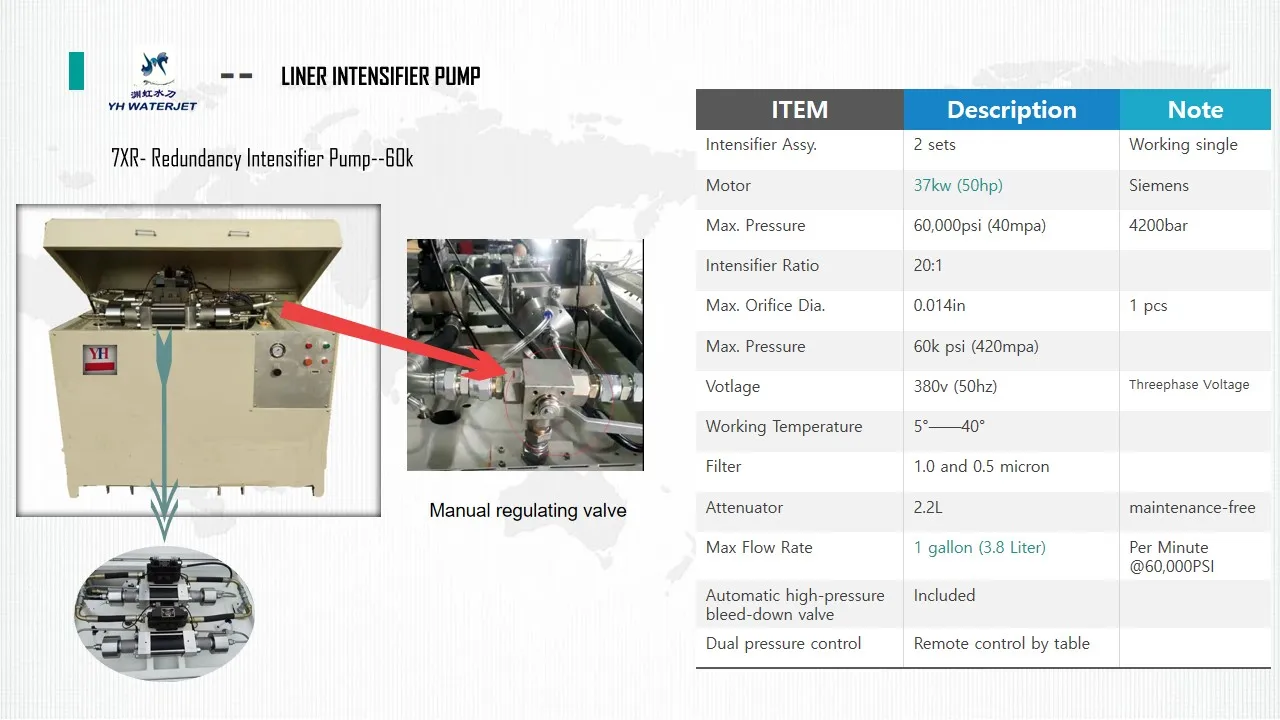

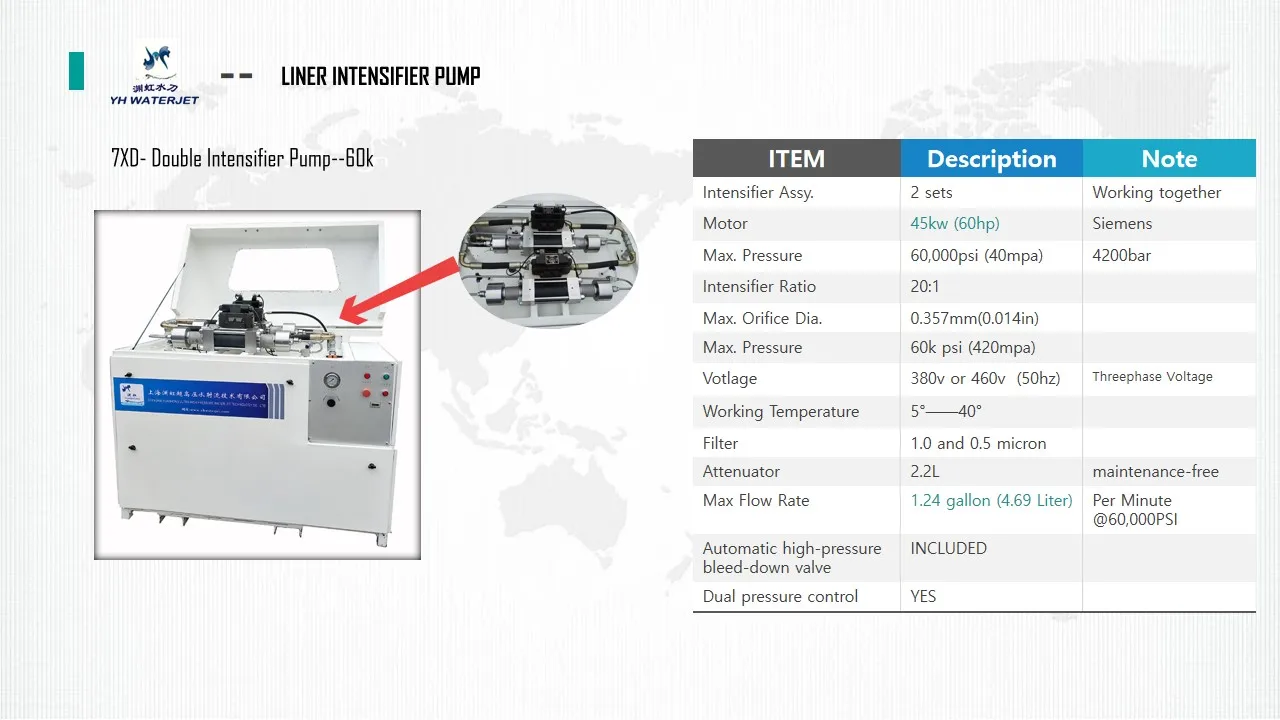

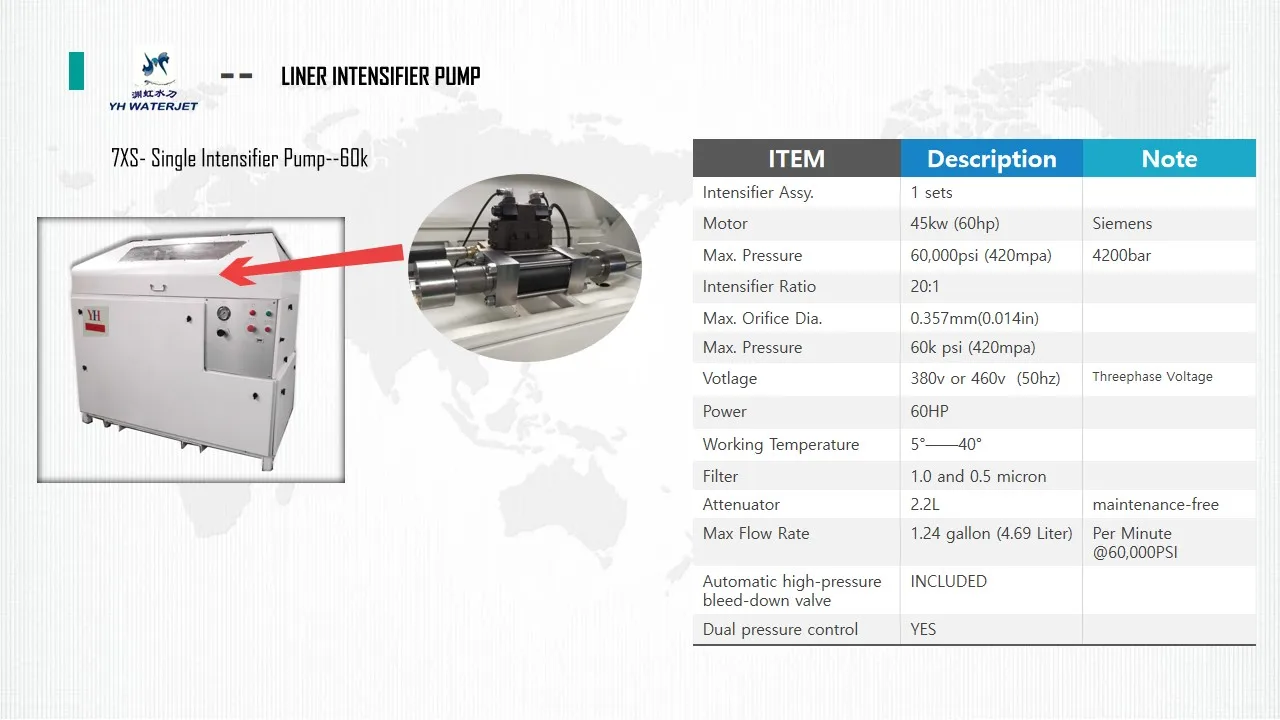

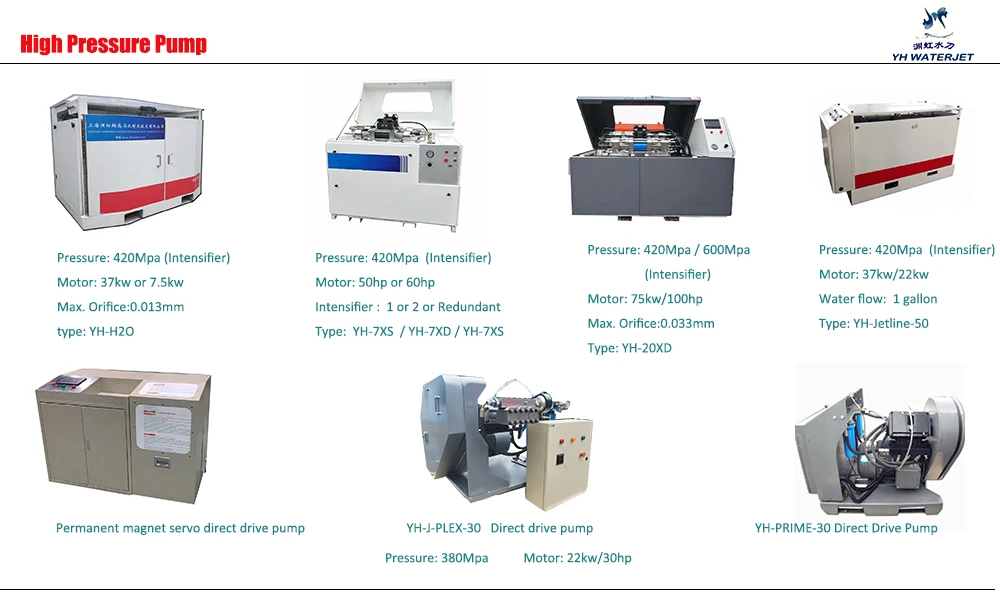

Waterjet Pump
Feather |
Max. Pressure: 60k psi ((4200Mpa) |
50 hp,380V 50Hz or 460V 60Hz electric motor |
1 gallon (3.785 Liter) per minute flow rate @ 60,000psi |
Water booster to ensure constant water pressure at 60 to 80 psi |
1.0 and 0.5 micron filters |
0.96L . maintenance-free attenuator |
Automatic high-pressure bleed-down valve |
Dual pressure control |
Max. Orifice Dia. : 0.357mm(0.014in) |
Fully pump enclosure |
Customized color |
SIEMENS main motor |
Booster Pump 10 Micron Filter and oil Pressure Gauge |
Oil Cooler or Water Cooler |

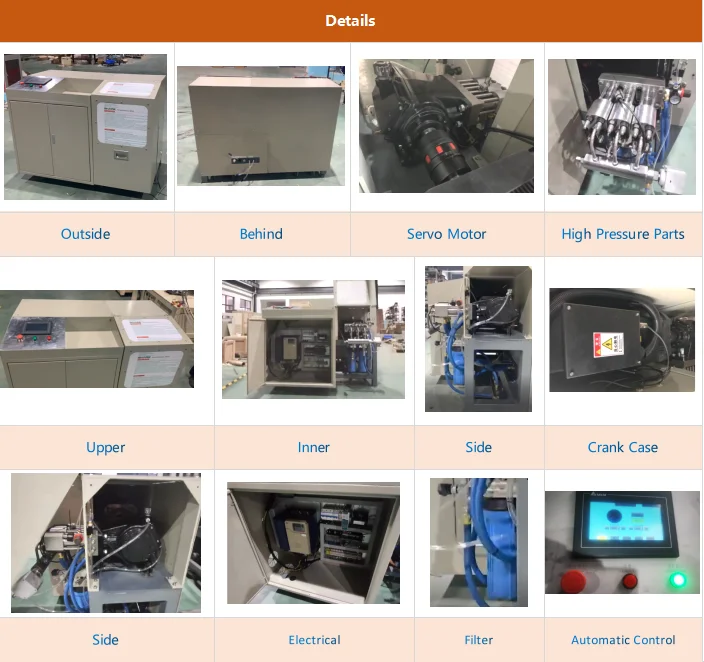

Servo Permanent Magnet Motor Direct Drive Pump 30 HP
Here is a new servo moter direct drive pump to recommend to you. You can choose it or the YH-H2O Pump both.

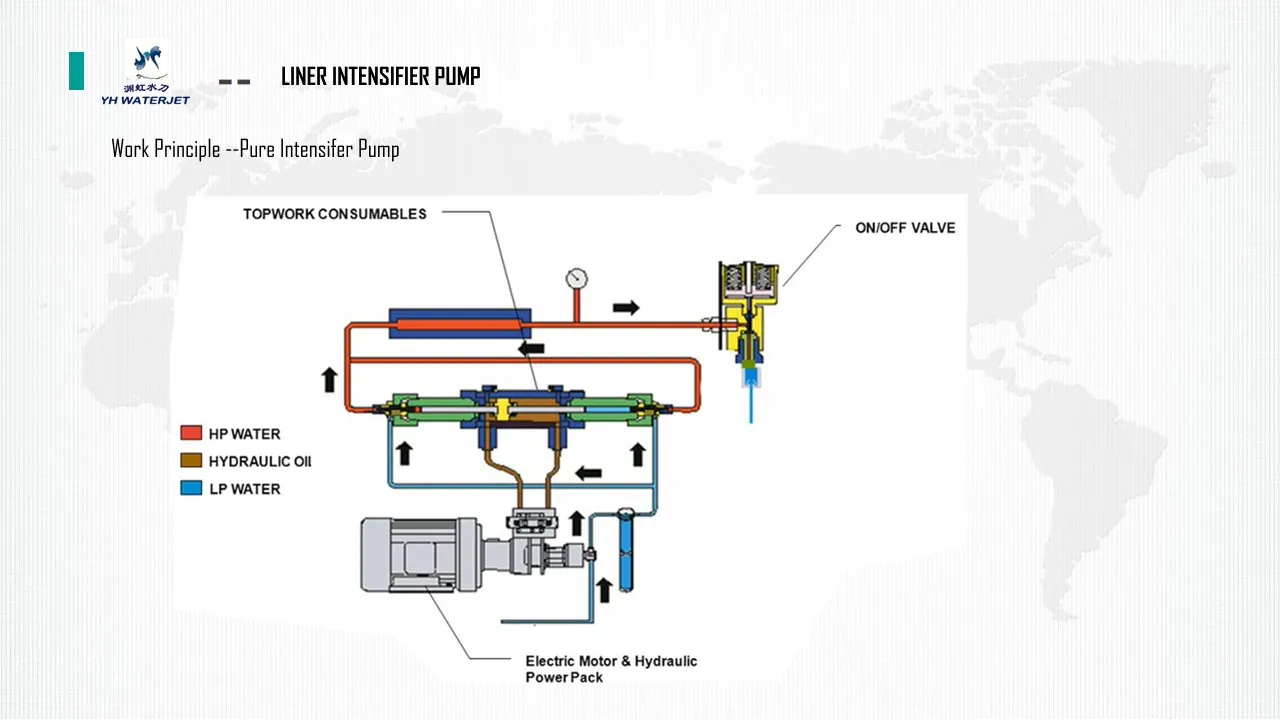

The use of the servo permanent magnet motor instead of the asynchronous motor greatly improves the electricity usage rate of servo direct drive pump and keeps the conversion rate at more than 90%.However the traditional hydraulic intensifier's energy conversion rate is only about 50%,(the 50% conversion rate is only in the state where high-pressure water is generated).The main reason is that while generating high-pressure water,the hydraulic oil continues to generate heat.The heat generated by hydraulic oil needs to consume a large amount of electricity,and cooling the hydraulic oil increases the loss of electricity.
Technical Features |
Maximum pressure 6000OPsi (413.8Mpa) |
Continuous working pressure:46000Psi-55000Psi (320-380Mpa) |
Gem Aperture: 0.30mm (0.012inch) |
Maximum gem hole diameter 0.33mm (0.01a3inch) |
Maximum drainage: 3.5l/ min |
Water inlet pressure: 0.4MPa |
Power of main motor: 22KW (37HP) |
Pump size:1600x800x900mm |
Crankcase transmission system:adopts three-cyinder crankshaft connecting rod structure |
Double row water filtration system: (5Micron, 1micron, series) |
Power supply /Power supply: 380VAC, 50Hz (60Hz), 3Phase |
Ultra high pressure booster system: (high pressure cylinder,ceramic piston rod.high pressure seal.low pressure seal,high pressure pipeline, check valve, etc. |

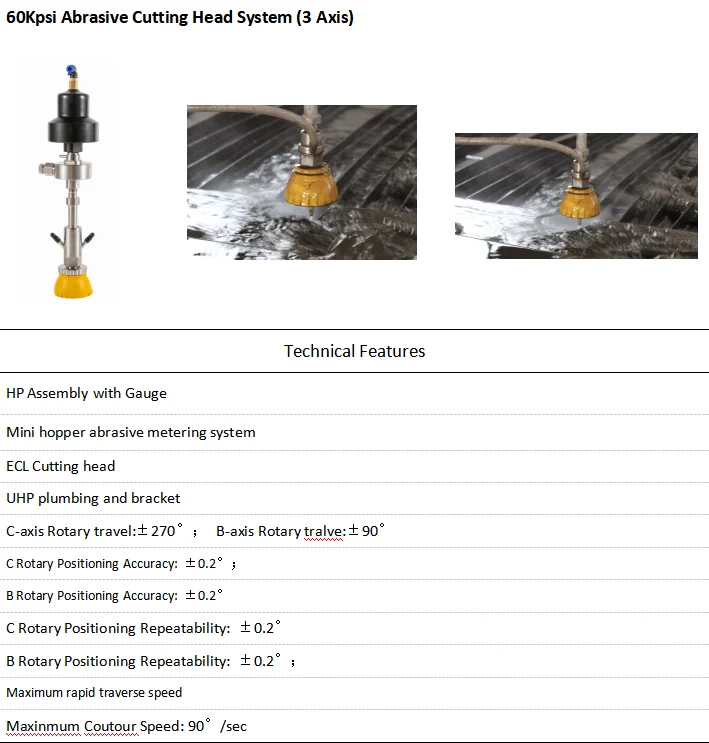

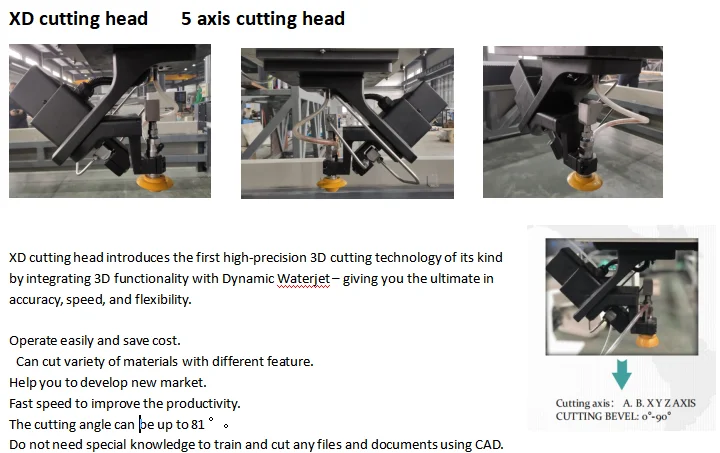

Waterjet CUTTING HEAD

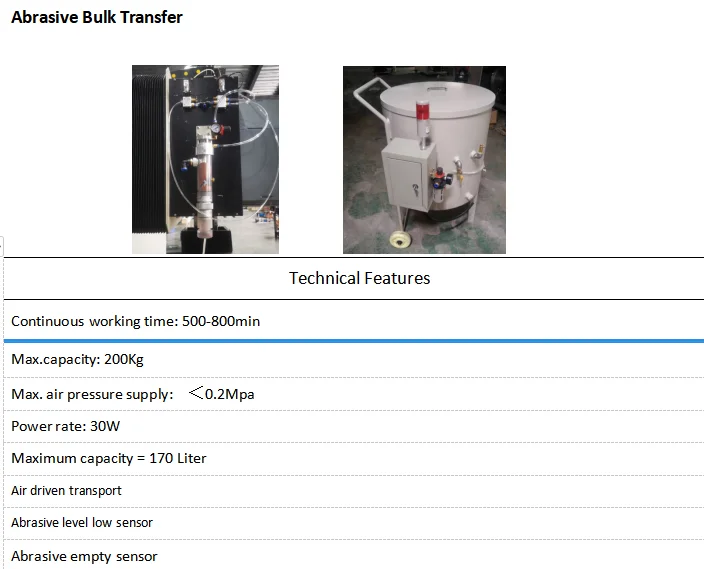

Abraisve Hopper and Metering Vavle

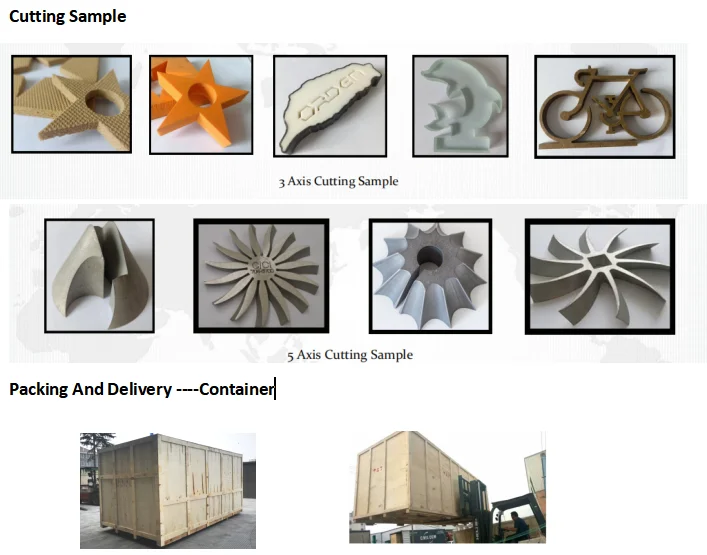

Waterjet Packing And Cutting Sample

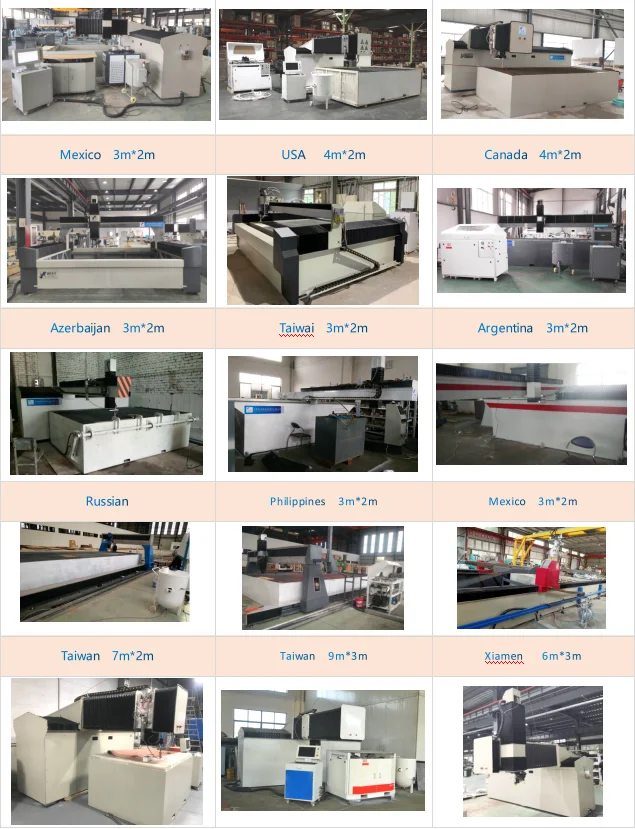

Yuanhong Project

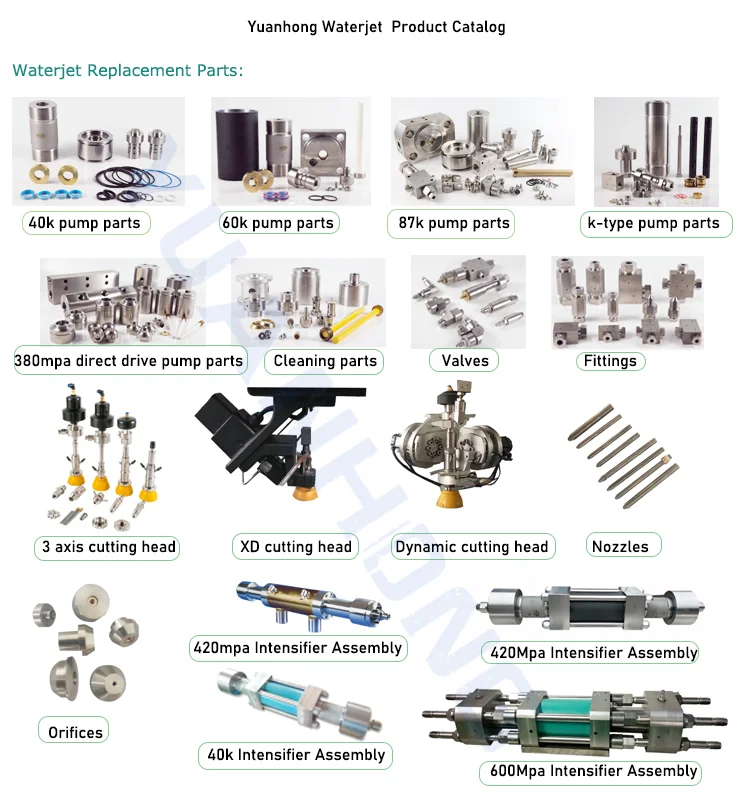

Related Products
Products brand: FL-OW ; K-MT ; O-max And Other Chinese Brand
Customize order is accepted too.
| Product Category | Product Name |
High pressure Waterjet parts | 40k/60k/87k/94k High pressure intensifier parts of , direct drive pump parts, parts for waterjet head head ; high tubes, nozzles and orifices. |
| Intensifier assembly | 60k/ 87k/ 40k/94k intensifier assembly and parts, SL-V intensifier assembly. |
| Cutting head | Abrasive waterjet cutting head, pure waterjet cutting head, 5 axis cutting head. |
| Pumps | Intensifier pump 60k; Intensifier pump 87k; Direct drive pump; Hyplex prime pump;
H2O Pump; JetLine-50;
Double intensifier pump 87k/60k; water jet pumps with 4 intensifiers assembly 87k. |
| Waterjet repair kits | Major/minor repair kit; Check valve repait kit; On/off valve maintenance kit; Bleed down repair kit; HP seal repair kit; PCV repair kit; Dynamic rubuid kit; Swivel repair kit; Low pressure repair kit and so on. |

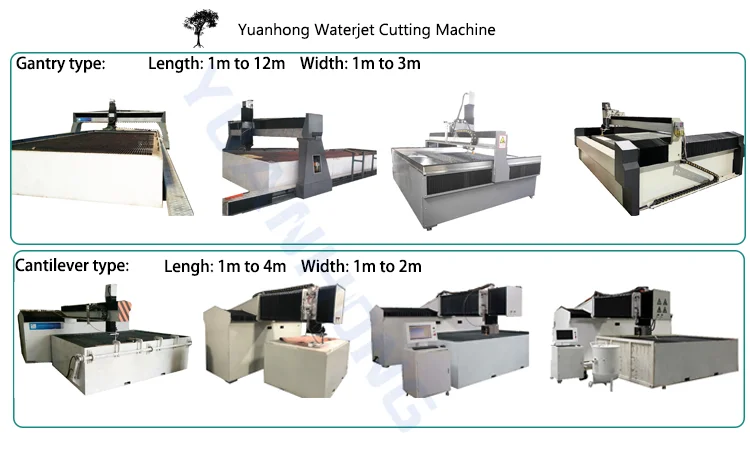

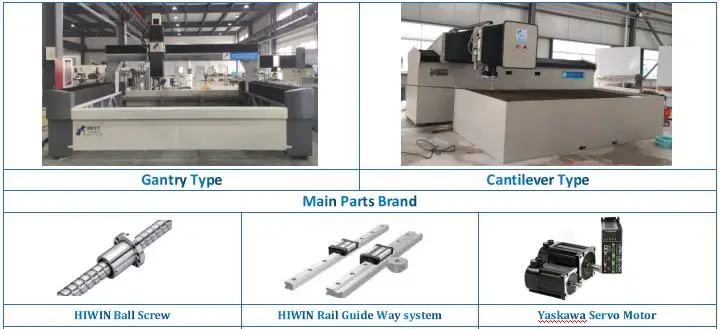

| Waterjet cutting machine | Gantry type and Fly arm type;. |
| Waterjet nozzle | For different waterjet cutting head. |
| Waterjet orifices | Standard dimension for waterjet cutting heads. |
| Fittings and hp tubes | Any fittings and Coil pipes for the waterjet cutting machine. |
| Installation tools | Waterjet installation tools. |
| Others | Other parts for waterjet cutting machine. |

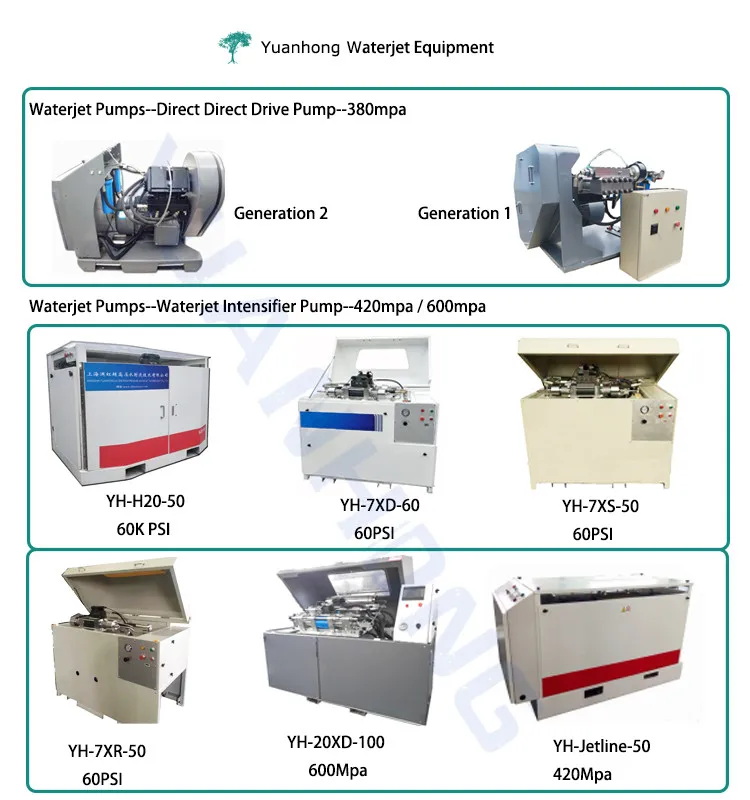

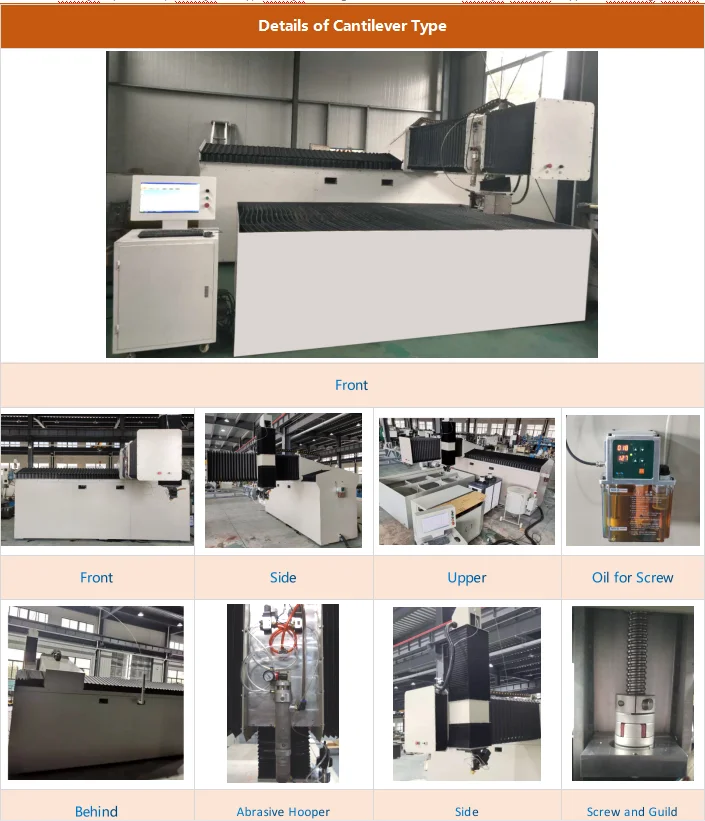

1. waterjet cutting machine--cantilever and gantry waterjet cutting machine
2. waterjet high pressure pump
380mpa--direct drive pump
420map--single intensifier pump and double intensifier pump
600mpa--double intensiifer pump and four intensifier pump for HPP.
3. waterjet spare parts
waterjet repair kits
420mpa and 600mpa waterjet intensifier assembly
waterjet parts for cutting head
fittings and high pressure pipe.
Waterjet cutting head
waterjet nozzles
waterjet orifices
