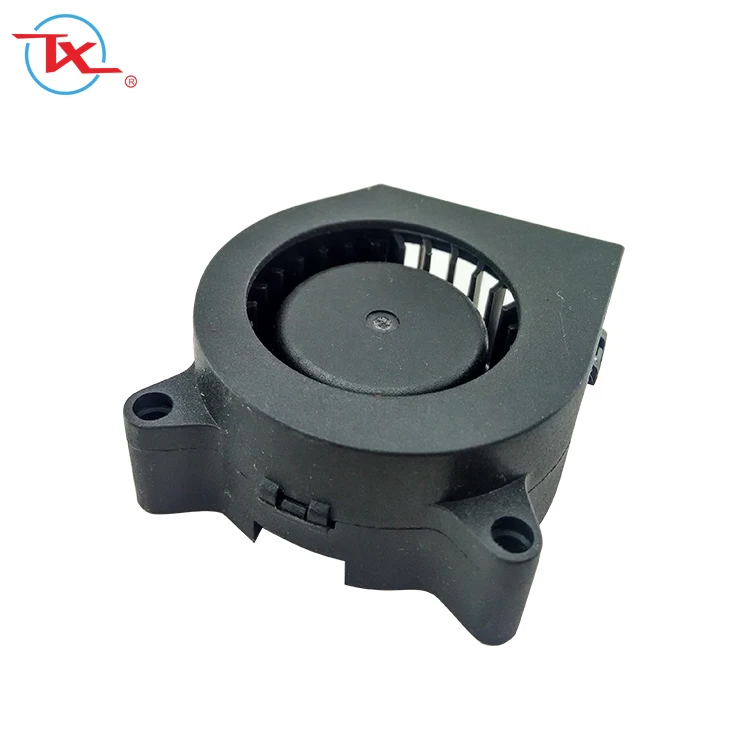

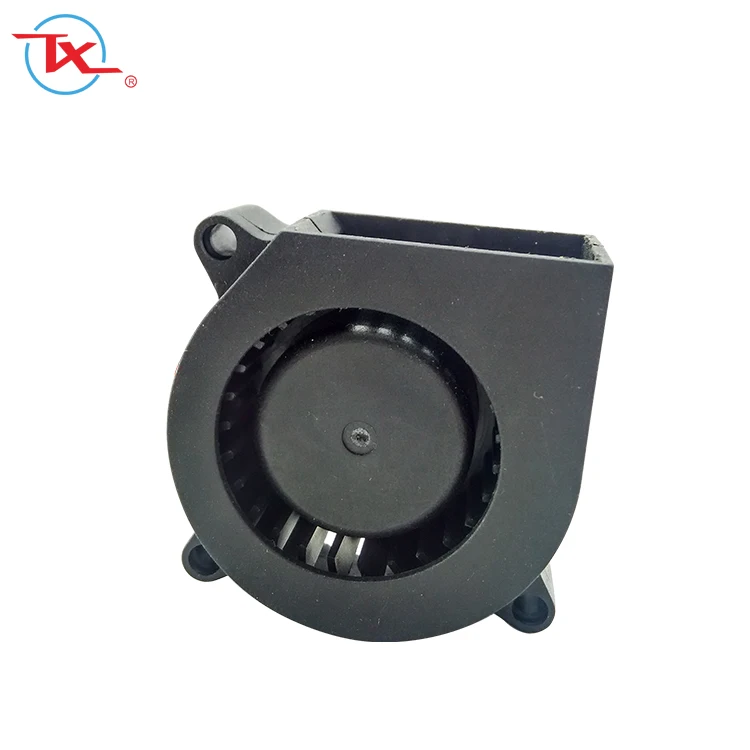

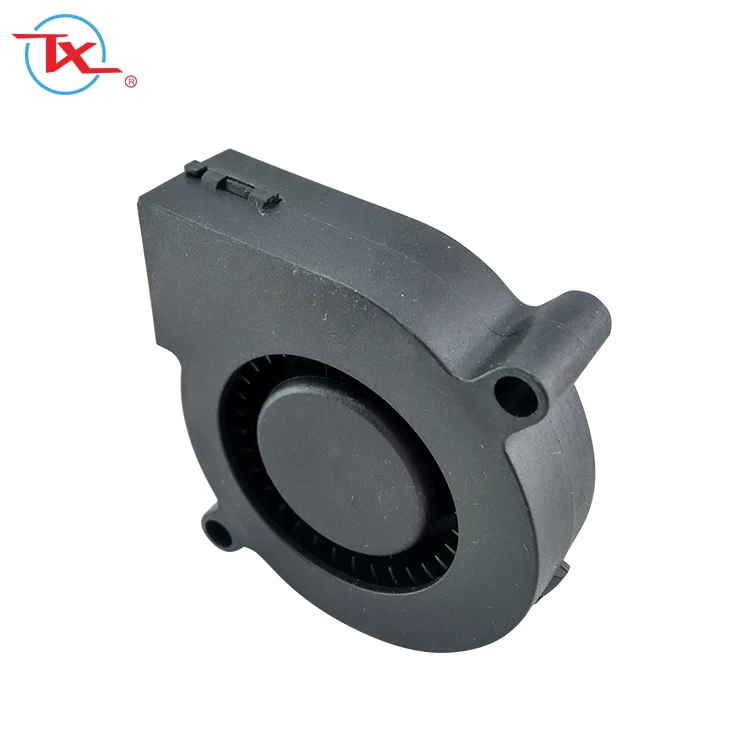

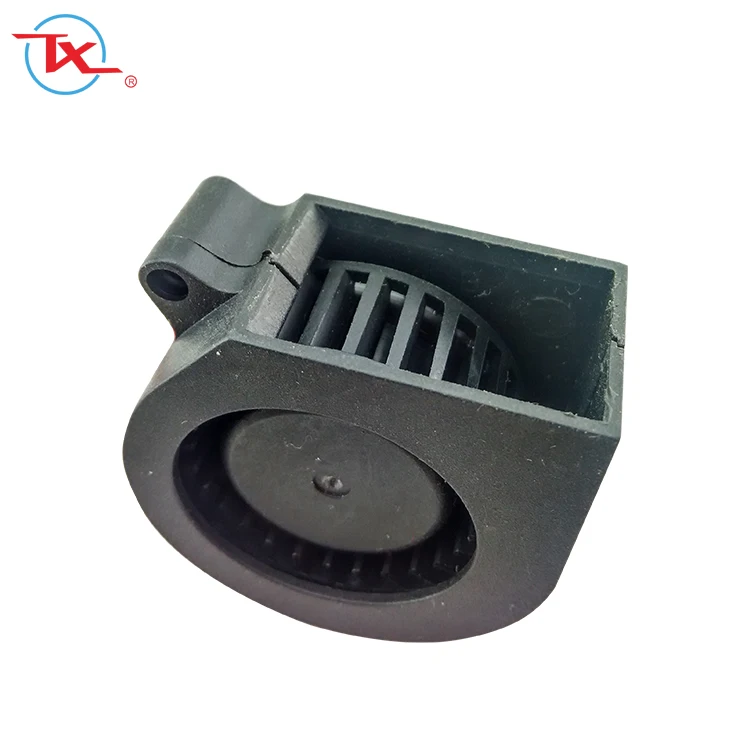

Turbo Blower 40mm DC 12V 24V 40x40x20mm Cooling Fan 3D Printer Accessory
- Category: >>>
- Supplier: Linyi Tongxin Electric Co. Ltd.
Share on (60731894337):
Product Overview
Description
1. | Category | Centrifugal Fan/Blower Fan/Brushless Fan |
2. | Frame Size | 40x40x20mm,40mm,4cm,1.5Inch,1.5" |
3. | Bearing Type | Dual-Ball Bearing/Sleeve Bearing |
4. | Frame Material | Plastic, UL94V-0 |
5. | Blade | Plastic, UL94V-0 |
6. | Lead Wire | 280±10mm,AWG#26 UL1007 (+)Red (-)Black |
7. | Motor | 4 Poles Brushless DC Motor |
8. | Motor Protection | Impedance Protected,Reverse Polarity Protected,Thermal Protected (Auto Restart) |
9. | Weight | 23G |
10. | Insulation | Class A |
11. | Protection Grade | IP55~IP68 |
12. | Insulation Resistance | Above 100MΩ, DC500V (Between Lead Wire and Frame) |
13. | Operating Temperature | -10℃~70℃ (35%~85%RH) |
| 14. | Storage Temperature | -40℃~70℃ (35%~85%RH) |
15. | Life Expectancy(Dual Ball Bearing) | 50000hrs at 25 degree |
16. | Life Expectancy(Sleeve Bearing) | 30000hrs at 25 degree |
17. | Available Function | FG,RD,PWM,IP56,Thermal Control,Auto-Restart |
| 18. | Application | 1.3D printer 2.refrigerator, freezer, wine refrigerator 3.inflatable model, air dancer, cartoon inflatable model, doll inflatable model 4.air purifier,air freshener 5.toy 6.electric equipment 7.notebook,pocket PC,Tablet PC,Laptop 8.GPU=Graphic Processing Unit 9.mini-projector 10.humidifier 11.Medical device 12.dishwasher 13.projector 14.game console 15.automotive seat 16.Fryer,BBQ Grill,oven,barbecue Oven 17.Treadmills, running machine,WNQ 18.microwave oven,microwave 19.soldering rework station, desoldering station,SMD rework station 20.sweeper,Robot Sweeper 21.water closet, neorest, toilets,WC pan ... |
| 19. | OEM | Acceptable |
| 20. | Sample Service | Sample Can Be free,But You're Suggestsd Paying For Freight. |
| 21. | Quality Assurance | 24 Months |
| 22. | Item Condition | Brand New |
