New type Ultrasonic paper cup making machine

Product Overview

Description

Introduction:

BJ-A12 Single Side/Double sides PE coated paper cup making machine is an equipment can produce both for Single side PE paper cups and Double sides PE paper cups,it compared to the original Single side PE paper cup machine,this machine has up to a better quality and beautiful appearance with Ultrasonic welding function.These paper cups suitable for both hot and cold drinking,such as coca cola,ice cream and coffee etc. And we use Taiwan ultrasonic in double PE coated paper cup machine, so quality is better than other company in same field.



Specification:

Specification:
Voltage	380V/220V
Power	4.5KW
Frequency	50HZ
Size	2000*1100*1400mm
Speed	55-65pcs/min
Gear Box	100 Type Yushen
Metering Box	100 Type Xinjia Shandong
Inverter	Panasonic
Motor	Siemens
Switches	Schneider
Paper GSM	60-200gsm
Paper Cup Maxi Height	85mm

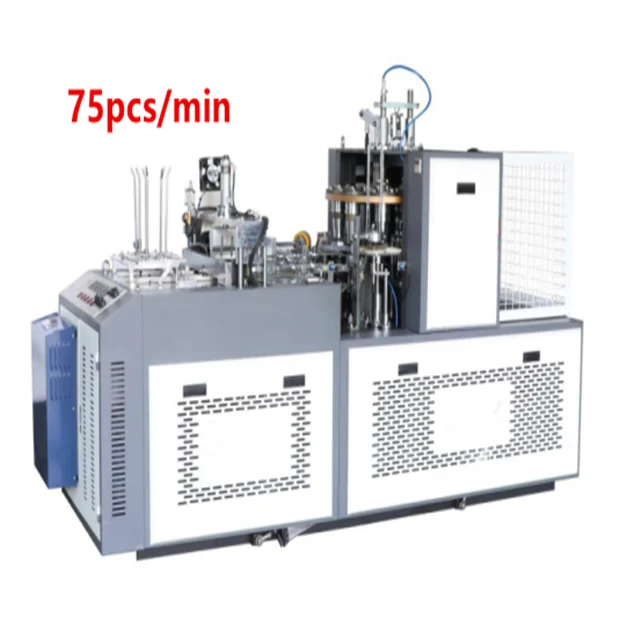

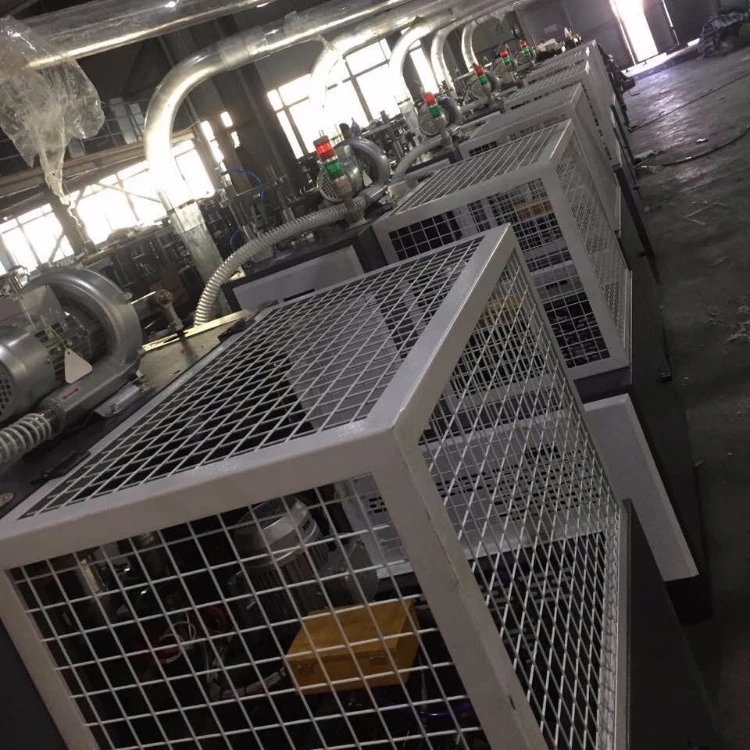

Machine pictures :
