Product Overview

Description

Pearl setting machine fixing attaching pearls machine Wholesale low price touch screen rhinestone and pearl



Introduction of pearl setting machine:

This pearl setting machine through the four claw nails make pearls immediately fixed into the material. At the same time move the material accordingly by hand after the red light locate, then the machine will fix pearls on the material quickly.



Function of pearl setting machine:

This pearl setting machine can be used for women clothes, underwear, children wear, T-shirt, embroidery patterns, belts, handbags, gloves, scarves, hats etc.

The material can be Denim, Cotton, Jeans, Hemp fabric, Woolen, Synthetic Fiber, Silk, Knitwear, Synthetic Leather, Velvet and so on.



Features of pearl setting machine:

1.High speed:Over 400 pearls per minute so as to increase production efficiency substantially;

2.Low air consumption: Only 50% air content is consumed compared with same product manufactured by averages so as to save electricity by 40%;

3.Low defect rate: originally imported cylinder and chips ensure high quality;

4.the Computer board is made of industrial chip PIC, and the performance is stable.

5.The four Claw nail is equipped with a vibrating disc to control the nail working

6.With 5 different sizes of punching needles,With 5 different modelof Mould,Apply to more than five types Pearl

7.Adopt high-precision nail structure, reducing the number of nail clips.

8.Adopt the rotating Pearl bucket, change beads more convenient.



Technical Parameter of the pearl setting machines:

Model	RT-DZ100	RT-DZ200
Color	one clor	two colors
Voltage	220V/50HZ	220v/50HZ
Power	50w	50w
Working speed	250-380pc/min	250-380pc/min
Air pressure	0.5-0.6mp	0.5-0.6mp
Size of the peals	4,5,6,8,10,12mm	4,5,6,8,10,12mm
Size of the four-nails	2.3*3.3mm	2.3*3.3mm
Weight	90kg	100kg
Dimension	750*620*1200mm	750*620*1200mm

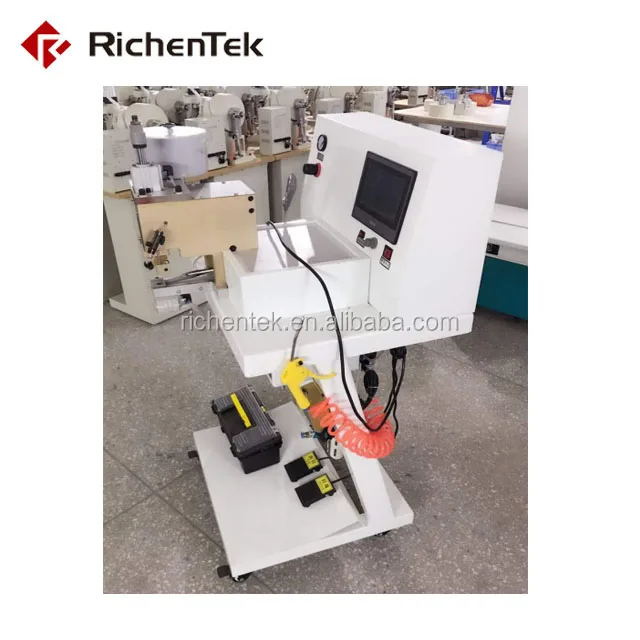

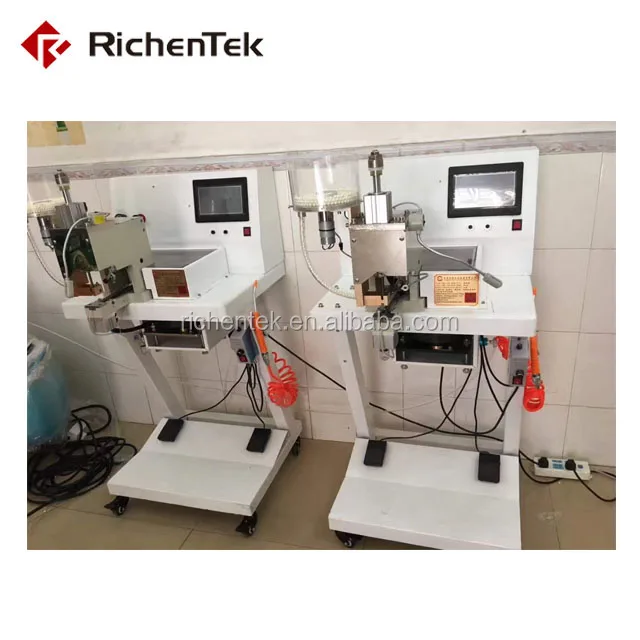

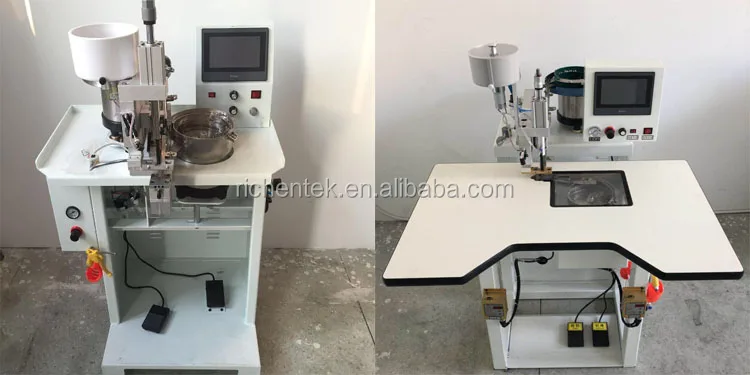

Pictures of the pearl setting machine:

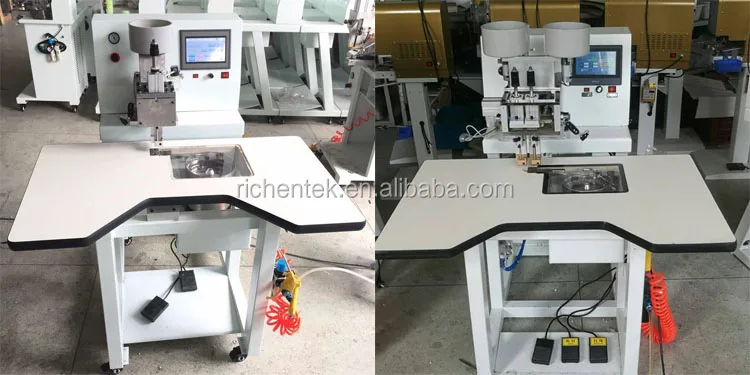

Big work table of the pearl setting machine:

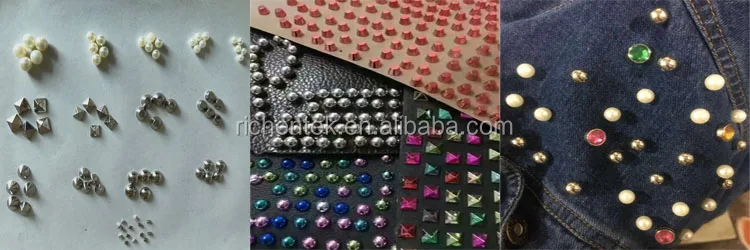

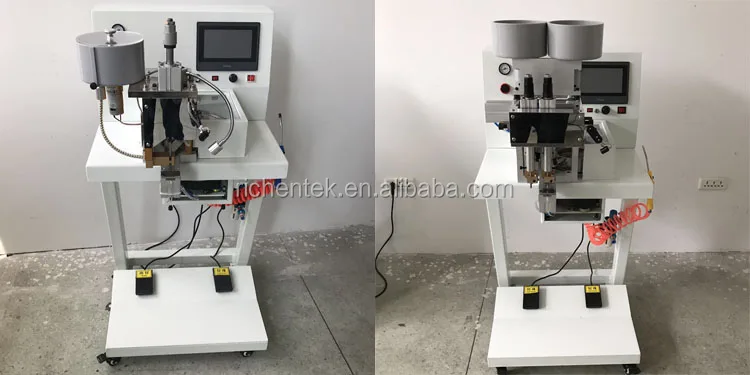

Multifuctional pearl setting machine for setting different shapes of pearls,such us ball shape,semicircle shape,cone shape,square shape and so on:

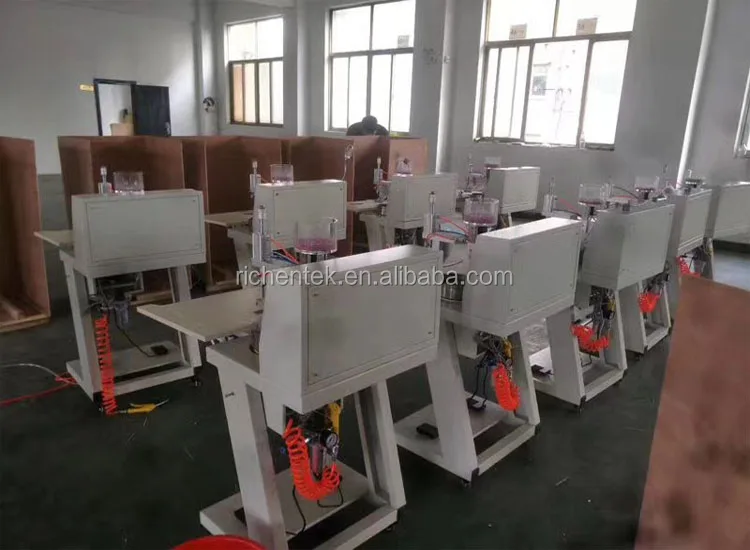

Packing and shipping of the pearl fixing machine:



More final product by our pearl fixing machine:

More information pls send us inquiry freely:
