Гидравлический пресс горячей штамповки пресс с закрытым штампованием Электрический винтовой пресс
- Category: >>>
- Supplier: Anyang Forging Press Machinery Industry Co. Ltd.
Share on (60732070973):
Product Overview
Description
Product Overview
58K Series Electric Screw Press
58K Series Electric Screw Press is suitable for all kinds of precision forging, sizing, precision pressing, calibration and leveling etc processes. The hitting energy can be accurately set, the stroke is short, and the energy is stable. The hitting energy can be adjusted according to the metal forming needs to reduce the mechanical stress and thermal stress of forging dies, prolong the lifespan of the forging dies. Because of its low slider speed, it has unique advantages in forging of non-ferrous metals such as aluminum alloy and copper. The J58K Series Electric Screw Press produced by our company adopts advanced frequency conversion control technology, it has a simple and reliable structure, can provide greater working energy, also it has the following features and advantages to make it widely used in forging production.
+ Various frame types / customized
+ Higher rigidity / reliable
+ High precision / high stability of control and transmission
+ Flywheel adopts friction overload protection / safe and reliable
+ Advanced intelligent control system
+ Optional / multi device system
+ Various frame types / customized
+ Higher rigidity / reliable
+ High precision / high stability of control and transmission
+ Flywheel adopts friction overload protection / safe and reliable
+ Advanced intelligent control system
+ Optional / multi device system
Product Paramenters
Item | Unit | J58K-160 | J58K-250 | J58K-315 | J58K-400 | J58K-630 |
Nominal force | KN | 1600 | 2500 | 3150 | 4000 | 6300 |
Max. working force | KN | 2500 | 4000 | 5000 | 6300 | 10000 |
Max. forging energy | KJ | 10 | 15 | 20 | 40 | 80 |
Slide stroke | mm | 300 | 320 | 380 | 400 | 450 |
Theoretical strokes | min-1 | 30 | 28 | 26 | 20 | 19 |
Min. enlose height | mm | 500 | 500 | 550 | 570 | 720 |
Thickness of sow block | mm | 120 | 120 | 120 | 120 | 160 |
Enclose height range of die holder | mm | 380～ | 380～ | 430～ | 450～ | 560～ |
Size of worktable (width×depth) | mm | 600×560 | 600×560 | 700×640 | 750×730 | 820×900 |
Item | Unit | J58K-1000 | J58K-1600 | J58K-2500 | J58K-4000 | |
Nominal force | KN | 10000 | 16000 | 25000 | 40000 | |
Max. working force | KN | 16000 | 25000 | 40000 | 63000 | |
Max. forging energy | KJ | 160 | 280 | 500 | 1000 | |
Slide stroke | mm | 500 | 600 | 630 | 750 | |
Theoretical strokes | min-1 | 18 | 15 | 14 | 10 | |
Min. enlose height | mm | 750 | 960 | 1050 | 1460 | |
Thickness of sow block | mm | 180 | 220 | 250 | 300 | |
Enclose height range of die holder | mm | 570～ | 740～ | 800～ | 1160～ | |
Size of worktable (width×depth) | mm | 920×1050 | 1000×1280 | 1200×1400 | 1600×1900 |

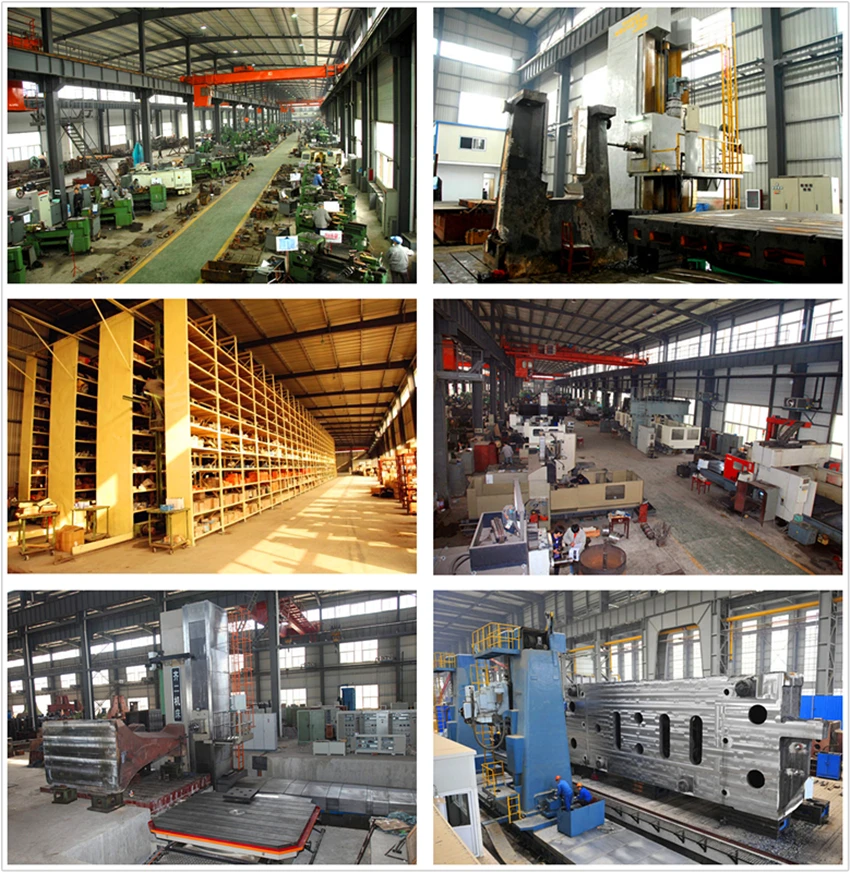

MANUFACTURE
PRODUCT APPLICATION

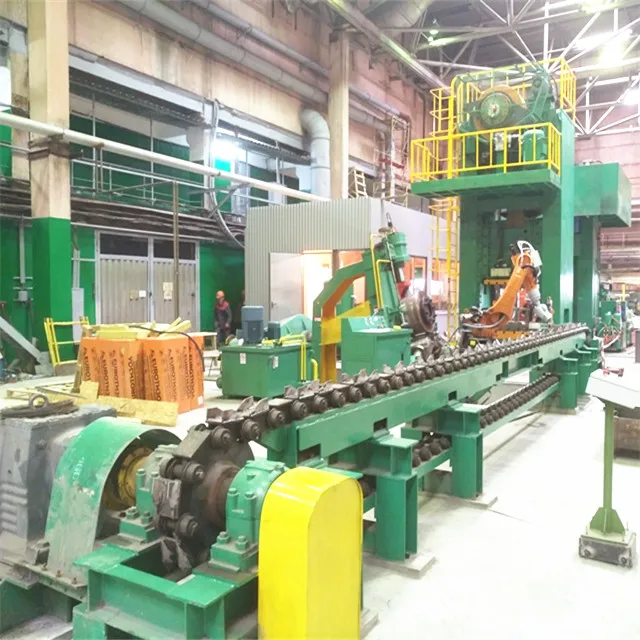

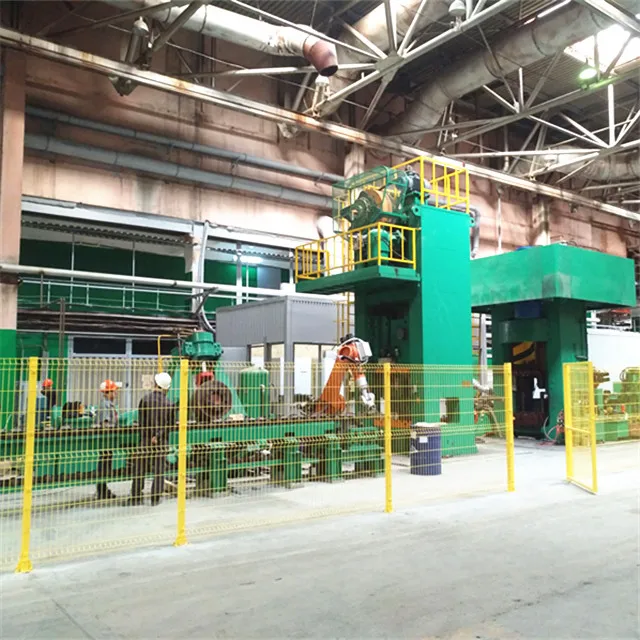

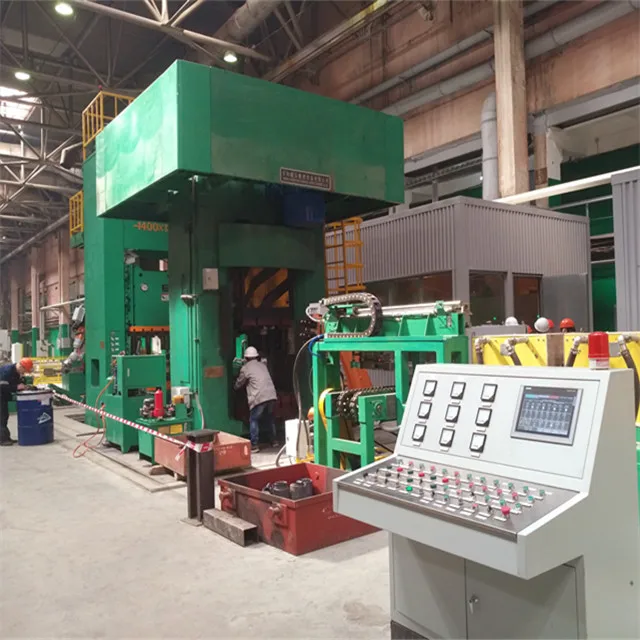

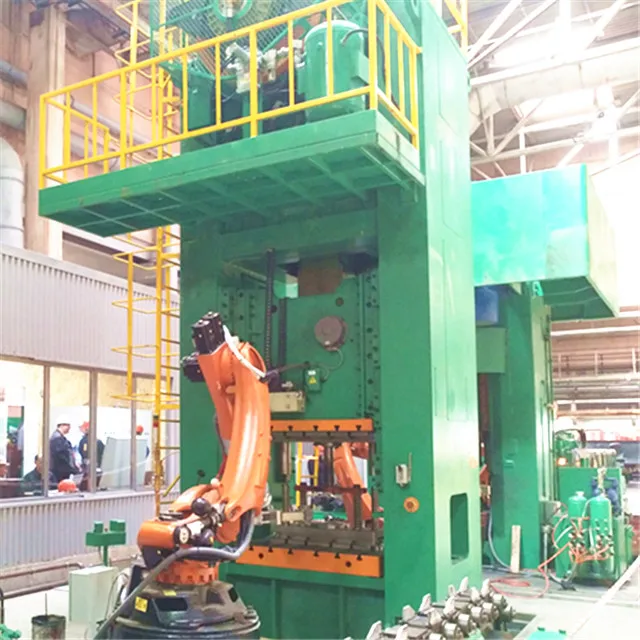

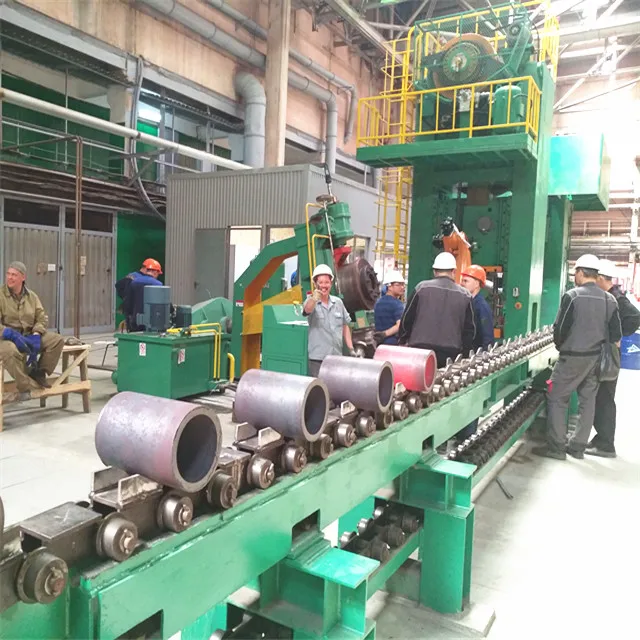

CASES
in Russia
in India
in China
CERTIFICATIONS
All of our Products got CE, our company have got tens of patents of forging machine technical, China forging hammer standard is drafted by us.
OUR SERVICES
Anyang can supply excellent oversea service.
We have 20+ oversea sales team, can supply 7*24 service.
we have 30+ engineer team to supply oversea installation and after service.

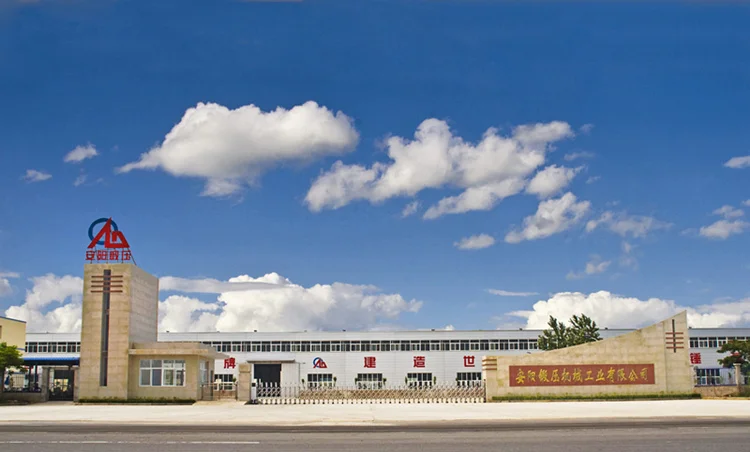

COMPANY INFORMATION
Anyang Forging Press (Group) Machinery Industry Co.,Ltd company is the biggest and the best manufacturer of forging equipments and forging auxiliary machines in China. Besides, we also specialized in manufacturing hydraulic briquette presses, baling presses for metal scrap processing and Hydraulic Riveting Machines in truck/bus chassis riveting field. Our company now covers an area of about 80 acres. We have 1600 staff members, among whom there are 210 technicians. Our workshops have more than 300 sets of excellent manufacturing equipments. Our company has small part machining workshops, large part machining workshops, heat treatment workshops, riveting and forging workshops, assembly workshops and so on 16 departments.
Our main products include CNC Fully Hydraulic Die Forging Hammers, Electro Hydraulic Open die Forging Hammers, Electro Hydraulic Die Forging Hammers, Hydraulic Open die Forging Press, Pneumatic Forging Hammers, Steel Ball Skew Rolling Mill Machine, Metal Cutting Machine, Forging Manipulators, Forging Chargers, Ring Rolling Machines, aluminum, Hydraulic Baling Presses and Hydraulic Riveting Machines.Metal Chips Briquetting Press, electric screw press anyang
Anyang Forging Press Machinery Industry Co.,Ltd.
Our products have been exported to USA, Canada, Mexico, Brazil, Chile, UK, Germany, France, Italy, Norway, Romania, Russia, Slovenia, Burma, India, Pakistan, Egypt, South Africa etc., totally more than 80 countries and regions. Our company is located in Anyang City, Henan Province, China.
