Plutools DC motor driver hybrid servo drive brushed motor driver stepper controller RS232 RS485
- Category: >>>
- Supplier: Shanghai Plutools Automation Corporation Limited
Share on (60732083405):
Product Overview
Description
Specifications
| \t | \t | |||
| \t | \t | \t | \t | |
| \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t |
Product Description
Introduction

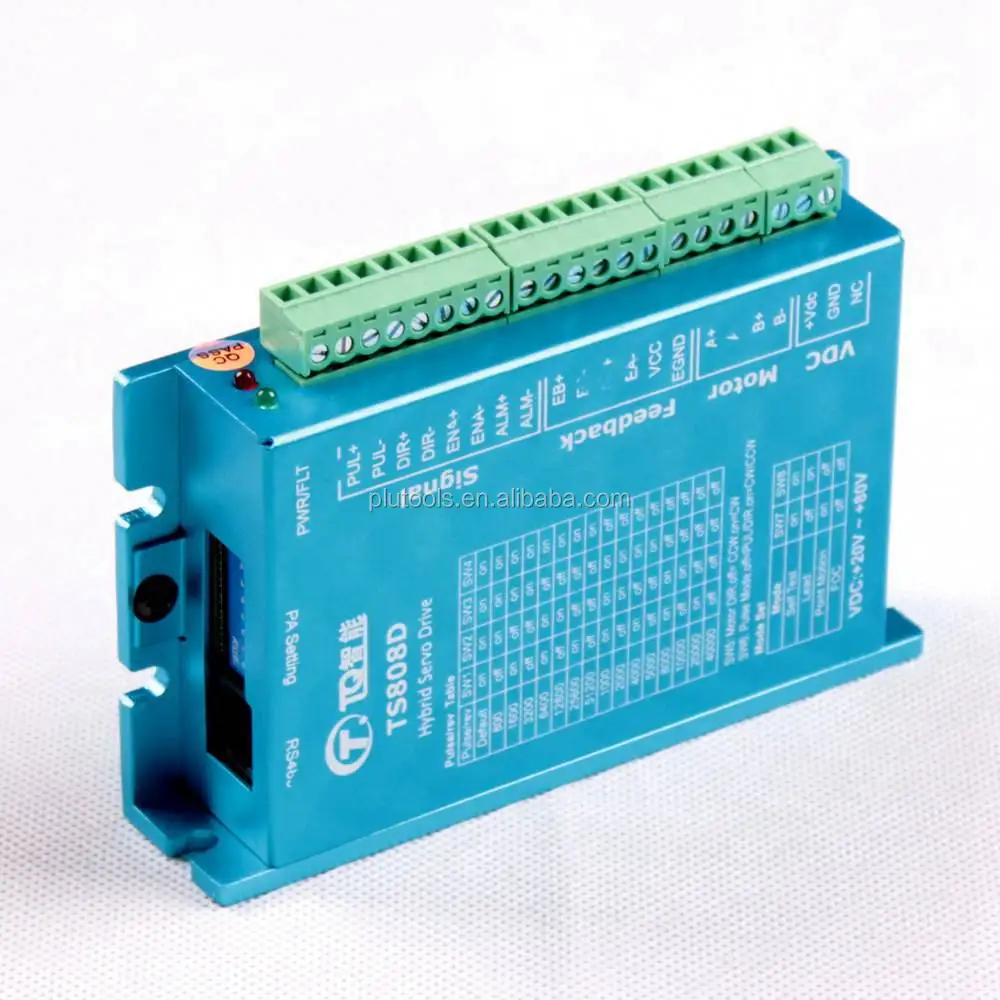

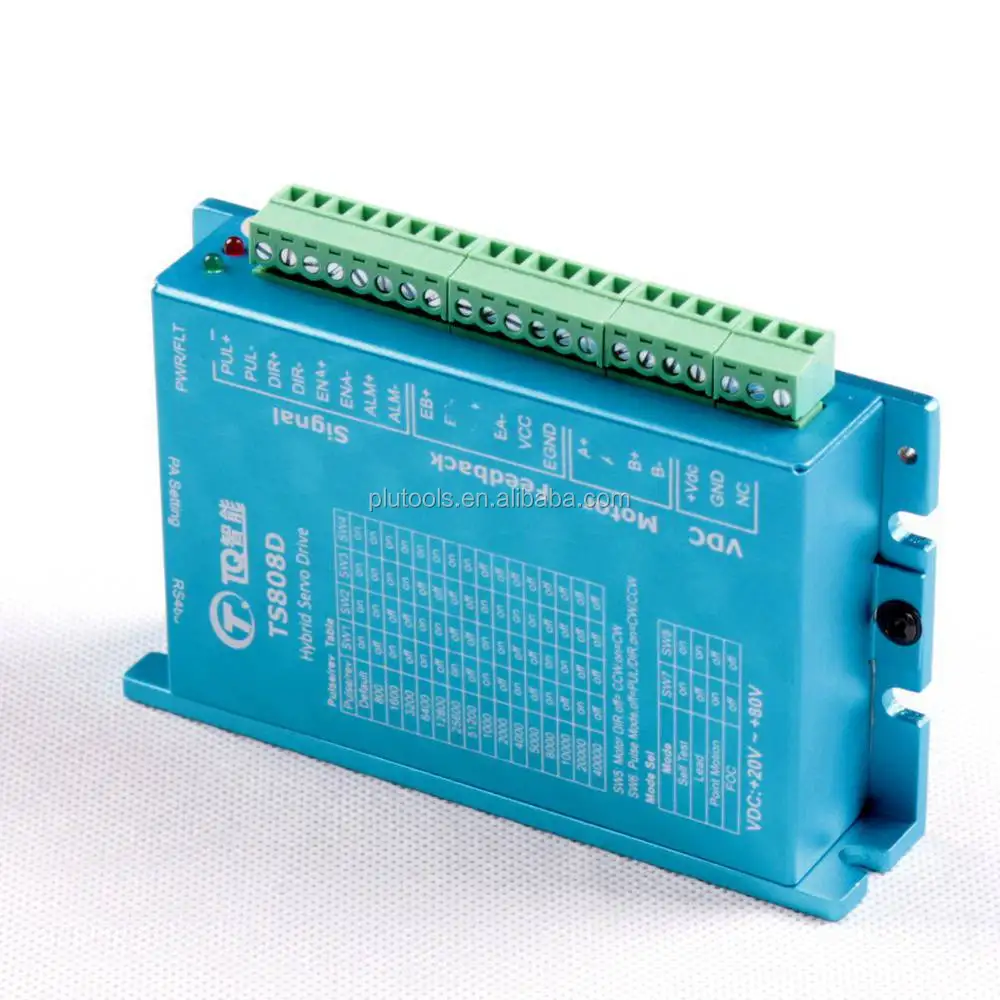

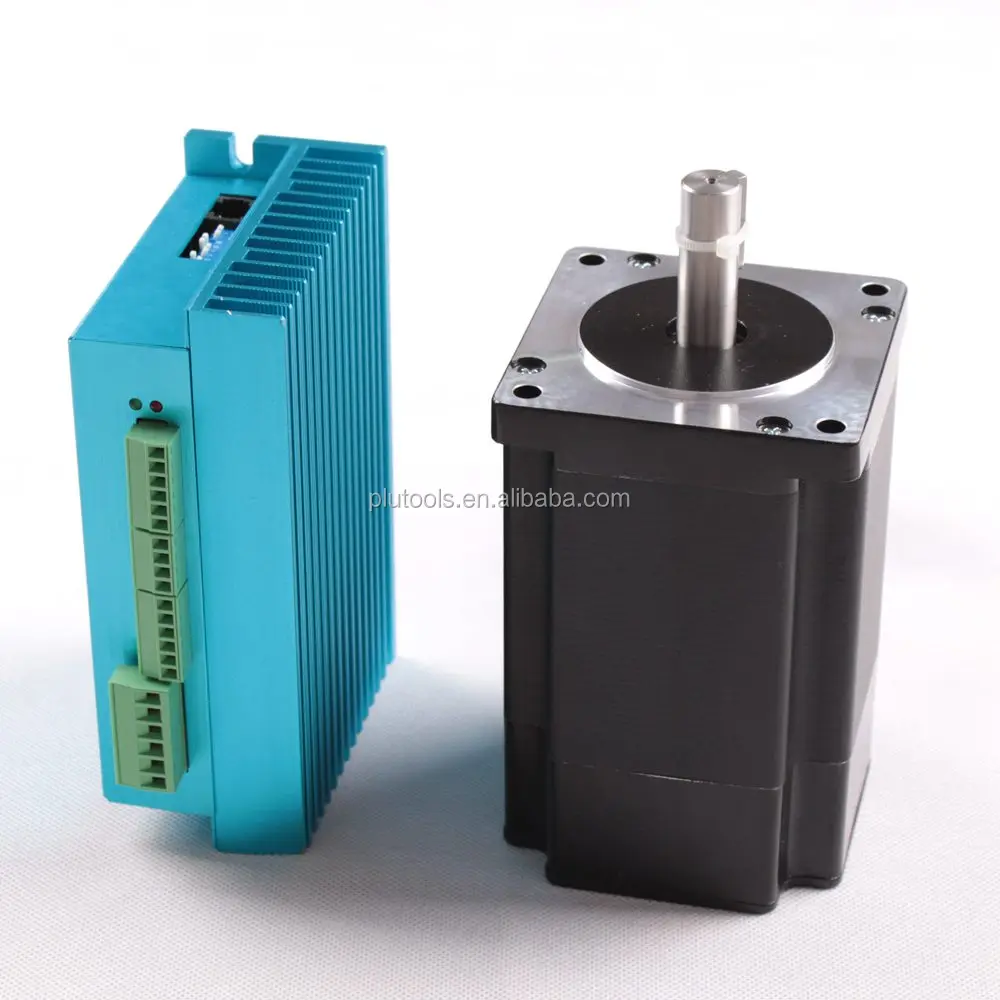

TS808D is one of the models in PLUTOOLS TS series easy servo drives which can take 24-80 VDC operating voltage \tand output 0.5 -8A continuous load-based current. It is capable of driving NEMA 17, 23, 24 and 34 easy servo motors (stepper motors with encoders) with the position loop closed in real time.
Based on latest DSP technology and adopting PLUTOOLS's advanced control algorithm, TS808D easy servo drive applies servo control on easy servo motors. When adopted with an easy servo motor, it combines features of both open loop steppers & brushless servo systems, and offers many unique advances features for excellent motion control system performance.
When an TS808D easy servo drive is implemented with a PLUTOOLS SC series easy servo motor, there is No Configuration Needed for almost all applications. The output resolution from TS808D with the output resolution defaulted to output resolution of 2,000 pulses per resolution (equal to 10 microstep in 2-phase stepper systems). Via DIP switches, a user can also easily change the output resolution to one of 15 output resolutions 400 to 51,200 (equal to 2-256 microstep in 2-phase stepper systems). With PLUTOOLS configuration software, ProTuner, an advanced user can also set custom settings of resolution, current & position loop parameters, idle current \tpercentage, etc.
Features
\tHigh stiffness at standstill
\tSignificantly reduced motor heating
\tSmooth motor movement and extra low motor noise
\tQuick response, no delay and zero settling time
\tNo loss of steps; no hunting; no overshooting
\tPlug-and-play and no tuning
\tStep and direction control
\tClosed position loop for no loss of movement synchronization
\tOperating voltage: 24-80 VDC
\tLoad based output current of 0.5 - 8 A
\tHigh torque at starting and low speed
\tNo torque reservation
Applications
With many unique advanced features, PLUTOOLS TS808D easy servo systems are ideal for many industries to upgrade stepper performance or replace brushless servo systems in many applications.
PLUTOOLS OEM clients have successfully implemented TS808D driven easy servo systems in applications such as \tsmall-to-large size CNC routers, CNC mills, plasmas, large-scale laser cutters / engravers, labeling equipments, \t\trobotics, gemstone processing machines, pick & place machines, X-Y tables.
Packing & Delivery
Products packaged in EPE foam, then in carton boxes, then in wooden pallet or as per customers' request.
A): We recommend DHL Express for samples and small quantities. It is very fast, safe and relatively cheap.
B) We arrange shipment by sea and by air and go with FOB/CIF/CFR terms for large quantities.
C)Door to door service available, products could be loaded & delivered directly from our factory to any corner of the world with very competitive rates either by air, by train or by sea.
Our Company
Founded in 2005 and locates in Shanghai, Plutools Automation Corporation Limited is a leading technology company dedicated to design, manufacture, market, and support reliable and affordable motion control products and driving systems based on the latest control technologies. Plutools offers a full complement of products including AC/DC Motors, Step/Servo Motors, Motor Drive System, Horizontal/Vertical Motors In Wheel, Differential Drive Steering System, Inverters and Braking Units.
Plutools has one of the strongest R & D teams in the automation industry. That team consists of 15 R & D engineers and all of them are highly educated with most of them carrying PhD & Master degrees in controls, electrical & electronics engineering, mechanical engineering, mechatronics etc. Their strong background and experience allow Plutools capable of designing superior quality products based the latest technology in the most efficient way.
Plutools operates manufacturing facilities which are superiorly equipped, professionally staffed, and ISO-9001 certified. That allows Plutools to provide highly reliable quality products to OEM clients in the shortest time.
Plutools believes the key to be a successful motion product suppliers is the commitment to fully understanding our customer’s applications and working closely with our OEM clients. In many cases, Plutools’ engineers can participate in the whole process of client product development, including initial application evaluation.
Why Choose Us
.• Certified actual products - We have a zero-tolerance policy for asset recovery vendors.
• Lowest package prices -Always offer lower price than other companies.
• Professional technical engineer team- possible fastest response and support to client’ application demand.
• Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, Plutools promise to refund.
• Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.
• Free payment mode by T/T, L/C, western union and Paypal can be available.
