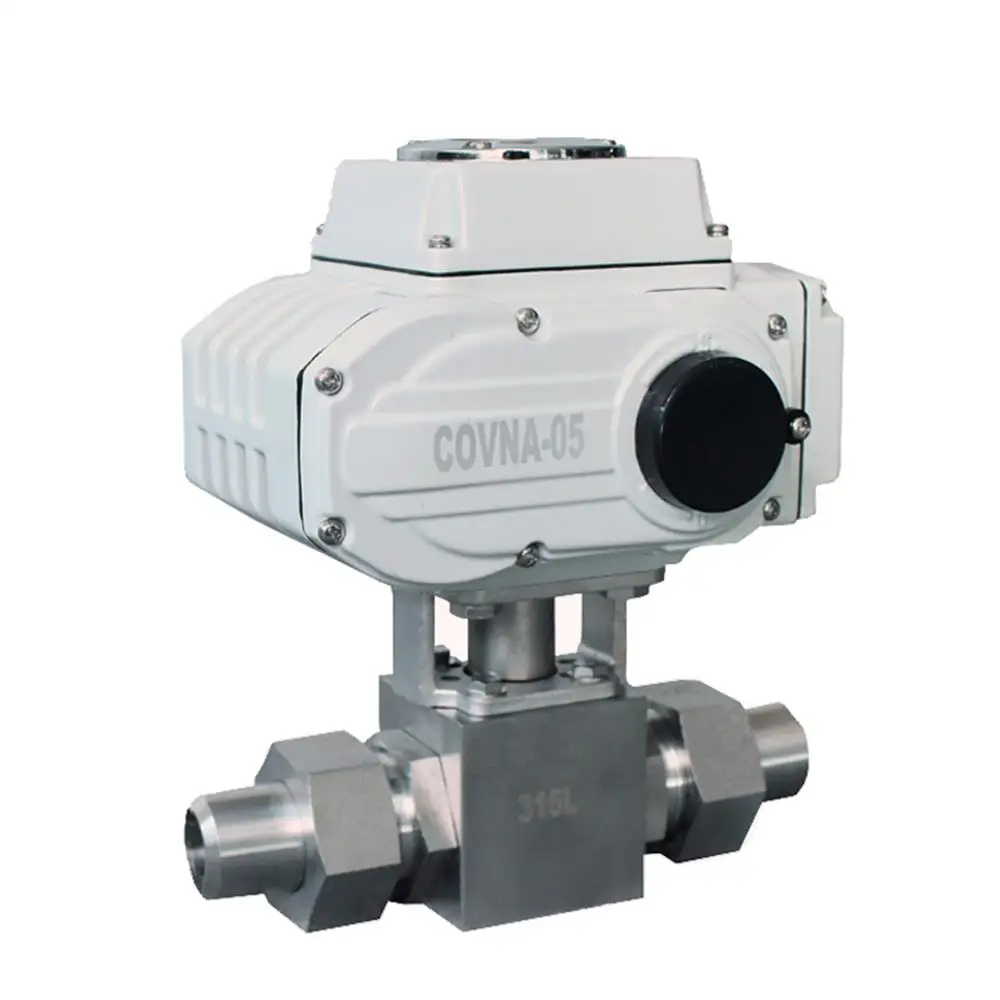

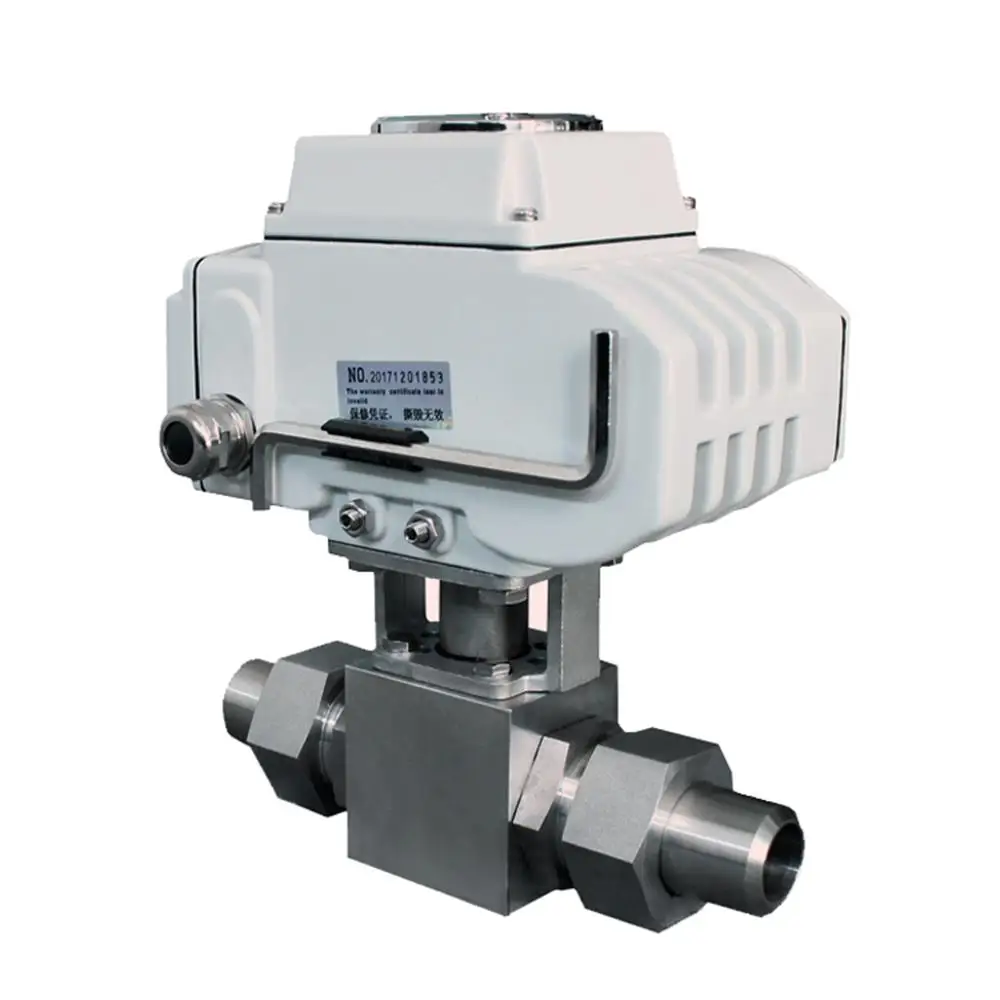

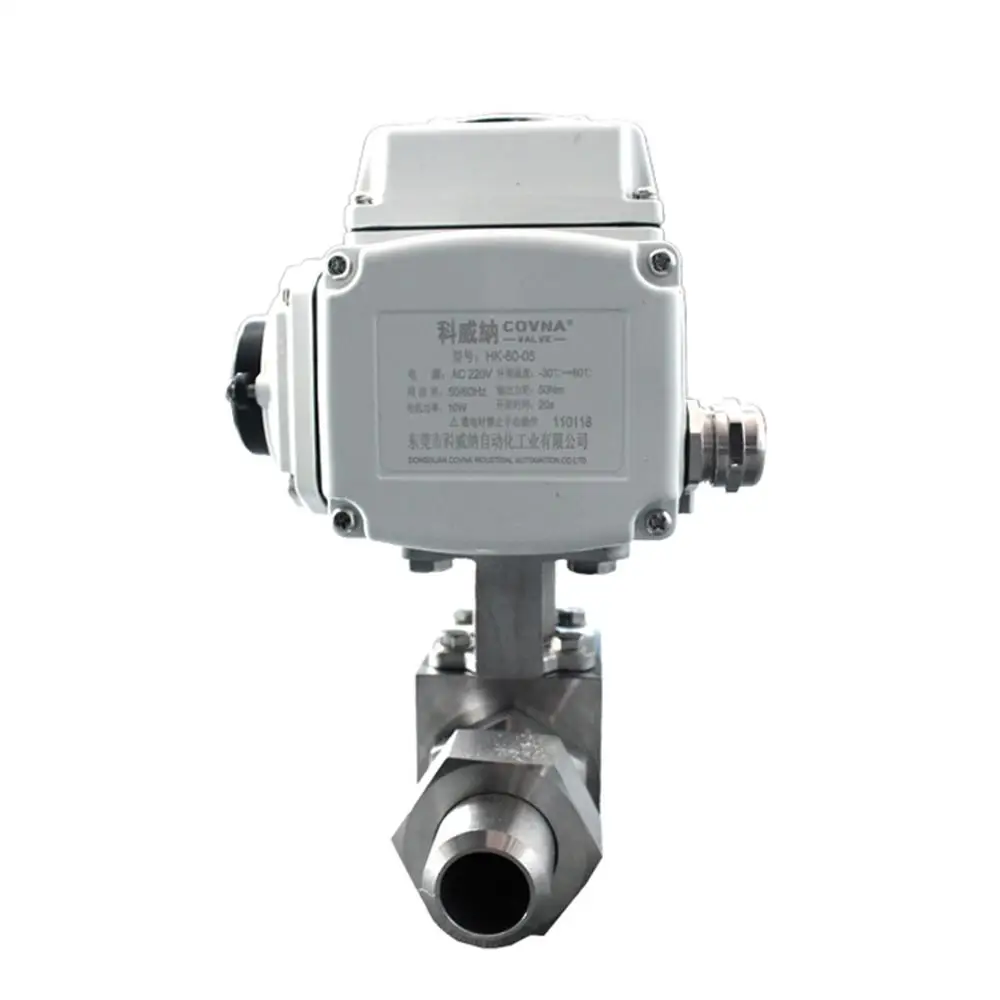

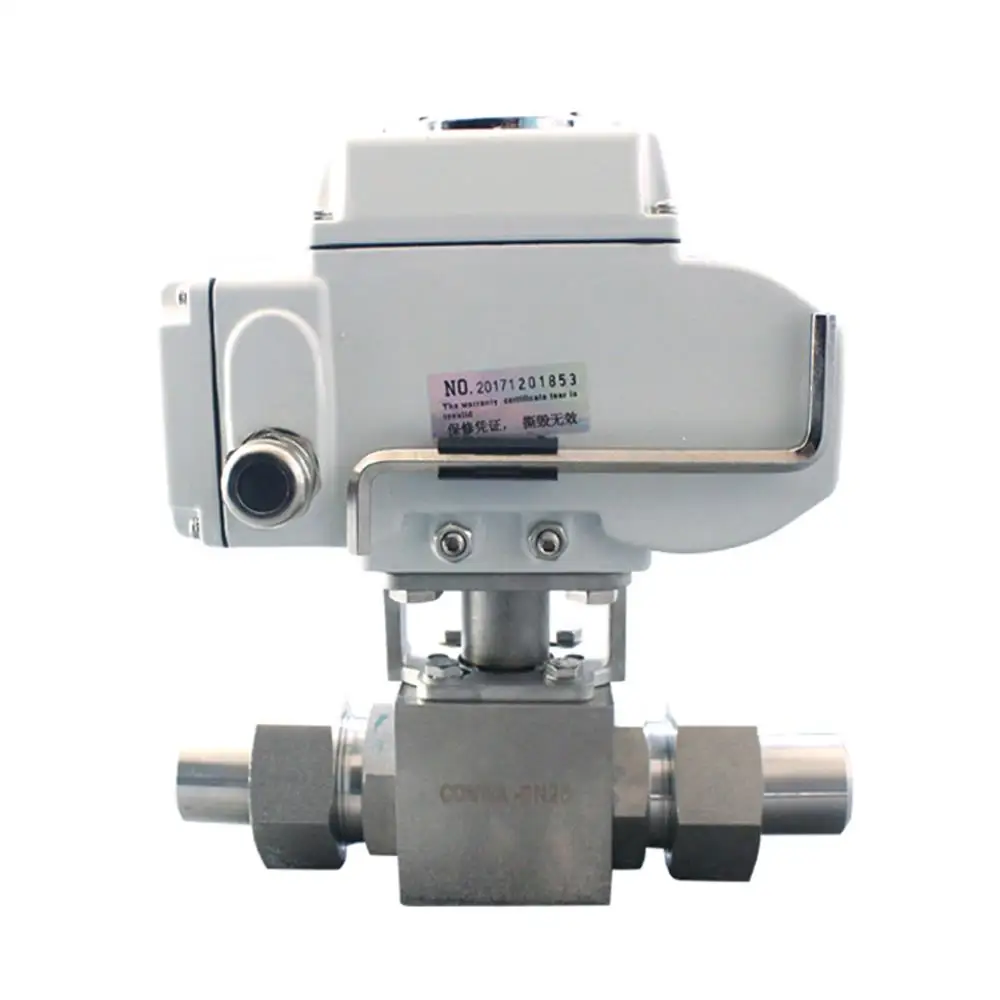

COVNA DN40 1.5 inch 2 Way 24 Volt 5000 PSI High Pressure Stainless Steel Ball Valve with Electric Drive motor ball valve
- Category: >>>
- Supplier: COVNA Industry Automation Co. Ltd.
Share on (60732096952):
Product Overview
Description
Specifications
Technical Parameter for Actuator | ||||||
Shell Material | Die-Cast Aluminum Alloy (Powder Coated) | ||||
Lifespan | 100,000 (Ten Thousand) Times | ||||
Output Torque | 50 to 4000Nm | ||||
Angle of Rotation | 90° ±4° | ||||
90° Cycle Time | 15S/30S/60S | ||||
Optional Voltage | DC24V (±10%), AC110-220V, 50/60Hz | ||||
Insulation Resistance | DC24V: 100MΩ/250V; AC110/220V/380V: 100MΩ/500V | ||||
Withstand Voltage | DC24V: 500V; AC110/220V: 1500V; AC380V: 1800V 1Minute | ||||
Protection Class | IP65 | ||||
Explosion Proof | EX d II BT4 | ||||
Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke | ||||
Ambient Temp. | Range from -20 to +60°C (For Use In Temperatures Below 0°C, We Suggest Anti-Condensate Elements) | ||||
Wiring Diagram | ||||||
ON/OFF Type with Passive Contact Signal Feedback
AC Voltages
Regulation Type with Servo Controller Module
AC Voltages
Products Description
Company Profile
Certification
Exhibition
Cooperation Customers
Finished Project
Packaging & Delivery
FAQ
Q:Which voltage of the electric actuator?
A: DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
Q: What is the actuation time for electric actuator?
A: It depends on the torque of actuator.
The detailed timing would be as the following:
* COVNA-05(50Nm)-20 seconds
* COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
* COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
* COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
Q: Can the actuation time be faster?
A: Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
Q: What type of electric actuator you provide?
A: ON/OFF type, Regulation type and Intelligent type.
Q: What is the difference from ON/OFF type, Regulation type and Intelligent type?
A: 1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
Q: Can this electric valve be resettable (normally open / closed) automatically when power is removed?
A: Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
Q: Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?

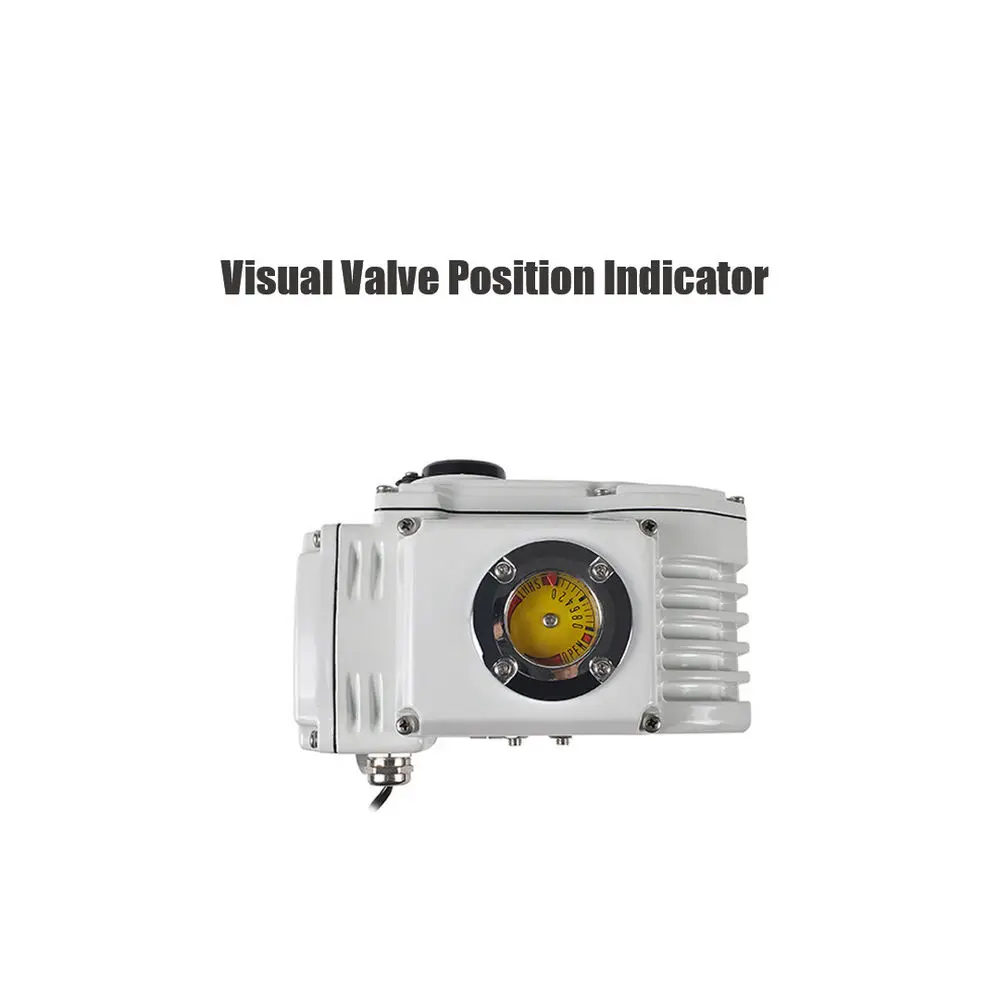

A: Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
Q: Which type of protection class of this electric actuator?
A: IP65, IP68, Explosion proof.
Q. Is there any manual override of electric valve?
A: Yes, every electric valve includes the manual override.
You can open/close
Q:Have the electric valve had the limiting operating time?
A: Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
A: DC24V, AC24V, AC110V, AC220V
AC380V can be customized and DC12V is available for some smaller torque of actuator.
Q: What is the actuation time for electric actuator?
A: It depends on the torque of actuator.
The detailed timing would be as the following:
* COVNA-05(50Nm)-20 seconds
* COVNA-10(100Nm)/COVNA-16(160Nm)-25 seconds
* COVNA-30(300Nm)/COVNA-60(600Nm)-60 seconds
* COVNA-125(125Nm)/COVNA-250(2500Nm)/COVNA-400(4000Nm)-100 seconds.
Q: Can the actuation time be faster?
A: Electric actuator can be customized the quick actuation gear,
the soonest actuation time can be reach 10 seconds to open and close.
Q: What type of electric actuator you provide?
A: ON/OFF type, Regulation type and Intelligent type.
Q: What is the difference from ON/OFF type, Regulation type and Intelligent type?
A: 1)ON/OFF type
ON/OFF type is fully open and fully closed.
2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
4.With display screen to acheieve site control.
Q: Can this electric valve be resettable (normally open / closed) automatically when power is removed?
A: Our regular electric actuator can't be resettable automatically while power-off.
But it can go to the multiturn electric actuator model with the extra electrical storage device along,
which acheieve the valves can be automatic reset(normally closed) while power failure.
Q: Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
A: Yes, there is the position indicator on the top of actuator.
The open/closed status can be checked visually.
Q: Which type of protection class of this electric actuator?
A: IP65, IP68, Explosion proof.
Q. Is there any manual override of electric valve?
A: Yes, every electric valve includes the manual override.
You can open/close
Q:Have the electric valve had the limiting operating time?
A: Electric haven't had the limiting operating time.
It can be working for 99 hours continually without getting heating.
