50 50 kn/m fiberglass geogrid for soil reinforcement
- Category: >>>
- Supplier: Taian Zt Industrial And Trading Co. Ltd
Share on (60732185917):
Product Overview
Description

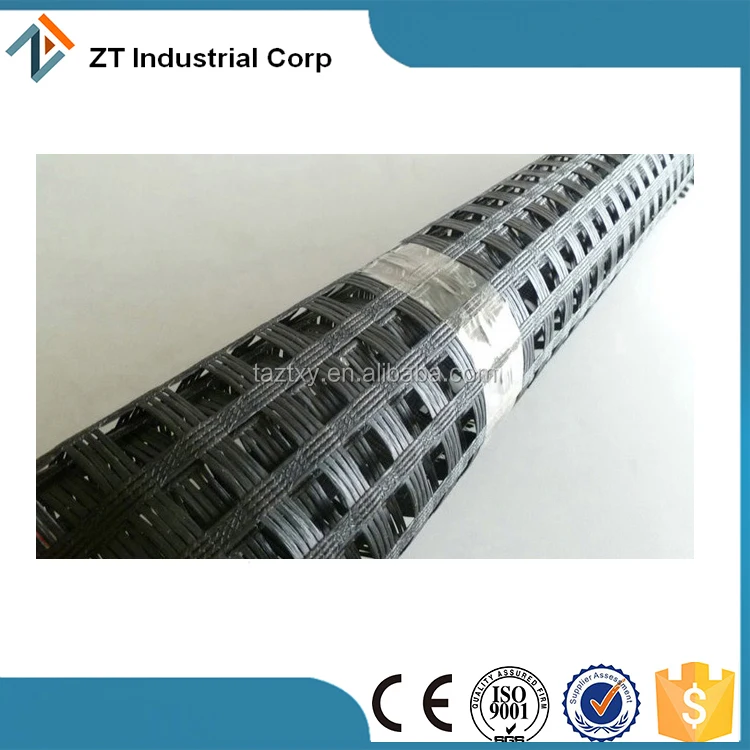

50-50 kn/m fiberglass geogrid for soil reinforcement
COMPANY ADVANTAGE
As a professional manufacturer and sale of the earthwork product, ZT Co. insists to "people-oriented, win by quality" culture. This service has attracted many big companies in China including the likes of CSCEC, CRCC, and CNQC which have made repeat purchases from us.
ZT sincerely invites you to take an inspection tour around our factory.
Zinger we offer, Trust we harvest!
Product Description
Specification
1. Product Introduction
Tensile strength: MD/CD | 25- 400kn |
width | 1-6 m |
Length | 50-100m or as customers' requests |
Material | Fiberglass |
Coating | Bitumen |
Type | Regular, Self-adhesive |
Port | Qingdao |
Delivery | 2-20 days |
Packing | woven bag or as customers' requests |
2.Product Feature
1) High tensile strength; low elongation; high modulus; high temperature resistance
2) Corrosion resistance; ageing resistance,
3) Good toughness; good physical and chemical stability, thermo-stability
4) Stick-to-active for performance exchanging during long-term using
3.Product Function
1) Maintenance and reinforcement of old asphalt road.
2) Rebuild old cement concrete road into composite road, restrain reflection crack caused by different block contraction.
3) It has widely applied in road renovation and expansion project, prevents cracks along the joint position caused by uneven sedimentation.
4) It is used for soft sub grade reinforcement. The geogrid will help the water infiltration and soil concretion, restrain subsidence effectively, and decentralize stress evenly, enhance overall strength of the roadbed.
Technical Parameter
4. Product Technical Parameter
Regular/ Self-adhesive Fiberglass Geogrid
Specification | EGA 25-25 | EGA 30-30 | EGA 40-40 | EGA 50-50 | EGA 80-80 | EGA 100-100 | EGA 120-120 | EGA 160-160 | EGA 200-200 | EGA 260-260 | EGA 300-300 | EGA 400-400 | |
Elongation ration % | ≤3 | ||||||||||||
Intensity (KN/m) | MD | 25 | 30 | 40 | 50 | 80 | 100 | 120 | 160 | 200 | 260 | 300 | 400 |
CD | 25 | 30 | 40 | 50 | 80 | 100 | 120 | 160 | 200 | 260 | 300 | 400 | |
Grid size (mm) | 12.7×12.7 25.4×25.4 50×50 | ||||||||||||
Width (m) | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | |

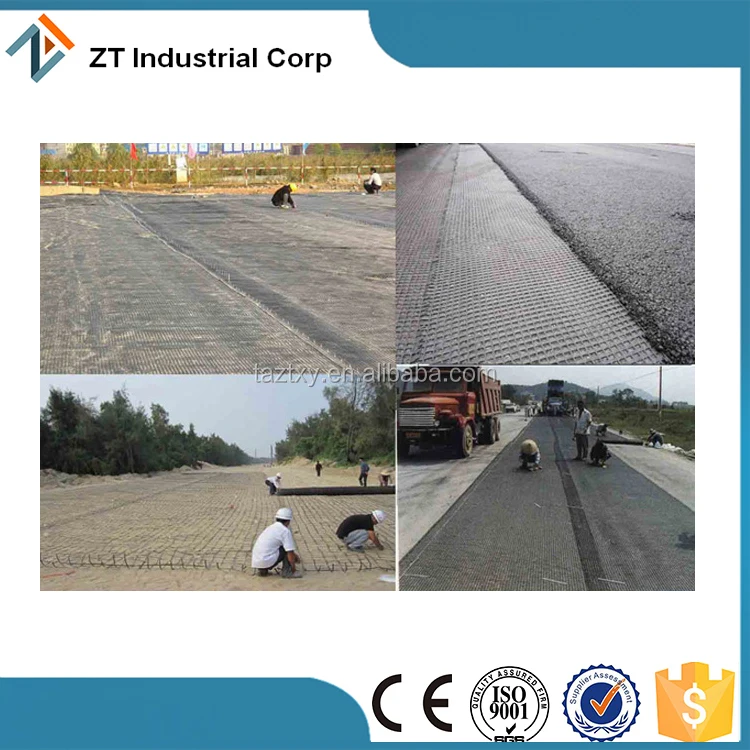

Application

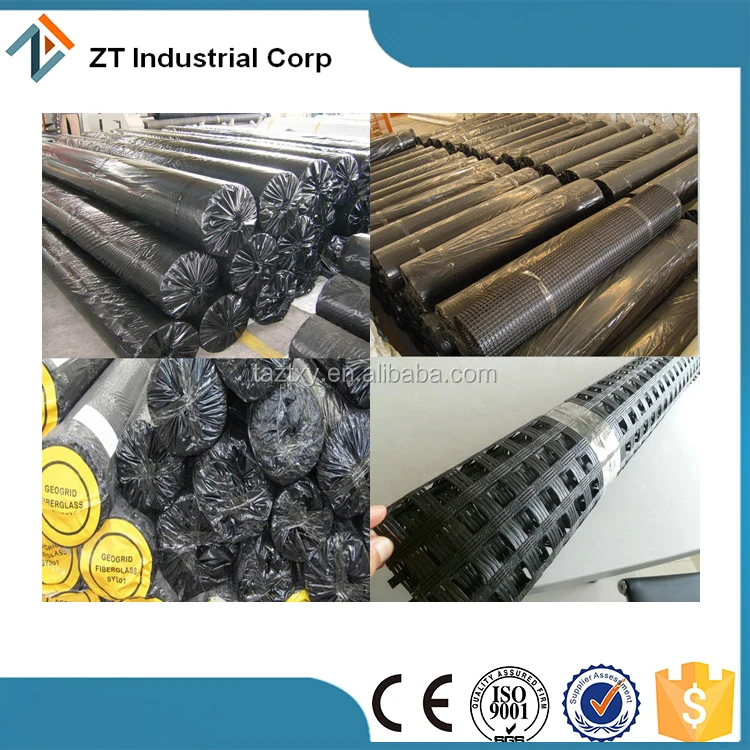

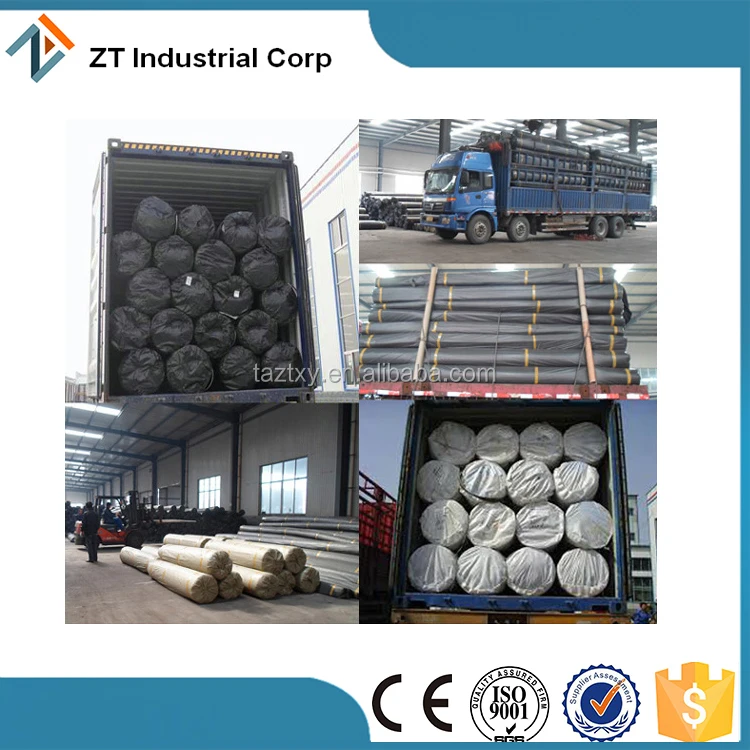

Packaging & Shipping
Company Information

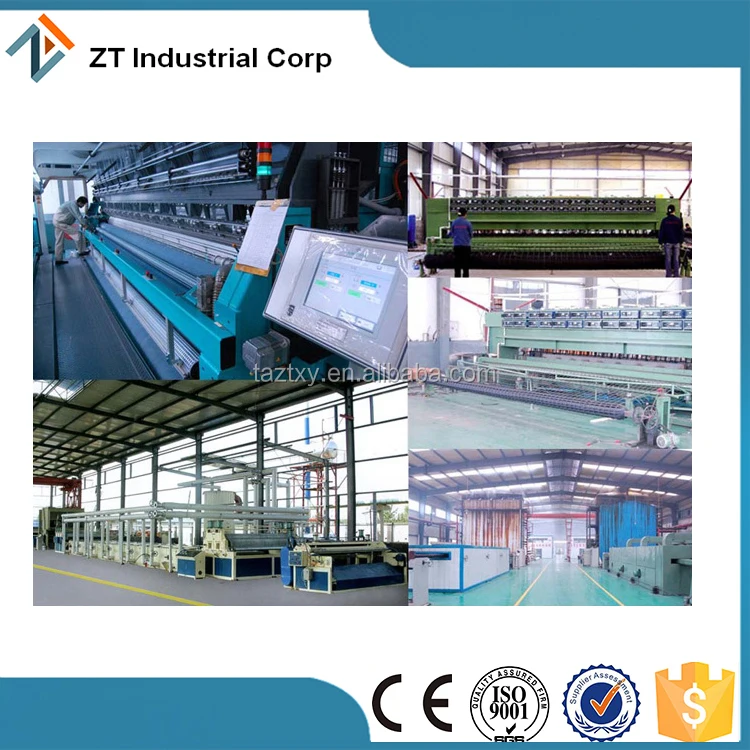

Production Equipment
Test Equipment
Raw Material
Our Customers
Our Services
Other products
Contact Information
Contact
Contact person | Ms. Martina Zhang |
Sales Manager | |
TEL | 86-538-8206876 |
FAX | 86-538-8206878 |
Phone | 86-18661309017 |
martina @taianzt.com | |
Skype | martina_1436 |
+86-18661309017 | |
Face book | www.facebook.com/ZTgeogrid |
Website | //taianzt.en.alibaba.com |
www.taianzt.com |
