Reliable and Good 4.3 inch oled display with Rohs
- Category: >>>
- Supplier: Shenzhen Lummax Electronics Co. Limited
Share on (60732243563):
Product Overview
Description
Product Description

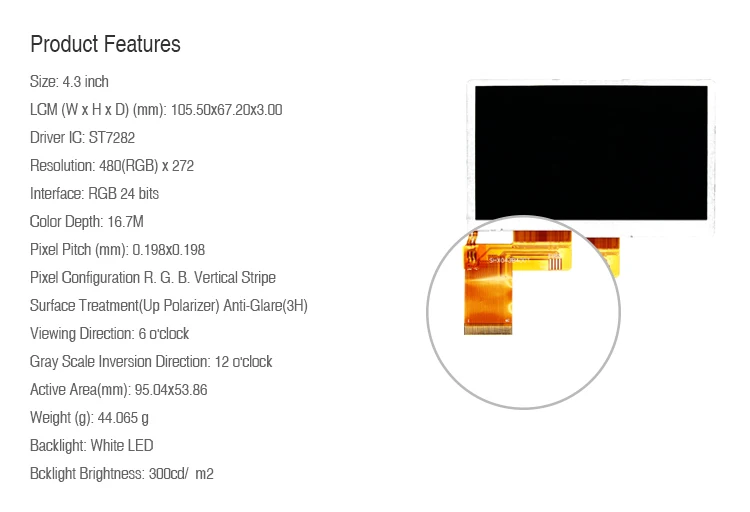

Features

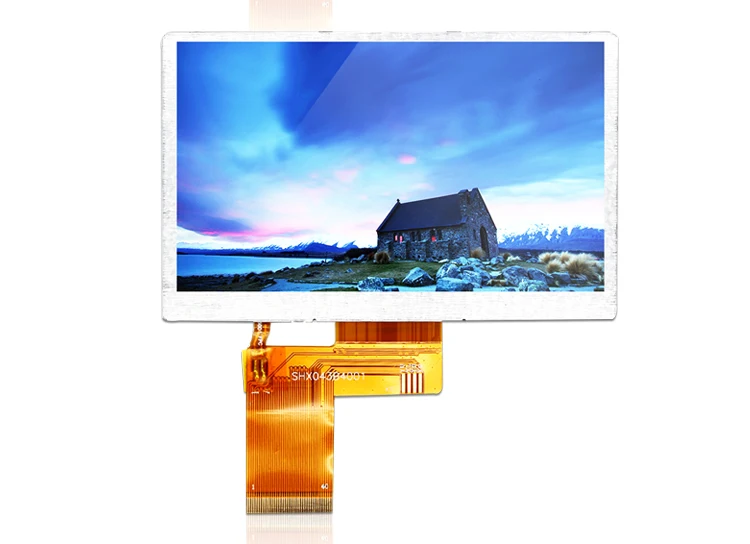

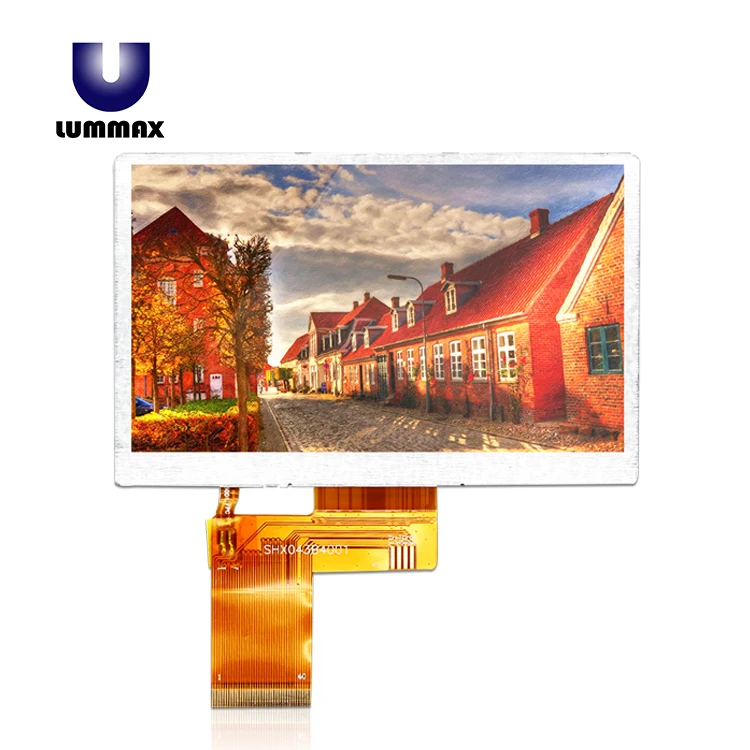

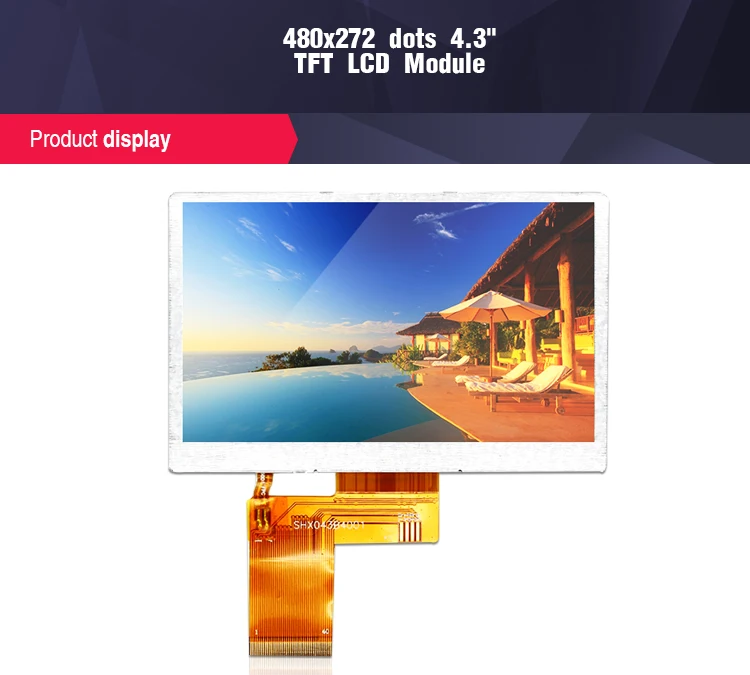

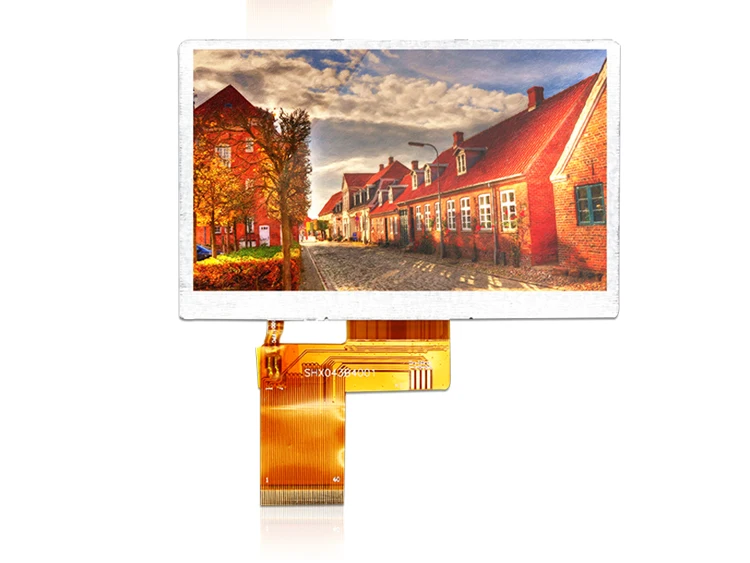

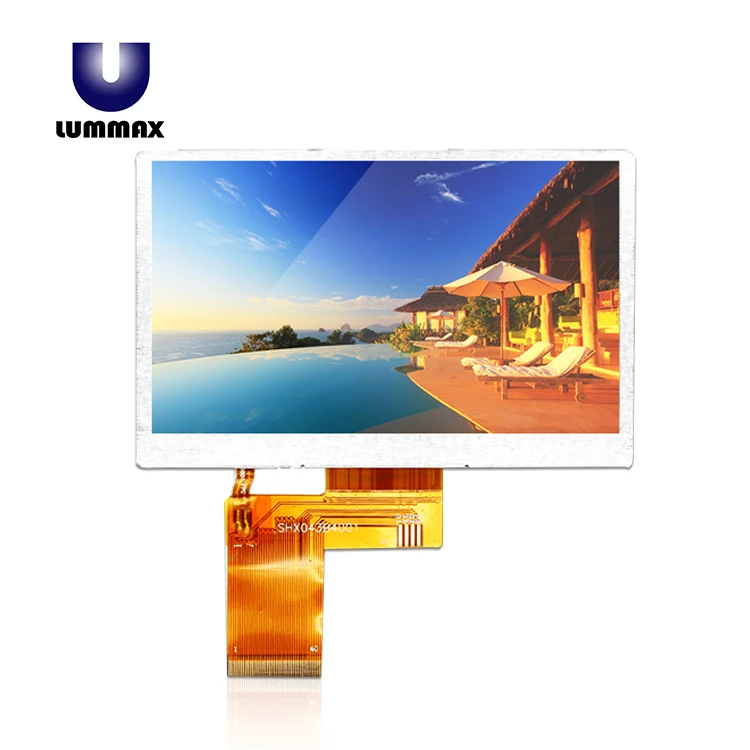

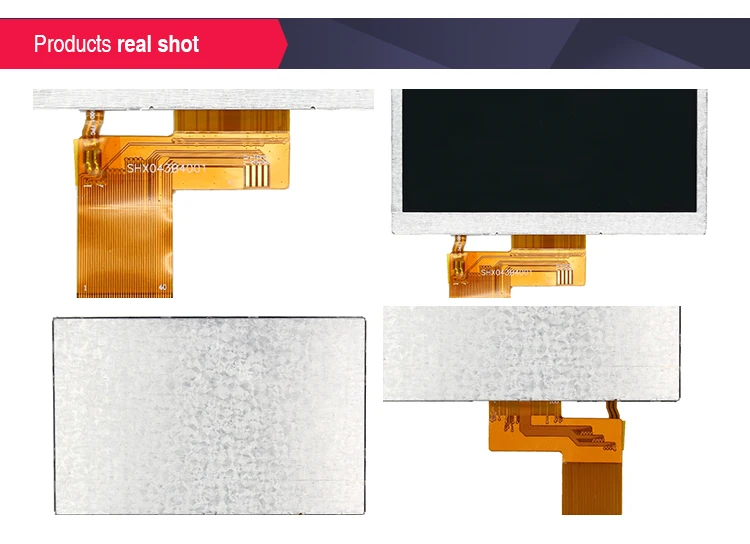

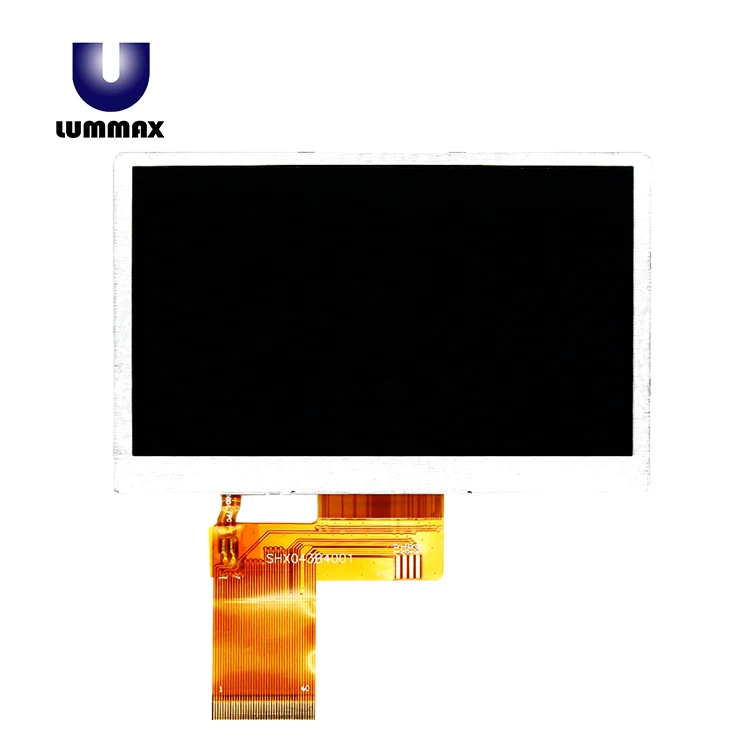

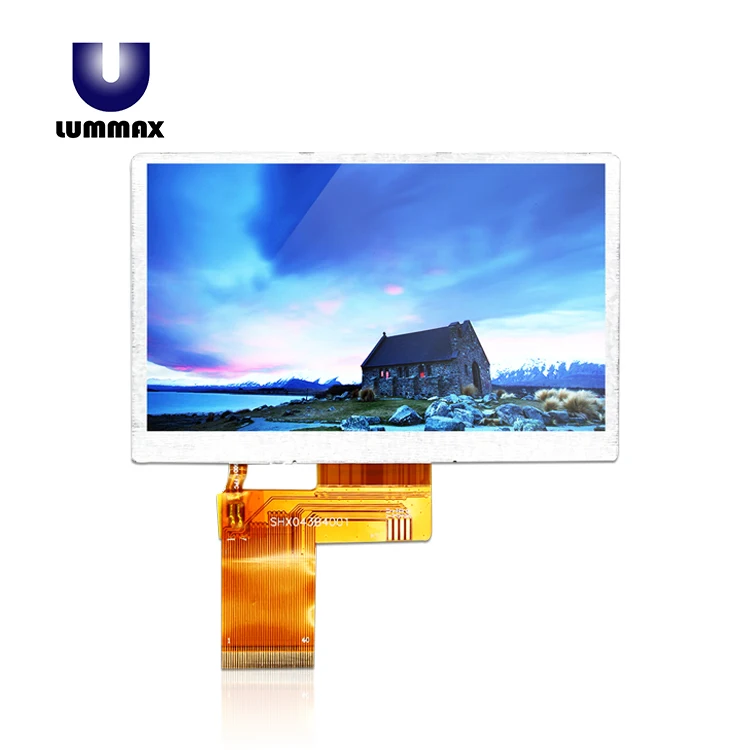

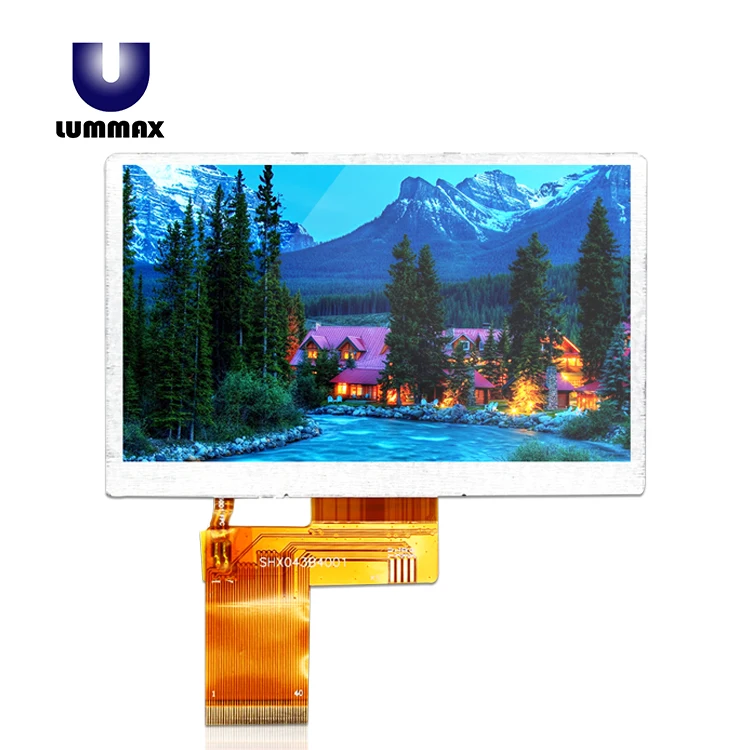

| Item: | 4.3 inch TFT LCD display |
| Model No: | SHX043B4001-A |
| Display Mode: | Normally White,Transmissive |
| Resolution: | 480 x3 RGB x272 |
| Crystal: | a-Si TFT active matrix |
| Color Filter Array: | R.G.B. Vertical Stripe |

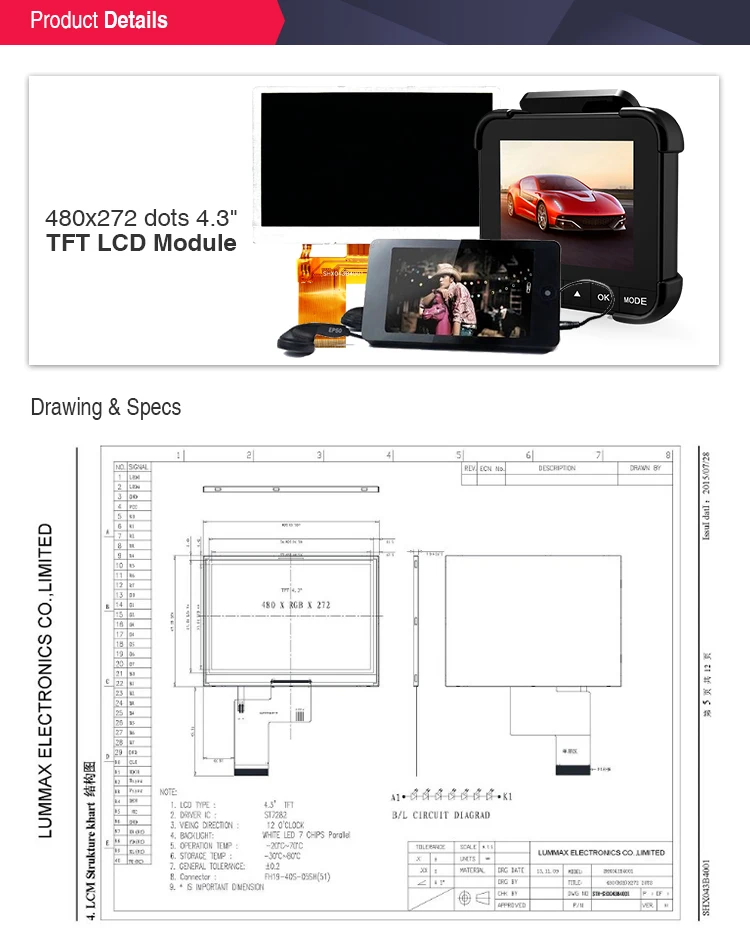

| Outline Dimensions:(mm) | 105.5(W) x 67.2(H) x 4.1(D) |
| Active Area(mm): | 95.04(H) x 53.856(V) |
| Interface: | RGB 24Bit |
| View Direction: | 12 O'clock |
| Touch Panel: | Optional |
| Working temperature: | -20~70°C |
| Storage Temperature: | -30~+80°C |
Packaging & Shipping
Why chose LUMMAX
1. AN ISO 9001:2008 Certified company
2. 14 years’ experience of LCD display R&D and production.
3. Highly trained and experienced LCD and LCM engineers
4. Professional sales team who can efficiently provide the optimum display solution. Cost and time saving.
5. Quick drawing creation: LCD panel 2 days, LCD module 3 days
6. Quick sample delivery: LCD panel 12 days, LCD module 20 days
7. We have our own LCD glass production line which can guarantee high quality and low cost
8. Warranty period: 100,000 hours for LCD panel. 50,000 hours for LED backlight
