Golf Driving Range 25M 30M High Mast Lighting Price and Specification
Product Description
| Height | From 18 m to 50m |
| Suitable for | Airport ,seaport, plaza, stadium, square, highway station, street way ,etc |
| Shape | Round, Multi-pyramidal, Column form, polygonal or conical |
| Material | Q235B/A36,minimum yield strength>=235n/mm2 |
| Torrance of dimension | ± 2% |
| Lighting Source | 400 W- 5000 W high pressure sodium flood light, light extension :up to 30 000 m² |
| Angle of illumination | 180 or 360 degree. |
| Light plate | Various figure of selection ,material with hot dip galvanization steel frame. |
| Lifting system | Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute equipped electromagnetism brake and break –proof device, manual operation applied under power cut. |
| Electric appliance control device | Electric appliance box to be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting mode. |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode, inner flange mode, face to face joint mode . |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 80 Km/Hour |
| Welding | We has past flaw testing. Internal and external double welding makes the welding in shape |
| Thickness | 6 mm to 20 mm |
| Production Process | Raw material test→Cutting→Molding or bending →Welding (longitudinal ) →Dimension verify→Flange welding→Hole drilling →Calibration →Deburr →Galvanization or powder coating, Painting→Recalibration→Thread→Packaging |
| Packages | Our poles as normal cover by bubble pack/blanket or straw bale at the top and bottom ,anyway also can following by client required |

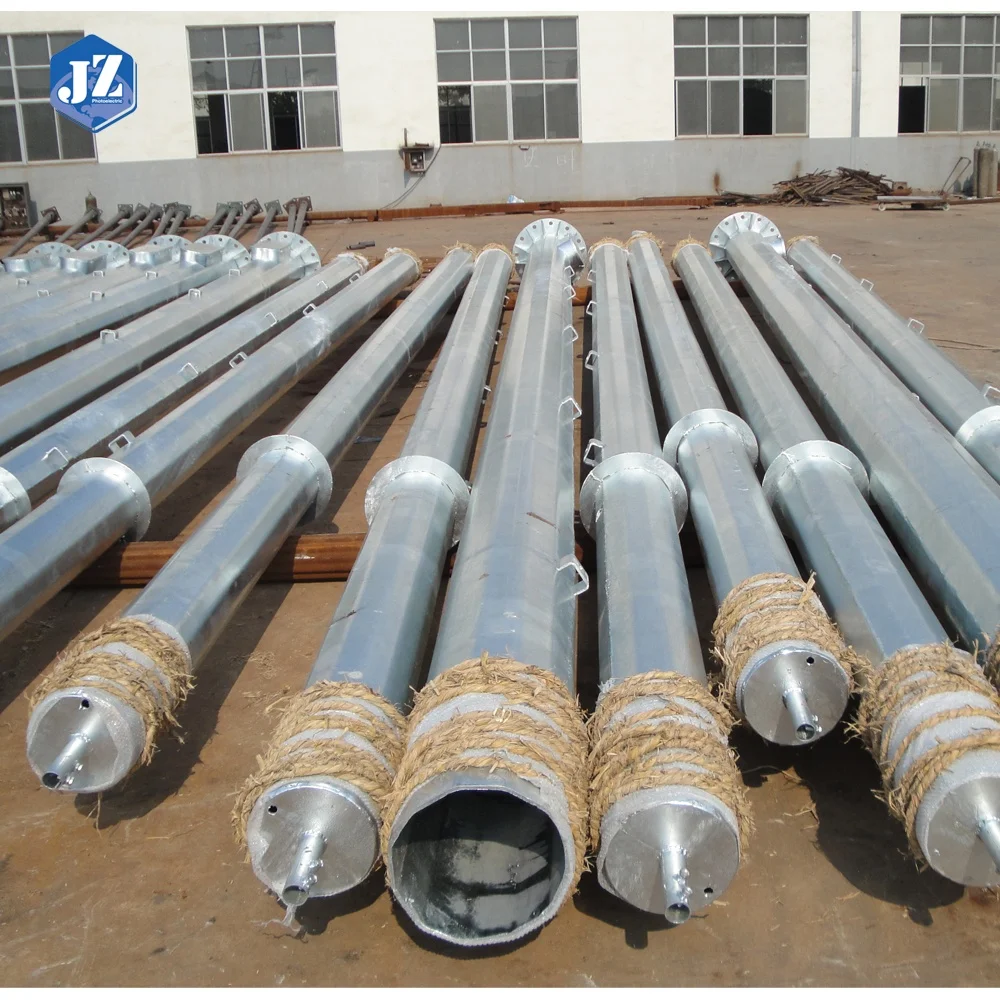

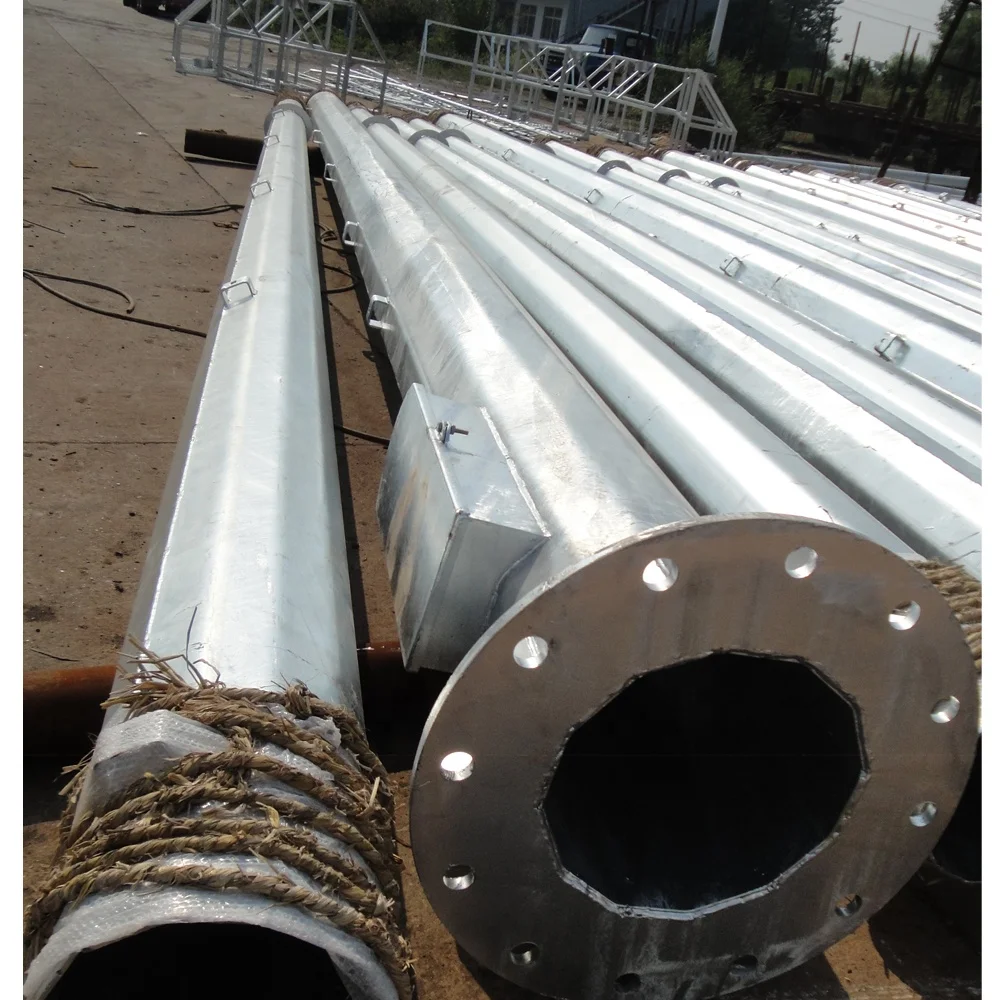

Related Pictures
Lamp Panel Options:
JIUZHAO factory has a full range of high mast light designs for your choice. Contact us with your project, we will provide our professional configuration for you!
