Product Overview

Description

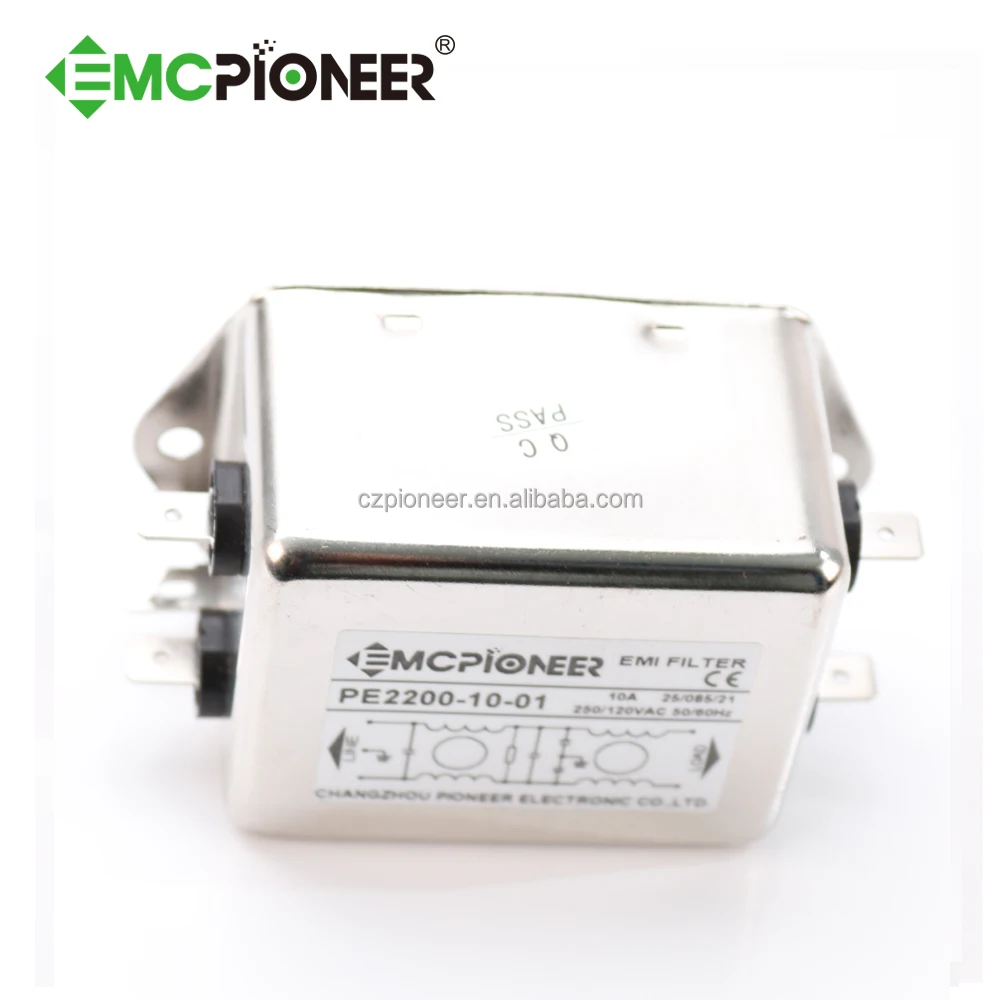

PE2200-10-01 EMI filter 10A  passive electronic filters for Generator



                                                         Descripsion

Two-stage filters are designed for noisy applications requiring good differential and

common-mode attenuation.

1.Easy and Fast chassis mounting.
2.Low leakage current and high quality components ensure the safety and reliability of filters.
3.Optional medical versions(B type).
4.Various terminal options:faston/screw/wire.



Model	PE2200 EMI Filter
Rated Voltage	120 / 250VAC
Rated Current	1A 3A 6A
Operating Frequency	50/60Hz
Mounting type	Faston/Screw/Wire mounting
Temperature range	25/085/21
Test Voltage(1 min)	Line to Ground :2000VAC
	Line to Line :    1450VDC

                                                       Aplication:

1. Office Equipment: Printers; photocopiers; fax machine; computer etc
2. Household Equipment: Soymilk; coffee machine; Microwave etc
3. Single Phase Motor Drive,Power Supply,Led Drive,
4. Other : Biological safety cabinets;Air sterilizer;Sterilizer;Diagnostic System;Water Purifier;Fitness Equipment etc
4. B type for Medical Equipment

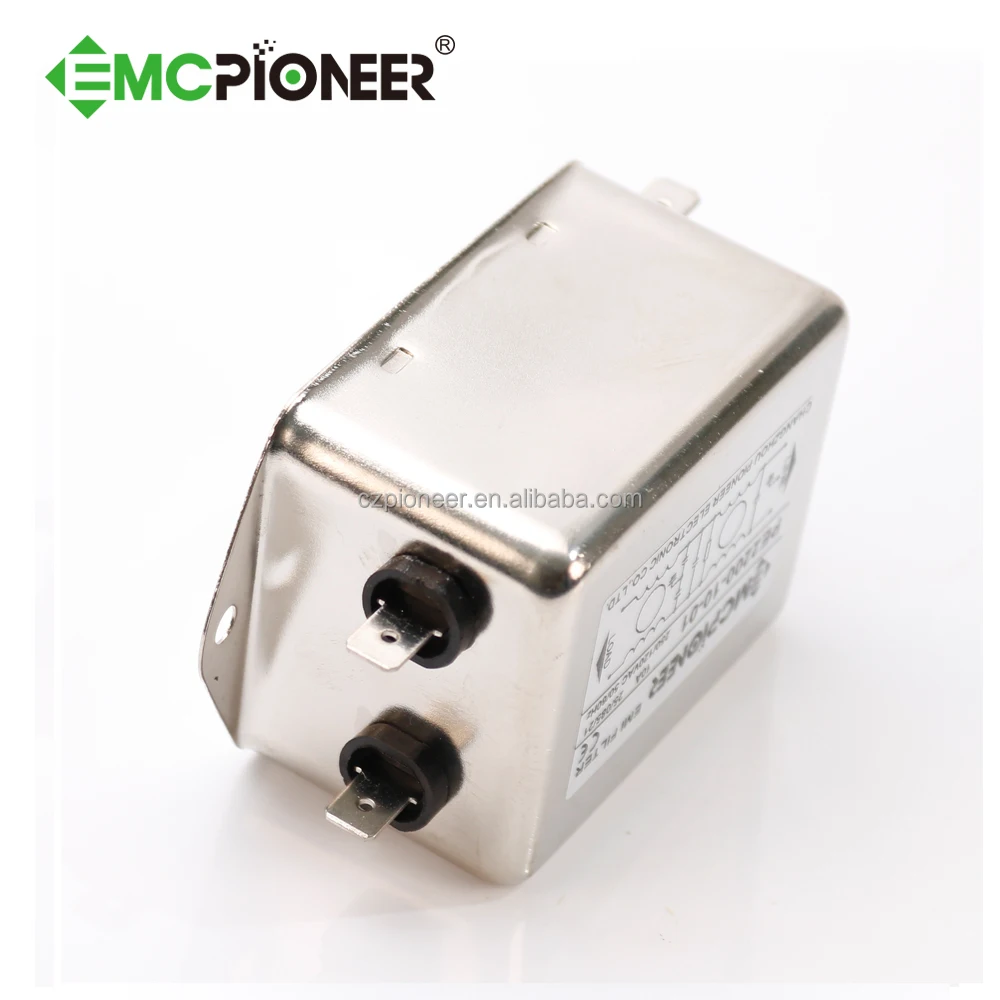

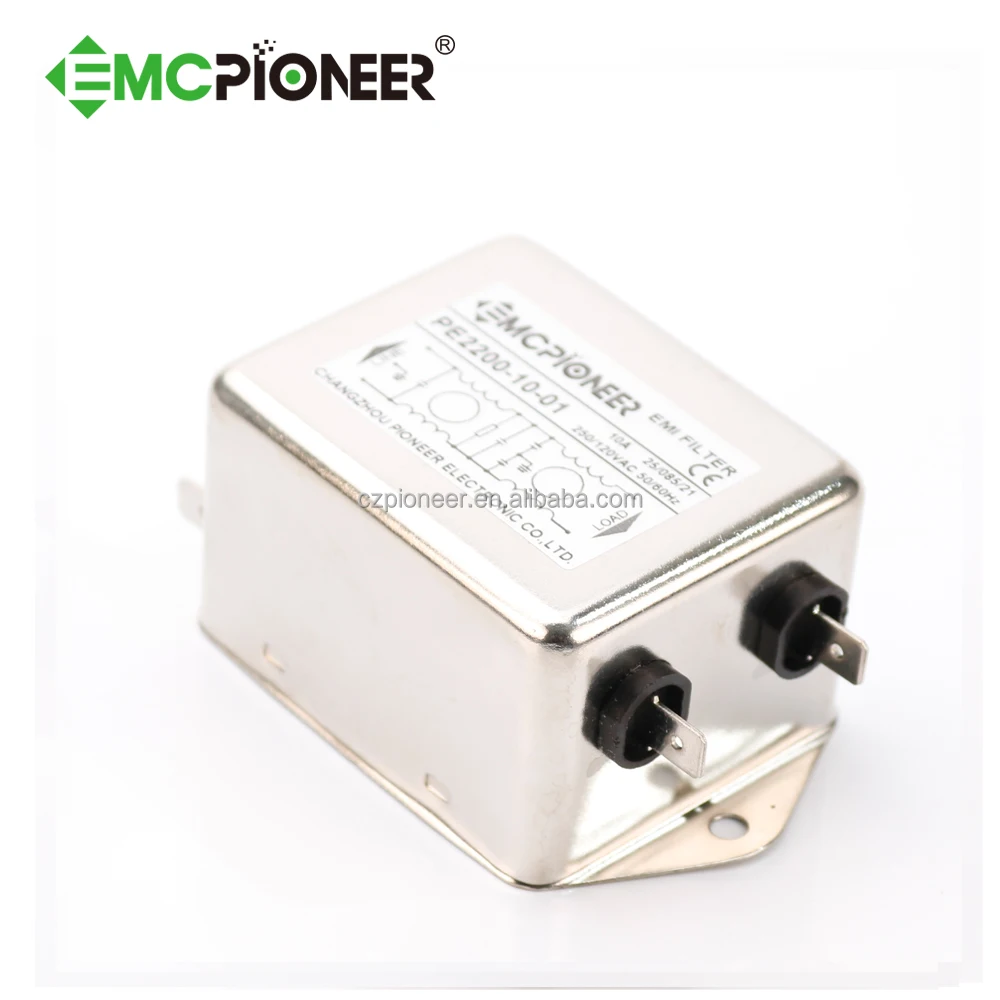

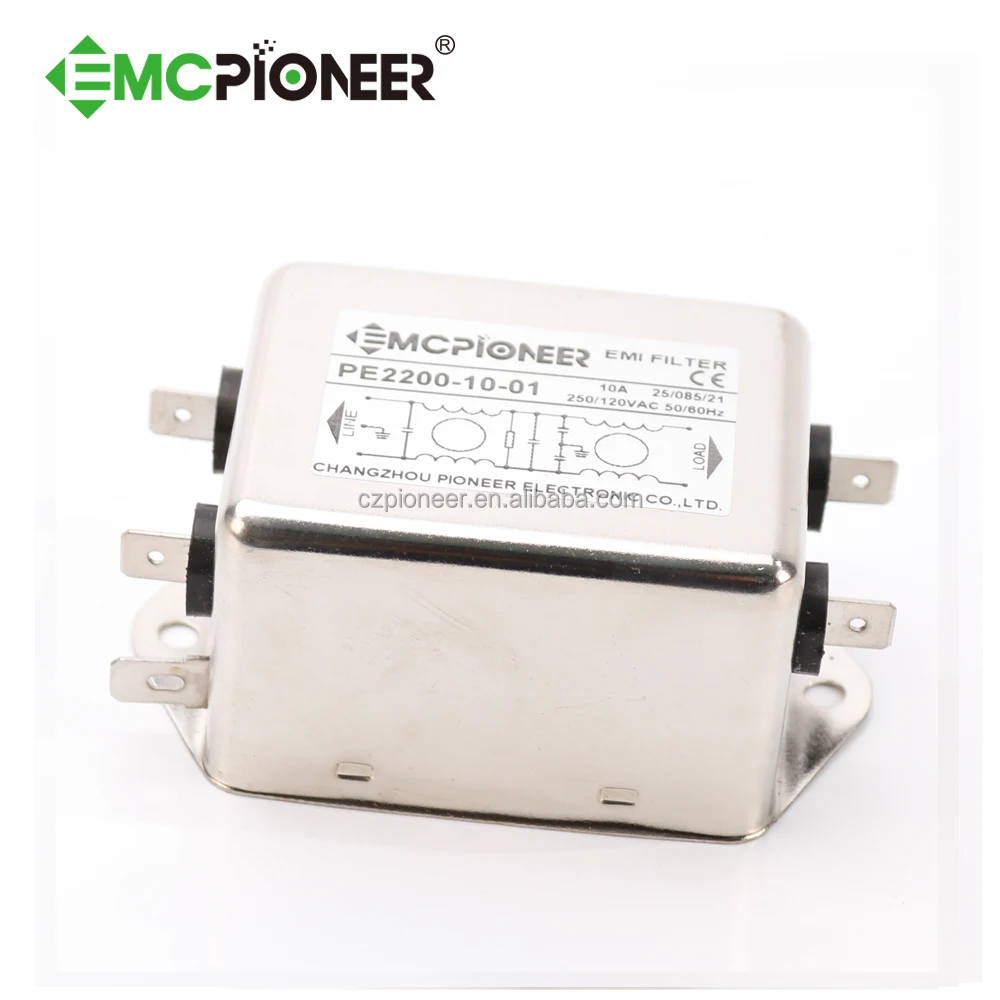

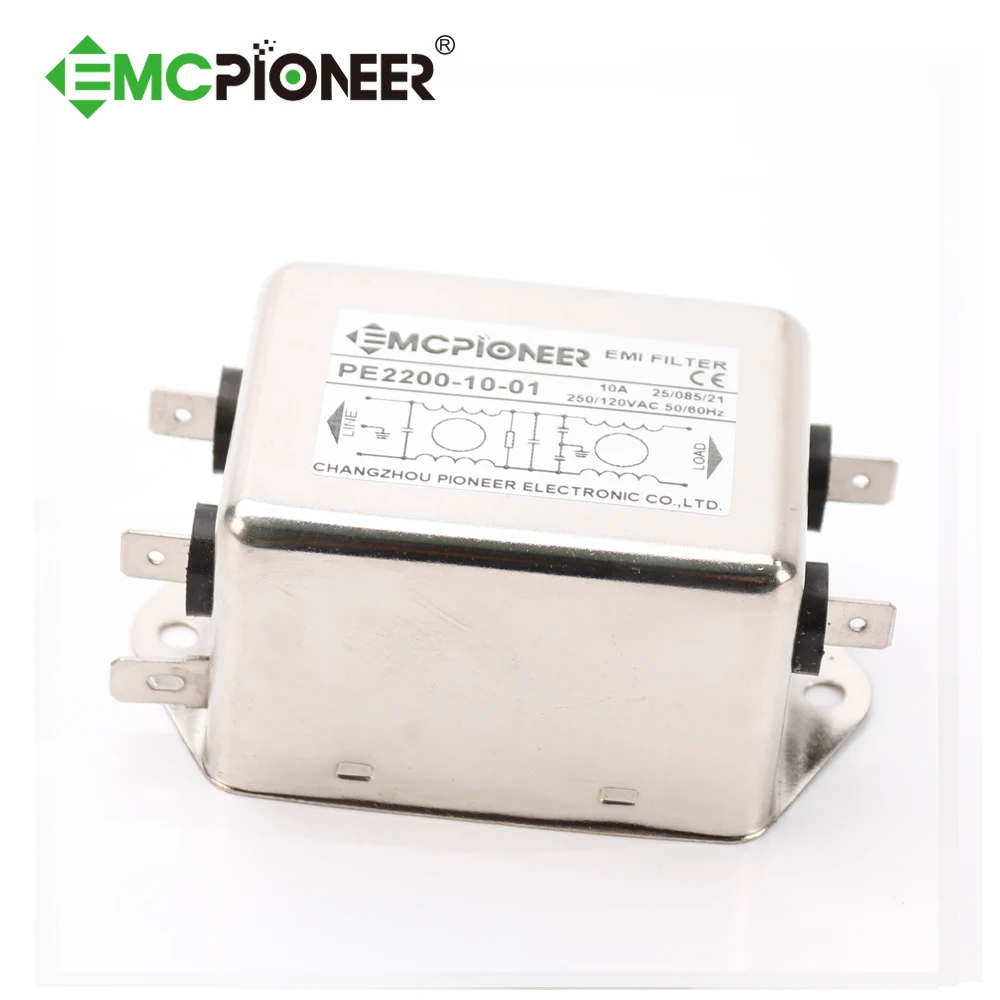

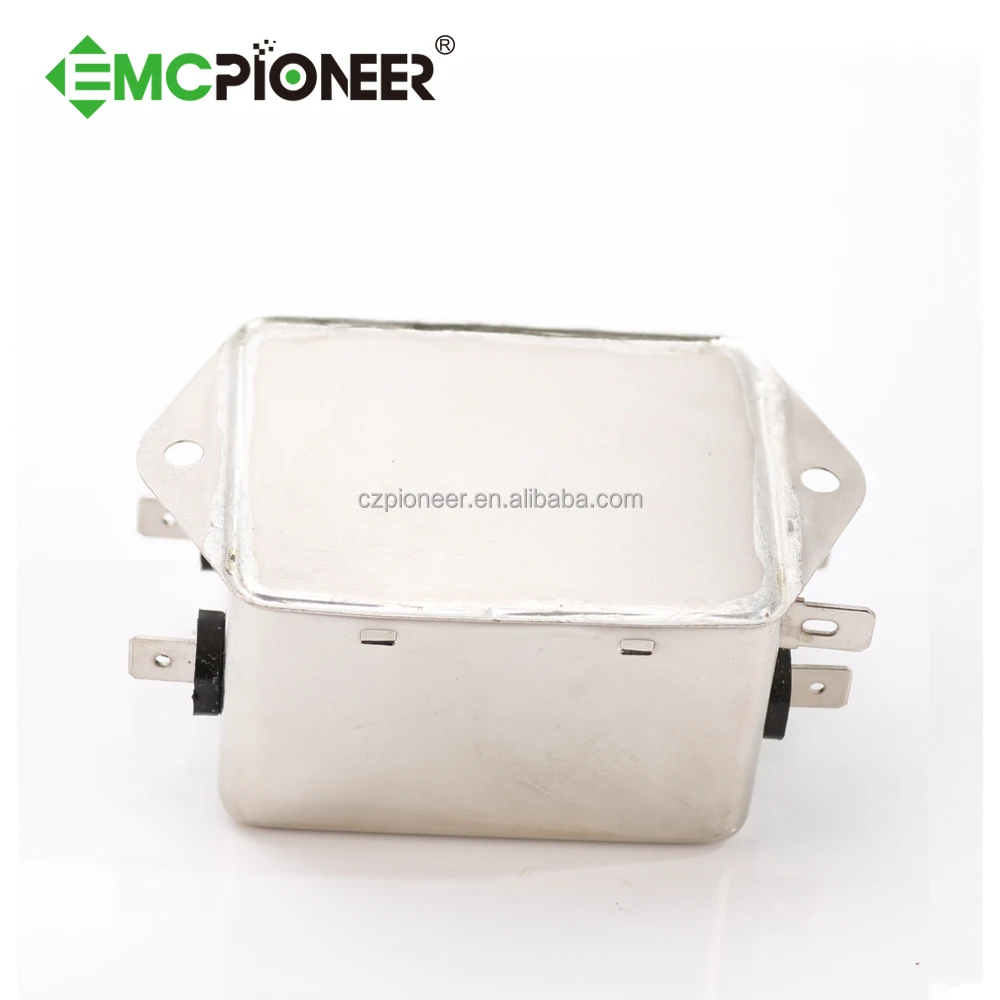

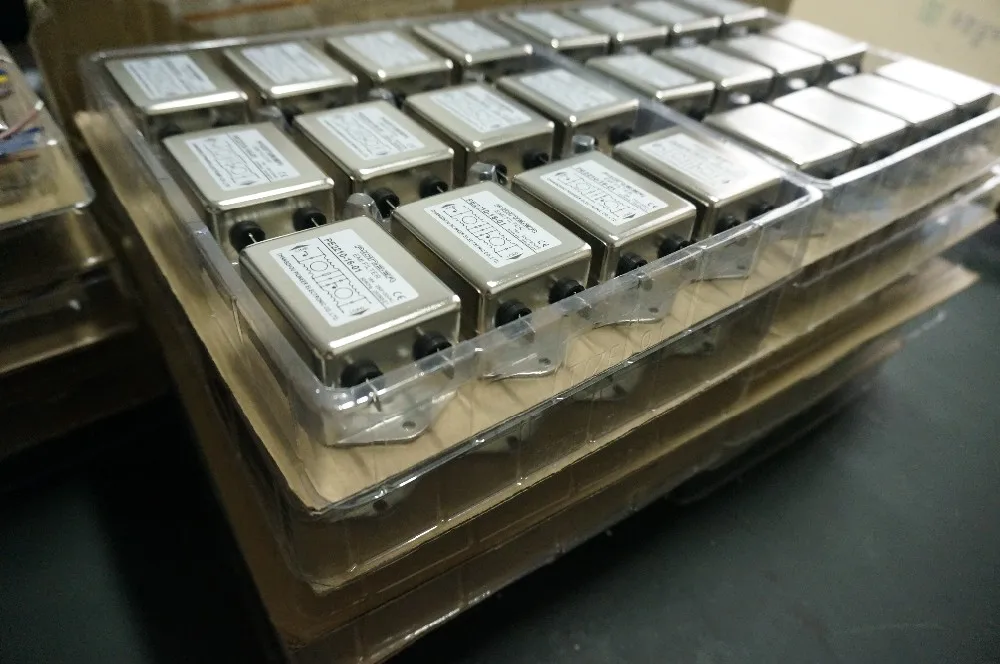

                                                       Detail Picture:

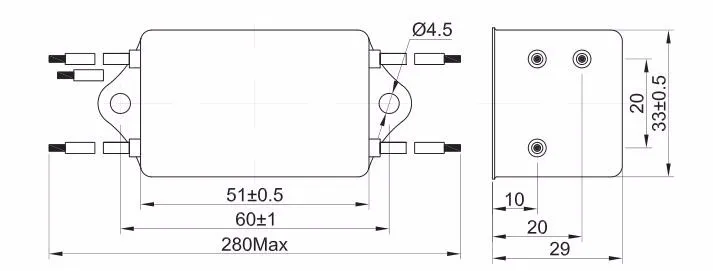

Single Phase Two Stage Power EMI Filter Dimension:

Single Phase Two Stage Power AC Line Filter Modle:
