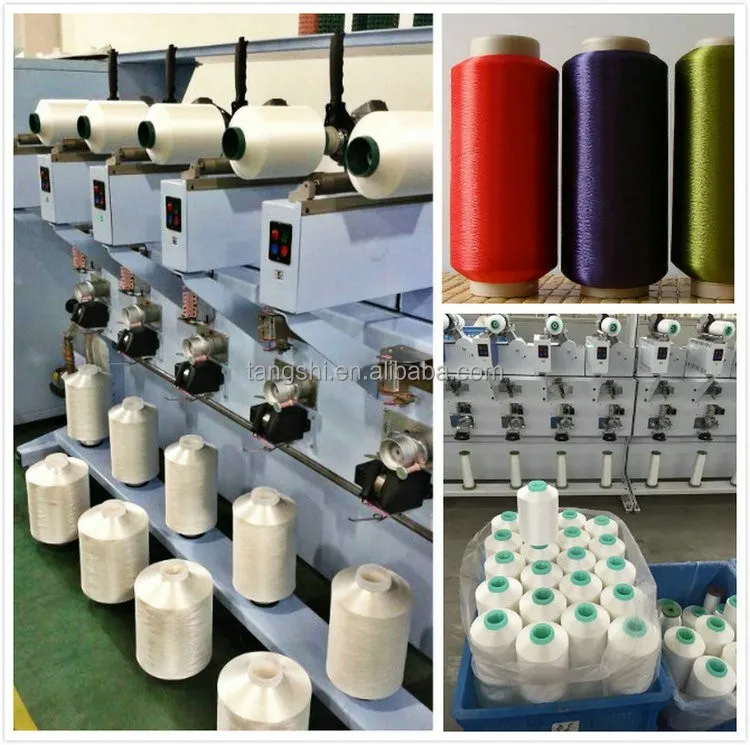

Precision type HDPE yarn rewinding machine for monofilament yarn winding
- Category: >>>
- Supplier: Jiangsu Tangshi Textile Machinery Group Co. Ltd.
Share on (60732471863):
Product Overview
Description
Machine Application:
Product Description

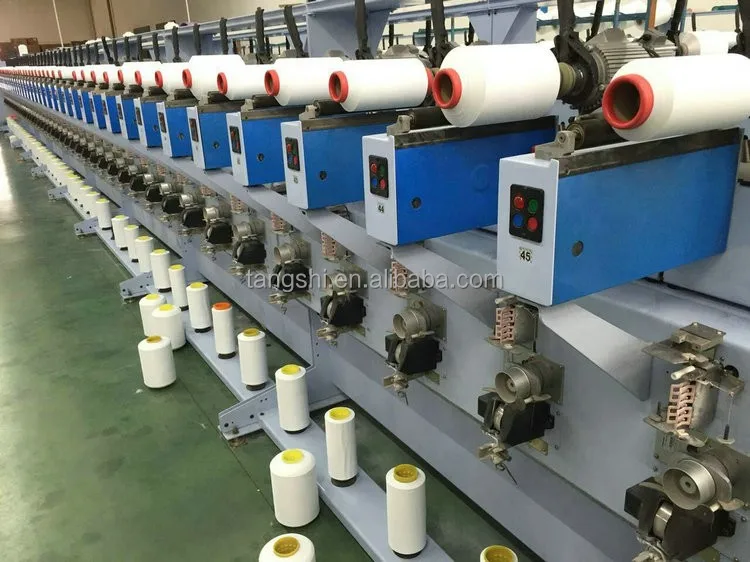

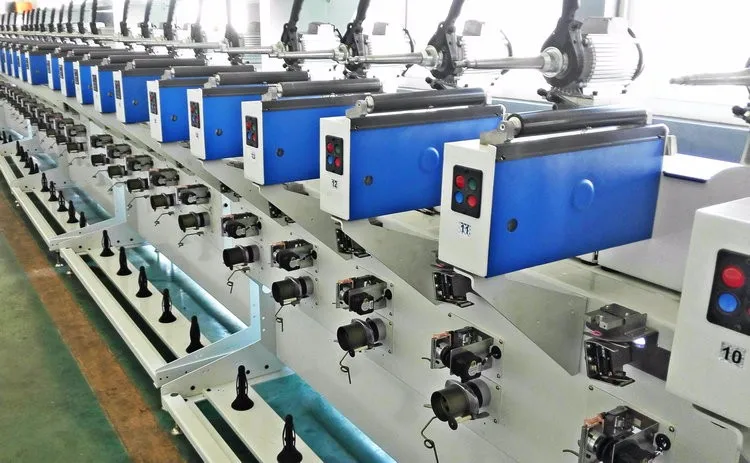

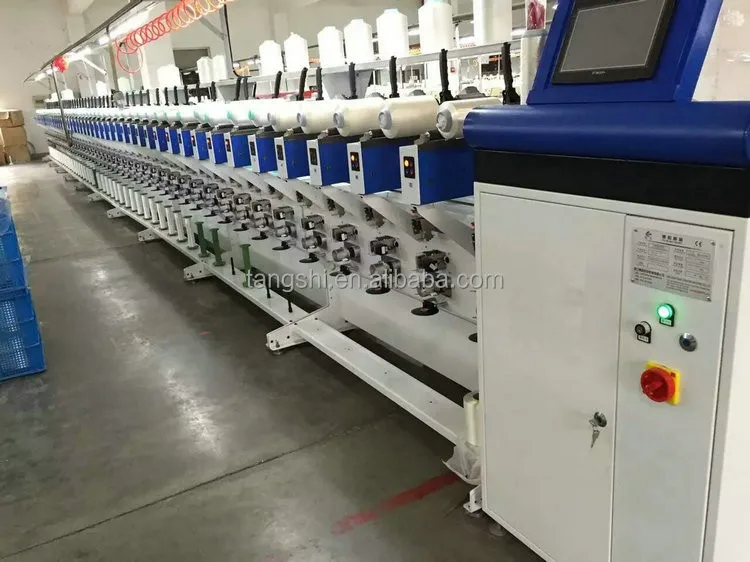

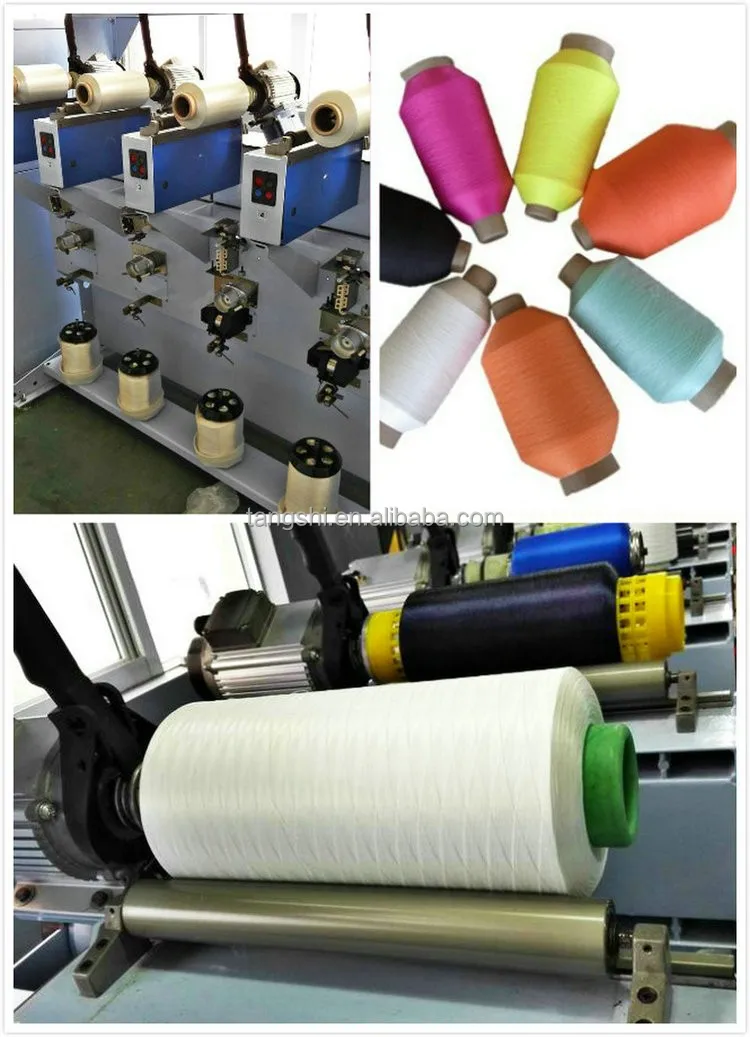

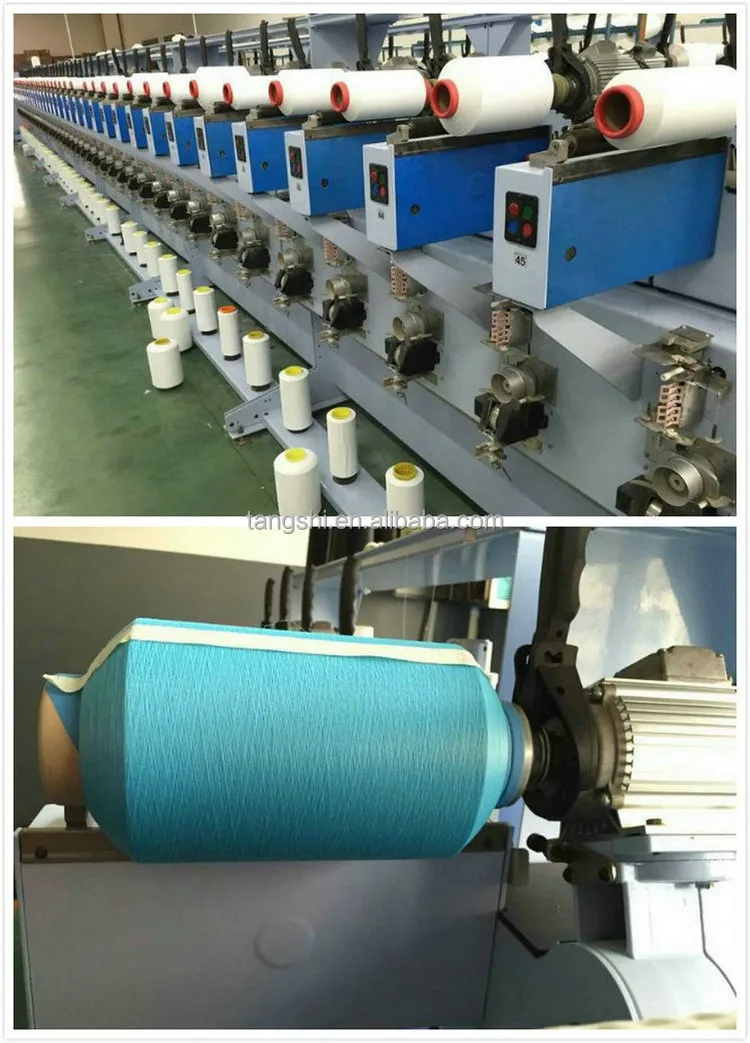

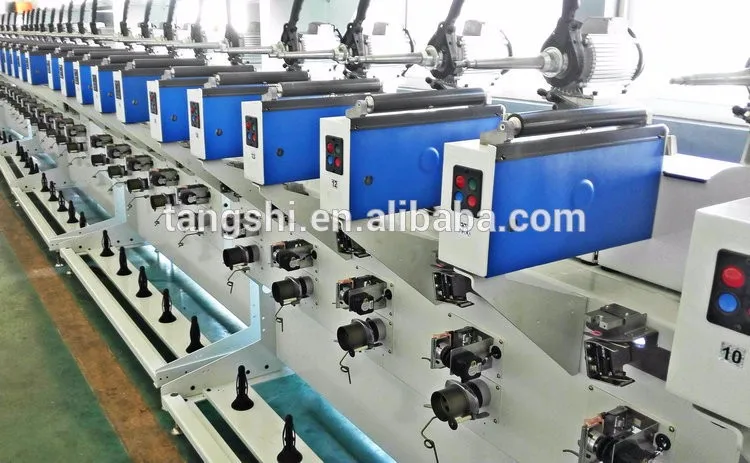

TH-11C Monofilament yarn winding machine, it's precision type winding machine. The winding speed of this machine is controlled by computer, which has the maximum of 1200 m/min. Precise and sensitive speed testing system can even ensure the winding length (weight). It is quite suitable for winding yarn of Nylon, Filament yarn, Polyester yarn, FDY, DTY , HDPE And other chemical fiber
Types of winding | program or precision |
Mechanical speed | up to 1200m/min (process speed depending on process parameters) |
Package shape | freely programmable |
Traverse length | 147-250mm infinitely variable |
Take-up package diameter | up to 280mm |
Package weight | up to 4kg |
Supply package diameter | up to 320mm |
Yarns | Nylon, Filament yarn, Polyester yarn, FDY, DTY And other chemical fiber |
Take-up tubes | cylindrical and conical up to 3°30′ conicity |
Layout | single sided machine |
Number of spindles per section | 5 |
Min. / Max. number of spindles | 5/60 |
Gauge | 360mm |
Drive | individual |
Installed power | ~280w per spindle |
Power consumption | ~100w per spindle |
Density of winding | automatic control |
Volume per section (L*W*H) | 1880*780*1720mm |
