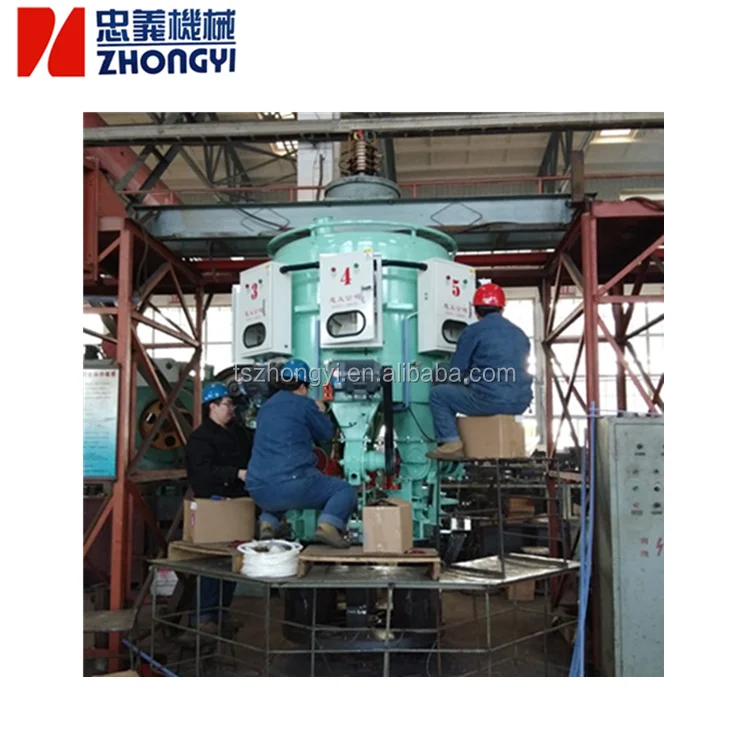

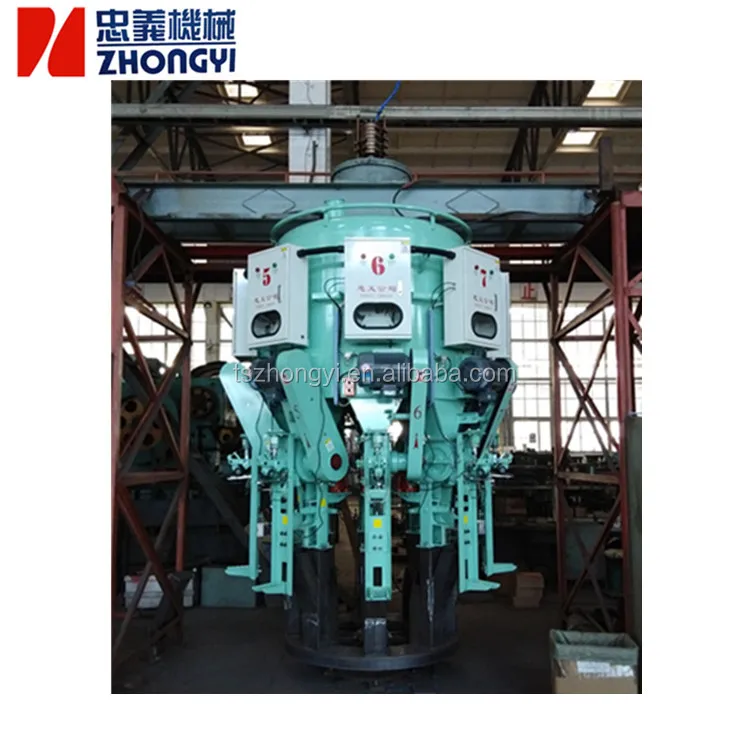

High efficiency 90t/h gypsum powder packing machine

Product Overview

Description

High efficiency 90t/h gypsum powder packing machine





1. ABOUT US

TangShan ZhongYi Machinery Co., LTD. was established in 1989, and has begun to design and produce the

cement packing equipments since then. Due to the strong quality and excellent performances, types of the packing machines and their accessories have reached to over 3000 cement plants around the country and also exported to

other countries, including Pakistan, Russia, Vietnam, Peru, Ethiopia, Kazakhstan, etc. They are not only enjoyed thereputation, but also earned credits from the customers.



2. ROTARY CEMETN PACKING MACHINE

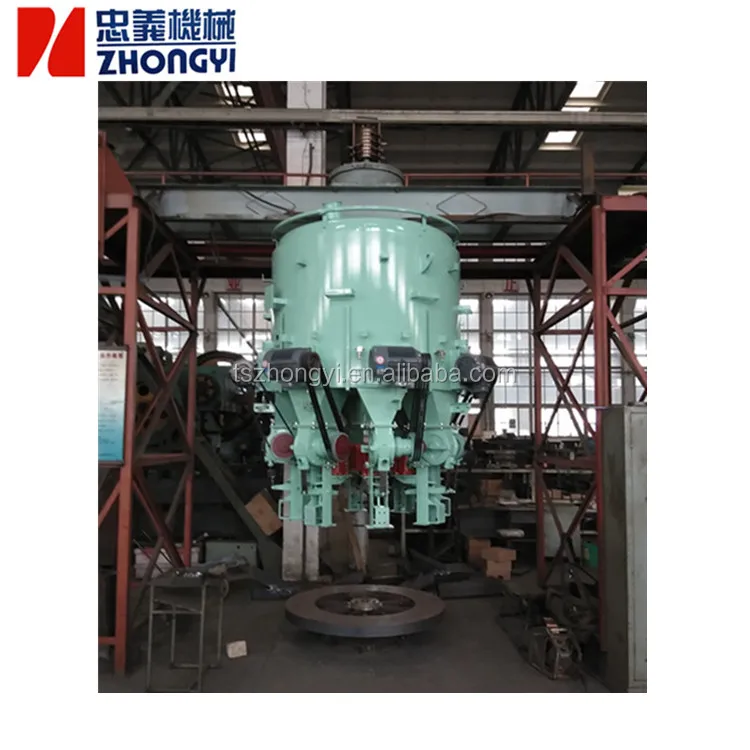

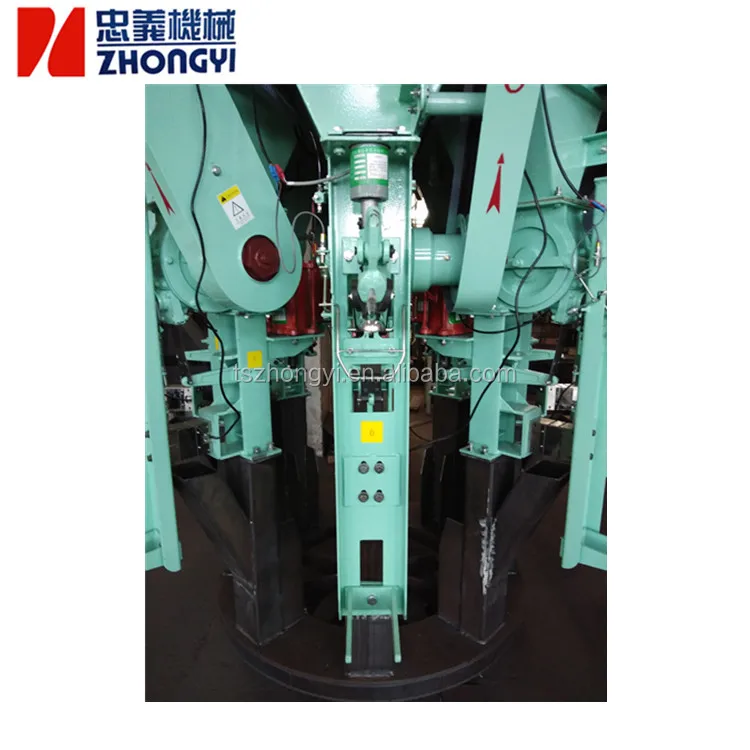

This machine is a side filling style rotary packing machine with 6 spouts, weighing controlled by micro-computer, impeller feeding style.Model BHYW6C Rotary Cement Packing Machine is mainly used for packing cement; meanwhile, it also may be used for filling bulk materials of powder and granule.



There are 4 models of rotary cement packing machine:  BHYW6C(with 6 spouts, capacity 90t/h) , BHYW8C(with 8 spouts, capacity 120t/h) , BHYW10C(with 10  spouts, capacity 120-140t/h) , BHYW12C (with 12 spouts, capacity 140-160t/h)



Application scope:

Power voltage: AC 380V -15~+10% 3N 50Hz



Operation environment:

(1) Temperature: -10~40°C

(2) Relative humidity: < 90%

(3) Altitude: < 2000m



Cement conditions:

(1) Moisture content: <1%

(2)Packing temperature: <120°C

(3) Density: Generic 1.1~1.3t/m3



3. FEATURES



3.1 Novel design, unique construction and suitable application.

3.2 The machine is equipped with frequency conversion controller, 10 discharging spouts,side feeding hopper, automatic cement position inductive device, and automatic weighing system controlled by the micro-computer.

3.3 It also adds the SCM programmed device to control the shutter’s actions, and bag inserting and bag falling signal collection sensor.

3.4 The functions of bag clamping, cement feeding, shutter lifting up and down, and bag falling are all able to complete automatically except manual bag inserting.

3.5 High capacity, accurate weighing, and durability

3.6 Weighing precision:

Tolerance allowed per bag +0.4 -0.2kg

Total weight of successive 20 bags:1000-1004kg

4. MAIN TECHNICAL DATA

No.	Description			Unit	Technical data
1	Qty of filling spouts			pc	6
2	Designed bag filling capacity			t/h	90
3	Style of material filling				Side filling
4	Style of material feeding				Impeller
5	Form of weighing device				Computerized
6	weighing Precision	Weight of single bag		kg	50
		Error of single bag weight		kg	+0.4 -0.2
		Total weight of successive 20 bags		kg	1000~1004
7	Outer diameter of rotary hopper			mm	φ1560
8	Outer diameter of filling spouts			mm	φ2200
9	Distance from a filling spout to the ground			mm	1300
10	Max. rotary diameter			mm	φ2320
11	Driver Speed adjusting style				Frequency controller
12	Range of speed adjusting			rpm	0~6
13	Rated rotate rate of the machine			rpm	5
14	Power supply				AC 380V 3P 50HZ
15	Fluctuation			%	+10 -15
16	Main drive reducer		Model		BLD3-59-1.5
			Speed ratio		59
17	Main drive motor		Model		Y90L-4
			Power	kW	1.5
			Rotate velocity	rpm	1450
			Protection level		IP44
18	Filling motor		Model		Y112M-4
			Power	kW	4
			Rotate velocity	rpm	1450
			Protection level		IP44
			Quantity	pc	8
19	Double-position solenoid driver		Model		MQZ2-50-300
			Voltage	V	200
			Range	mm	50
			Operational frequency	t/h	360
20	Power of whole machine			kW	4×6+1.5=25.5
21	Dust collection airflow			m3/h	17000
22	Dust collection air pressure			Pa	-600
23	Rotary direction of the machine			Overhead view	Clockwise/anti-clockwise
23	Height of the machine			mm	5460
24	Total weight			kg	5000

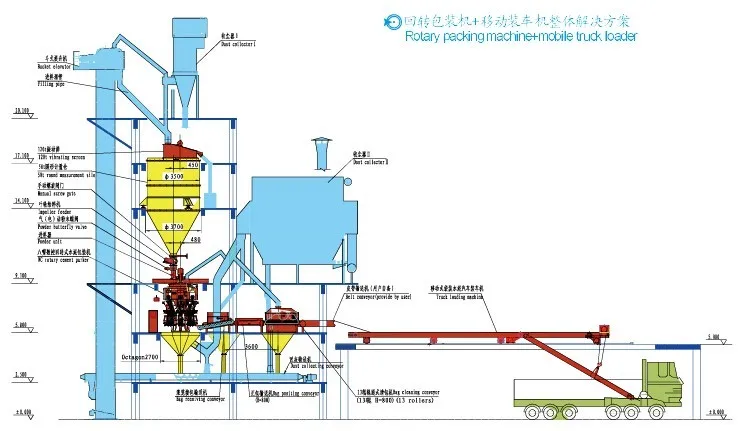

 The Whole Packing Line









 5. PRE-SALE SERVICE



6.1 Offering comprehensive technical and business consultation services;

6.2  Proposing the most suitable scheme and equipment for our clients;

6.3 Designing and fabricating targeted products according to the special requirements of clients;

6.4 Training technician with high qualified service.



6. AFTER-SALE SERVICE



7.1 Highly inspecting equipments in every working procedure, quality comes first;

7.2 Fast & Safe Delivery;

7.3 Assisting our clients for foundation construction of equipments;

7.4 Dispatching engineers to install and debug equipments if the client have requirement;

7.5 Training the first-line operators on site;

7.6 Providing technical exchanging.



7. AUXILIARY EQUIPMENTS





8. PACKAGES and TRANSPORTATION





9. WITH CUSTOMER





10. EXHIBITION











11. FAQ



5.1 What is the usage of this machine?

-- This machine mainly used for packing good mobility material like cement, gypsum powder and others powder, granule less than 1mm.

5.2 What is the voltage/phase for this machine?

-- We normally make voltage into 220V / 50HZ / Single phase or 380V / 50HZ / Three Phase. But it can be made according to clients' demand, like 415V / 50HZ / Three phase and so on.

5.3 What kind of packing box is?

-- We pack machines in a standard exporting plywood case, no vermin, germs. It can help to protect the machine while transporting.

5.4 How long is the guarantee?

-- For non-human damage factor, within 12 months after commissioning or within 18 months from the date of B/L, whichever comes first.

5.5 How should I do if meet some trouble while using?

-- Don't worry about that. We are always be pleased to provide using support to clients. We can take a video for showing how to resolve the problem, and write detail resolution to you.

 5.6 What's the payment mode?

-- T/T, L/C.
