500kg biomass steam boiler
- Category: >>>
- Supplier: Henan Swet Boiler Co. Ltd.
Share on (60732534418):
Product Overview
Description

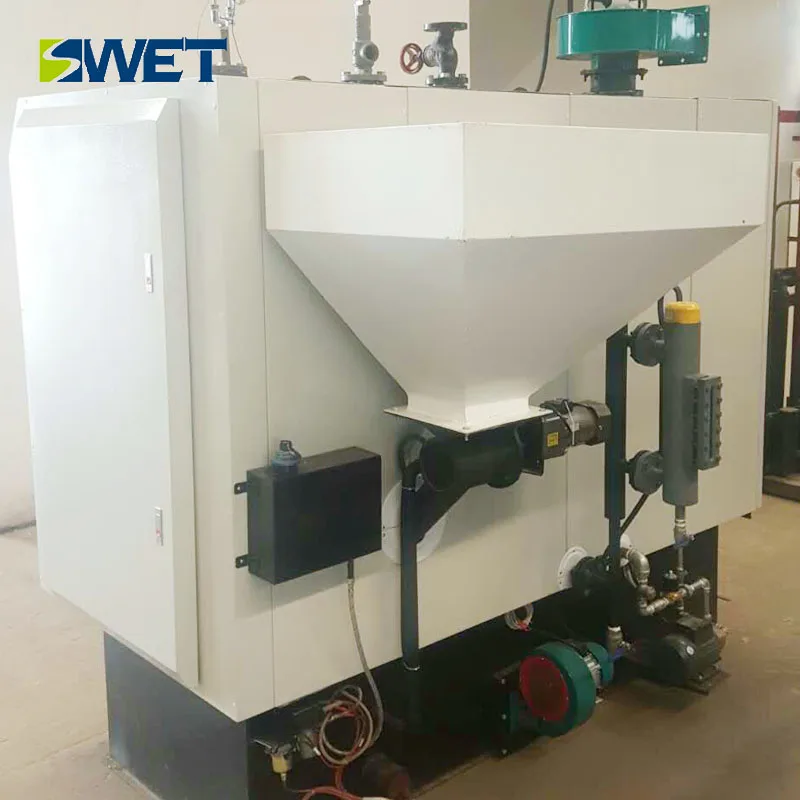

500kg 0.7Mpa biomass pellet steam boiler
1. Crossflow structure, advanced level in domestic and international.
2. After 4 or 5 minutes ignition, it can get enough pressured steam.
3. Automatically control combustion, steam pressure and water level, ensure safe and economical operation.

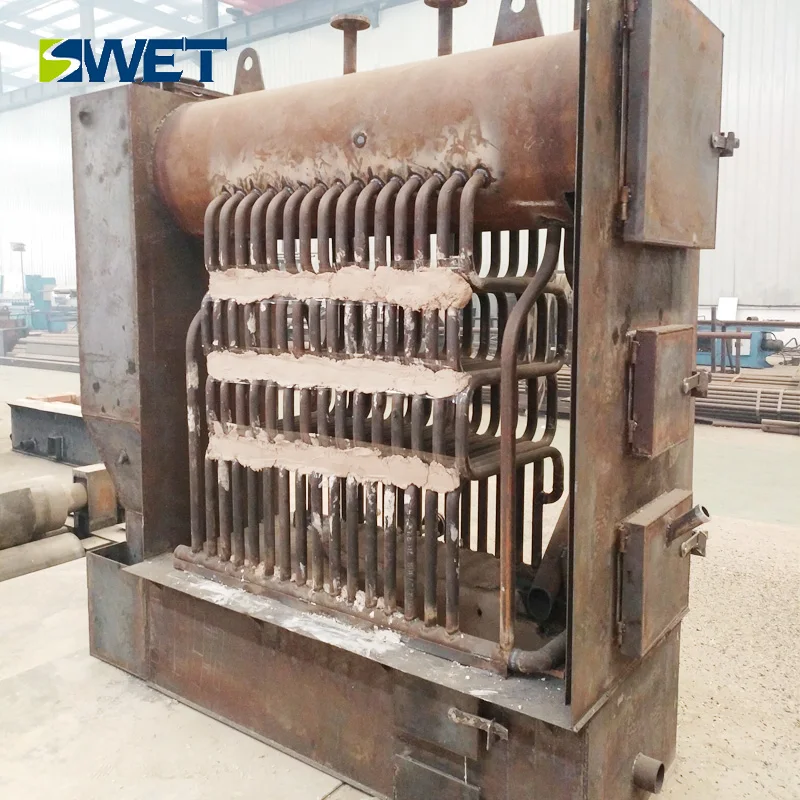

4. Combustion gas flowing among conduit group at a high speed that assures high quality heat convection and transfer and high effect heat absorption.
5. Quiet operation and stable combustion, completely according with environmental protection standard.
6. Perfect boiler body structure ensures high quality heating absorption and high combustion efficiency up to 92% -96%.
Biomass steam boiler technical parameters
Biomass steam boiler technical parameter | |||||||||||||
Rated evaporation | Rated pressure | Rated steam temperature | Feed water temperature | Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
|
|
|
|
|
|
|
|
| L | W | H |
|
|
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
400 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15 | 25 | 2350 | 1750 | 2200/2500 | 3 | 61.5 |
500 | 0.7 | 170℃ | 20℃ | 93% | 29.5 | 32 | 15\\25 | 25 | 2500 | 1800 | 2500/3100 | 4.1 | 76.8 |
500kg biomass steam boiler applicable scenario :
500kg steam boiler information and installation Introduction:
Related products
Company Information
Henan Swet Boiler Co.Ltd was established in 1954 ,We have been focusing on boiler manufacture and sale for over 60 years , known as the king of China's boiler.It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification. It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland, In 1987 China's first circulating fluidized bed boiler was born in our factory.
Our factory engineer with Tsinghua Thermal Engineering Department professor circulating fluidized bed boiler technology exchange.
OUR ENTERPRISE HONOR:
OUR ADVANTAGES:
1.Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
2.China 's top ten boiler manufacturing enterprises.
3.Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.
4.North China Water Conservancy and Hydropower University teaching and research base.
5. The China’s first circular flow bed (CFB)boiler manufacturer .
Some of our domestic customers:
China Petroleum Pipeline Materials and Equipment Corporation.
China Petroleum & Chemical Corporation.
China Aero Engine Group.
COFCO Group Limited.
