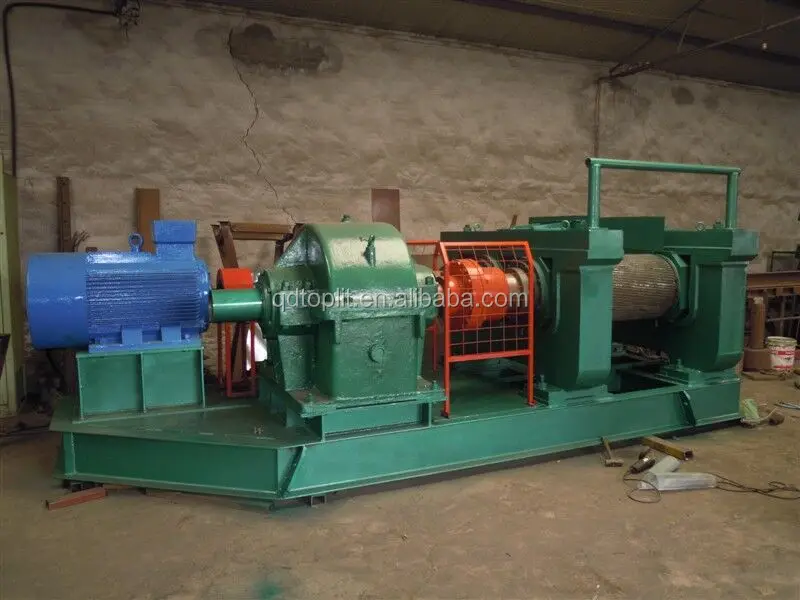

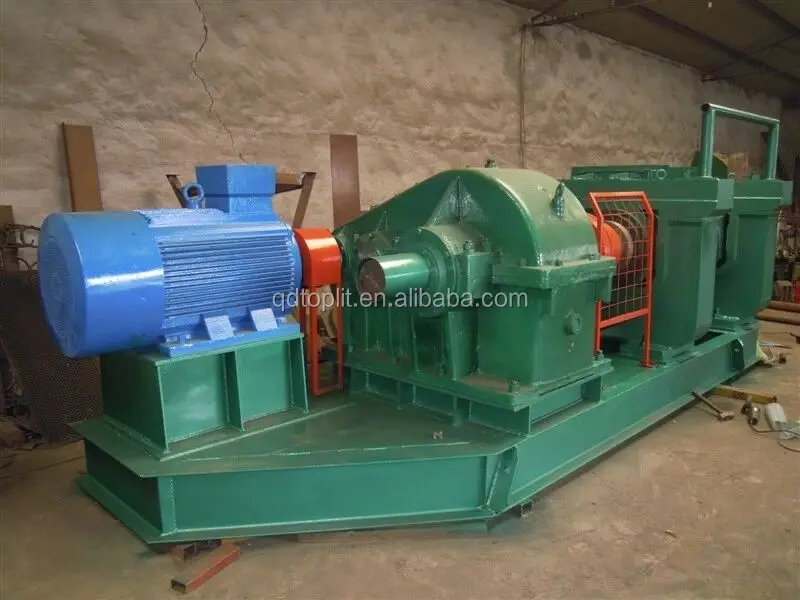

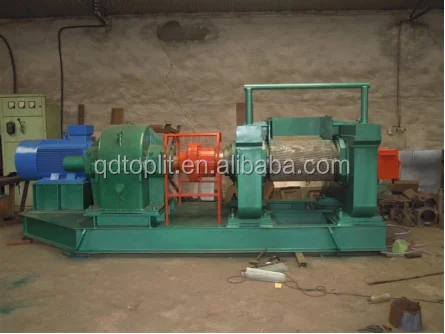

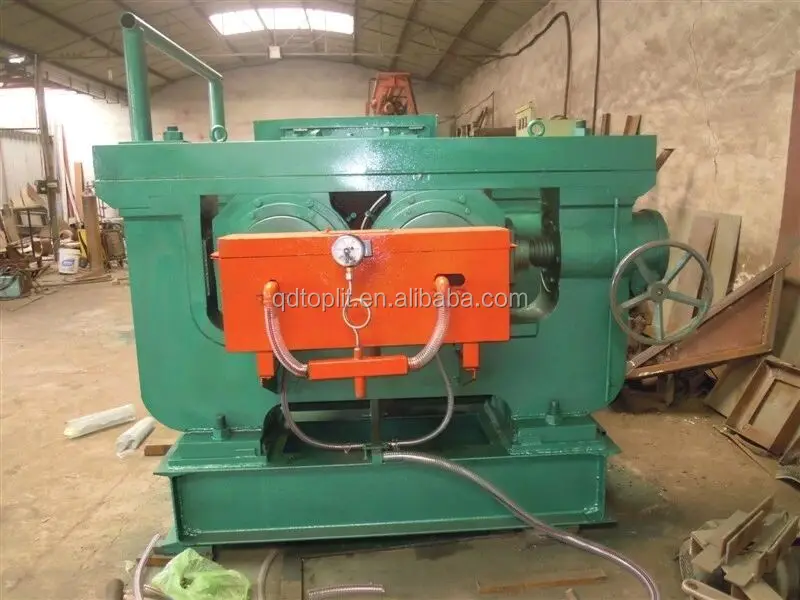

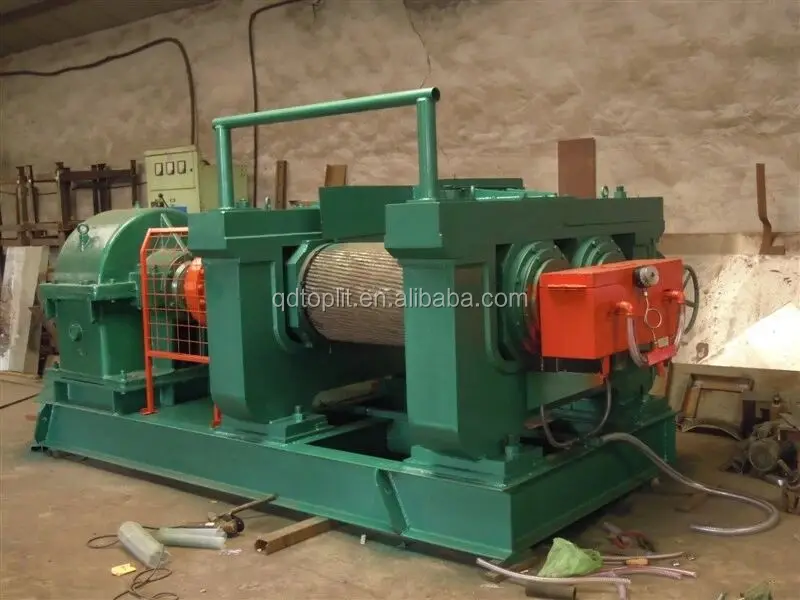

Rubber cracker mill / tire crusher machine rubber powder XKP 560/XKP 450
- Category: Rubber Processing Machinery >>>
- Supplier: Qingdao Toplit Industry Co. Ltd. [Shandong China]Qingdao
Share on (60732549652):
Product Overview
Description
Rubber cracker mill / tire crusher machine rubber powder XKP-560/XKP-450
Whatsapp: 86 13963993703
Product Description
Cracker mill
Type | XKP—450 | XKP—560 |
Working diameter of front roller (mm) | 450 | 560 |

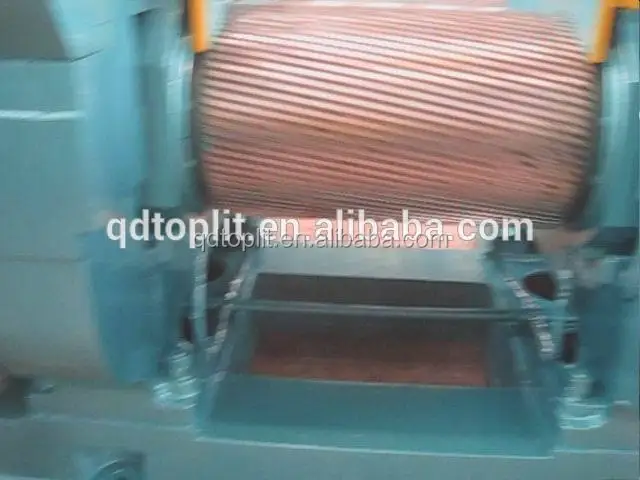

Working diameter of rear roller (mm) | 450(Grooved Roll) | 510(Grooved Roll) |
Working length of rollers (mm) | 650 | 800 |
Linear speed of front roller (m/min) | 23.2 | 25.56 |
Friction ratio of rollers | 1:1.38 | 1:1.30 |
Max roller gap (mm) | 8 | 15 |
Capacity (Kg/h) | 600~800 | 2000 |
Power ( Kw ) | 55 | 75 |
Overall dimension (mm) | 4770×1846×1835 | 5064×2284×1978 |
Weight (Kg) | 12000 | 19000 |

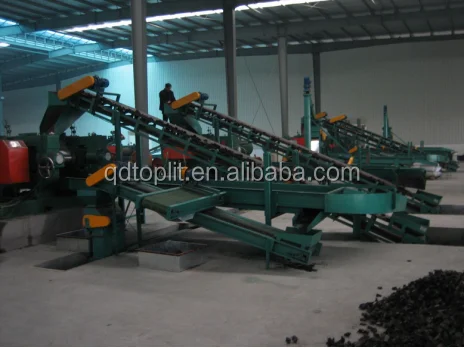

Assist equipment: power assembly, big & small vibrating screen, big & small conveyor, magnetic separator, rubber power cooling, and tire lump storage etc.
Usage:
This machine is used for breaking, plasticating and mixing of rubber materials. The rollers are made of chilled cast iron with wear-resistant hard surface. The two rollers are grooved. The bored rolls can be cooled homogeneously through inputting steam and cooling water. The two rollers rotate reversely with different speed, so that rubber material can be processed.
Packaging & Shipping
Suit for long time sea transport
