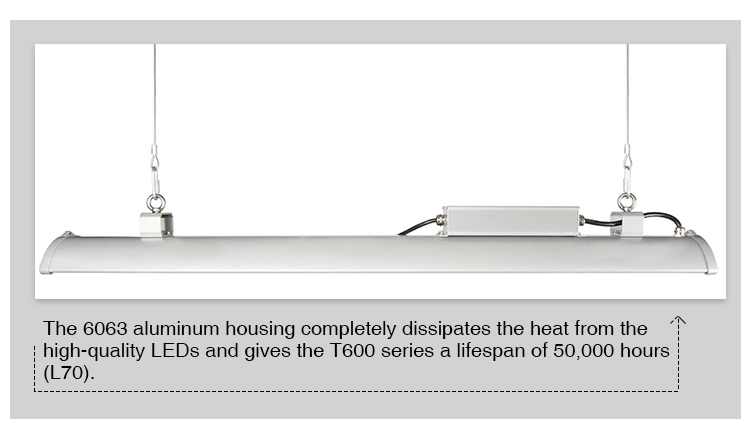

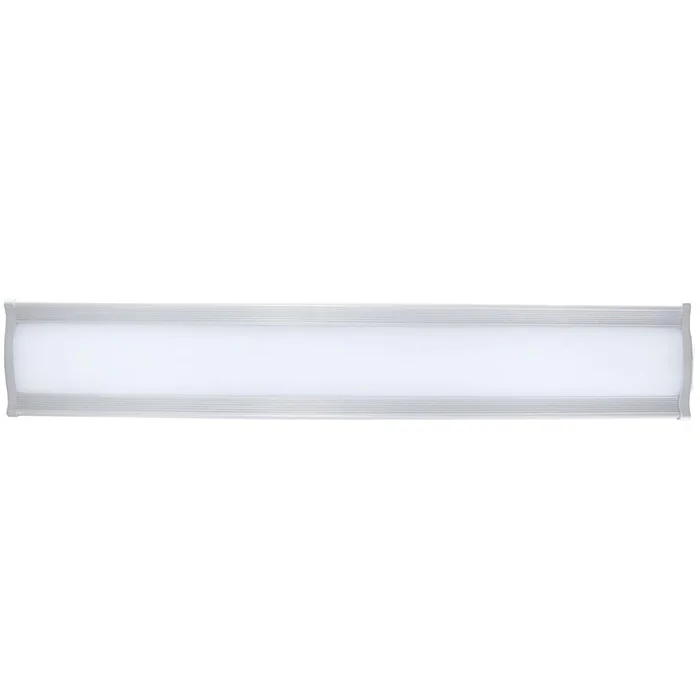

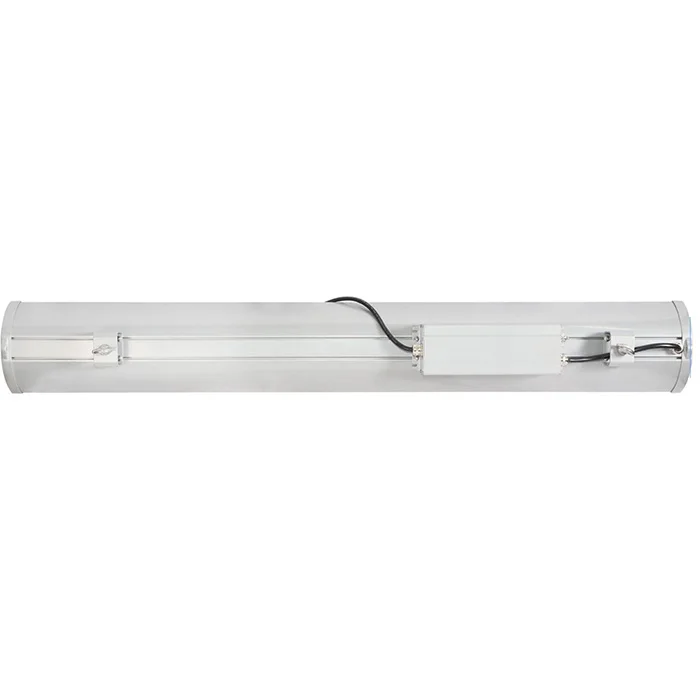

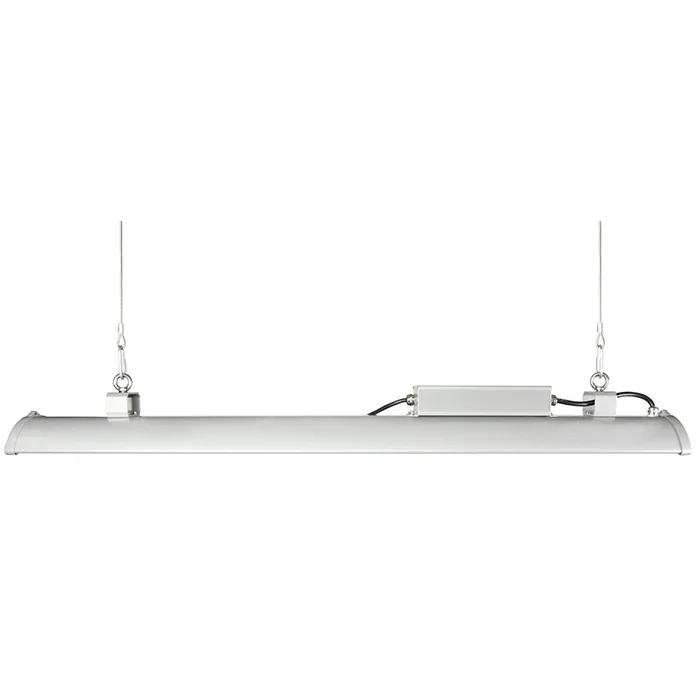

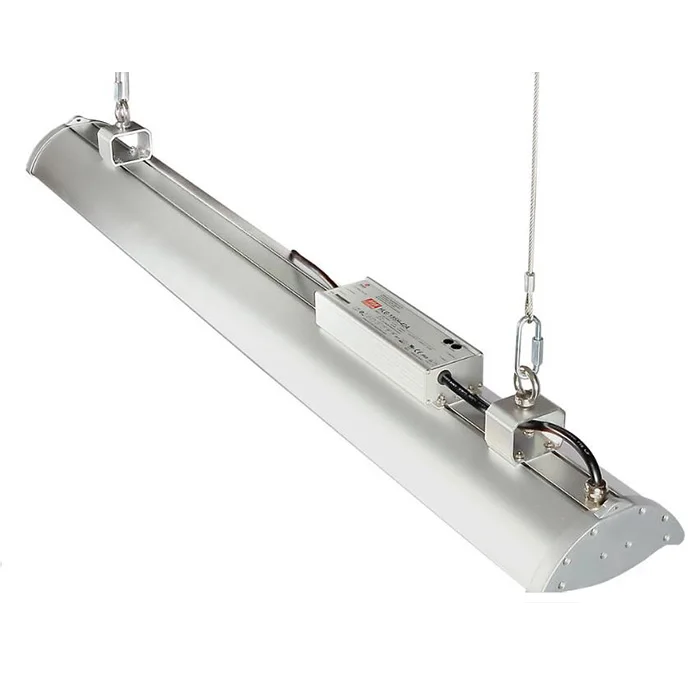

T600 LED Linear High Bay
The T600 series anti-dust design and high degree of protection IP65, is suitable for applications with
high requirements, like industrial halls, manufacturing plants, warehouses, and farms. Its wide beam angle
and anti-glare diffuser makes it ideal for illuminating warehouses and retail areas with lower heights.
-- High efficiency 130lm/W, CRI80+

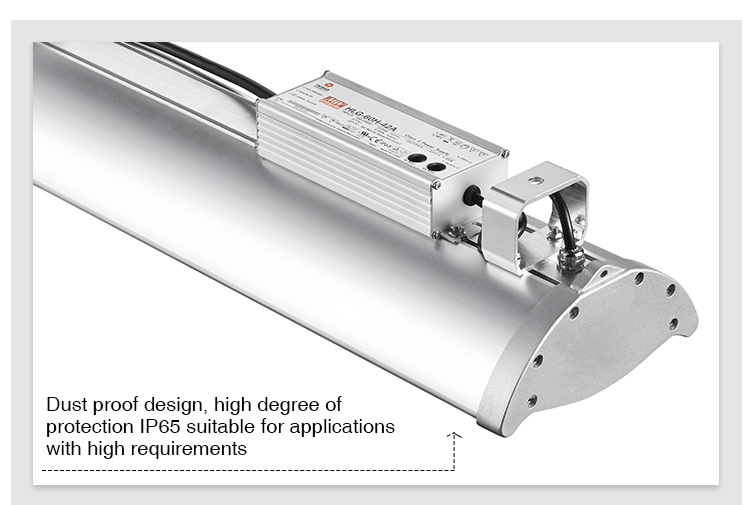

-- IP65 and Dust-proof cover for easy cleaning
-- 120degree anti-glare diffuser

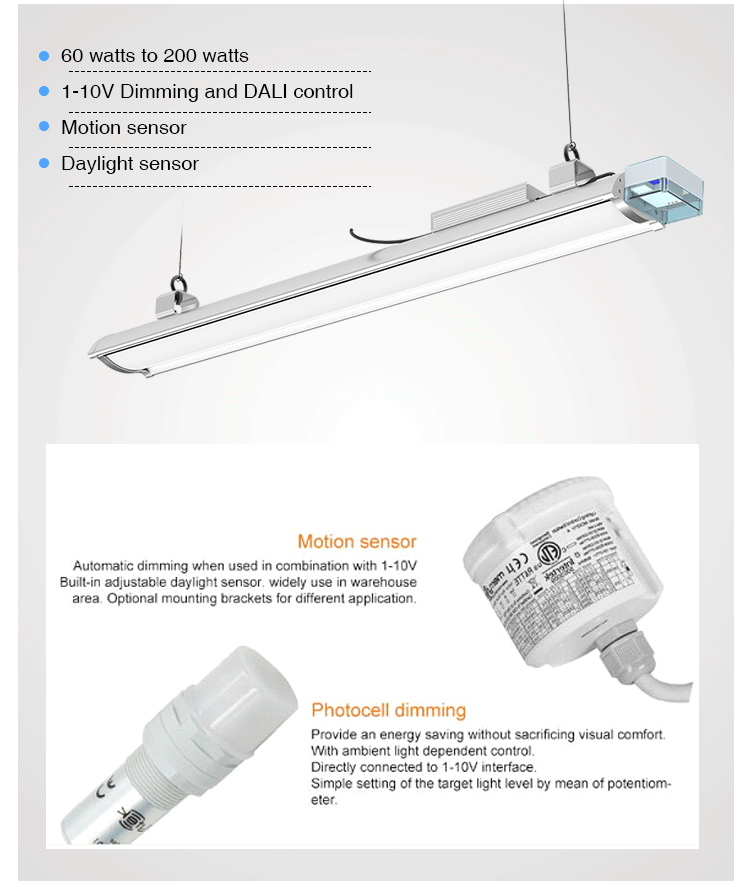

-- 1-10V, DALI, Motion Sensor, Emergency available
-- CE RoHS SAA UL DLC
Data Sheet
| T6000660W | T6000680W | T60009100W | T60012120W | T60012160W | T60015200W |
| 2ft / 600mm | 2ft / 600mm | 3ft / 900mm | 4ft / 1200mm | 4ft / 1200mm | 5ft / 1500mm |
| AC100-277V, 277V-480V | |||||
| 130lm/W~150lm/W | |||||
| 60W | 80W | 100W | 120W | 160W | 200W |
| 7800LM | 10400LM | 13000LM | 15600LM | 20800LM | 26000LM |

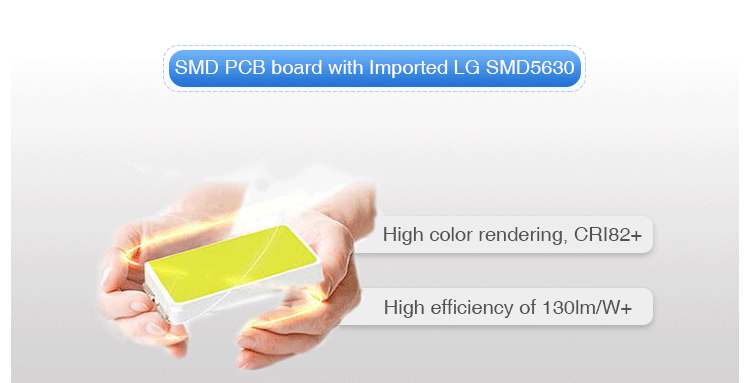

| LG SMD5630 G5 | |||||
| Meanwell HLG | |||||
| 4000K, 5000K, 5700K | |||||
| Frosted / Clear | |||||
| IP65 | |||||
| -20~45℃ | |||||
| 66x22x22cm 2pcs/ctn 9.5KG | 66x22x22cm 2pcs/ctn 12.5KG | 96x22x22cm 2pcs/ctn 12.5KG | 126x22x22cm 2pcs/ctn 15.5KG | 126x22x22cm 2pcs/ctn 15.5KG | 156x22x22cm 2pcs/ctn 18.5KG |





Applications
T600 LED Linear High Bay with IP65 and Dust proof design, suitable for dusty or wet environments.
1. Warehousing, Storage, Logistics, distribution
2. Gymnasiums, Aquatic centers, Exhibition halls
3. Cold stores, Food processing area
4. Manufacturing, interior workplace, Production
5. Ports, Docks, High level cranes
6. Farms, Plants

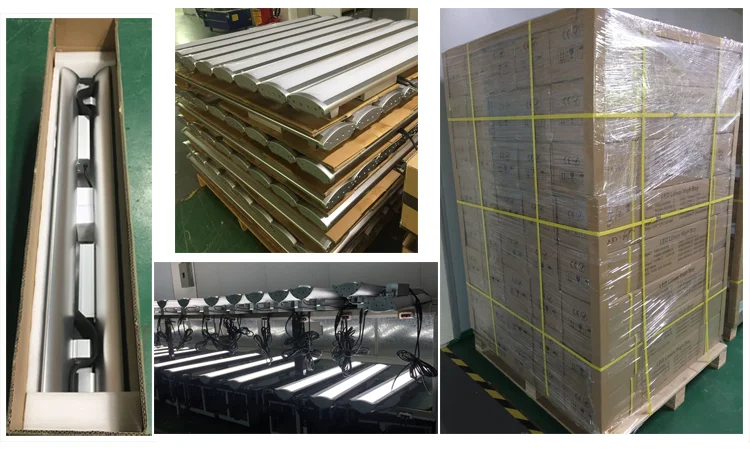

Packing Details
| Fixture Size | Carton Size | Quantity | Total Weight |
| T6000680W | 650X230X240mm | 2pcs | 9.5kg |
| T60012120W | 1250X230X240mm | 2pcs | 13.5kg |
| T60012160W | 1250X230X240mm | 2pcs | 15.5kg |
| T60015200W | 1550X230X240mm | 2pcs | 18.5kg |

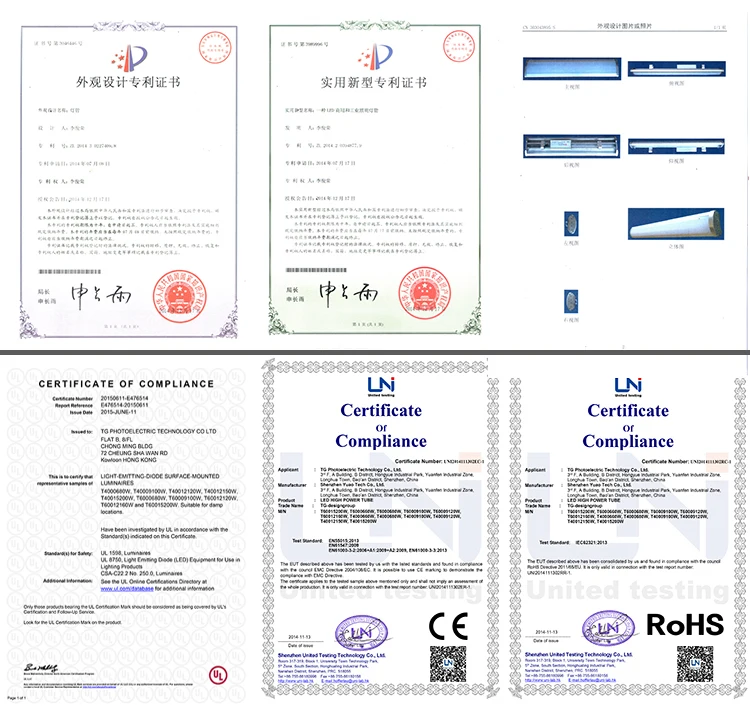

Patents and Certifications
About Us
TG Photoelectric Technology Co., Ltd, establised in 2013, focus on research and production on LED Lighting.
Main Products include:
Linear LED High Bay Light
UFO LED High Bay Light
Modular LED High Bay
LED Canopy Light
LED Tube Light
Certificates: CE RoHS SAA UL CUL DLC FCC
Warranty: 5 Years
Serives: OEM Brand, Customize Product, Quick delivery
