2018 New Style Cheap Price Of Portable Ecg Machine With Warranty In China
- Category: >>>
- Supplier: Shenzhen Ronseda Technology Co. Ltd.
Share on (60732754136):
Product Overview
Description
Product Details

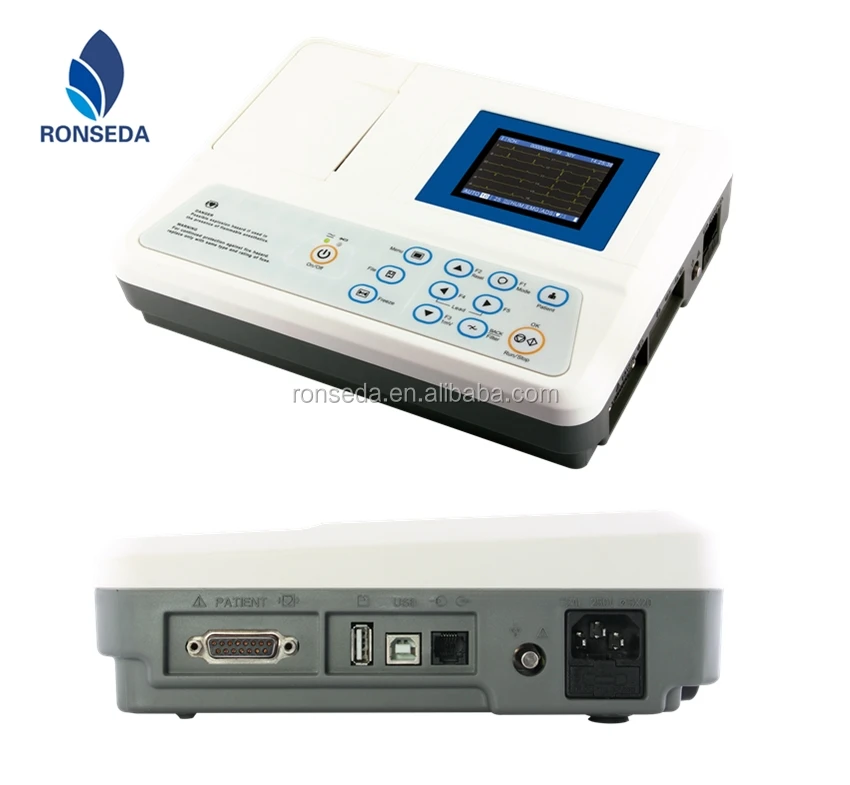

| RSD 3301 |
| Single channel ECG machine |
Features:
1.Compact and small size, easy and direct operation, portable
2.Accurate pulse pace identification function
3.High accuracy digital filter, auto baseline adjustment
4.Working modes: Manual, Automatic, Arrythmia Analysis
5.50mm, single channel format recording, excellent automatic interpretation
6.320x240 graphic 3.5 inch color LCD to simultaneously display 12ch waveforms
7.Adapt to 110-230V,50/60Hz power supply
8.Built-in rechargeable Ni-MH battery continuously
9.working for about 3 hours
Technical Specifications:
1.Leads: standard 12 leads
2.Patient current leakage: <10μA
3.Lead acquisition:12bit/1000Hz(synchronously 12 leads )
4.Calibrating voltage: 1mV±2%
5.Work mode: Manual, Auto, R-R analysis
6.Voltage tolerance: ≥±500mV
7.Time constant: ≥3.2s
8.Frequency response: 0.05~160Hz(-3db)
9.Input dynamic range:±10Vpp
10.Sensitivity valve: ≤20μV
11.Sensitivity: Auto,2.5, 5, 10, 20,40mm/mV(±3%)
12.Inter-channel Interference: ≤0.5mm
13.Paper speed: 6.25,12.5, 25, 50mm/s(±3%)
14.Filter
AC filter: 50Hz / 60Hz
EMG Filter: 25Hz / 45Hz
Anti-Drift Filter: 0.15Hz (Adaptive)
15.CMMR: ≥100dB (with AC filter)
16.Input Impedance: ≥50MΩ
17.Input circuit current: ≤0.05μA
18.Noise level: <15μVp-p
19.Input circuit: floating; protection circuit against defibrillator effect
20.Display: 3.5 inch colour LCD
21.USB/RS232 is Optional
22.ECG waveform,100 patient save/replay

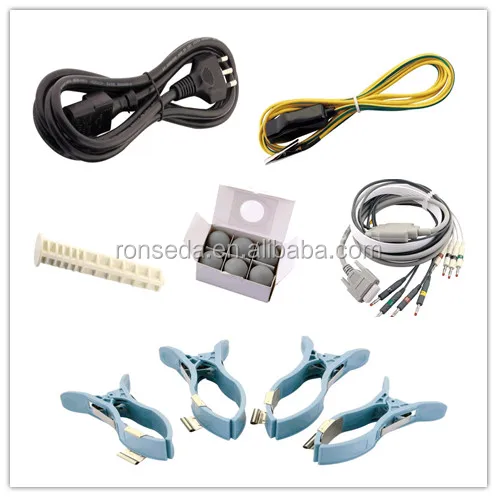

Standard Configuration:
1.Main unit 1 set
2.Patient cable 1 set
3.Limb electrode 1 set (4pcs)
4.Chest electrodes 1 set (6pcs)
5.Grounding cable 1 pc
6.Paper axis 1 set
7.Thermal paper 1 roll
8.Fuse 2 pcs
9.3-cord power cord 1 pc
10.AC Adaptor 1 pc
11.User manual 1 pc
