industrial pda Barcode Scanner Android 8.1 PDA With 1D/2D Scanner car PDAS

Share on:

Price:RUB 20,262.66
Price in USD:Details


Product Overview


Industrial pda Barcode Scanner Android 8.1 PDA With 1D/2D Scanner car PDAS

Product Description


1.Support android 8.1 system;
2.Support standard TYPE-C connector;
3.Support NFC(13.56M);
4.Support GPS navigation;
5.Rugged IP65 protection level;
6.Support high strength Glass Touch Panel;
7.Support Standby Battery, UHF Handheld Trigger, Scanning Handheld Trigger.

8.1D/2D barcode scanner Optional.

Dimension 148*75*17mm ,unit weight:380g
CPU MT8735A (Quad-core),   1.1GHz-1.5GHz
OS Android 8.1
LCD 5 inch   16:9  720*1280, IPS screen 300Nit
TP 5points Capacitive,G+G, Rigidity: 7H up, anti-scratch,TP thickness:1.1mm,COF,support glove and wet hand touch
Flash 32GB      Support SDHC/SDXC   x1    Max:128G
Wi-Fi WIFI 802.11(a/b/g/n)   Frequency 2.4G+5.8G  dual band WIFI
Camera Rear 8.0MP,with flash and auto-focus
BT BT4.0 (BLE) class1transmission distance:10m
Battery 3.7V/4000mAH   Removeable Battery , Support Back-Clip Battery, 8hrs(default50%volumn,default 200lumens brightness,play720PHD video)
Speaker built in8Ω/0.8W waterproof speaker x 1
Sensor G-sensor,Evironmental light sensor,Distance sensor,E-compass sensor
4G CMCC 5M:LTE 1/3/7/20/38/39/40/41
WCDMA 1/2/5/8
TD-SCDMA 34/39
GSM 2/3/5/8
Straps Extensible belt on the back case, convenient to hold
GPS support:GLONASS,QZSS,GPS;Capture sensitivity:-160 dBm;:Cold start time<30second,Hot start time:<28second,frequency:0.25 Hz … 10 MHz (configurable)
1D/2D barcode scanner MOTO2100
NFC Built-in NFC   Support 13.56mHz
Button Key Power on/off,Volumn up/down, Scan(left and right) x2, System HOME key*1,BACK*1,POGO PIN  Docking Charger
Port type c x1,3.5mm standard earphone  x1,SIM card connector  x1,POGO PIN1-Base Charging 2pin,POGO PIN2-data transmission,Back 8pin (connecting UHF and Scanner Gun)
Product Reliability Drop Height:1.2m composite wood floors, in operation status ,Operate Temperature:-10 °C to 50 °C (-20 °C to 60 °C  optional),Store Temperature:-30 °C to 70 °C ,Humidity: 95% Non-Condensing
Certificate System

IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X
a.Inner Nozzle diameter:6.3mm;

b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time in surface of panel:about 1min

f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m.
After test,there is no water leakage in sample.

Optional Scan Trigger, Charging Docking Station,Removeable Battery

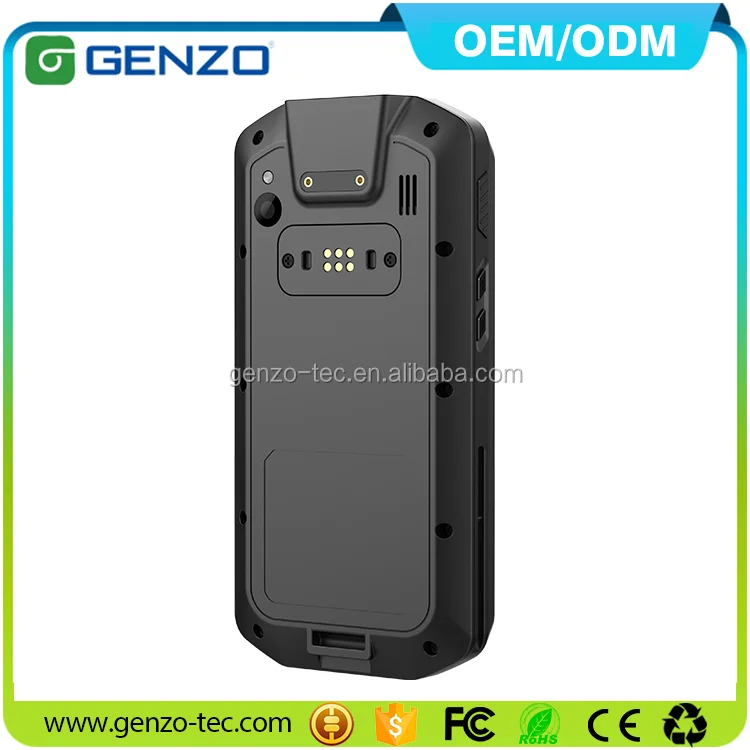

Product Pictures



379191111   Other Modles3M-3M

Packaging Shipping


 Android Rugged industrial Handheld  PDA


Company Pntroduction


Mobile PDA With Barcode Scanner


Factory Pictures


Android  Handheld  PDA




 Android Rugged industrial Handheld  PDA

Our Service



We accept OEM&ODM for customer's request. It includes:

1. Burn customer's logo name as Boot Animation name.

2. Print customer's logo on shell or do customer's logo sticker.

3. Do customer's giftbox, we can offer beautiful giftbox for customer's reference.or provide AI/CDR file for customer's own design.

4. Usuer Manual,customer can choice different languages and put them together.

5. Customer's Master Carton design are acceptable.


6.Develop products for customers,including appearance and internal structure design,motherboard development and mold design and production.




For all our products,we offer 14 months warranty.After the warranty period, we will also provide necessary replacement parts and technical support.

Usual,our Production line and QC department will test all the goods one by one for more than 3 times before send out.

So,there are almost no defective.if really have,you can send back us for repair or replacement.

You send back to us, you pay the shipping cost.

We send back to you,we pay the shipping cost.

But, all this warranty does not include accident, human fault or improper use.


Why choose us?

1. We are China leading
Rugged Tablet & PDA  manufacturer.

2. Alibaba Gold Supplier.

3. Inspected by the inspection of Bureau Veritas Certification.

4. 100% QC inspection before shippment.

5. Best quality & service with competitive price.




1.Q: Are you a factory or trading company?
    A: We are factory.we are manufacturing of Rugged PDA (4"/5"/6"), Rugged tablet    (7"/8"/10"),    Rugged and Semi-Rugged Notebook (11.6"/12.2"/14").

2.Q: Where is your factory located? How can I wisit there?
   A: Our factory is located in Shenzhen City, China. You can fly to Shenzhen airport directly, and    we will pick you up. Welcome to visit our factory.

3.Q: How can I get some samples?
   A: We are honored to offer you samples.

4.Q: How does your factory do regarding quality control?
   A: Quality is priority. We always attach great importance to quality controlling from to the end. Our factory has gained CE, FCC, ROHS certification.

Rugged Tablet & PDA (1)

Android  Handheld  PDA



 Click for More Information!!!
