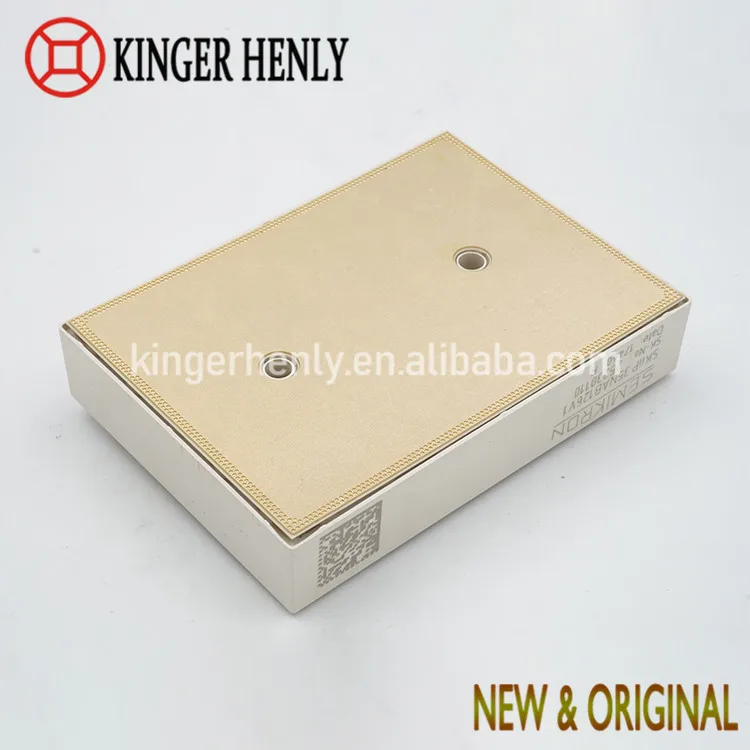

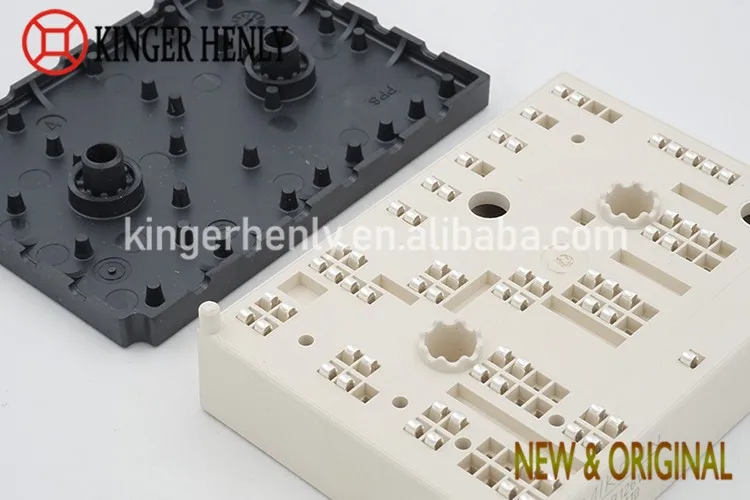

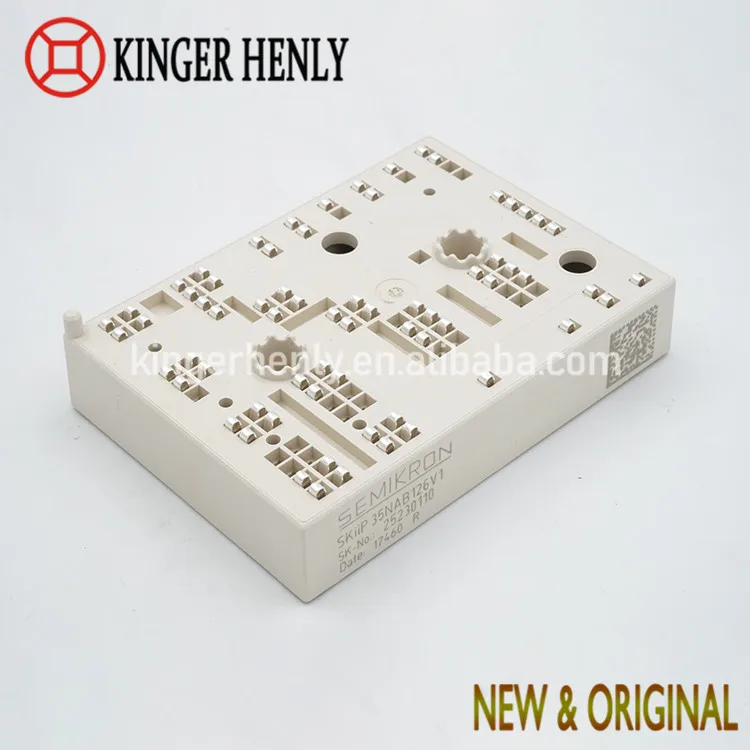

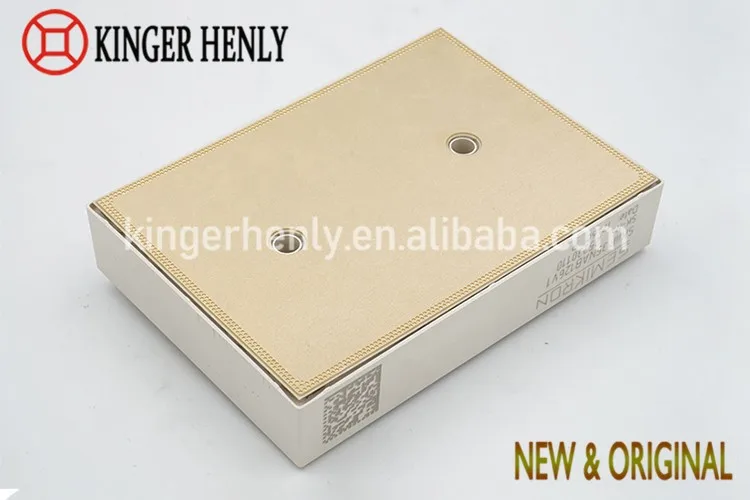

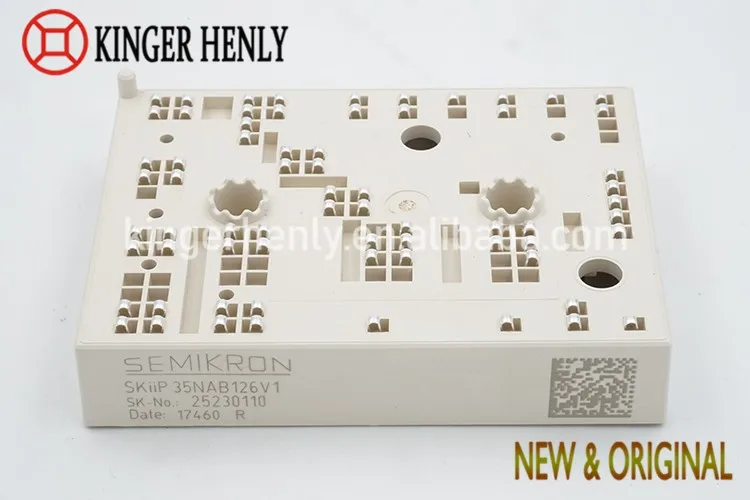

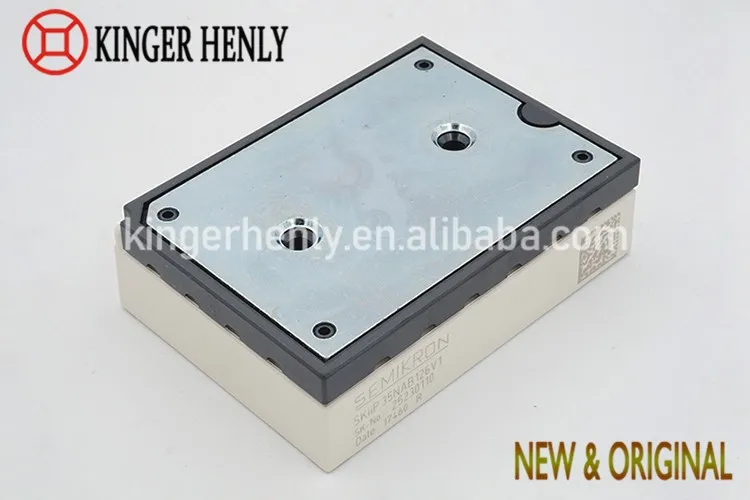

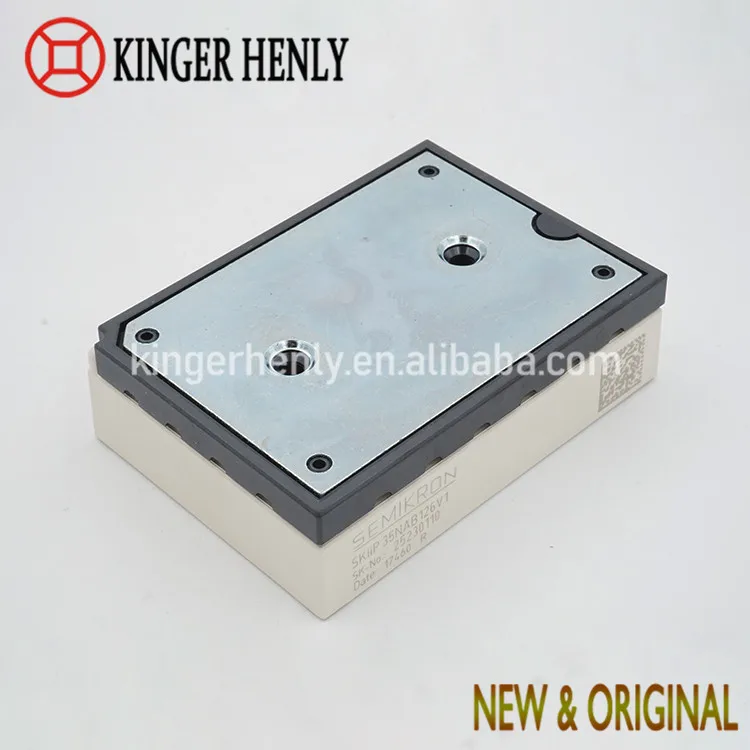

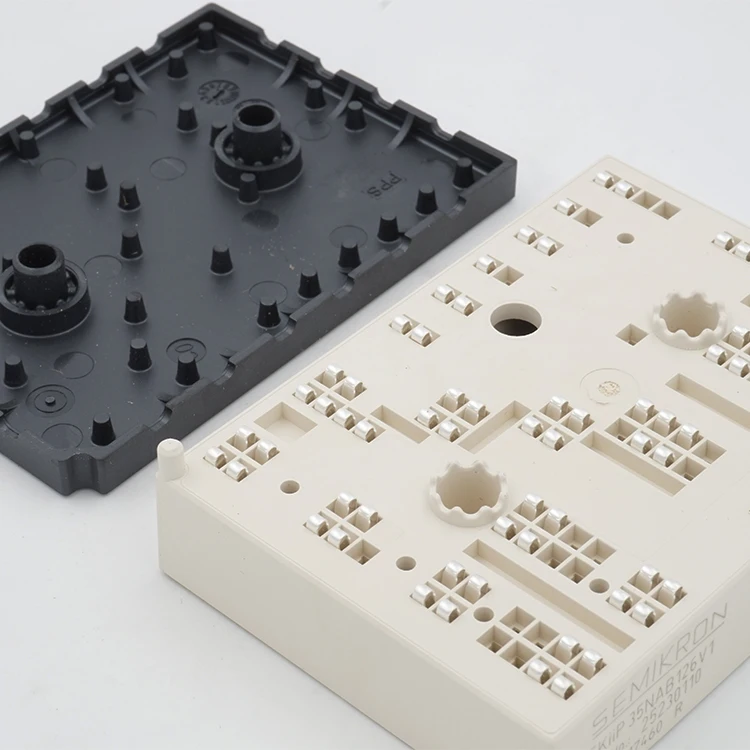

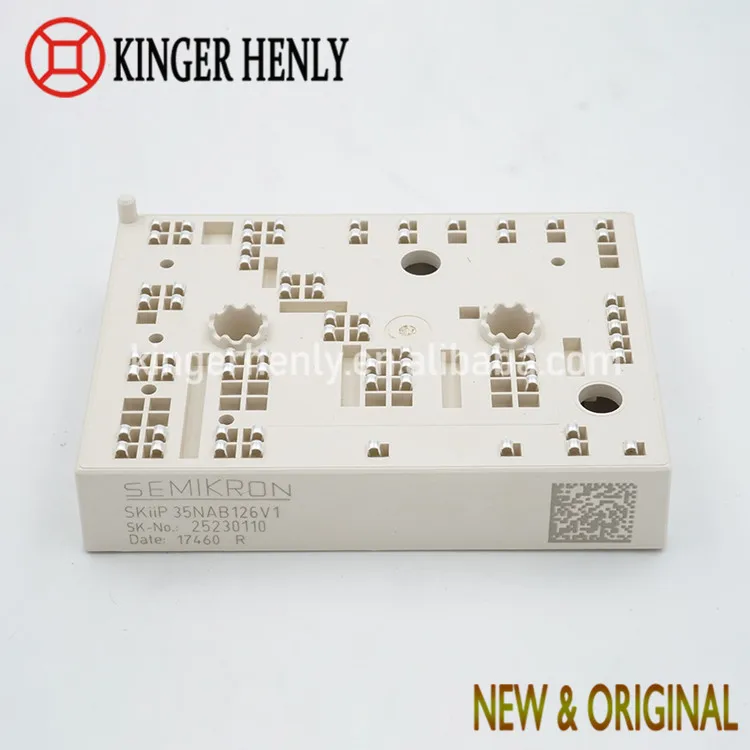

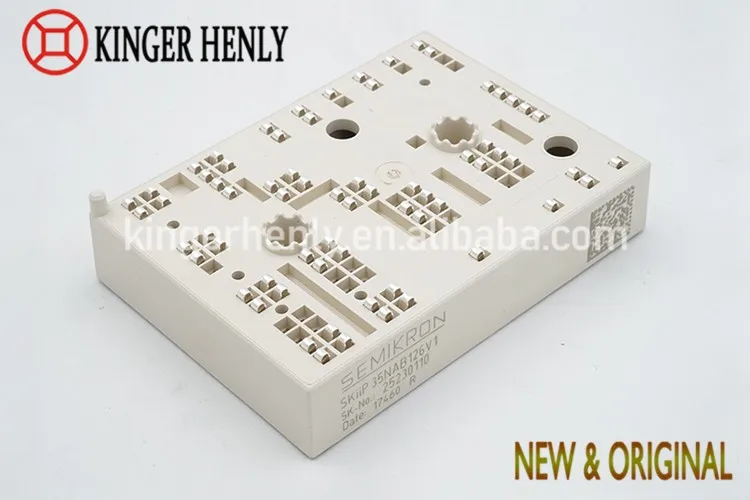

SKiiP35NAB126V1 3 Phase Bridge Rectifier Brake Chopper 3 Phase Bridge Inverter Frequency IGBT Module
- Category: >>>
- Supplier: Shenzhen Kinger Henly Technology Co. Ltd. [Guangdong China]Shenzhen
Share on (60732963855):
Product Overview
Description
SKiiP35NAB126V1
3-phase bridge rectifier + brake chopper + 3-phase bridge inverter
VCES= 1200V IC=55A
Features
* Fast Trench IGBTs
* Robust and soft freewheeling diodes in CAL technology
* Highly reliable spring contacts for electrical connections
Applications
* Inverter up to 28 kVA
* Typical motor power 15kW
Absolute Maximum Ratings Ts=25℃, unlessotherwise specified | ||||||
Symbol | Conditions | Values | Units | |||
IGBT- Inverter, Chopper VCES IC ICRM VGES Tj | Ts=25(70)℃ | 1200 73(55) 100 ±20 -40 to +150 | V A A V ℃ | |||
Diode-Inverter, Chopper IF IFRM Tj | Ts=25(70)℃ | 62(46) 100 -40 to +150 | A A ℃ | |||
Diode- Rectifier VRRM IF IFSM I²t Tj | Ts=70℃ tp=10ms, sin 180º, Tj=25℃ tp=10ms, sin 180º, Tj=25℃ | 1600 61 700 2400 -40 to +150 | V A A A²s ℃ | |||
Module ItRMS Tstg Visol | per power terminal(20A/spring) AC, 1min. | 80 -40 to +125 2500 | A ℃ V | |||
