AVMATRIX Scale HDMI to SDI Converter with audio/AES/EBU embedded

Share on (60733003264):


Price:$199.00

Quantity:


Product Overview

Description


Brief Introduction


SC2031

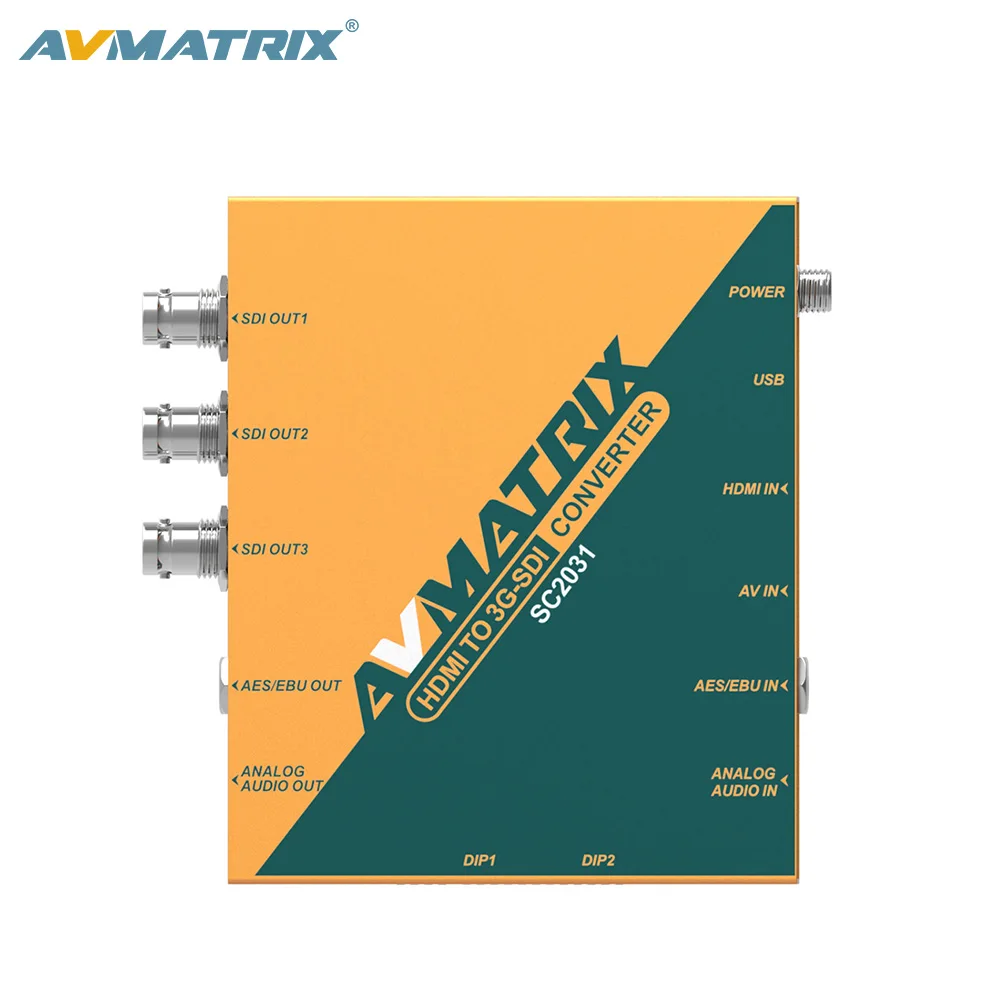

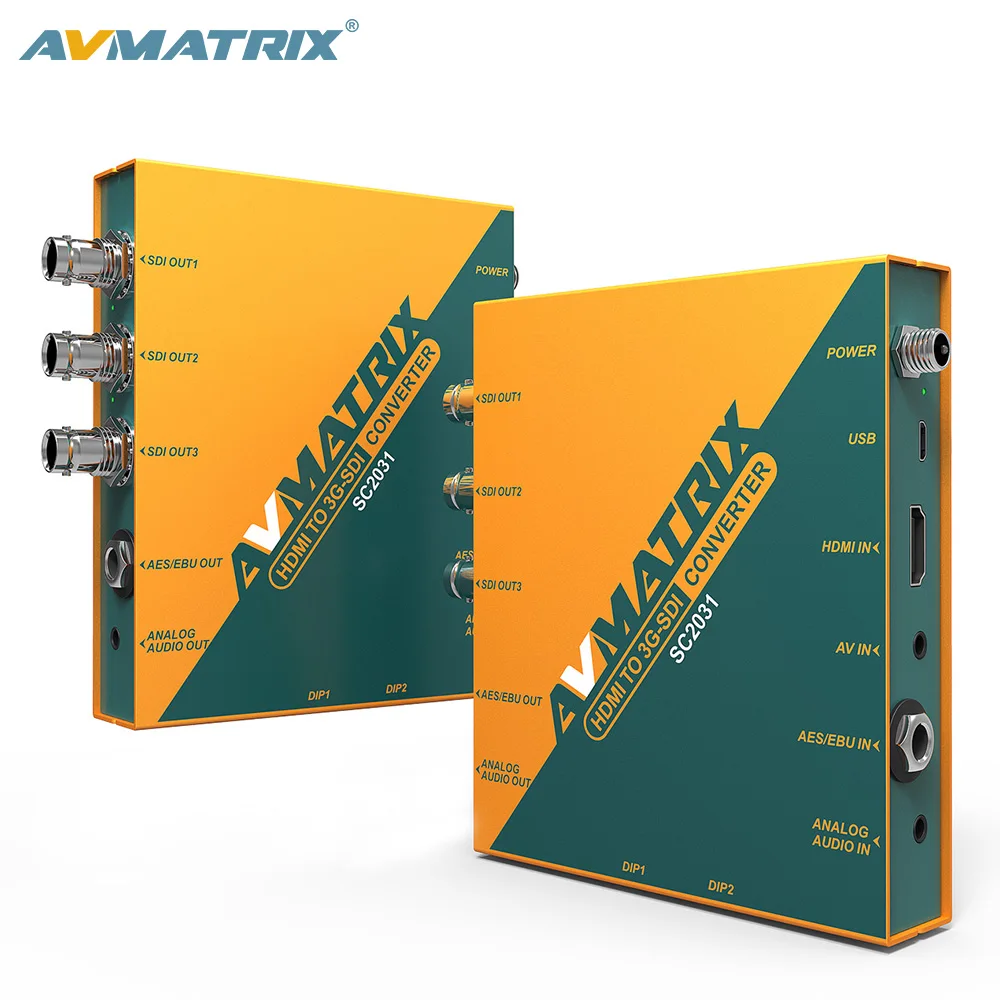

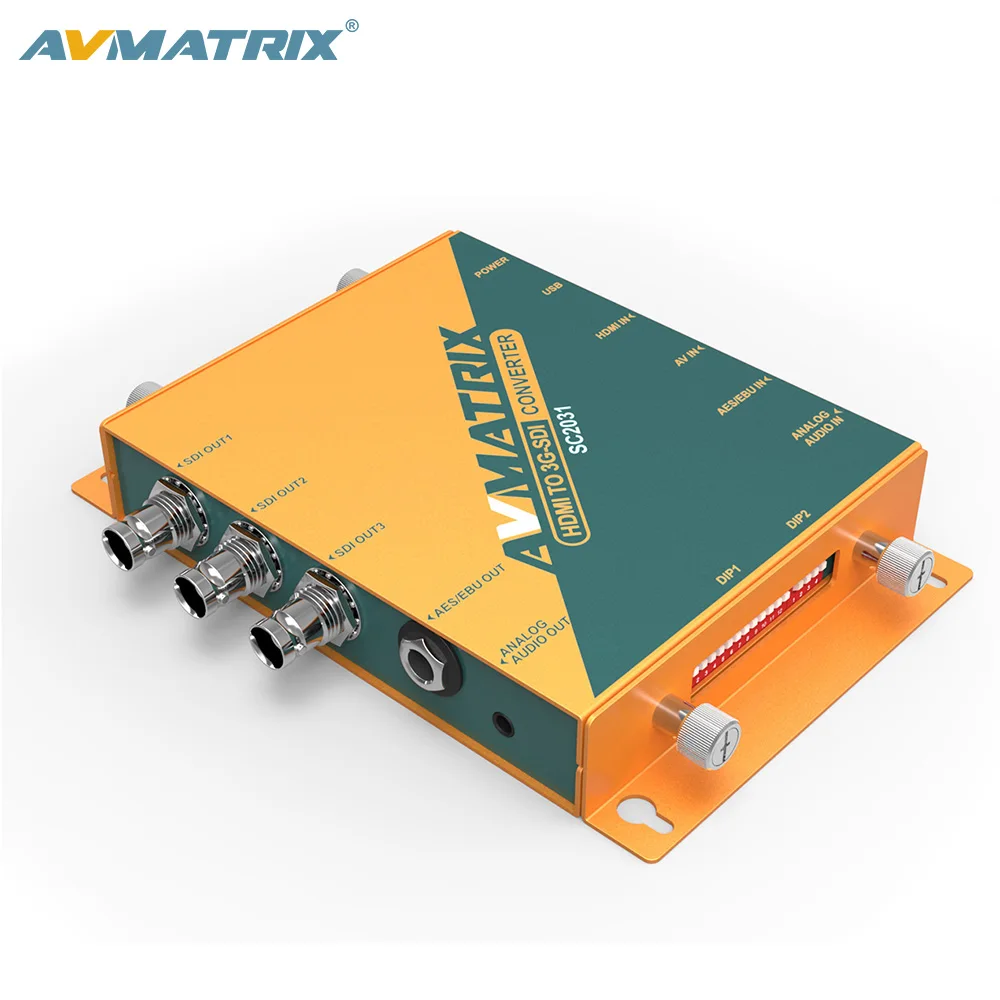

Scale HDMI to SDI Converter

SC2031 is an exquisite and professional Scale HDMI to SDI Converter, convert HDMI or AV signals to triple SDI signals up to 1080P60Hz. The format of the output can realize pass through or up/down scaling, frame rate conversion and de-interlacing function. It also features AES/EBU or analog audio embedding and de-embedding. All the functions can be easily set by a built-in DIP switchers or PC via USB. SC2031 is your ideal choice for broadcasting and AV post production applications.


Main Features

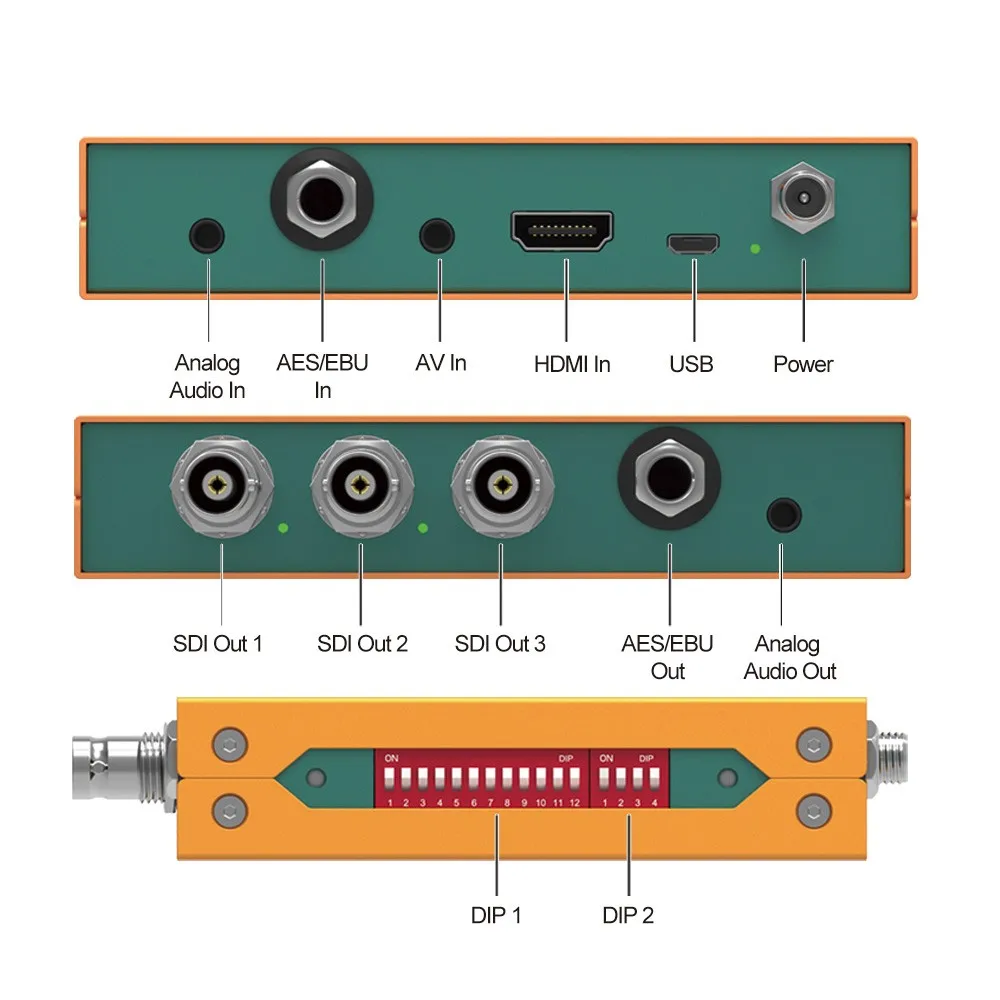

1) Input: HDMI×1, AV×1, AES/EBU×1, analog audio×1
2) Output: 3G-SDI×3, AES/EBU×1, analog audio×1
3) Up/down scaling and frame rate conversion, Scale HDMI to SDI Converter
4) AES/EBU or analog audio Embedding & De-embedding
5) Input signal automatic detection and configuration
6) LED indicators for power and signal lock
7) Control easily via the DIP switches
8) Remote control for PC via USB
9) Threaded locking power connector
10) Detachable bracket design for wall mounting

Product Description

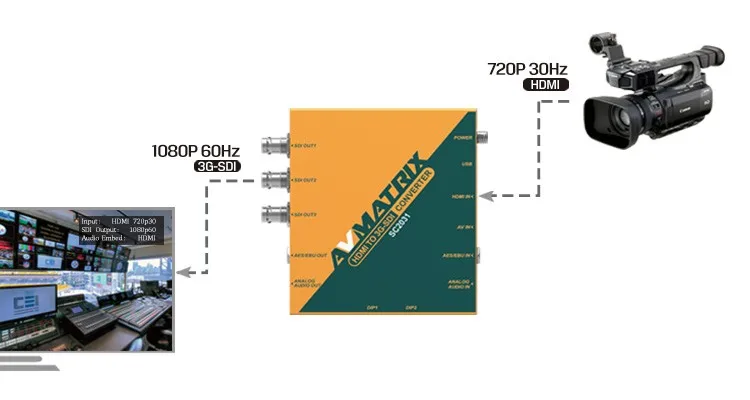

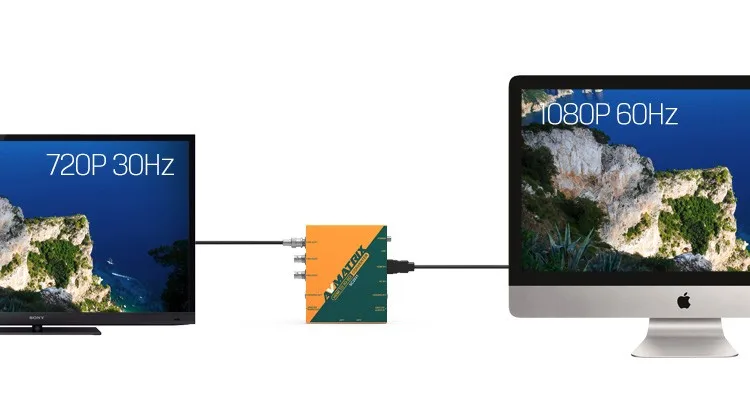

Up/down Scaling and Frame Rate Conversion

SC2031 features Scale HDMI AV  to SDI Converter. And the format of output can realize pass through or up/down scaling, frame rate conversion and de-interlacing function. It can support up to 1080p 60Hz.

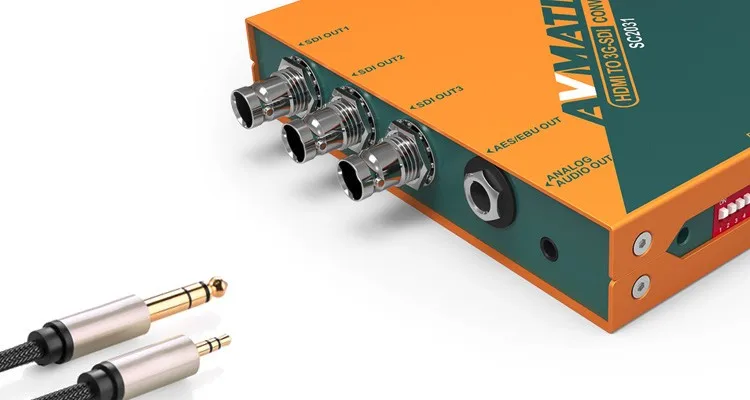

Audio Embedding and De-embedding

It features embedding an external AES/EBU or analog audio or HDMI embedded audio to SDI output. Also it can de-embedding audio from input signal to external AES/EBU and analog audio. There is no need for users to purchase custom cables when adopting standard 1/4" (6.3mm) TRS audio jack and 1/8" (3.5mm) audio jack.

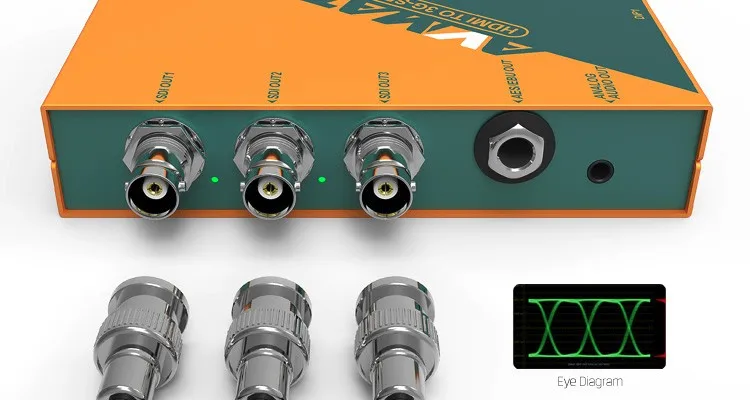

Triple Parallel SDI Outputs

Transmitting and splitting the input signal to triple parallel SDI outputs for three different connecting devices at the same time. It supports a long distance and stable transmission without loss of signal quality.

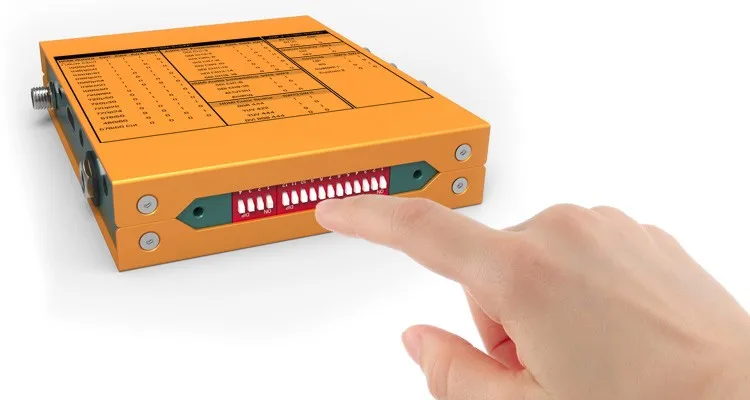

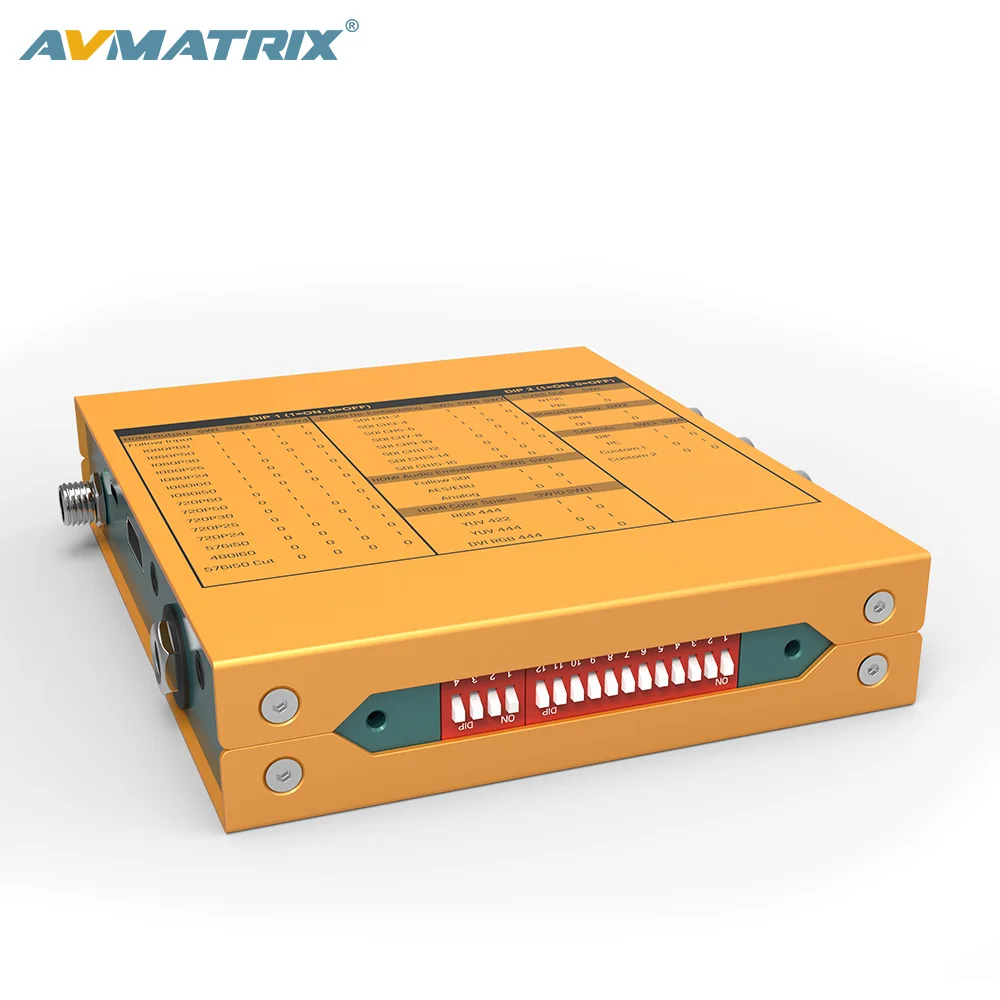

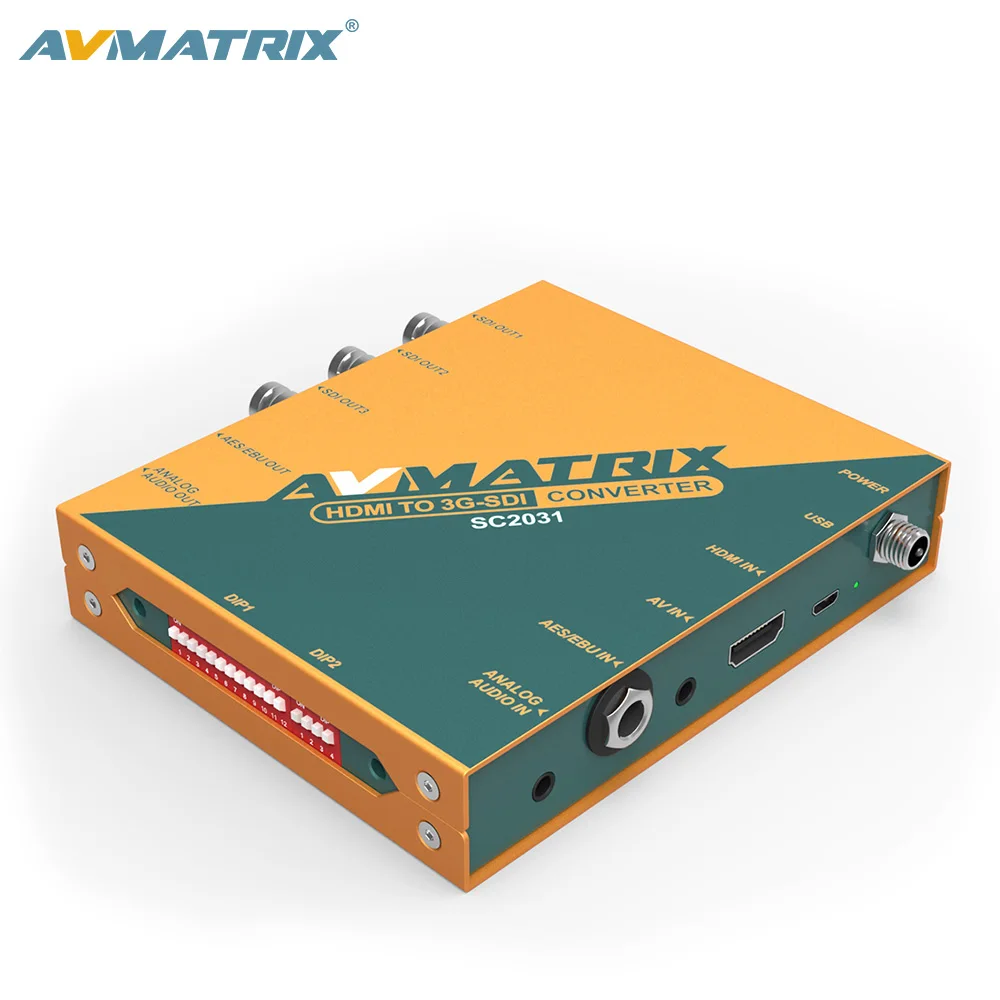

Easy Control over DIP Switches

SDI converter support adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, it also can be remote set by using a software by connecting it with a PC via USB. Besides, the latest software can be upgrades by connecting it with a PC via the USB.

Techniacl Parameter
\t


INPUT
\t
HDMI Video Input
\t
SD/HD/3G-SDI ×1, Alt 3G-SDI ×1
\t
AV Input
\t
1/8" (3.5mm) jack ×1
\t
AES/EBU Digital Audio Input
\t
1/8" (3.5mm) jack ×1
\t
Analog Audio Input
\t
1/8" (3.5mm) jack ×1
\t


Output
\t
SDI Video Output
\t
SD/HD/3G-SDI ×3
\t
AV Output
\t
1/8" (3.5mm) jack ×1
\t
AES/EBU Digital Audio Output
\t
1/4" (6.35mm) TRS jack ×1
\t
Analog Audio Output
\t
1/8" (3.5mm) jack ×1
\t








Formats
\t
HDMI Input Format Support
\t
1080p 60/59.94/50/30/29.97/25/24/23.98/23.973
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98
576p 50, 576i 50
480p 59.94, 480i 60/59.94
\t
HDMI Color Space and Precision
\t
YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
\t
AV Input Format Support
\t
NTSC, PAL
\t
SDI Output Format Support
\t
1080p 60/50/30/25/24
1080i 60/50
720p 60/50/30/25/24
625i 50, 525i 60
\t
SDI Video Rate
\t
SD/HD/3G-SDI \t\t
\t
SDI Compliance
\t
SMPTE 292M/SMPTE 259M/SMPTE 424M
\t
SDI Color Space and Precision
\t
YUV 4:2:2
\t

Size
\t

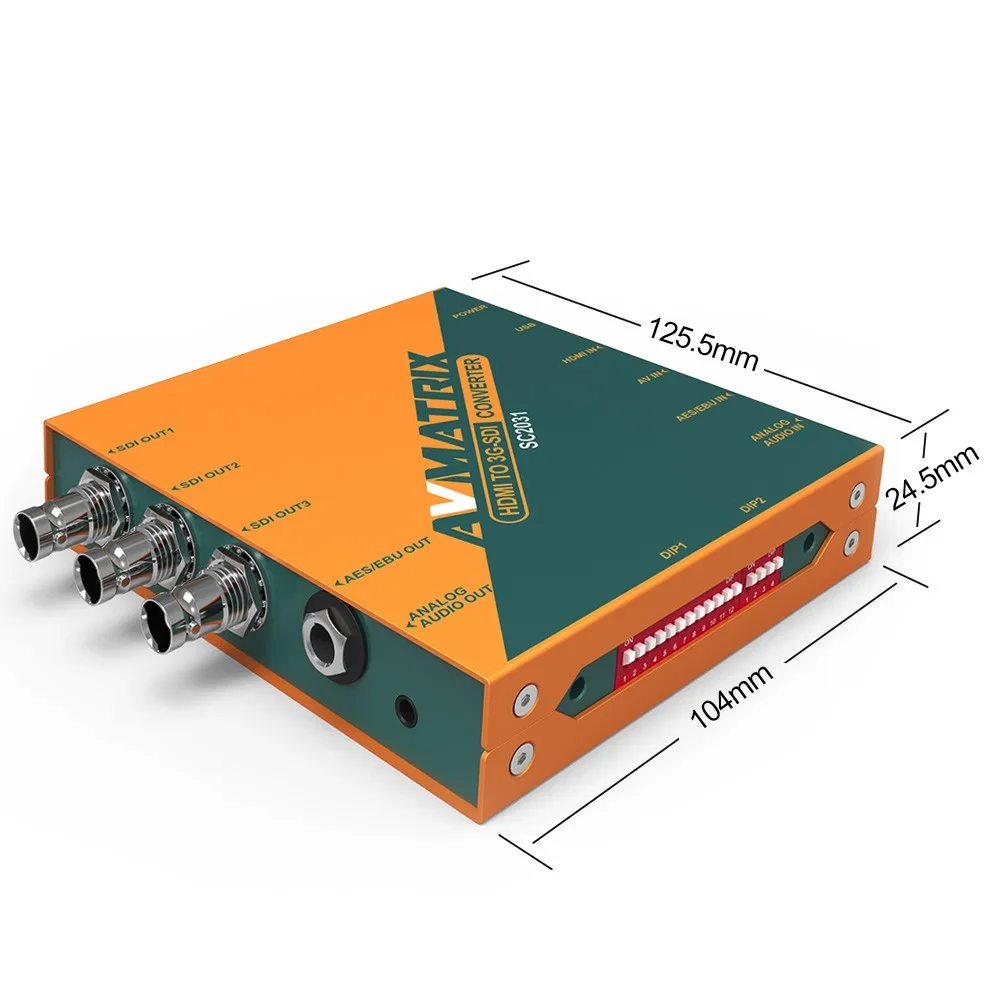

Dimension(LWD)
\t
125.5mm × 104mm × 24.5mm
\t
Weight
\t
500g
\t

Power
\t
Power Connector
\t
Threaded locking connector
\t
Power Consumption
\t
5W
\t
Voltage Range
\t
12V
\t

Environment
\t
Operating Temperature
\t
-20℃~60℃
\t
Storage Temperature
\t
-30℃~70℃
\t
Relative Humidity
\t
0%~90% non-condensing
\t
Warranty
\t
Warranty
\t
3 year limited warranty
About AVMATRIX

After-Sales Service

AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.

About AVMATRIX

AVMATRIX is specialized in processing high definition video signals for years. we have developed and produced a series of pro video devices, including signal converter, multi-viewer, optical fiber converter, signal distribution amplifier, signal generator and matrix switcher, etc.
