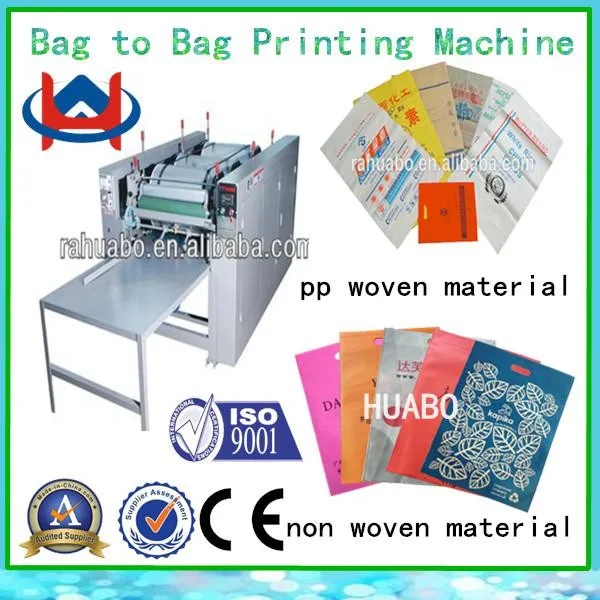

Name:  HUABO multicolor non woven bag to bag printing machine





Performance

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.





DS-850 series multicolor non woven bag to bag printing machine







Ⅰ.Feature:



1. Meter counter equipped with pre-alarming bell.

2. 1500-3500p/h, step less governor.

3. Pneumatic separation, safe, low noise, excellent quality

4. Trapping accurate, error about one millimeter.

5. Mesh roll to convey the ink, save ink, save by 30%, increasing printing effect. 6. Rear transmission can be delayed with the function of airing.









Ⅱ. Main Technical Specification



Model	DS-850-2	DS-850-3	DS-850-4
Printing area	1200×650mm	1200×650mm	1200×650mm
Print color	2 colors	3colors	4colors
Thickness of rubber	4-5mm	4-5mm	4-5mm
Material feeding	1300×750mm	1300×750mm	1300×750mm
Print cylinder	420mm	420mm	420mm
Production capacity	1500-3500pcs/h	1500-3500pcs/h	1500-3000pcs/h
Power	1.1kw	1.5kw	2.2KW
Overall dimensions	2.8×1.2×1.2m	3.2×1.3×1.2m	4×1.4×1.4m

DS-850 series multicolor non woven bag to bag printing machine

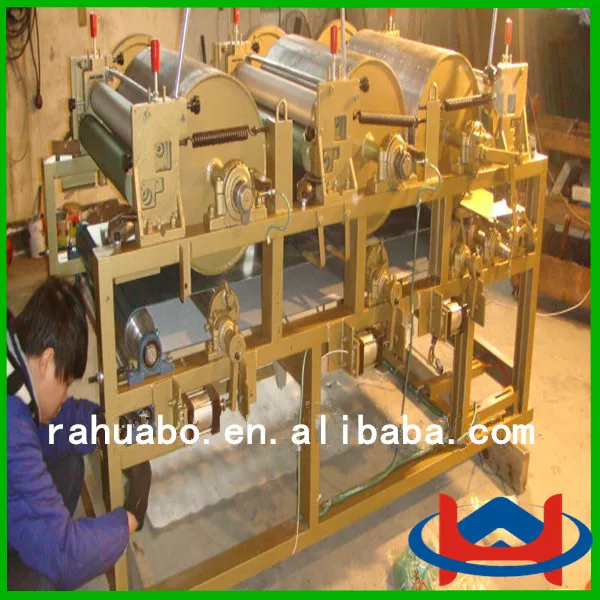

III. machine picture showroom:







(for multicolor non woven bag to bag printing machine )









(for multicolor non woven bag to bag printing machine )





multicolor non woven bag to bag printing machine







  (for multicolor non woven bag to bag printing machine )





1. Q: Payment?

  A: T/T and L/C.



2. Q: Delivery time?

   A: 10 working days after 30%T/T deposit, the balance 70% before the shipment.
