Patent portable USB digital skin microscope for skin analyze
- Category: >>>
- Supplier: Hangzhou Future Optics Sci & Tech Co. Ltd.
Share on (60733166204):
Product Overview
Description
Product Description
The combination of high performance digital imaging module with innovating optics & mechanism design and powerful software provides a large breakthrough in digital microscope design. It has widely applications in industry, education, science, medicine and daily life to view, acting as a powerful digital gadget to check and to record detailed message of the micro world.
Applications

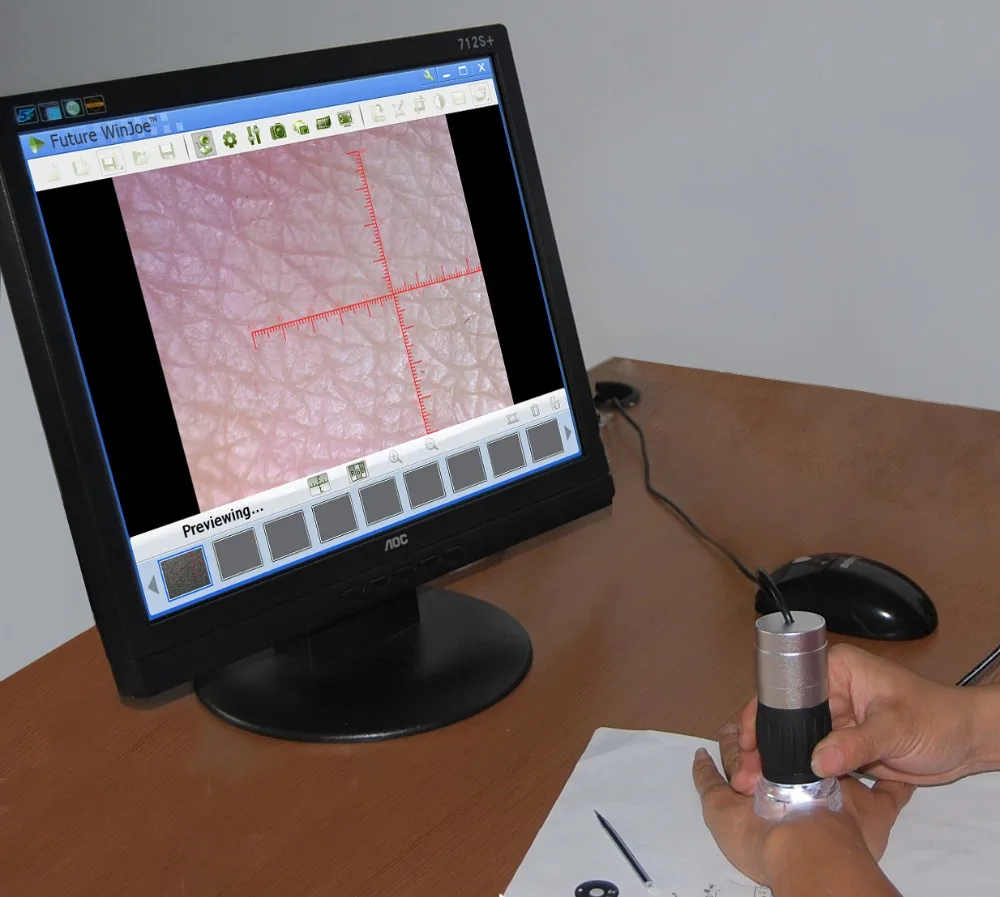

Beauty and Skin Care
By checking and to tracking growth and metabolic process of skin and hair, to provide guidance of wrinkles smoothing away and blemishes eliminating.

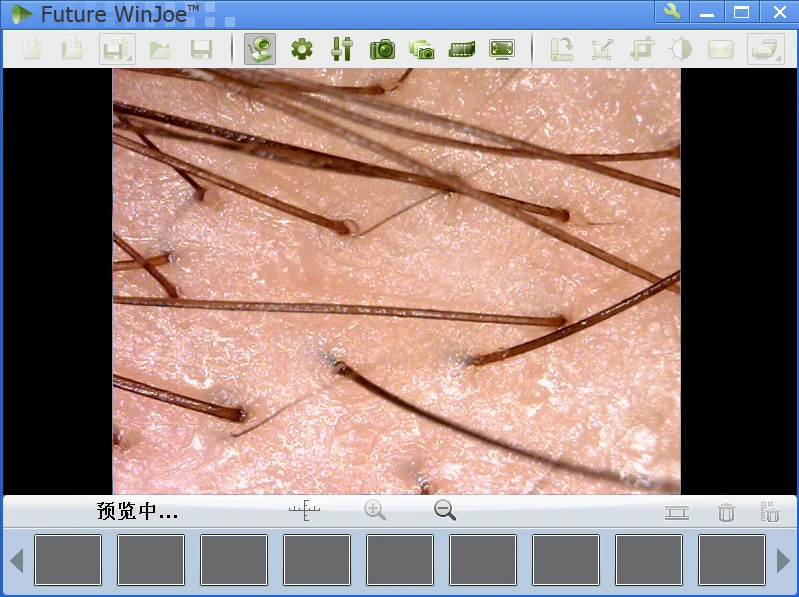

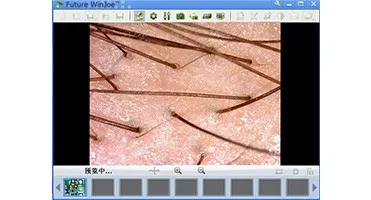

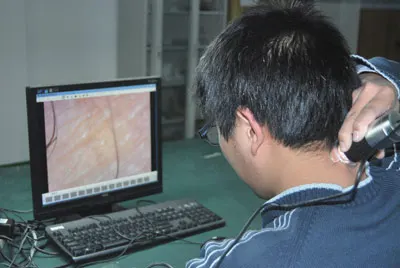

Hair loss has become a problem plaguing many people, according to the data show, In North America, 50 million men and 30 million women have serious hair loss problems. However, there are least six main factors attributed to hair loss. They are: Genetics, Age, Stress, Medical, Nutritional and Environmental. portable digital microscope can be a good solution to this problem, its magnification is between 40x-240x. Its simple method of operation allows everyone to operate at home.
Function
1, Zoom function: low magnification for wider field searching and high magnification for detailed message checking.
2, Capability of capturing image in high resolution:
Display resolution: 1280*1024
Picture resolution: 1280*1024
Video recording resolution: 1280*1024

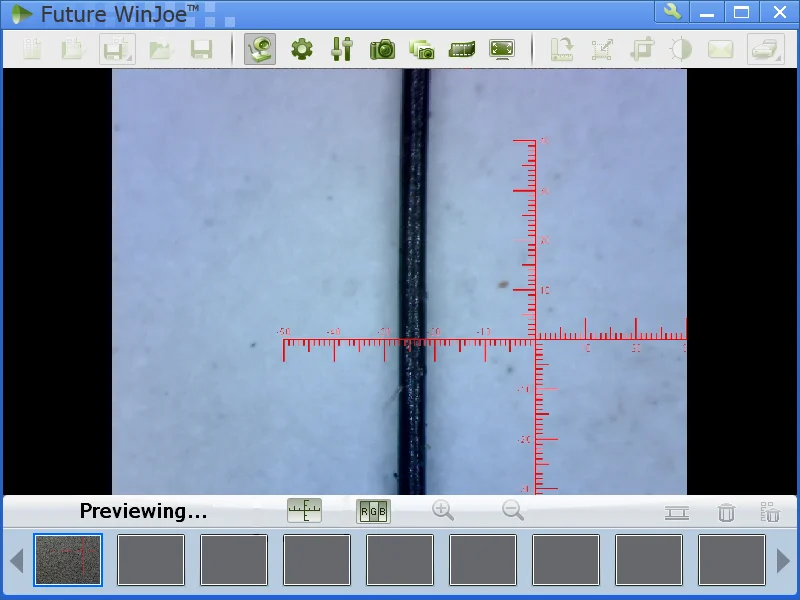

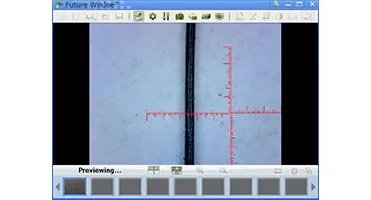

3, Capture settings: Software allows you to adjust the gain, resolution, WB, contras, exposure time, image direction converter.
4, Image amendment: RGB color and gray scale.
Specifications
Capture Mode | Picture and Video |
Sensor Parameter | 1/4” 1.3MP Color CMOS |
Max. Resolution | 1280*1024 |
Pixel Size | 2.8µm*2.8µm |
Sensitivity | 1.0V / lux-sec |
Dynamic Range | 71.0 dB |
S/N Ratio | 44.0 dB |
Working Distance | 5.0mm ---∞ |
Magnification | 1---40X; 240X |
Spectral Range | 400-650nm (with IR-filter) |
Frame Rate | 17fps@1280*1024 |
Preview Model | 1280*1024; 640*480; 320*240 |
Exposure | ERS or Manual |
Power Consumption | 170 mW |
White Balance | ERS or Manual |
Out Interface | USB2.0, USB3.0 |
Device Weight | 0.12kg |
Device Size | Φ45mm*95mm |
Features
1, Very wide dynamic range to enrich grey scale of image.
2, Well express true colors of RGB.
3, Low noise electronics, no hot pixel inside picture.
4, Easy zooming and fine focusing with one hand or two hands.
5, Standing without support.
6, Compatibility with XP, Win7, Win8, Win10, MAC and Linux.

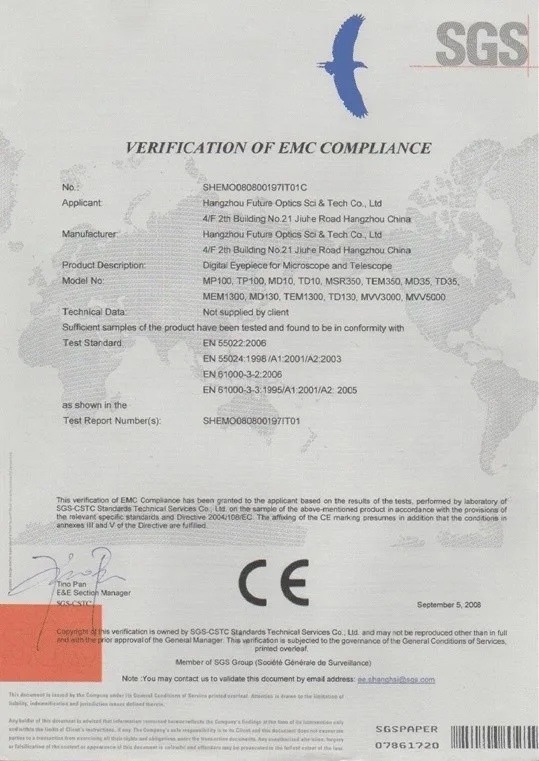

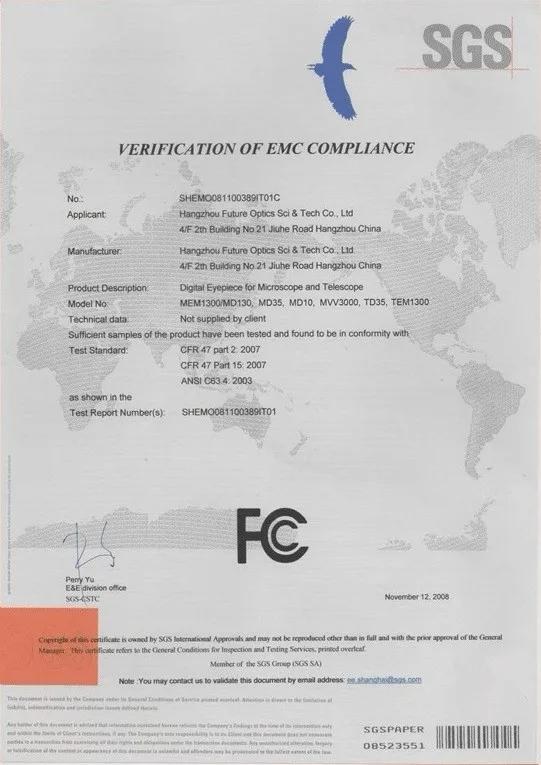

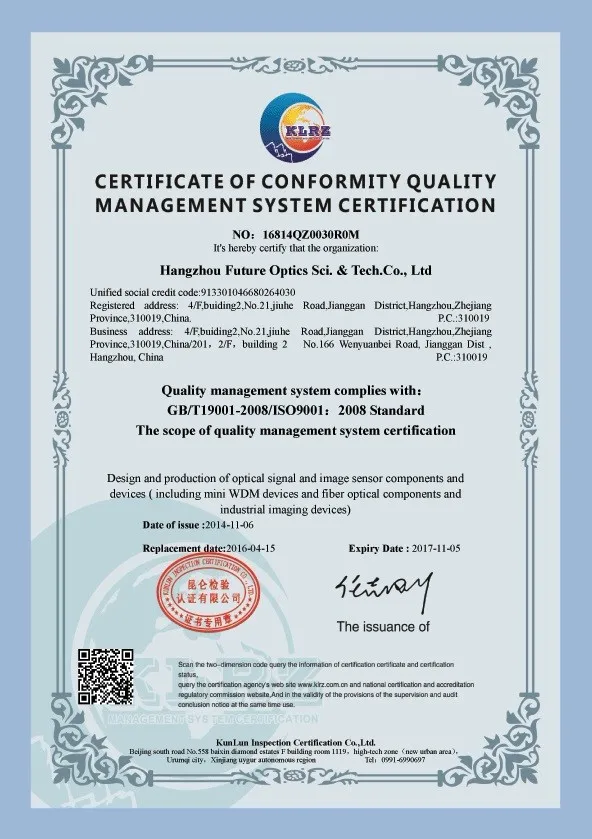

Certifications
Company
FAQ
Q: How to order?
A: Send us enquiry -> Quotation -> Details negotiate -> Sample confirm -> Contract/Deposit -> Mass production -> Goods ready -> Balance payment -> Shipment -> More cooperation
Q: Which shipment available?
A: Normally, we ship goods by sea, air and express. Special requirement also acceptable.
* By sea to your nearest seaport for 10~15 days
* By air to your nearest airport for 5~10 days
* By UPS, DHL, FEDEX, TNT... to your door for 3~6 days
Q: Which payment way workable?
A: Trade assurance, T/T, PayPal, Western union.
Q: What’s your warranty time?
A: 2 years.
