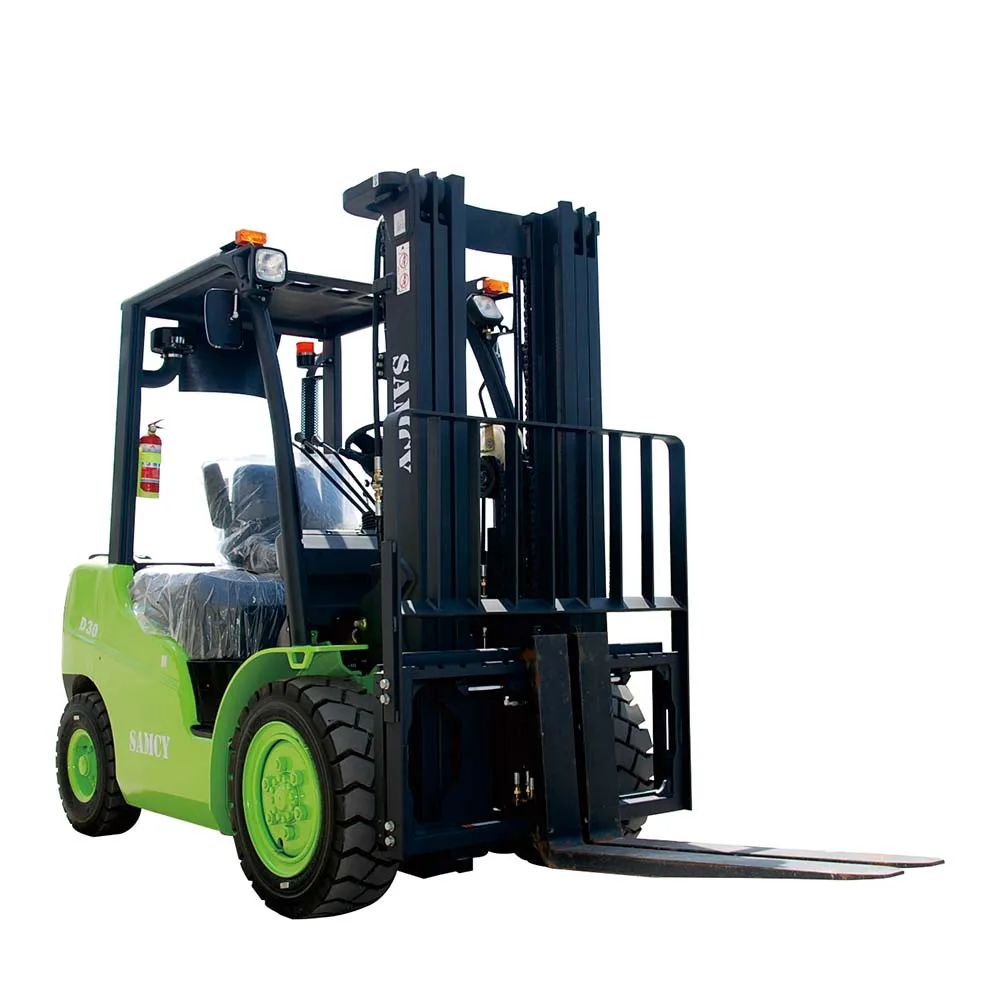

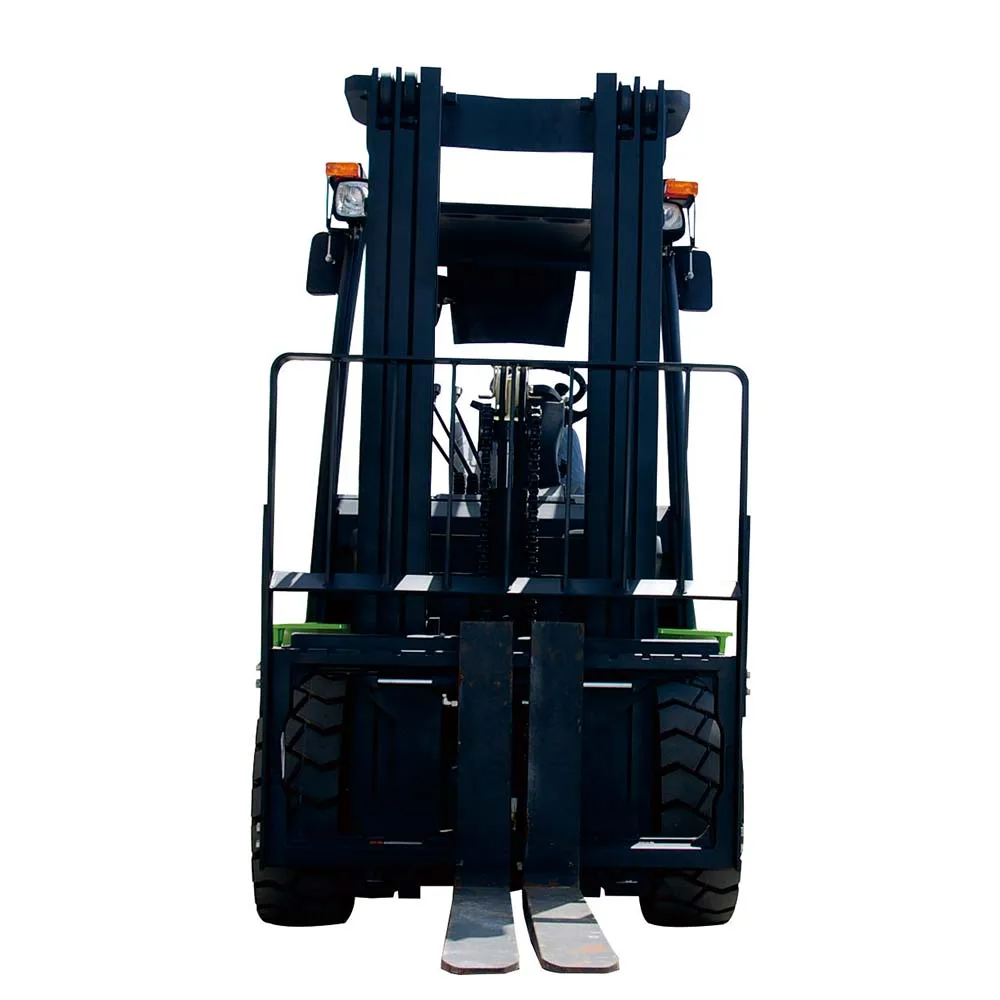

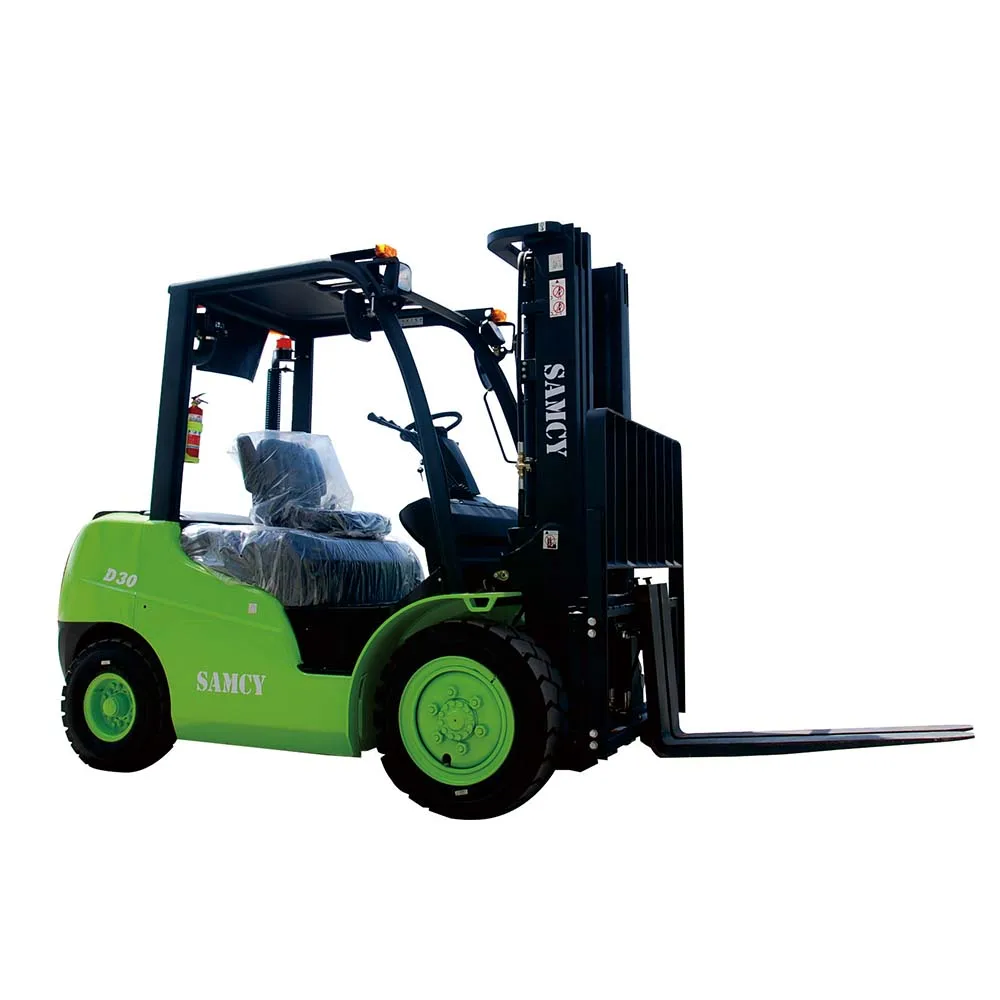

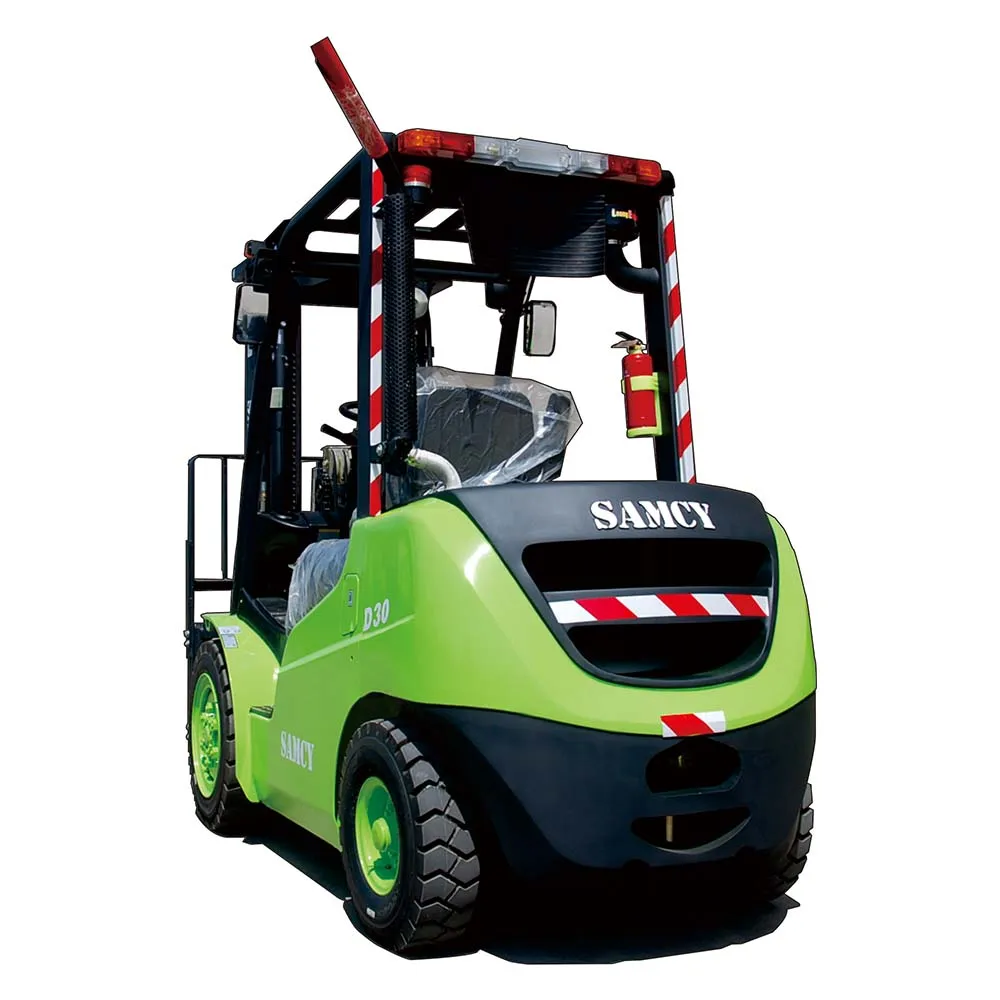

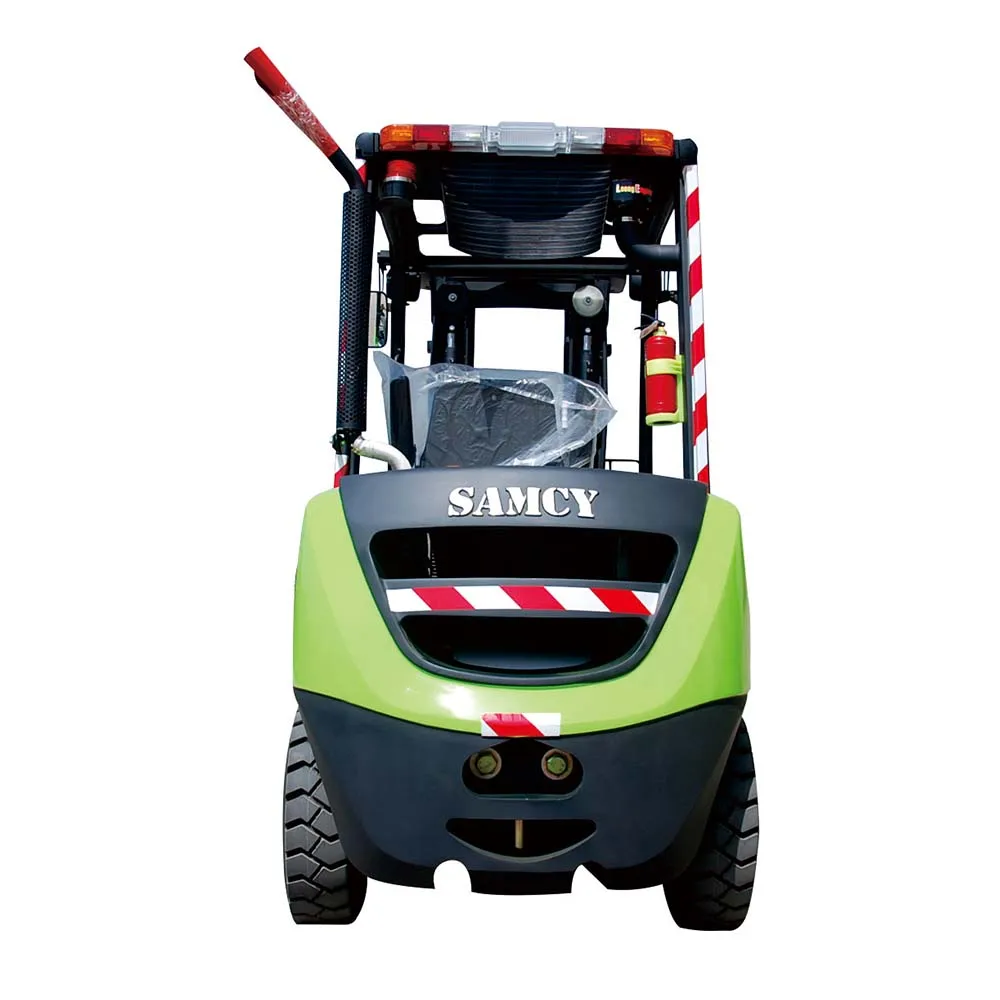

SAMCY Forklift Official Manufacturer 2 Years Warranty Brand New 3 Ton Diesel Forklift
- Category: >>>
- Supplier: Wuxi Samcy Equipment Co. Ltd.
Share on (60733205440):
Product Overview
Description
| Product Name | SAMCY Forklift Official Manufacturer Hot Sale Brand New 3 Ton Diesel Forklift |
| Item Type | Forklift Truck |
| Item No. | CPCD30 |
| Place of Origin | Jiangsu, China (mainland) |
| After-Sales Service | Overseas Third-party Support Available |
| Color | Green or Customized |
| Certificate | CE & ISO9001 |
| Size | 2720 * 1225 * 2090mm |
| Fork Width | 125mm |
| Fork Length | 1070mm |
| Load Capacity | 3000KGs |
| Power Type | Diesel Engine |
| Lift Height | 6 m |
| Mast | Free 3 Stage |
| Application Area | Entrepot, Warehouse, Station, Port, Port of Transshipment |
| Packing | Nude Cargo, for 20GP can Load 4pcs & for 40GP 6pcs |
| Service | OEM, ODM |
]
| General | Manufacturer | SAMCY Forklift Truck | |||
| Model | CPCD30 CPQ(Y)D30 | ||||
| Power type | Diesel / Gasoline / LPG | ||||
| Rated capacity | kg | 3000 | |||
| Load center | mm | 500 | |||
| Dimensions | Lifting height H | mm | 3000 | ||
| Free lifting height E | mm | 145 | |||
| Fork size L2×W×T | mm | 1070×125×45 | |||
| Mast tilting angle α/β | deg | 6/11 | |||
| Front overhang X | mm | 494 | |||
| Overall dimensions | Length(to fork face) L1 | mm | 2744 | ||
| Overall width B1 | mm | 1236 | |||
| Mast lowered height H1 | mm | 2080 | |||
| Mast extended height H3 | mm | 4272 | |||
| Overhead guard height H2 | mm | 2175 | |||
| Turning radius R | mm | 2400 | |||
| Performance | Travel speed(laden/unladed) | km/h | 18/19 | ||
| Lifting speed(laden) | mm/sec | 430 | |||
| Max.gradeability | % | 20 | |||
| Sevice weight | kg | 4320 | |||
| Chassis | Tyre | Front | 28×9-15-12PR | ||
| Rear | 6.50-10-10PR | ||||
| Tread | Front B2 | mm | 1000 | ||
| Rear B3 | mm | 980 | |||
| Wheelbase Y | mm | 1750 | |||
| Ground clearance(laden/unladed) | Mast M | mm | 110/135 | ||
| Frame F | 170/175 | ||||
| Size Chart (cm) | |
| 1cm=0.3937inch | |
| Forklift Truck Size | 3 Ton |
| Length | 274.4 |
| Width | 123.6 |
| Height | 216.5 |
| Power | Diesel engine |
| Load Bearing | 3000KG |
| Other Size could be Customized | |
| Trade Terms | EXW, FOB, CFR, CIF or others |
| MOQ | 1 Set |
| Port | Shanghai Port, Ningbo Port or others |
| Shipment | Ocean or Air transportation, International Express |
| Payment Terms | LC D/A D/P T/T Western Union Money Gram |
| Payment Condition | 30% before Prodution, 70% after Delivery Upon BL |
| Supply Capacity | 10,000 Sets per Year |
| Delivery Time | 40 days after confirming the order |
| Service | OEM/ODM |
