Pelvic Radiotherapy Thermoplastic Mask Sheets for Radiation Oncology Therapy

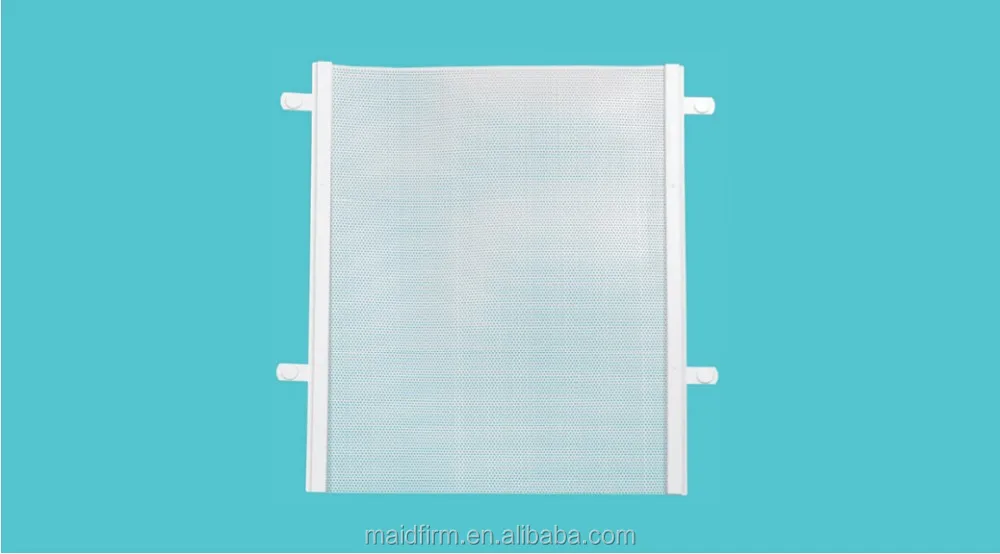

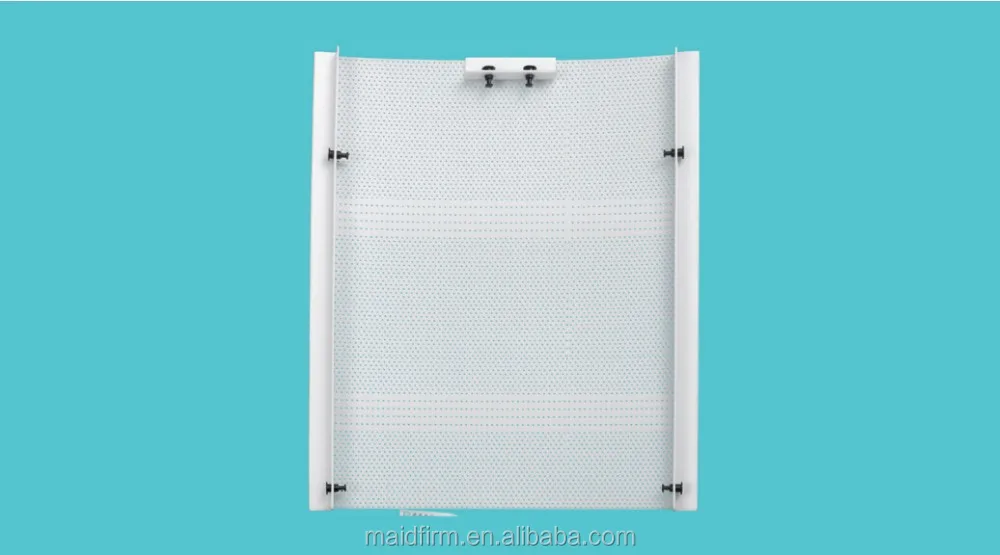

Maidfirm Thermoplastic Masks- Hip & Pelvic Thermoplastic masks ( push pin type)

Our thermoplastic masks are stronger, less-sticky, and have less shrinkage than all other standard masks. We offer masks in varying thicknesses, sizes, and perforation patterns. Each type of thermoplastic has been specifically designed for optimal fixation with each frame-type.

Features:
Low Shrinkage.
Stronger.
Non-stick surface.
For all system (Compatible with all standard US and European baseplates)


Operation:

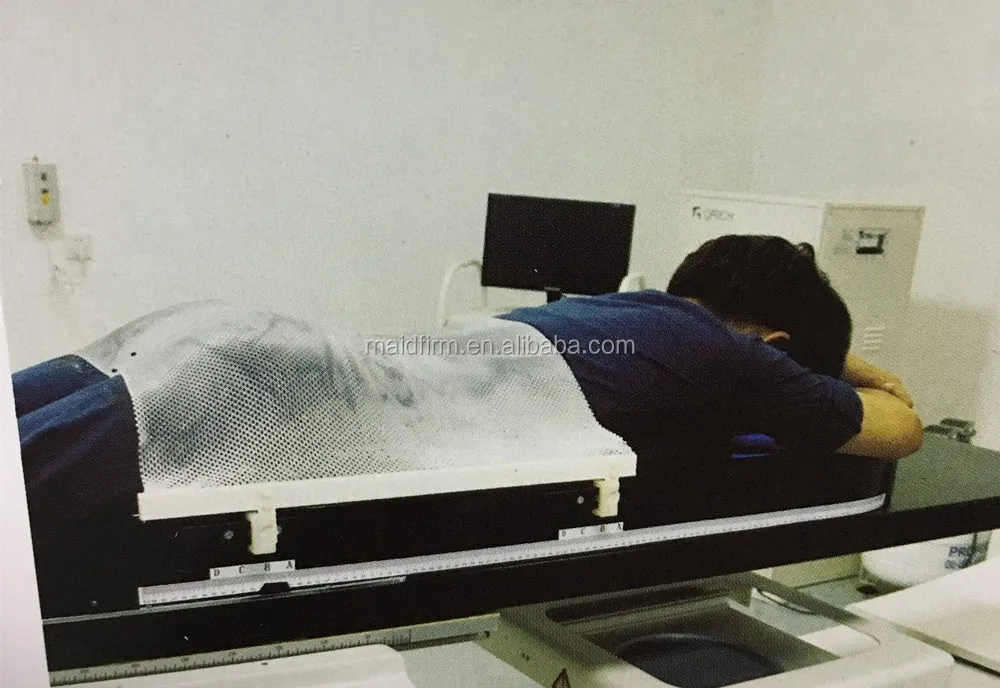

Put Hip & Pelvic masks on the patient and immobilize it on the appropriate baseplate or multifunctional baseplate of radiotherapy immobilization device. The mask will be soften and transparent in condition of temperature 65-70°C, Keep this status and shape the position you want to therapy for 1-3 minutes with no less than 200% elongation rate, it can be made any shape and repeatable using. Shaping and hardening time 3-5 minutes, molding to stereoscopic time about 20 minutes, The minimum shrinkage will be attained in 20 minutes after molding.


Specification:  Mask sheet-559*440mm



COMMON SERIES OF PRODUCTS:

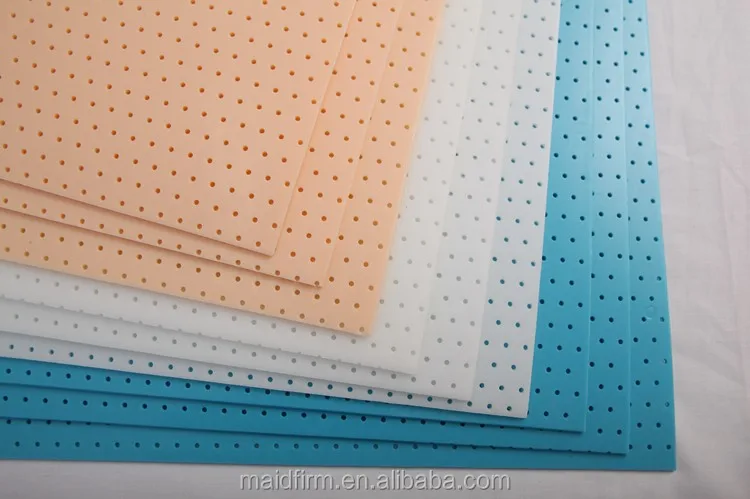

Models: 1. M-E3624WT04D (Thickness:2.4mm, Perforated: 36% )

               2. M-E3632WT04D (Thickness:3.2mm, Perforated: 36% )

               3. M-E2224WT04D (Thickness:2.4mm, Perforated: 22% )

               4. M-E4224WT04D (Thickness:2.4mm, Perforated: 42% )
