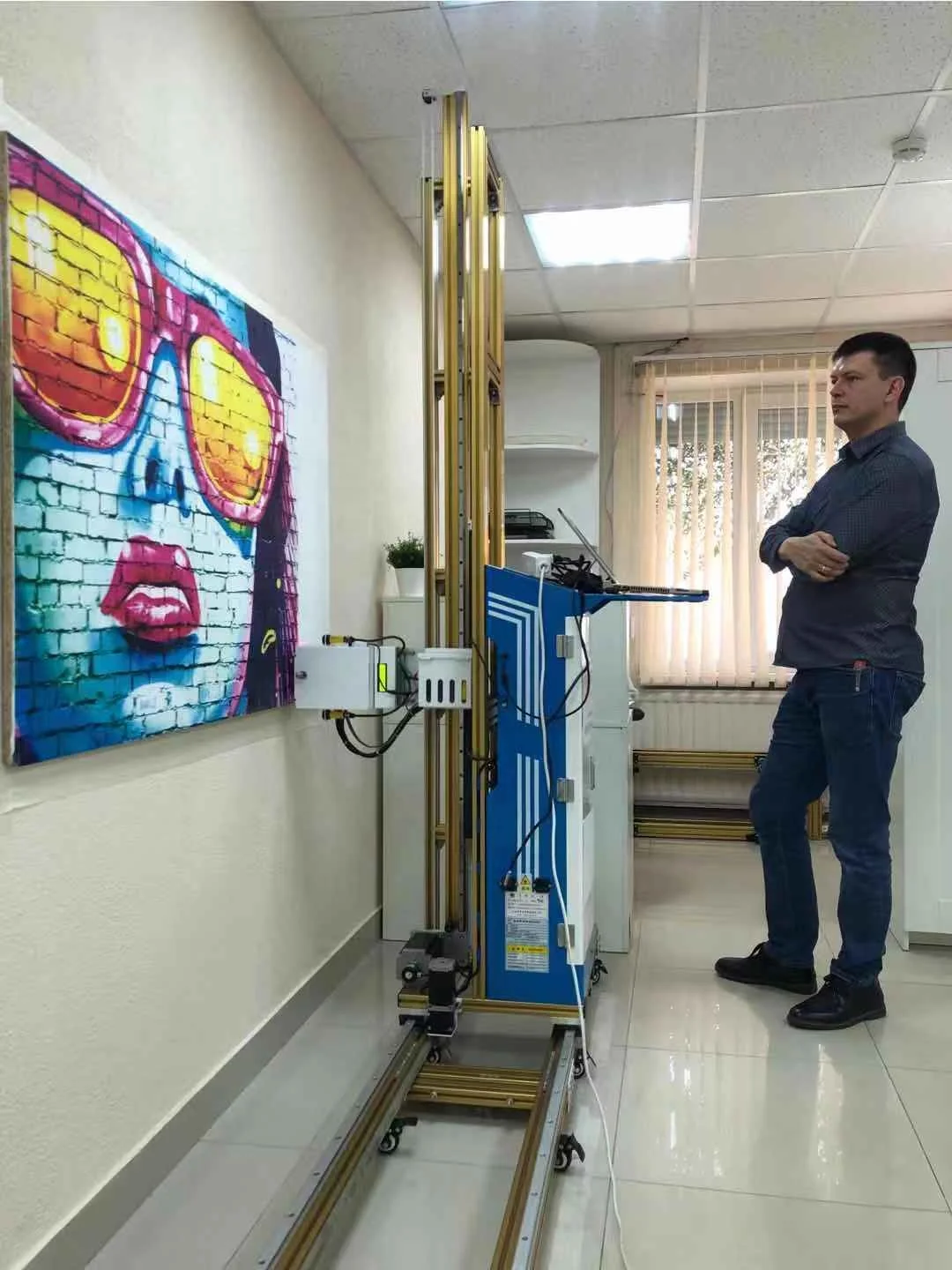

TV Background Decoration 5m Rails Mural Printing Wall Digital Printer Wallpen
- Category: >>>
- Supplier: Beijing Zhongkemeichuang Science And Technology Ltd.
Share on (60733226752):
Product Overview
Description
Specification
| Basic parameters | |
| Data transmission mode | USB |
| L*M*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI... upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-10m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Operation/Storage | -10℃-35℃(59°F-95°F)/10%-70% relative humidity, in non-condensation state |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rail |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 7’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pcs |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Auto blank skip | Y |
| Ink supply mode | Negative pressure auto ink supply |
| Color matching treatment | Auto |
| Ink use | Special water based ink |
| Surface treatment after printing | Water based varnish |
| Integrated voltage stabilizer | Y |
| Ink Heating | Y |
| Software | Professional Printer Maintop Software, ZKMC output software |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
Why us
1. ZKMC products are not only successful in China, but also exported to all over the world, including: Canada, Israel, Switzerland, Sweden, Romania, South Korea, Egypt, South Africa, and so on.
2. We have the best supply chain and component manufacturers in China, as well as a solid record of quality and innovation.
3. Our goal is simple: to sell the best machines at the best price and provide industry-leading customer service. We effectively help our customers solve problems and help them achieve their goals.
Company Information
Zhongkemeichuang (ZKMC) Wall Printer, participated in IFA 2018, Berlin & Moscow Expo in Apr, 2019. We won so much attentions for total revolution on pictures printing on various wall directly.
ZKMC Science and Technology Ltd. is the most famous and professional wall printing machine manufacturer located in Beijing. We have been devoted in R&D of the new technology of wall printer since 2013. As a leading manufacturer in the wall printer field, our company was invited to participate in the CCTV 55 minutes' show "I Love Inventions" of Channel 10.
ZKMC Direct To Wall Printer related patents and patent inquiry code
1. Design patent certificate drawing machine (multifunctional track type) ZL201530156369.7
2. Utility model patent certificate a multifunctional rail type wall painting machine with infinite picture length ZL201520297228.1
3. A constant temperature heating device for ink cartridge ZL201820579183.0
4. An automatic nozzle tracking device for wall painting machine ZL201820597118.0
5. Nozzle vertical movement device ZL201820578600. X
6. A detachable base of wall painting machine ZL201820578621.1
7. A control cabinet for wall painting machine ZL201820579129.6
Packaging & Shipping
FAQ
1. What type of files can I print with?
Support JPG, TIFF.
2. What is the print height?
The picture print height is 180-270cm based on our machine sizes you ordered, no width limit.
3. Durability of the ink – is it for interior or exterior applications?
It’s indoor can be kept for ~10 years without fading, and the outdoor can be kept for ~5 years without fading.
4. What materials can I print on?
Putty wall, latex paint wall, brick wall, diatom mud wall, shell powder wall, paper, etc.
ZKMC UV-wall printer can also print on non-absorbent surfaces such as: glass, ceramic tiles, metal.
