4 inch 320*240 resolution LCD monitor
- Category: >>>
- Supplier: Shenzhen Danuowei Electronic Co. Ltd.
Share on (60733242113):
Product Overview
Description
Product Description
4 inch 320*240 resolution LCD monitor

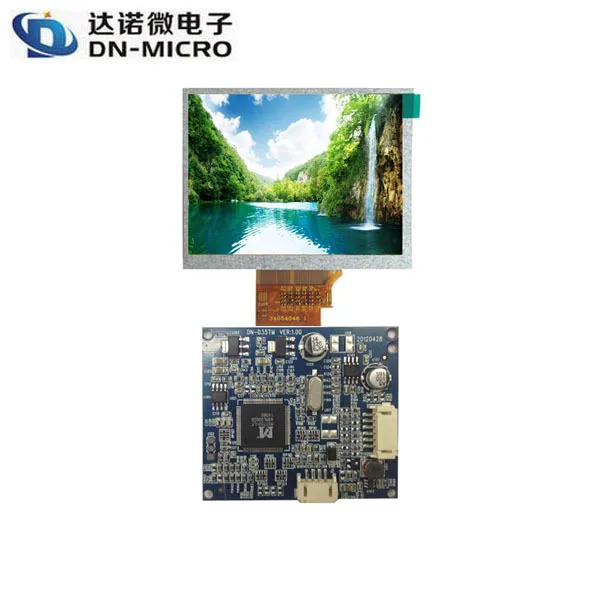

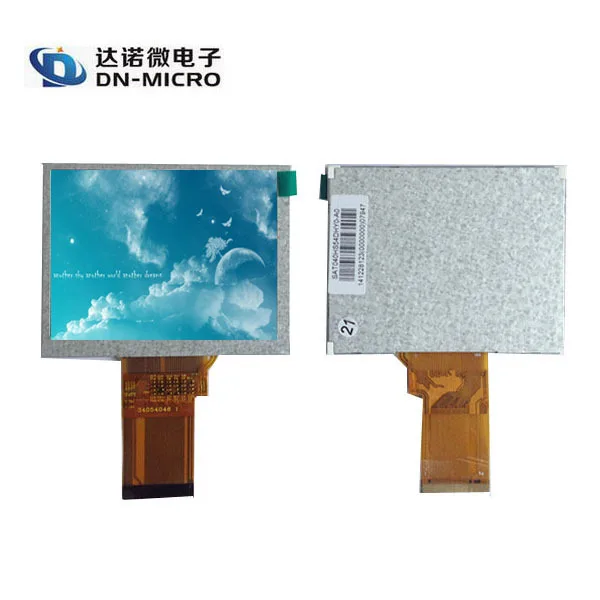

DN-D35TM VER: 1.00 MEX040HS-54D color digital display module is made up of the driver board DN-D35TM VER:1.00 and LCD screen MEX040HS-54D. It supports CVBS signal input.Button or potentiometer to adjust OSD menu display. It is mainly used for video telephony, instrumentation, medical equipment, security monitoring, car, POS machines, etc., it can also be used in other electronic devices display.
Specification
| 4.0 inchLCD display module | ||
| No. | Item | Specification |
| 1 | Sreen size | 4.0 inch |
| 2 | LCD display scale | 4:3 |
| 3 | Backlight | LED |
| 4 | Brightness | 220cd/m2±40cd/m2 |
| 5 | Resolution | 320×(RGB)×240 |
| 6 | Angle range | (60/70/75/75) |
| 7 | LCD screen size | 96.0(W)×76.0(H)×3.2(D)mm |
| 8 | Active Area | 82.08(W)×61.56(H)mm |
| 9 | Driver board size | 62.0 (W)×55.2(H) ×9.2(D)mm |
| 10 | Operating Voltage | Min:DC9V; S:DC12V; Max:DC15V; |
| 11 | Working current | DC90mA±10mA |
| 12 | Power consumption | 1.08W(TYP) |
| 13 | Start Time | 1.5 seconds |
| 14 | Operating temperature | 0℃~60℃ |
| 15 | Storage temperature | -20℃~70℃ |
| 16 | Humidity | 5~95%RH |

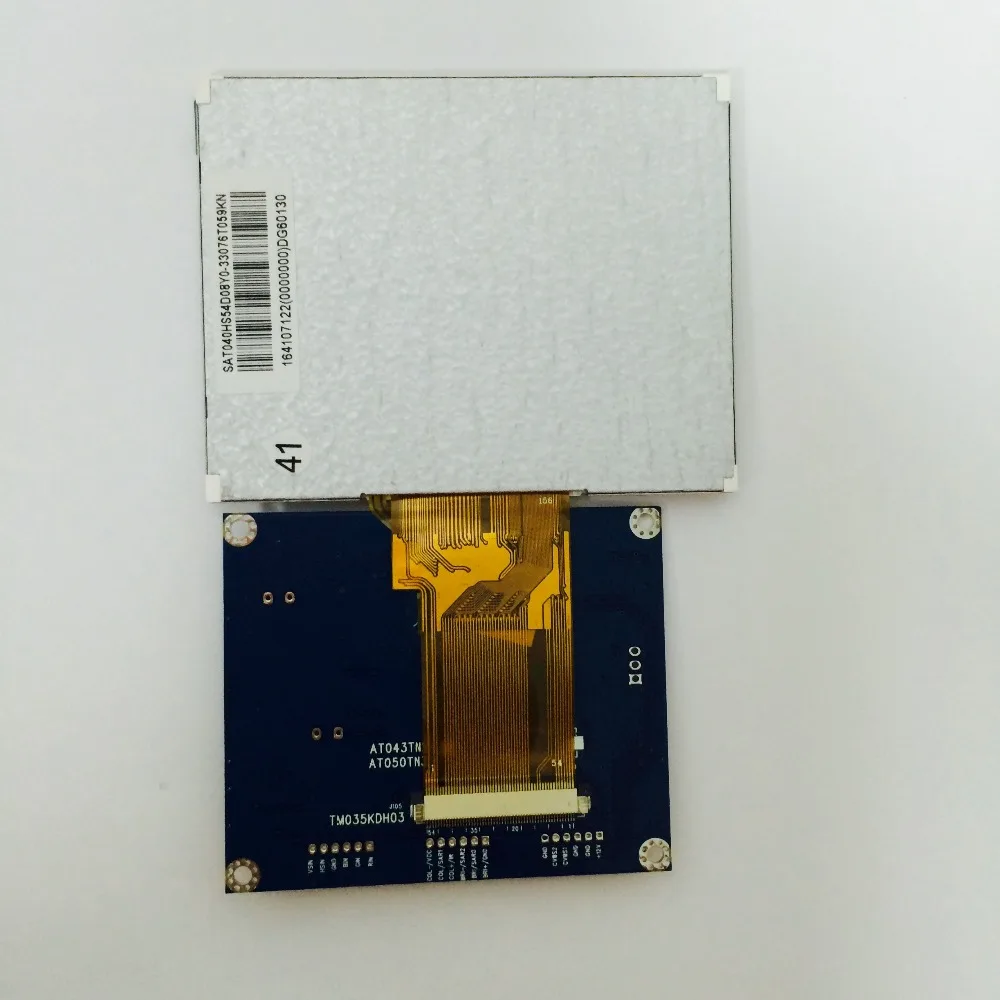

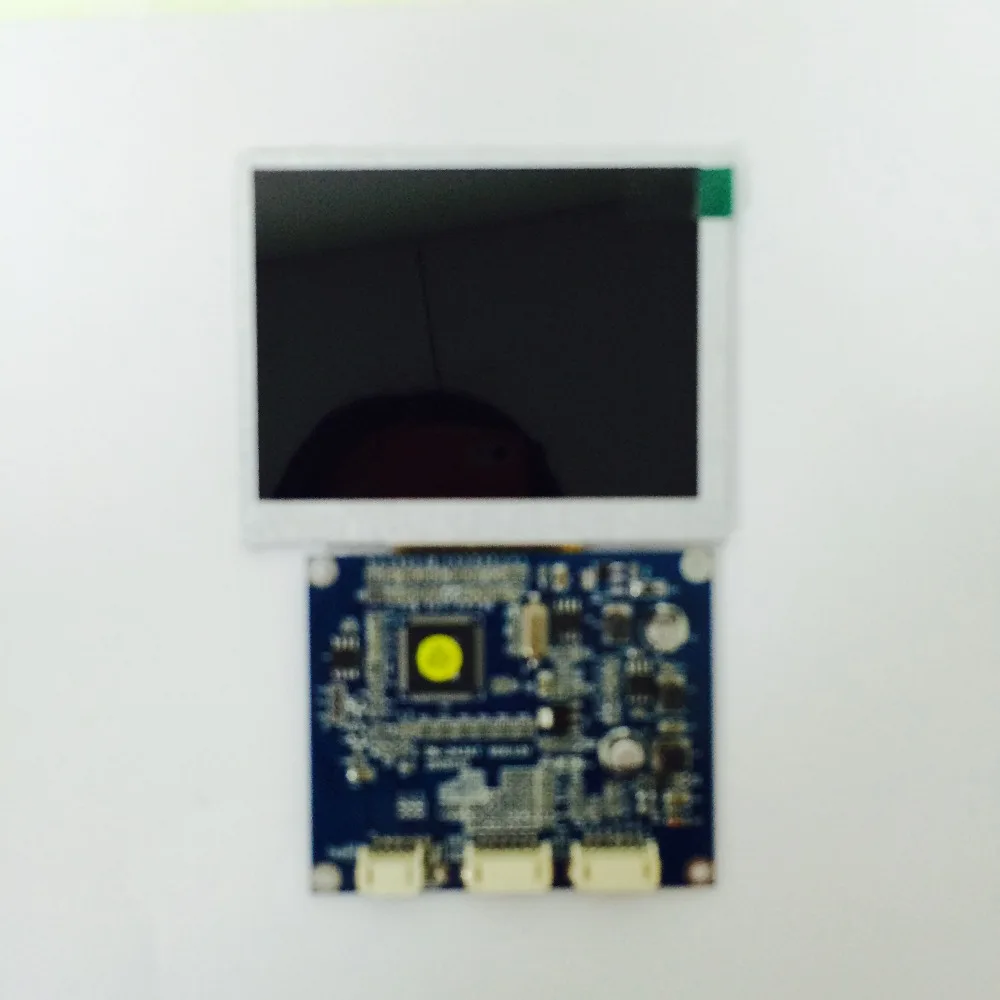

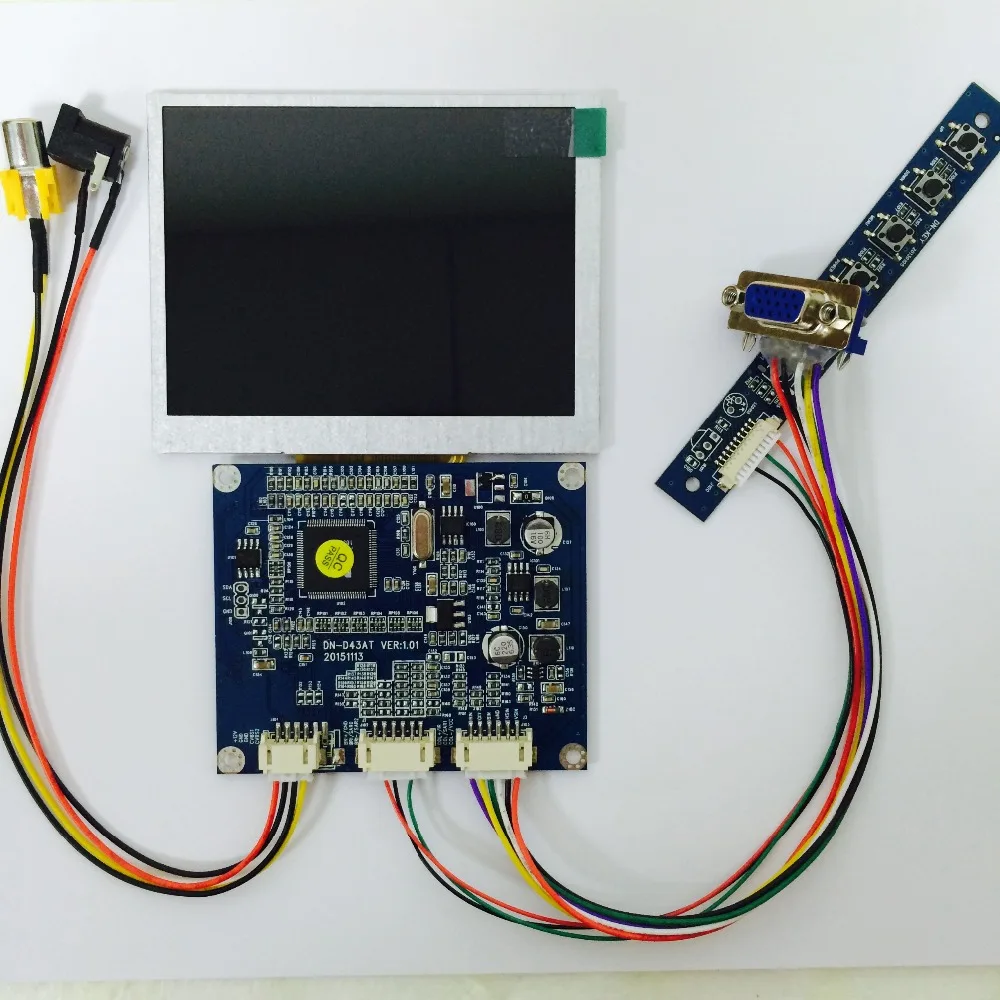

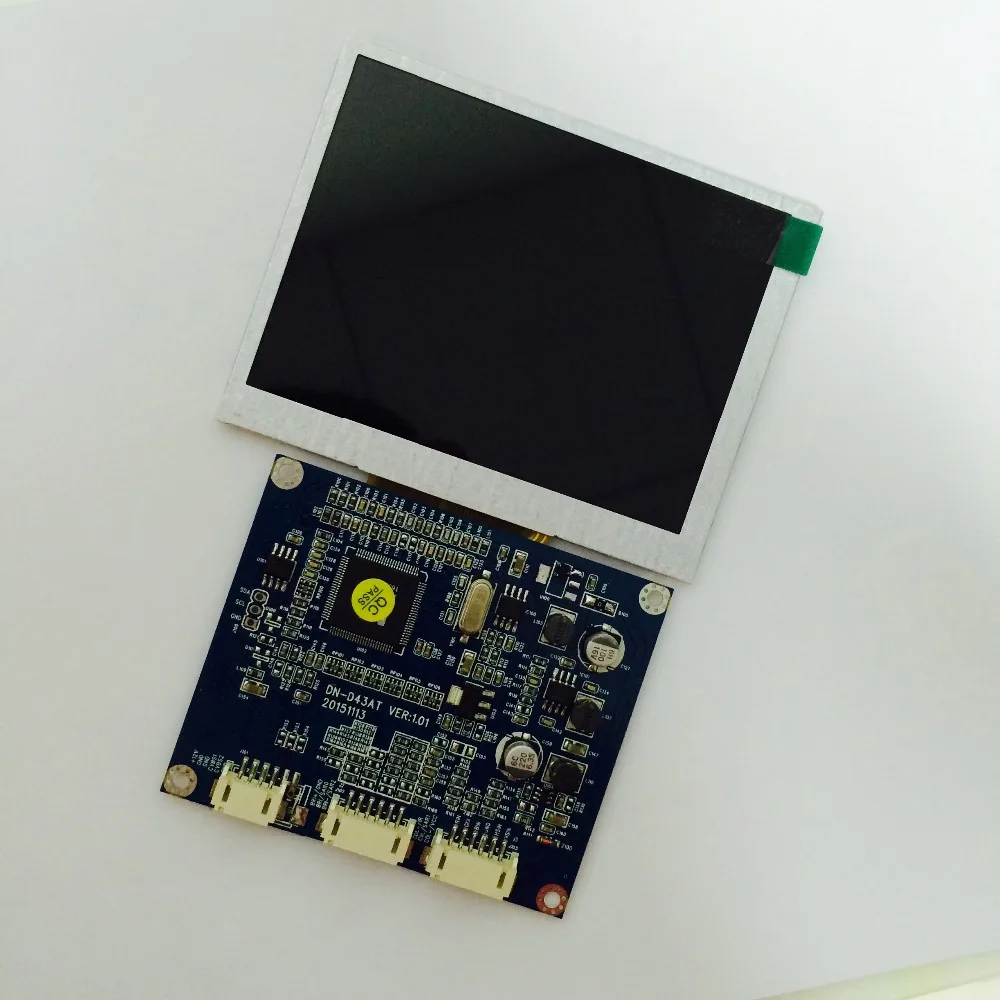

product picture
Packaging & Shipping
Packaging
4 inch lcd display module with VGA/CVBS input control board
Shipping
4 inch lcd display module with VGA/CVBS input control board
Company Information
4 inch lcd display module with VGA/CVBS input control board
Shenzhen DN-Micro Electronics Co., Ltd.
Shenzhen DN-Micro Electronics Co., Ltd. is a high-tech enterprise specialized in the R&D, production,
sales and services of TFT LCD displays and modules. We always believe that technology and talents
are the most power of the enterprise, with its advanced technology, strong R&D(more than 10-years
experience engineers), production capacity, excellent team and comprehensive sevices, our products
have been sold well to many countries and regions all over the world, such as America, Singapore,
South Korea, UK, Italy, Middle East, Hong Kong and Taiwan etc.
FAQ
4 inch lcd display module with VGA/CVBS input control board
Q1:Where to get the datasheet before orafter purchase?
please send amail to"dn-micro@Hotmail",we will reply you in 24hours
Q2:How do you add the extra function,does it need for charge?
just confirm the funsion with seller before your place an order,simple function is free
just confirm the funsion with seller before your place an order,simple function is free
Q3:Payment terms of customized service and mass order?
Customized Service:
According tp product requirement of charge,100% T/T in advance,we will provide 2~3pcs free sample.
Mass Order:
30% T/T as deposit in advance,the balance will be paid before shipping,we can't accept paypal.
30% T/T as deposit in advance,the balance will be paid before shipping,we can't accept paypal.
