Rotary Evaporators

Product Overview

Description

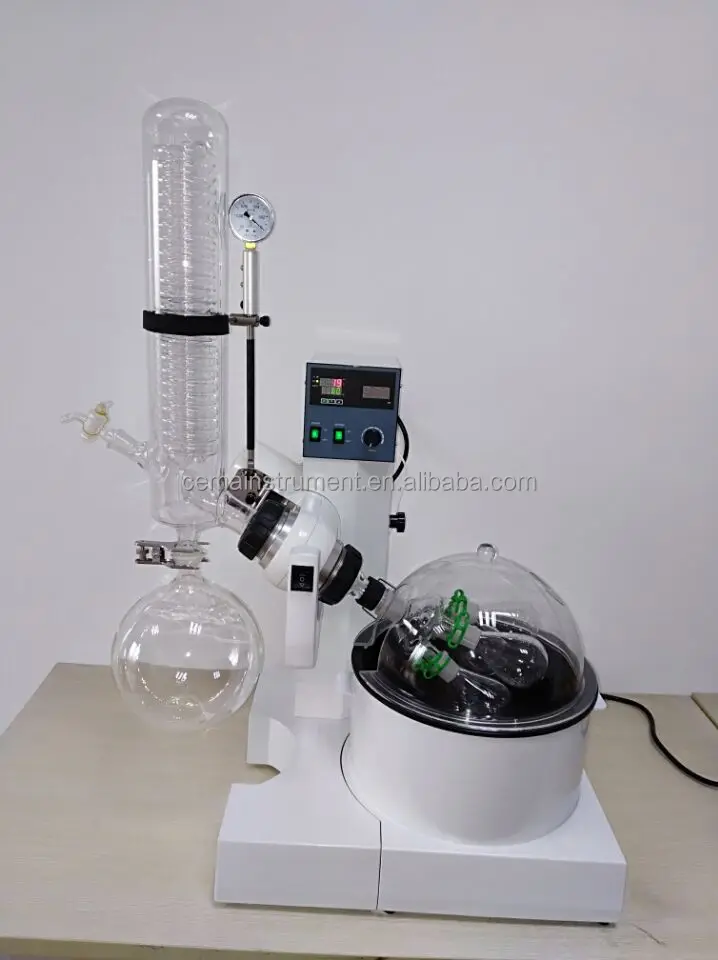

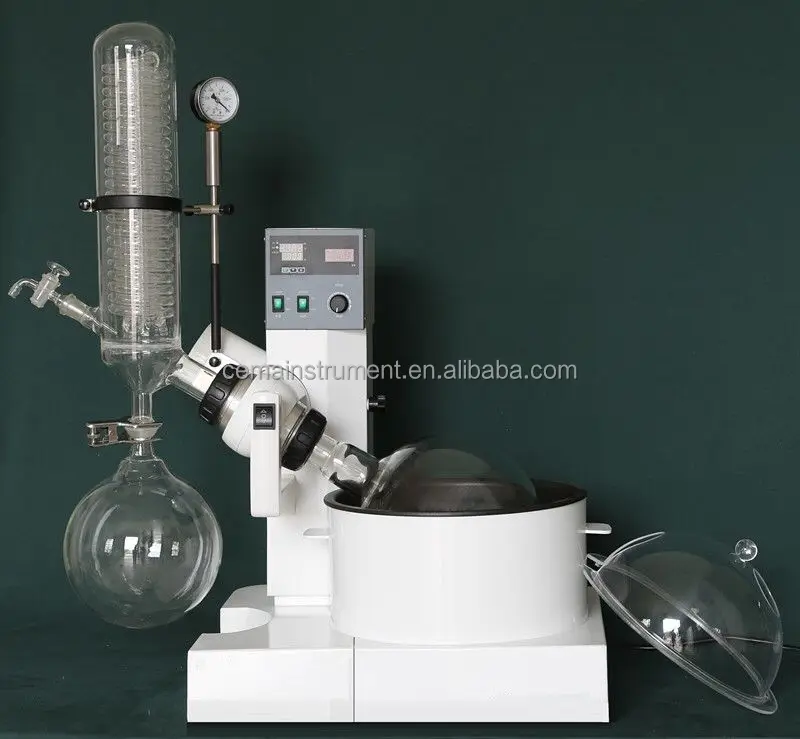

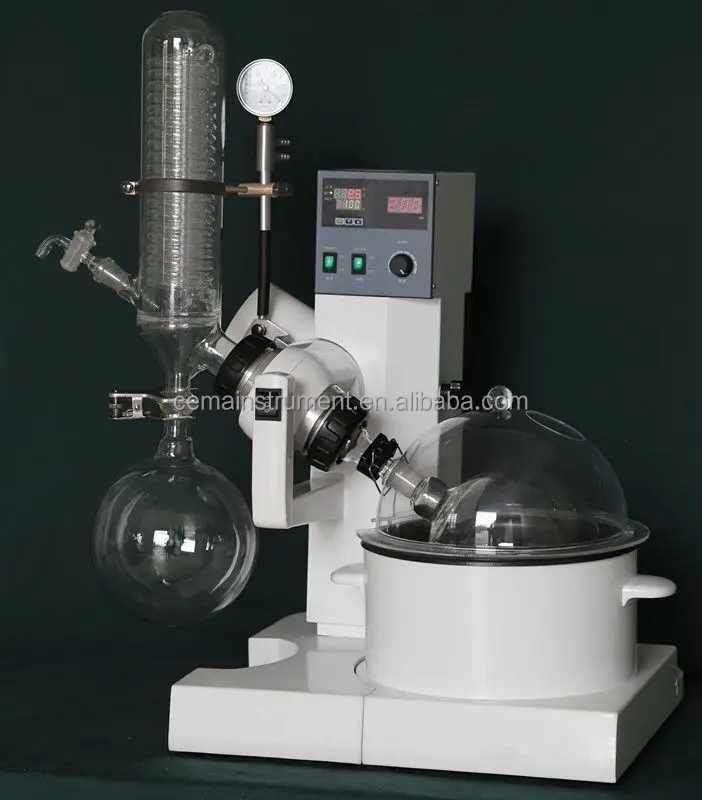

5L Rotary Evaporator

Application:Distillation

Power Source:Electric

Process:Vacuum Distillation

Model Number: RE-5205

Voltage:220V/50HZ

Power(W):60W

Weight:55kg

Dimension(L*W*H): 82.5*74.5*92.5CM

After-sales Service Provided:

Engineers available to service machinery overseas

Rotary flask: 5L rotary evaporator

Collection flask:3L

Rotating speed (rpm): 0~199

Water bath power: 2 KW

Warranty: One Year

Sealing: Main PTFE Seal, Oil ring and O ring

Bath Temp control range: Room Temp. ~ 100°C

Vacuum degree: <133Pa

Display: LCD display

Main uses: concentration, refining, separation, crystallization

Application industry: bio-chemical, pharmaceutical, fine-chemical

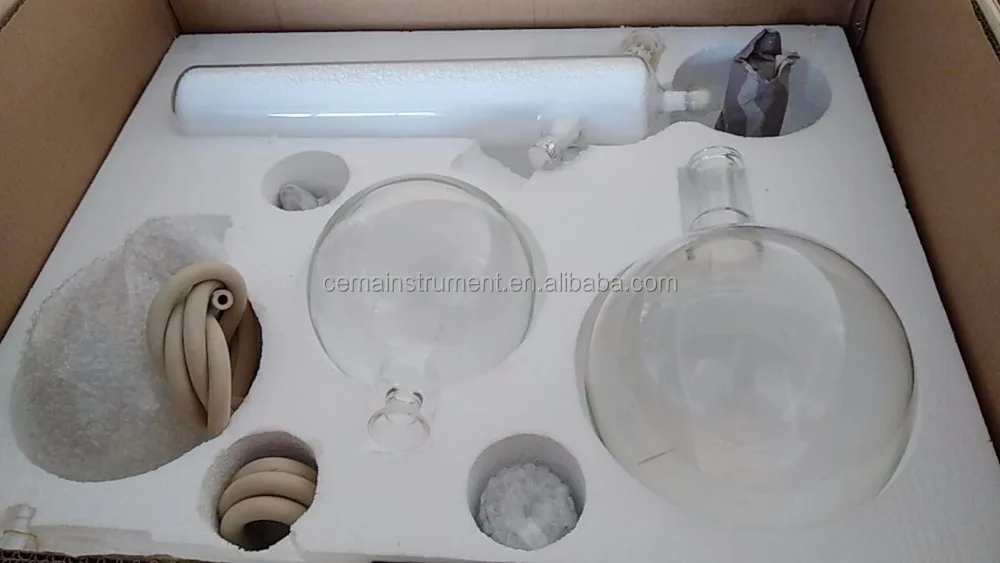

Packaging Details

Qualified wooden case and sufficient inner package for export for rotary evaporator

Delivery Time

Shipped in 7 days after payment.





































10L Rotary Evaporator

Application:Distillation

Power Source:Electric

Process:Vacuum Distillation

Model Number: RE-5210

Voltage:220V/50HZ

Power(W):4500W

Weight:110kg

Dimension for glass(L*W*H): 70*67*78CM

Dimension for machine(L*W*H): 90*55*110CM

After-sales Service Provided:

Engineers available to service machinery overseas

Rotary flask:10L rotary evaporator

Collection flask:5L    Rotating speed (rpm): 0~120

Water bath power: 4kW

Warranty: One Year

Sealing: PTFE

Bath Temp control range: Room Temp. ~ 100°C

Vacuum degree: <133Pa   Display: LCD

Glass material: High Borosilicate Glass 3.3

Evaporating Speed: >4L/h

Application industry: bio-chemical, pharmaceutical, fine-chemical

Packaging Details

Qualified wooden case and sufficient inner package for export for rotary evaporator





















20L Rotary Evaporator

Application: Distillation

Power Source: Electric

Process: Vacuum Distillation

Model Number: RE-5220

Voltage:220V/50HZ

Power(W):4500W

Weight:150kg

Dimension for glass(L*W*H): 140*130*150CM

Dimension for machine(L*W*H): 180*110*220CM

After-sales Service Provided:

Engineers available to service machinery overseas

Rotary flask:20L rotary evaporator

Collection flask:10L

Rotating speed (rpm): 0~120

Water bath power: 4KW

Warranty: One Year

Sealing: PTFE

Bath Temp control range: Room Temp. ~ 100°C

Vacuum degree: <133Pa   Display: LCD

Glass material: High Borosilicate Glass 3.3

Evaporating Speed: >6L/h

Application industry: bio-chemical, pharmaceutical, fine-chemical

Packaging Details: Qualified wooden case and sufficient inner package for export for rotary evaporator





















50L Rotary Evaporator

Application: Distillation

Power Source: Electric

Process: Vacuum Distillation

Model Number: RE-5250

Voltage:380V/50HZ

Power(W):6300W

Weight:215kg

Dimension for glass(L*W*H): 103*85.5*81.5CM

Dimension for machine(L*W*H): 71.5*116*148CM

After-sales Service Provided: Engineers available to service machinery overseas

Rotary flask:50L rotary evaporator

Collection flask:30L

Rotating speed (rpm): 0~110

Water bath power: 7kW

Warranty: One Year

Sealing: PTFE

Bath Temp control range: Room Temp. ~ 199°C

Vacuum degree: <133Pa   Display: LCD

Glass material: High Borosilicate Glass 3.3

Evaporating Speed: >10L/h

Application industry: bio-chemical, pharmaceutical, fine-chemical

Packaging Details: Qualified wooden case and sufficient inner package for export for rotary evaporator
