Product Overview

Description

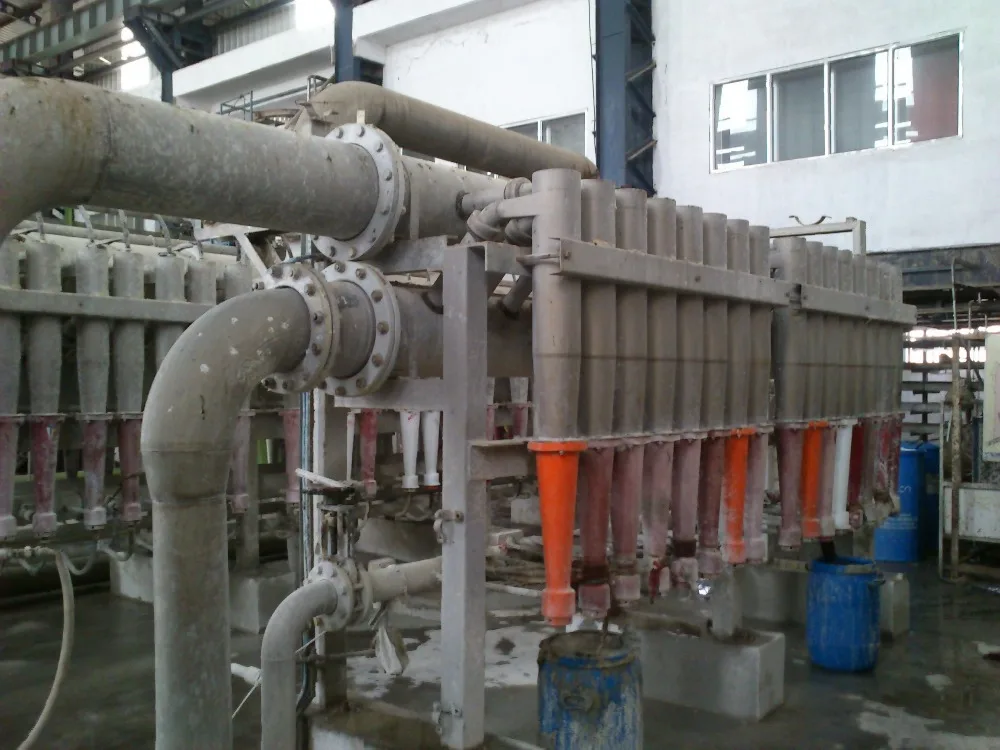

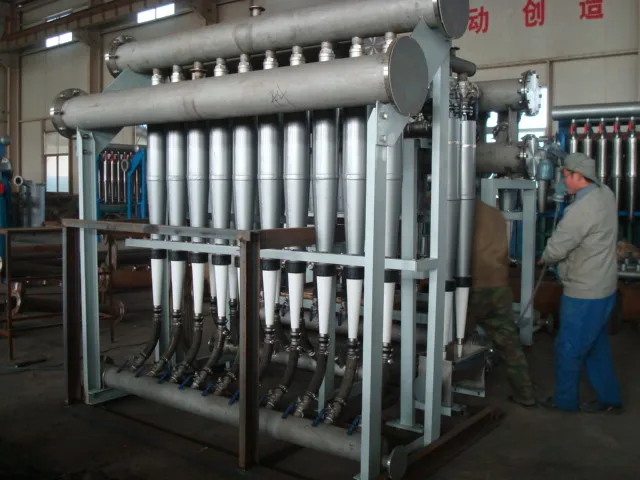

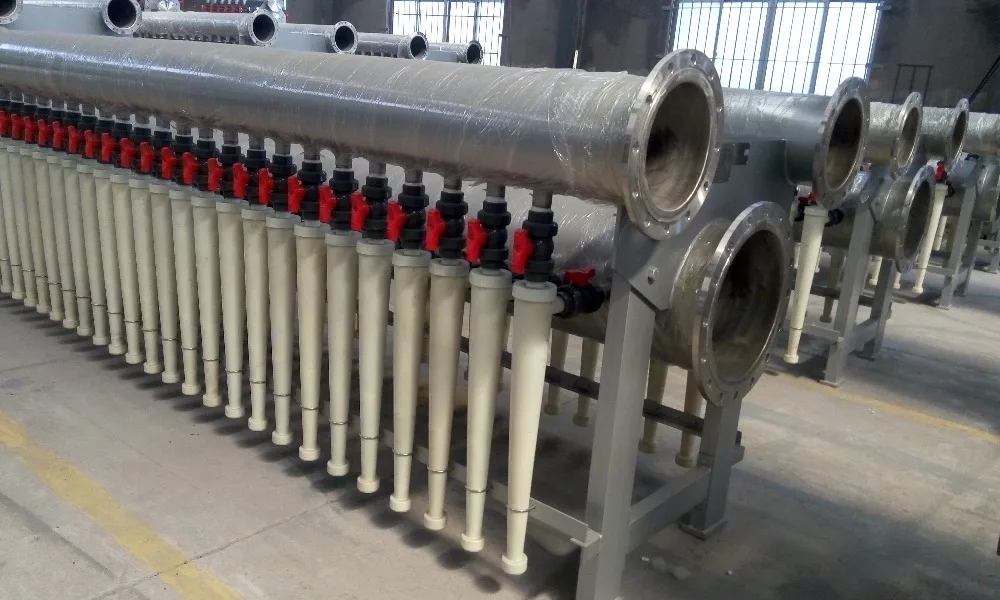

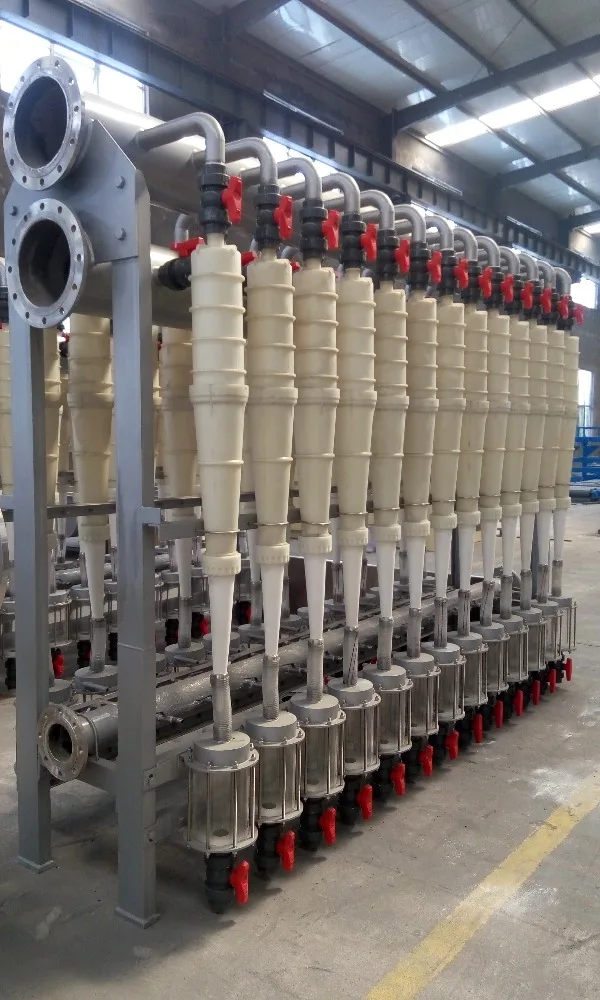

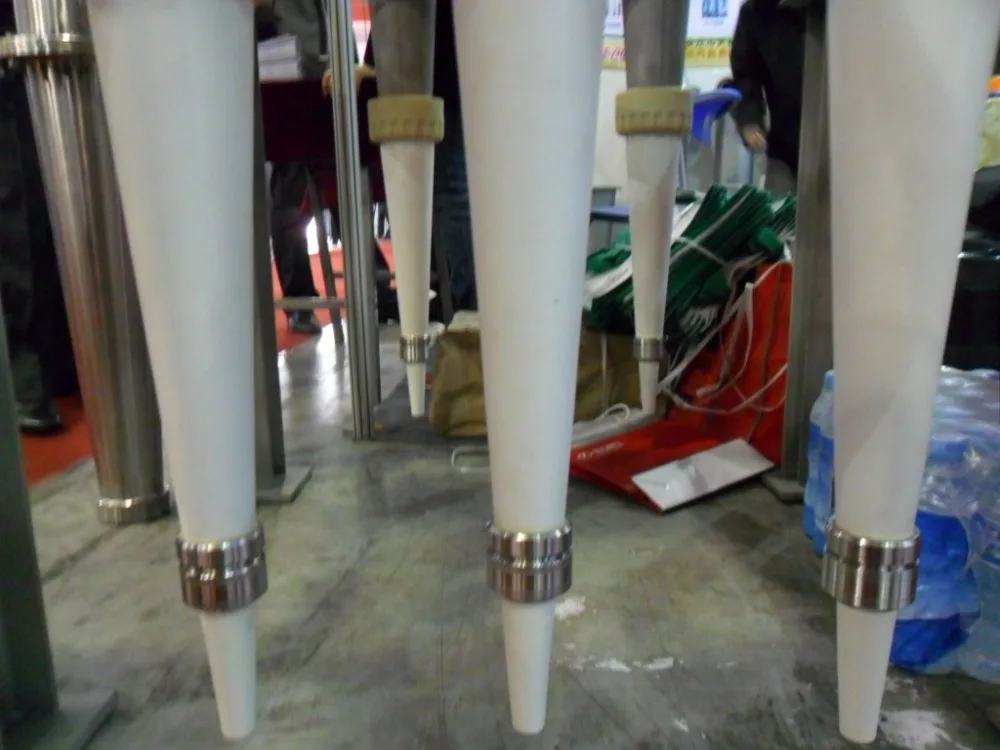

Paper pulp making Low consistency cleaner / Centrifuge separator





Function & application

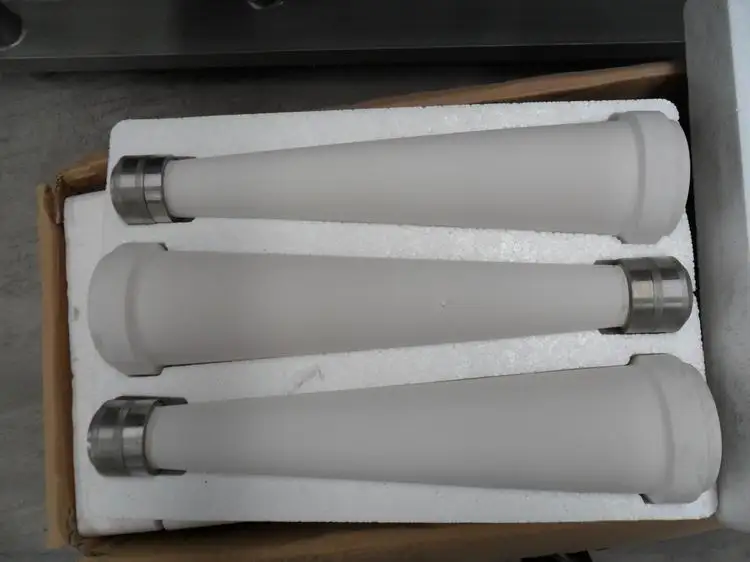

 The cleaner is used to remove the heavy reject from the paper pulp, and it consisted of cylinder body, top cone, bottom cone and mouth of rejecting with top cone made of stainless steel and bottom cone and mouth made of ceramic or PU.

Application

1. Cleaning of chemical pulp mechanical pulp and mechanical pulp.
2. Deinking line for CONP, AONP AND EONP.
3. Recycled pulp line for COCC and AOCC.
4. Deinking line for ONP and OMG.
5. Recycled pulp line for MOW and SOP.
6. Purification system of stock before paper machine.





Feature & benefit



1. Excellent designing structure with higher cleaning efficiency;
2. Less fiber loss;
3. Low energy consumption;
4. Wearable and long use life;
5. Convenient installation, maintenance and operation;
6. Compact structure and saving area.

7. Capacity:600-800l/min.
8. Input pressure:0.20-0.35mpa.
9. Accepted pressure:0.05-0.15mpa.
10. Input consistency:0.5-1.0%.



Technical specification



Model	XSC-400	XSC-600	XSC-1000
Throughput(l/min)	400	600	1000
Inlet consistency(%)	0.4—1.2
Inlet pressure (mpa)	0.2—0.3
Outlet pressure (mpa)	0.06
Pressure drop(mpa)	0.16
Reject ratio (%)	10---20

























01. We are a manufacturer and we have import and export rights.

02. We produce wonderful environmental protection machines and solutions, pulp and paper making machines and solutions as well as tissue paper converting machinery and solutions,

03. Our main manufacturing facility which spans nearly 30,000m2.

04. We have achieved a total of 32 patents over the past few years.

05. Each year the output value of our products can reach up to 150 million RMB, to domestic and overseas.
06. We are in very close proximity to a very famous port city – Qingdao in northern China, and this location provides us with a plethora of logistics advantages, including: easy and cost effective transport by both air and sea, also.





 01. Detailed installation manual and maintenance guideline are provided with the equipment.

  02. Technical training and site-commissioning are available for you.

  03.Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.





 01. How to buy your idea products?

  A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

02. How to pay?

  A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

03. What is the delivery time?

  A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

04. How to pack the products?

  A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

05. How to keep your equipment from corrosion?

  A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard process.

06. How do you manufacture your equipment ?

  A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.

07. How to install after the equipment arriving destination?

  A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
