Second Hand Vibrating Feeder Machine Used in Stone crushing Line
Vibrating feeder can feed block or granular materials from the material storage to feeding device evenly and continuously. It can realize even feeding for crushers in sandstone production line and make rough screening for materials. It is widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine ion, building materials, chemicals, etc
Working principle
The vibrating feeder is consist of feeding trough,exciter ,spring bearing,transmission device,etc. The vibration source of feeding tank vibration is exciter .The exciter is made up of two eccentric shafts and gears .The motor drives the main shaft through the triangle belt ,then the top gear of the main shaft drive another shaft to rotate .The two shafts do reverse rotation at the same time and tank vibration to make the materials moving continuously .Thus they can achieve the goal of transporting materials .
Features
1,Table vibration, reliable operation.
2,Work for a long time
3,Mplitude stability, suitable for all kinds of materials.
4,Low noise, low consumption.
5,Easy to repair, simple appearance, light weight

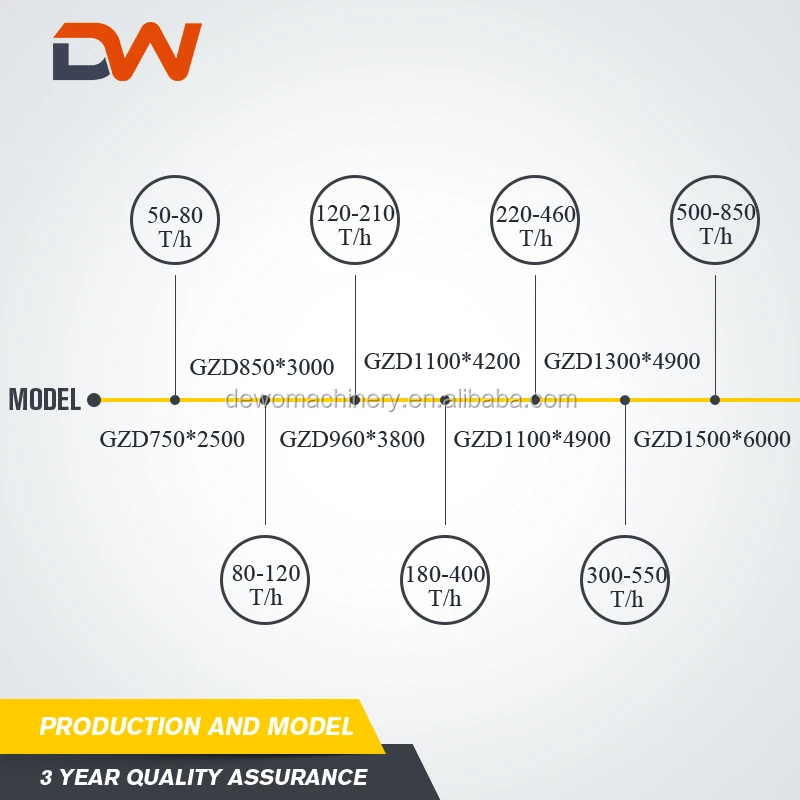

Parameters
Model
Feeding Chute Size (mm)
Max. Feeding Size (mm)
Capacity (t/h)
Motor Power (kw)
Weight (kg)
Overall Dimension (mm)
GZD750×2500
750×2500
300
50-80
3
1590
2580×1100×1400
GZD850×3000
850×3000
400
80-120
7.5
3895
3110×1800×1600
GZD960×3800
960×3800
500
120-210
11
4210
3850×1950×1630
GZD1100×4200
1100×4200
650
180-400
15
4850
4400×2050×1660
GZD1100×4900
1100×4900
650
220-460
15
5500
5200×2050×1700
GZD1300×4900
1300×4900
800
300-550
22
6680
5200×2350×1750
GZD1500×6000
1500×6000
950
500-850
30
9970
6160×2918×2292
Any change of technical data will not inform additionally.

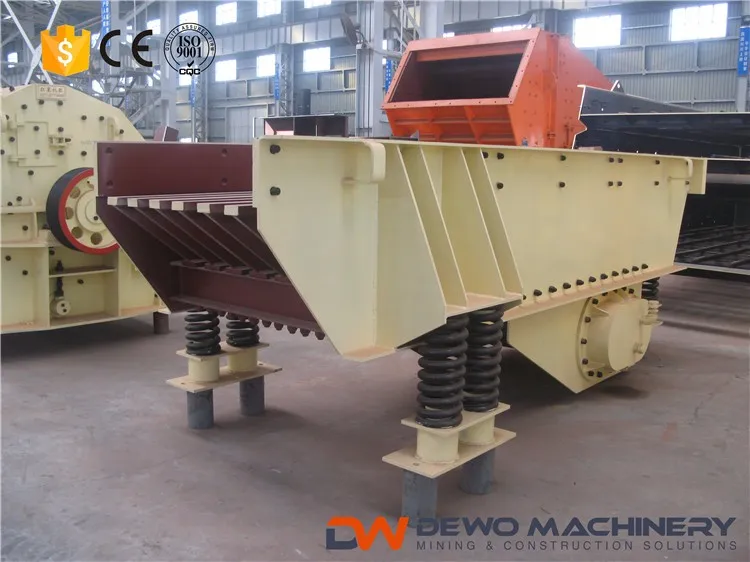

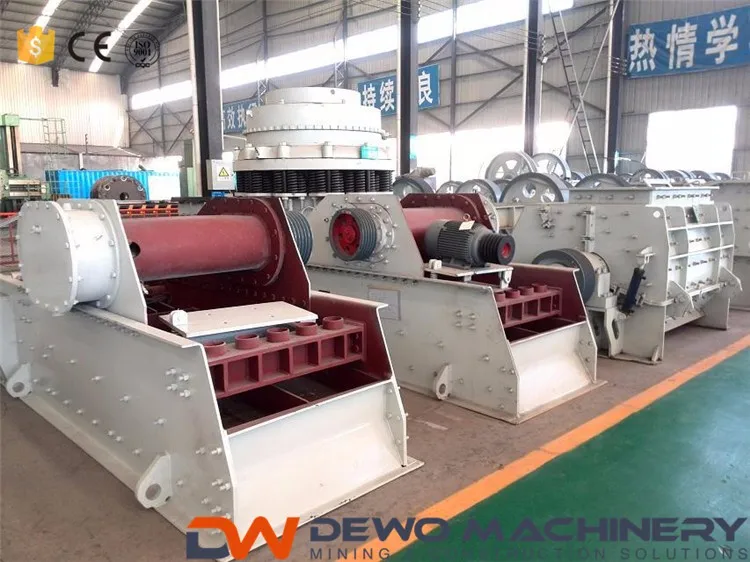

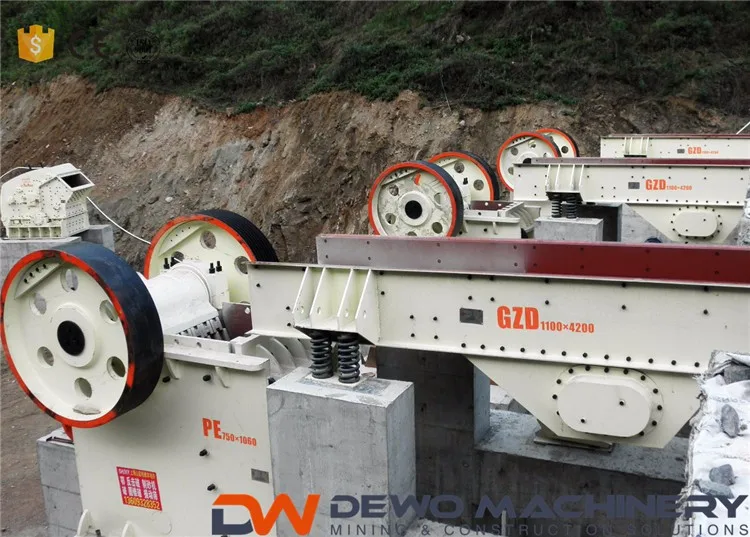

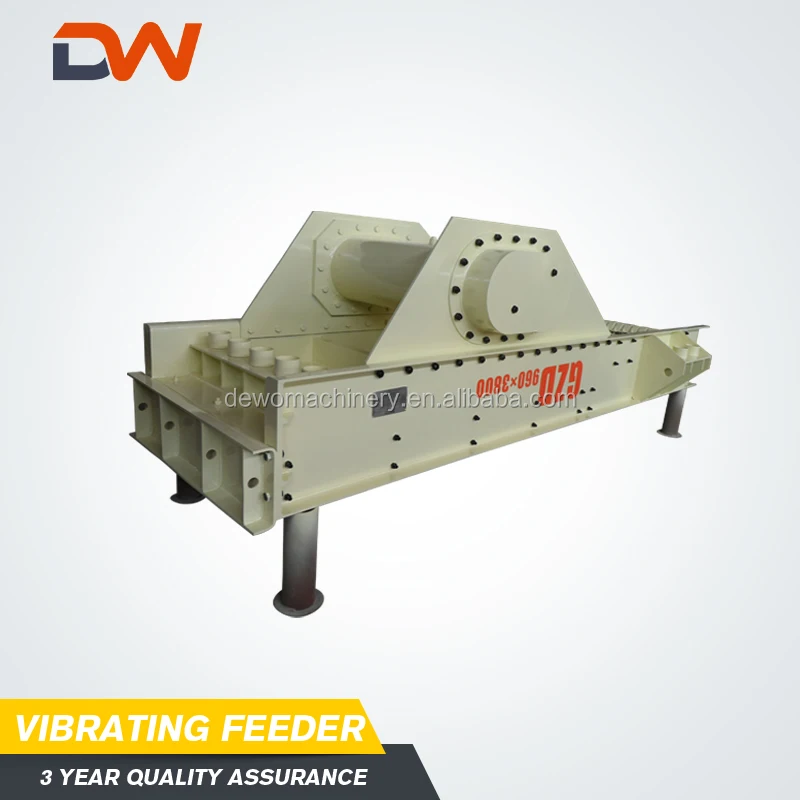

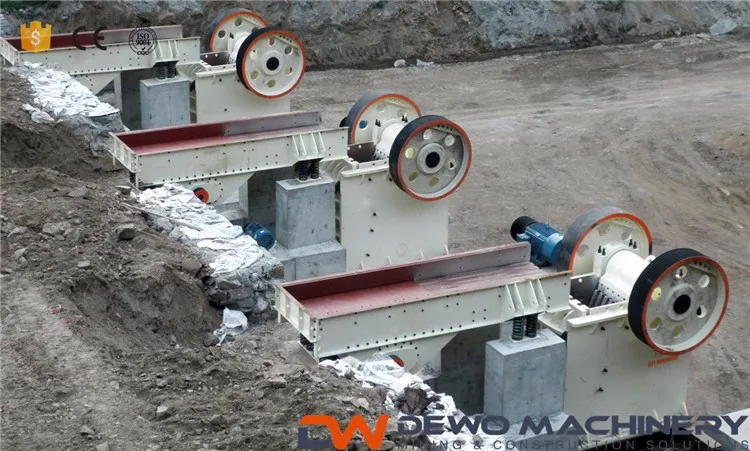

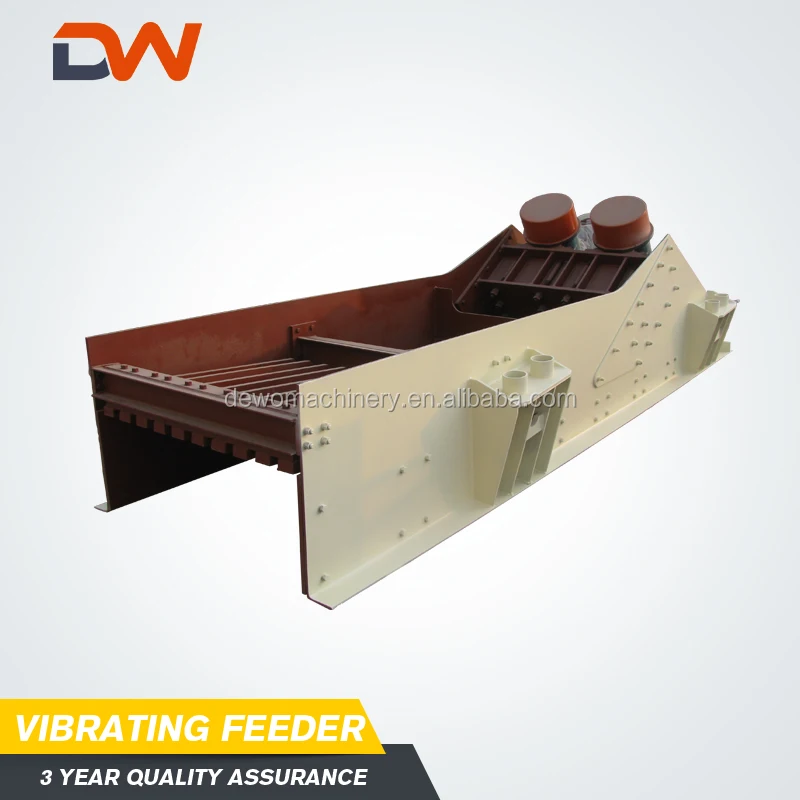

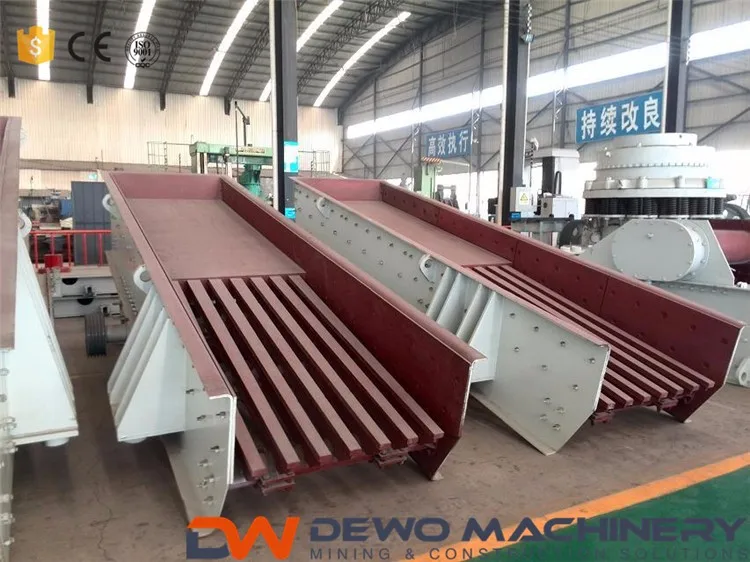

Detailed Images
