High quality 65 seats two story double decker bus with good price
- Category: >>>
- Supplier: JC Automobile Co. Limited (Shanghai) [Shanghai China]JC
Share on (60733338790):
Product Overview
Description
High quality 65 seats two-story double decker bus with good price
Product Description
| Double Decker City Bus | ||
| General Specification | ||
| Seat Capactiy | 83/30-77 | |
| Standard Seat Quantity | 44(second floor)+18(fiirst floor)+1 | |
| Overall Dimention (mm) | 11320x2550x4200 | |
| Approach /Departure Angel | 8°/8° | |
| Wheelbase (mm) | 5600 | |
| Front/Rear Overhang(mm) | 2480/3240 | |
| Kerb Weight | 12600 Kg | |
| G.V.W (kg) | 18000 Kg | |
| Max Speed | 69 km/h | |
| Fuel Tank | 250 L | |
| Chassis | ||
Engine | Model | YC6L310-30 |
| Type | Rear Mounted Diesel Engine ,In- line,6 Cylinders, 4 Stroke ,Water-Cooled, Turbo-charger ,Intercooler | |
| Emission | EuroⅢ | |
| Displacement(L) | 8.424 | |
| Rated Power(kw/rpm) | 228/2200 | |
| Max Torque(N.m/rpm) | 1150/1200-1400 | |
| Gearbox | Manufacturer | VOITH (Automatic gearbox) |
| Model | D854.5 | |
| Retarder | Hydraulic Retarder Intergrated with the gearbox | |
| Clutch | - | |
| Suspension | Chinese Air Suspension with 6 Air Springs | |
| ECAS | No. | |
| Front Axle | AK Lowered Center Front Axle,Disc Brake,7.5 T | |
| Rear Axle | AK Rear Axle , Drum Brake, 13T | |
| Service Brake | Dual-circuit ,Air Brake, Automatic Clearance Adjusting Arm | |
| Parking Brake | Spring Energy Storage Brake | |
| Auxilliary Brake | Hydraulic Retarder | |
| ABS/ASR | WABCO ABS | |
| Steering System | ZF8098 | |
| Tire | 275/70R22.5/6 Pcs ,Stainless Steel Wheel Cover | |
| Wheel Rim | Standard Chinese Wheel Rim | |
| Electric Equipment | 195A.hX2 /110A , 24V , Minus Earth | |
| Body | ||
| Body Frame | Monocoque | |
| Air Conditioner | Optional | |
| Heater | Optional | |
| Radiators | Optional | |
| Defroster | Yes | |
| Interior Tirm | Interior Trim for Non-air-conditioned | |
| Handrail | Plastic covered Combined Pipe ,with Flying Rings | |
| Floor | 15mm Bamboo | |
| Floor Cover | Quartz Sand | |
| Interior Lights | Double Line Fluorescent Lights | |
| Driver Fence | Standard | |
| Driver Seat | Chinese | |

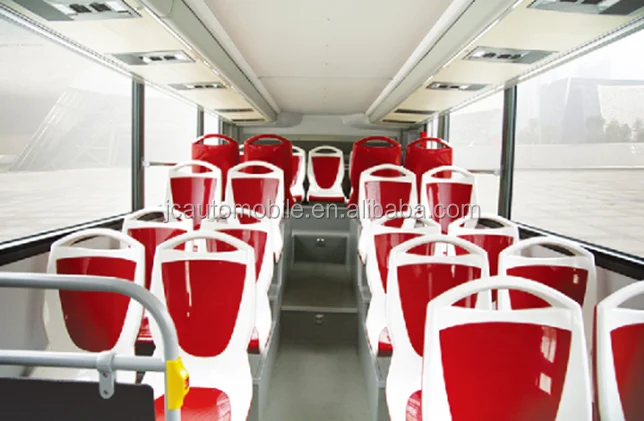

| Passenger Seat | 62 Pcs of Injection Molded Plastic Seat | |
| Rear View Mirror | Rod type | |
| Paint | Chinese Pure Lacquer | |
| Safety Hatch | No | |
| Passenger door | Front and Middle Pneumatic Inwards-swung Passenger Doors | |
| Driver Door/Safety Door | No | |
| Front Windsheild | Laminated Glass with Sunvisor | |
| Rear Windsheild | Tempered Glass | |
| Side Window | Tempered Built-in Sliding Side Windows with Folding Curtain | |
| Others | 2 Fire Extinguishers(4 KG) ,Digital Clock, Colorful Reverse Monitor ,Front and Rear Tube -Type Route Indicators | |

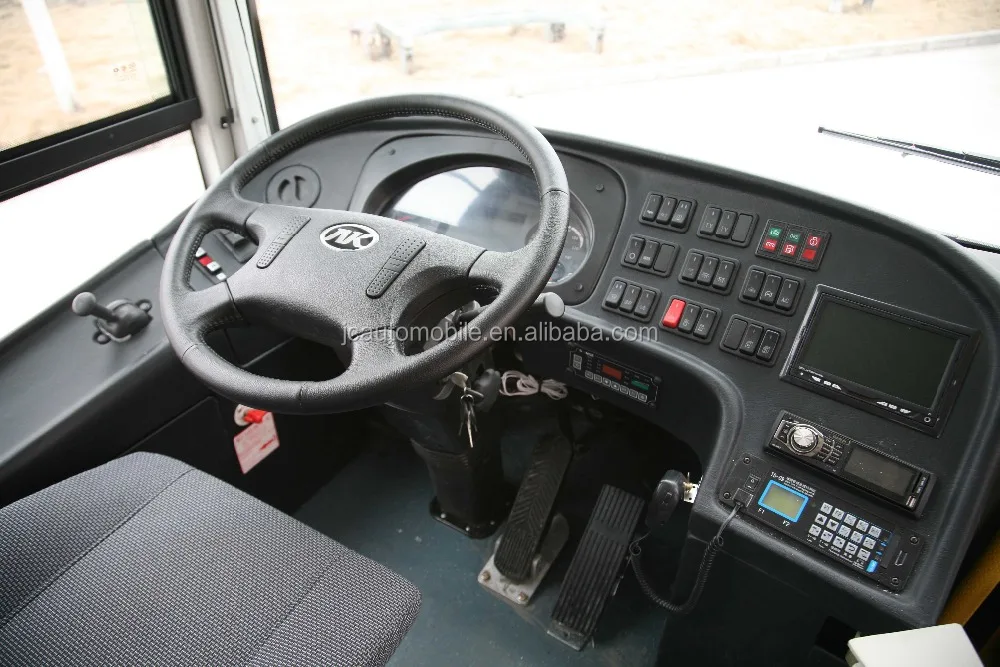

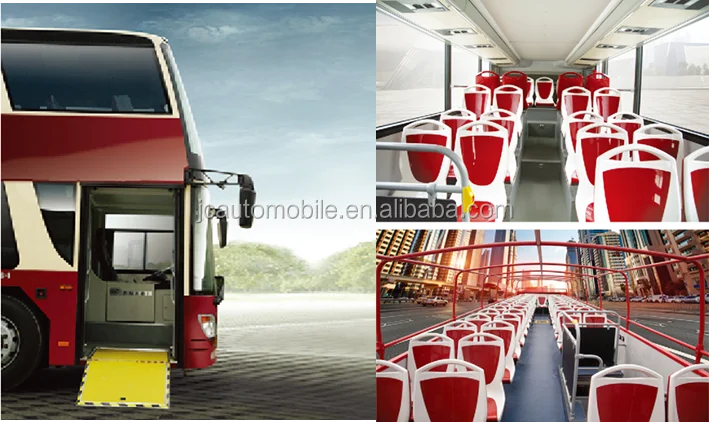

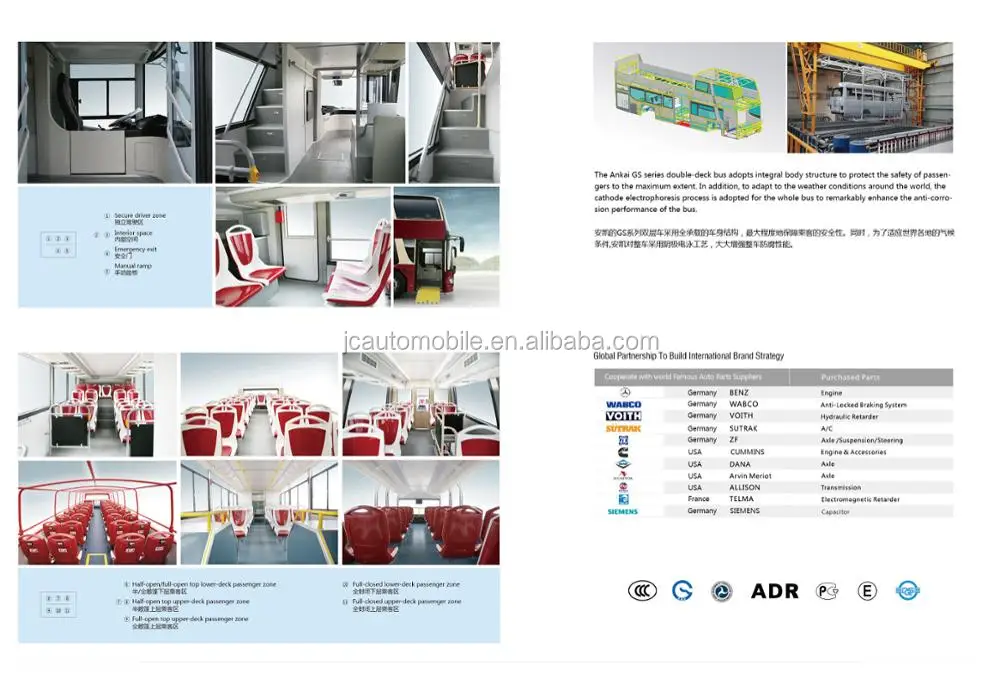

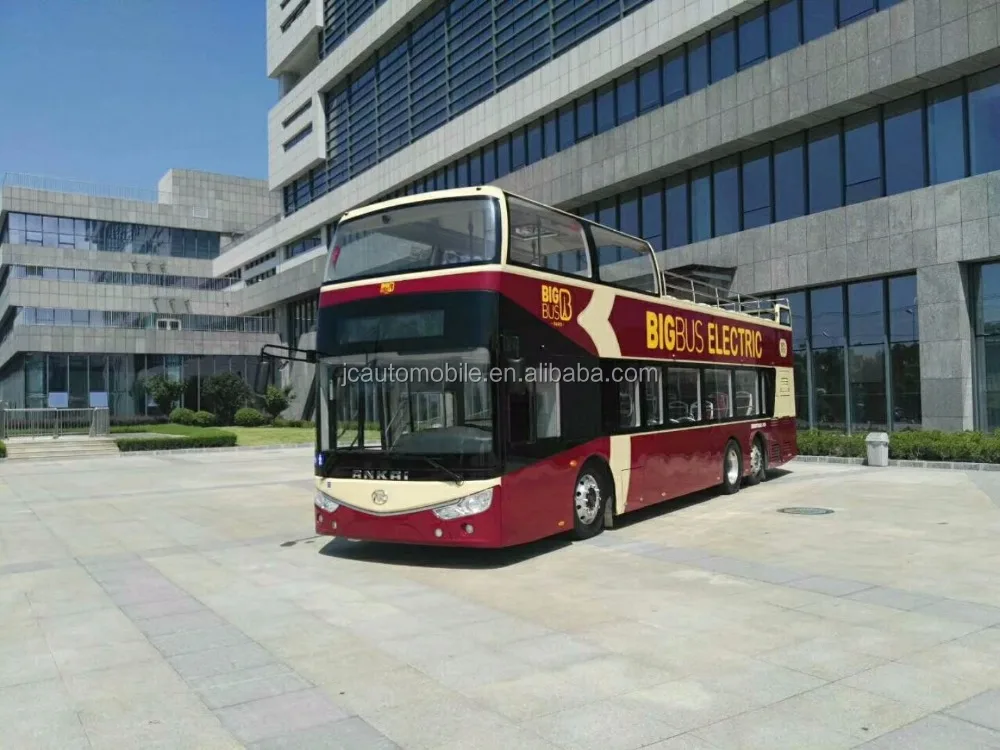

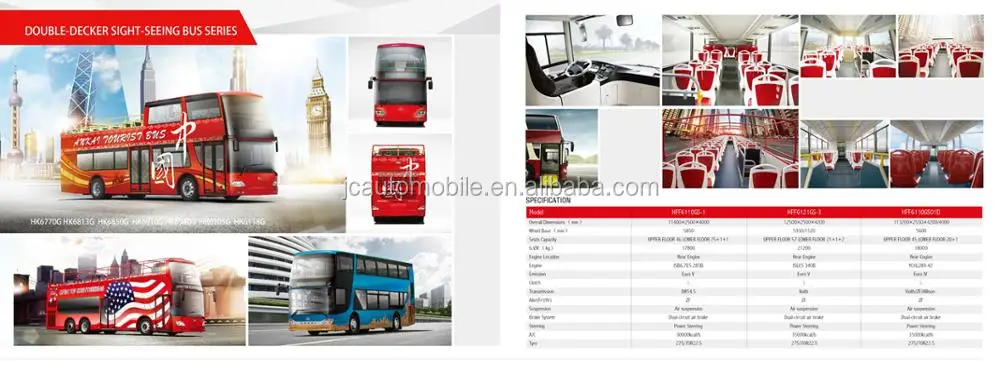

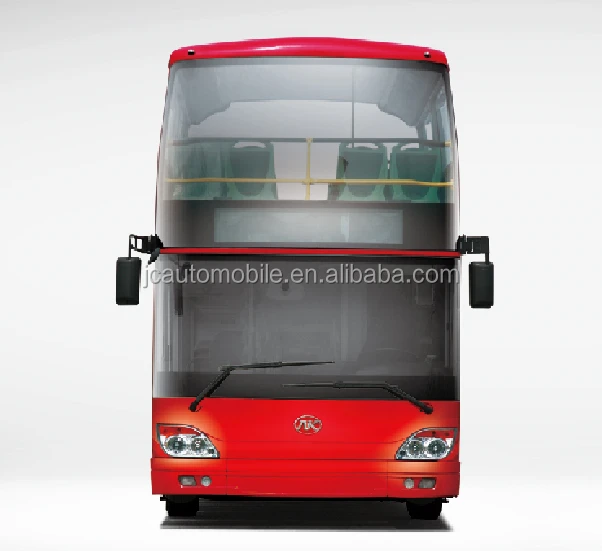

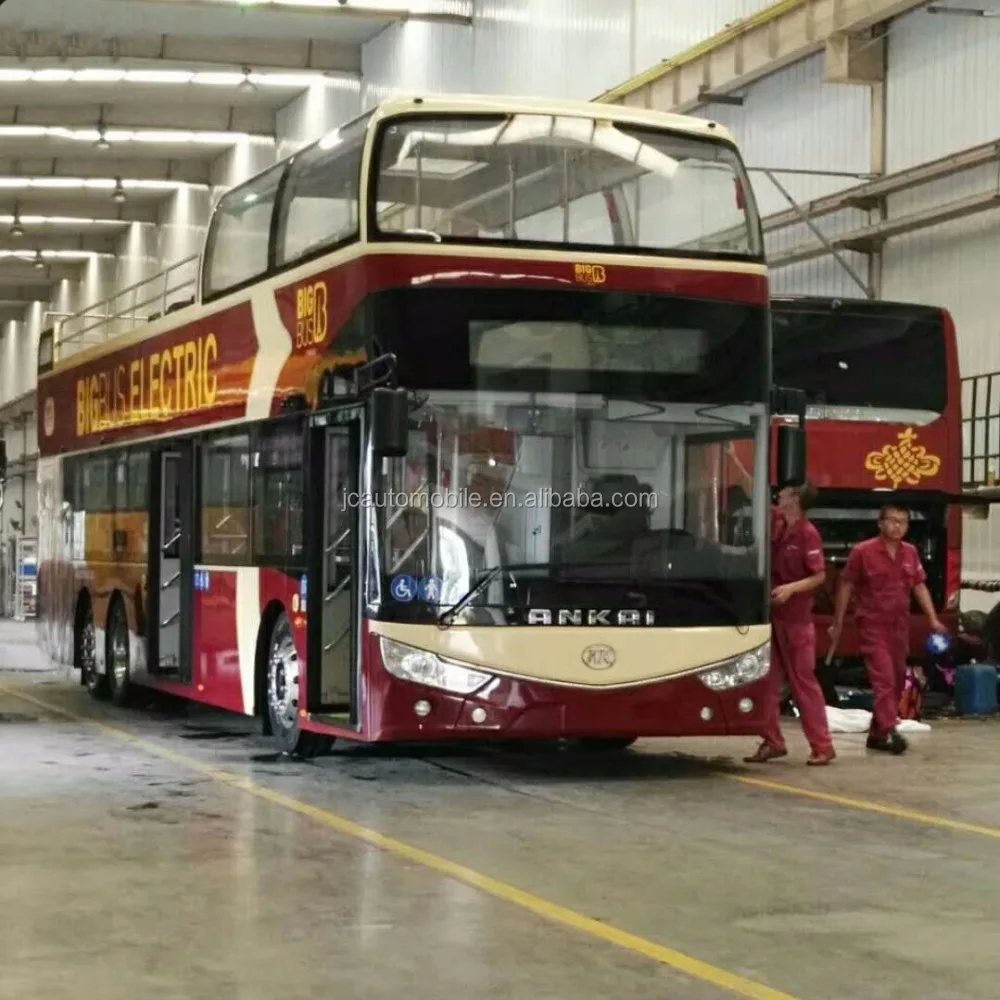

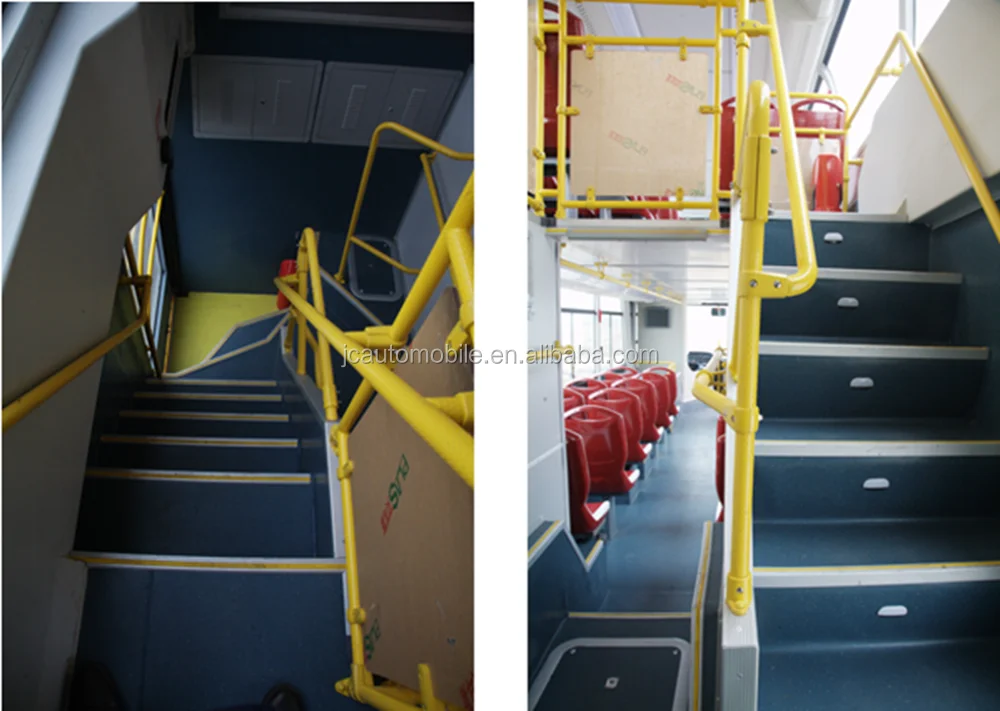

Detailed Images
Packaging & Shipping

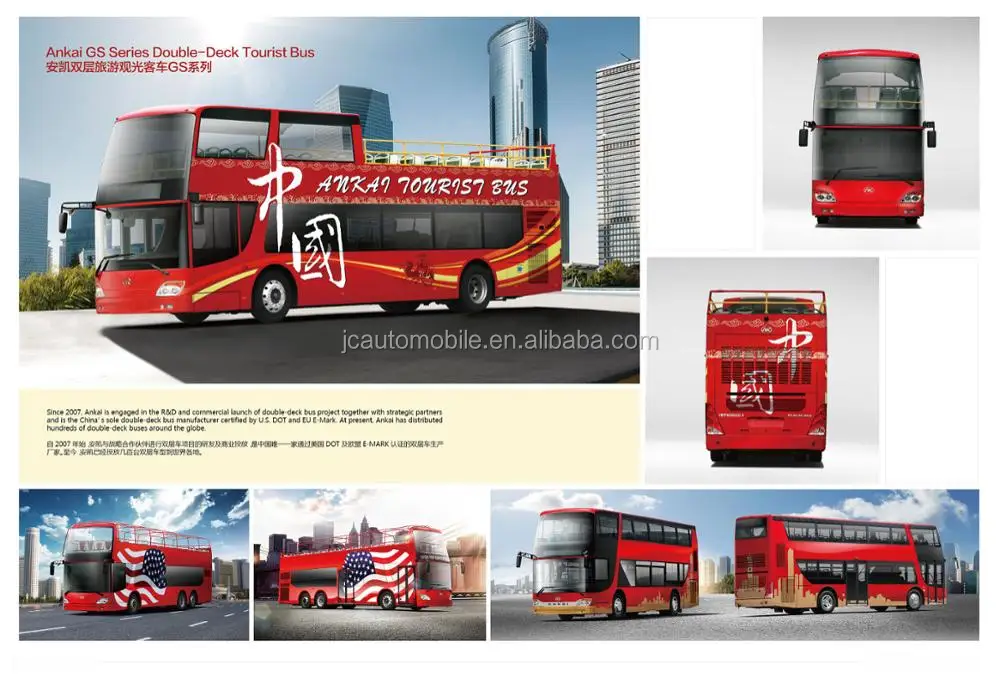

Product Overviews
After-sell services
WARRANTY
JC AUTOMOBILE grants our client a twelve-month-period or 2000 hours warranty for any vehicles purchased
from us. During the warranty period, in case the defect of material or workmanship has occurred with spare
parts in normal operation, the defective parts will be repaired or replaced free of charge at our discretion.
---------------------------------------------------------------------------------------------------------------------------------
Spare parts
JC AUTOMOBILE is dedicated to provide our clients with genuine spare parts with the highest quality, exact
fitness, and appropriate function. With our global distribution network, you are guaranteed with fast delivery
and services, wherever you are. Please submit your spare parts requests to us and list product name, model
No, Chassis VIN NO, description of the parts, etc. We guarantee that your request will be handled as soon as
possible.
---------------------------------------------------------------------------------------------------------------------------------
Traning
JC AUTOMOBILE provides perfect facilities and comfortable environment and can provide training services
to different users. The training sessions include product training, operation training, maintenance know-how,
technical know-how training, standards, laws, regulations etc, all of which are tailored to fulfill your individual needs.Training programs can be conducted in our factor field or at client’s site.
FAQ
Which Payment terms can we accept?
Normally we can work on T/T term, Western Union or L/C term.
1. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for old clients.
2. On L/C term, a 100% irrevocable L/C without “soft clauses” can be acceptable. Please seek the
advice from the individual sales manager whom you work with.
How long will our price be valid?
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on two situations.
1. The rate of USD:RMB varies significantly according to the internally currency exchange rates.
2. The increasing labor cost and raw material cost.
What logistics ways can we work for shipment?
We can ship truck/bus by various transportation tools:
1. For 90% of our shipment, we will go by sea, to all main continents such as South America,
Middle East, Africa, Oceania and Europe etc, either by container or RoRo/Bulk shipment.
2. For neighborhood countries of China, such as Russia, Mongolia, Kazahkstan, Uzbekistan ets …
we can ship it by road or railway.
3. For light spare parts in urgent demand, we can ship it by internally courier service, such as DHL,
TNT, UPS, or Fedex.

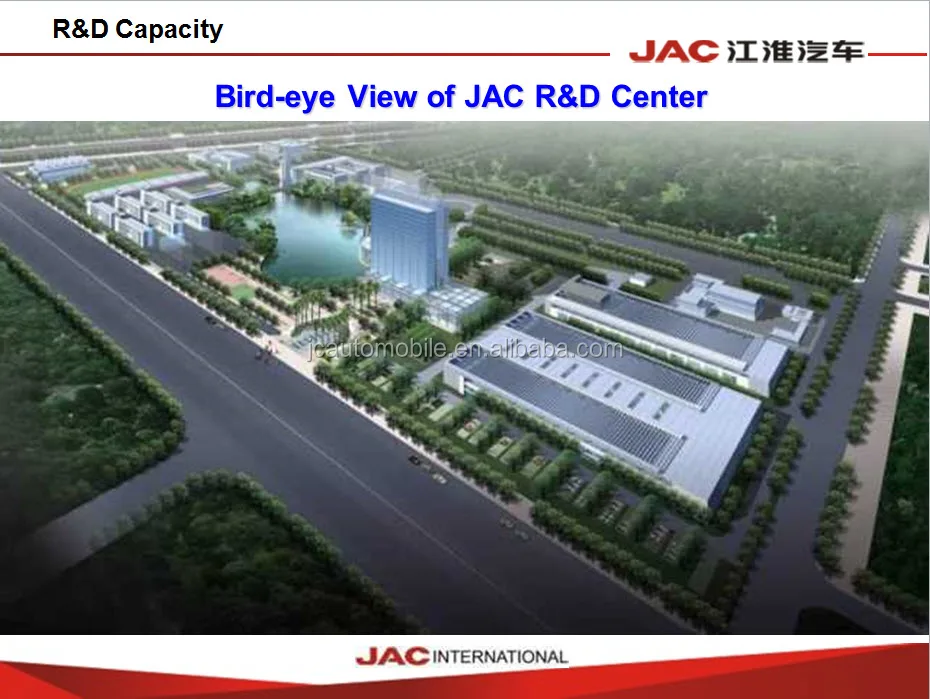

Company Information
