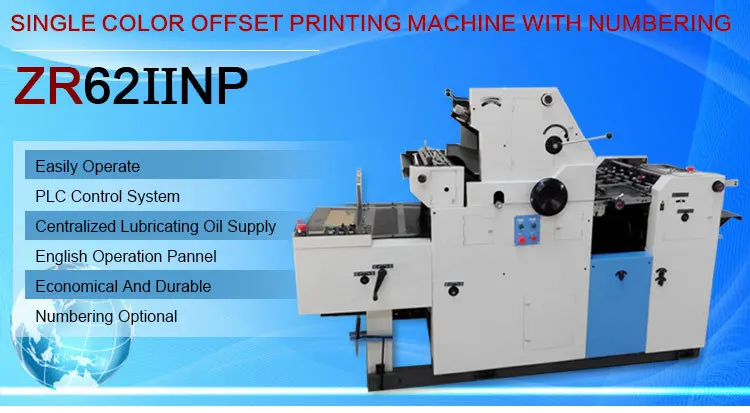

Machinery Promotion ZR62IINP hamada offset printing machine parts
- Category: >>>
- Supplier: Weifang Zongrui Printing Machinery Co. Ltd.
Share on (60733342591):
Product Overview
Description

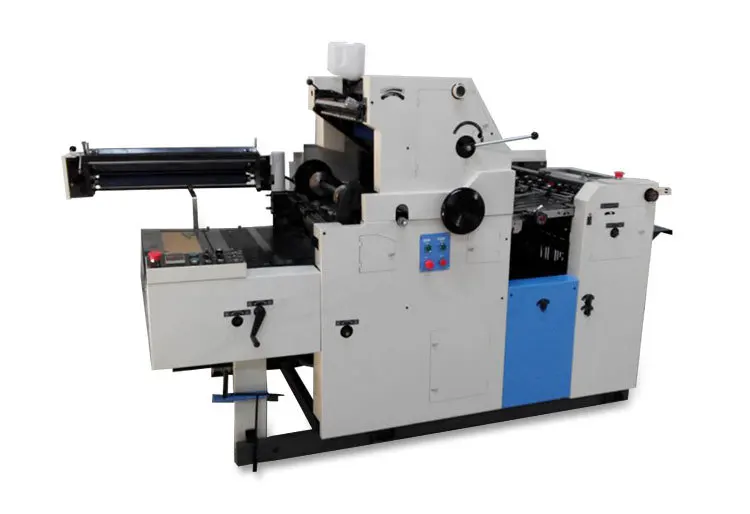

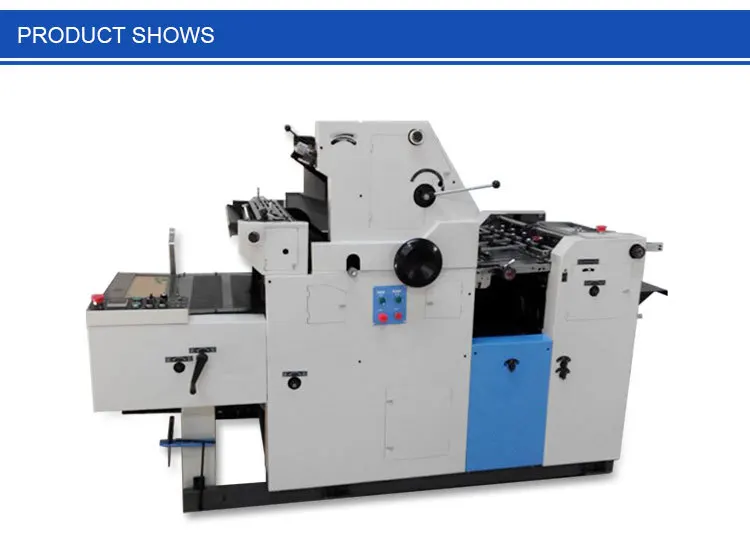

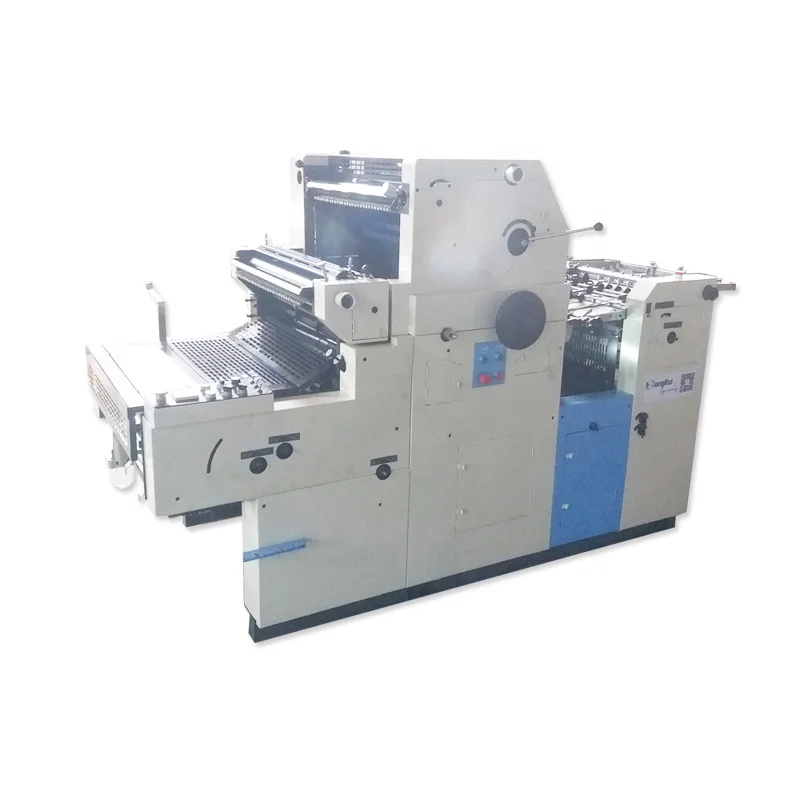

ZR62IINP | Machinery Promotion ZR62IINP hamada offset printing machine parts | |
| Model | ZR 62IINP |
| Max. printing size | 605 × 440mm |
| Max. sheet size | 620 × 450mm |
| Min. sheet size | 260 x 180mm |
| Plate size | 620 × 485 × 0.15mm |
| Blanket size | 616 × 505 × 1.95mm |
| Usable paper | 45-250gsm |
| Ink roller | 16pcs (3 forme inking rollers) |
| Dampening roller | 3pcs (2 forme dampening rollers) |
| Molleton | thick: 76 stitches; thin: 44stitches |

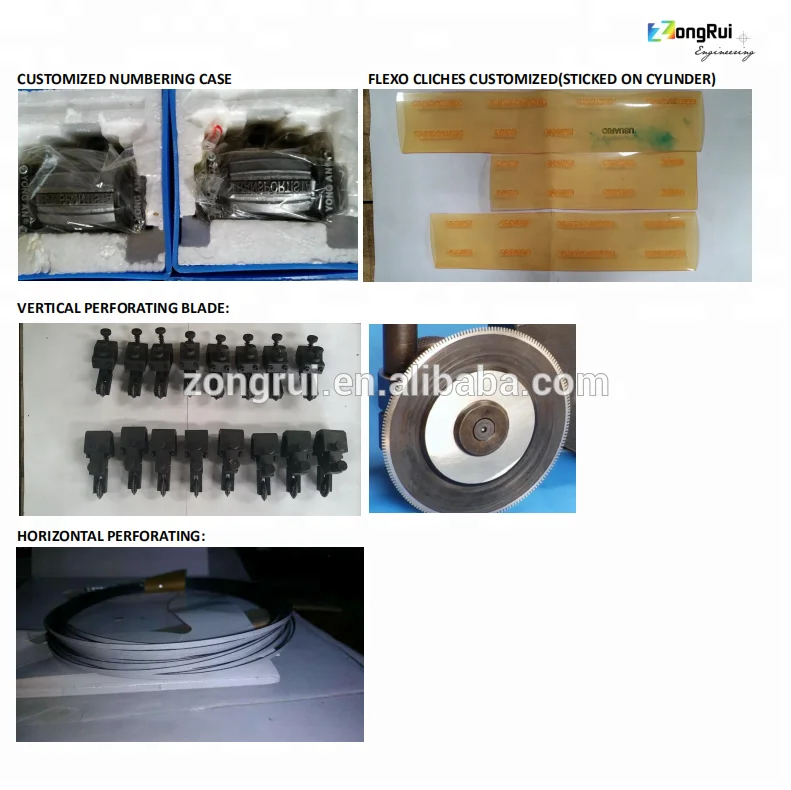

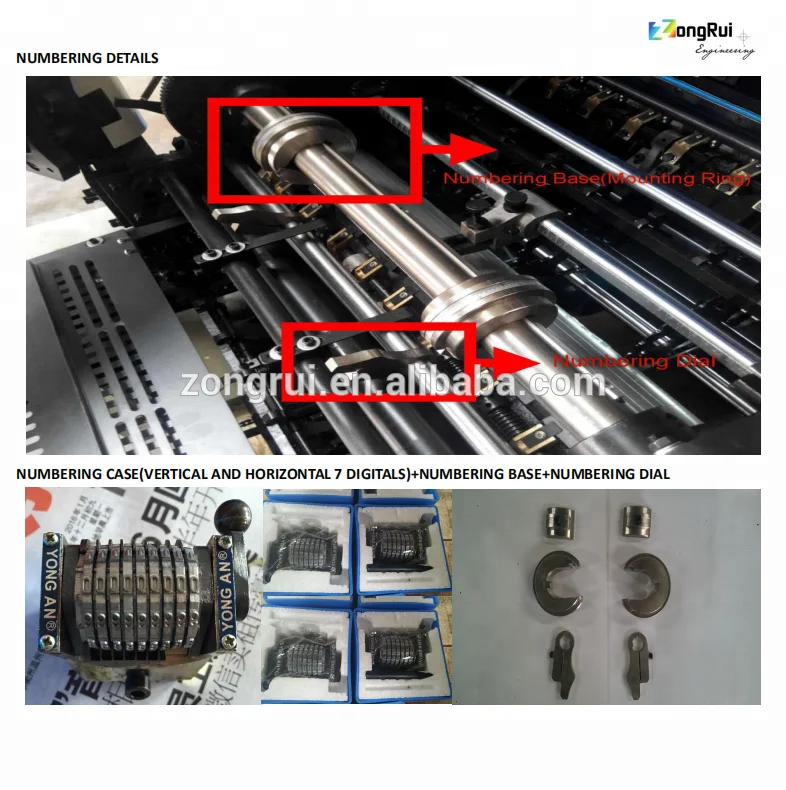

| Numbering device | Straight type(horizontal): 56 heads Max. |
|
| Convex type(vertical): 45 heads Max. |
| Letter press device | Cylinder type: 90 × 345mm Max. |
|
| Mounting ring type: 30 × 40mm Max. |
| Perforating device | Cross perforation: Min 25mm |
|
| Vertical perforation:5mm(blade-perfo type) |
| Ink rollers for NP unit | 6pcs(2 forme inking rollers) |
| Printing speed | 2000-7000 sheets/hour |
| Power supply | Single-phase: 220v, 50Hz |
| Main motor | 1.5kw |
| Air pump motor | 0. 8kw |
| Machine dimension | 2160(L) × 1020(W) × 1460(H)mm |
| Net weight | 950kg |
| Package dimension | 2350(L) × 1150(W) ×1620(H)mm |
| Gross weight | 1110kg |
Contact Information
COMPANY NAME: WEIFANG ZONGRUI PRINTING MACHINERY CO.,LTD PROFESSIONAL OFFSET PRINTING MACHINERY MANUFACTURER ADDRESS: EAST XIAZHUANG IND.ZONE, BEIGUAN STREET OFFICE, WEICHENG DIST, WEIFANG CITY, SHANDONG PROVINCE, CHINA. TEL:86-0536-8953250 FAX:86-0536-8953251 CONTACT PERSON:Alvin Wang TITLE: SALES MANAGER MOBILE:+86-18905361828 WHATSAPP:+86-18905361828 EMAIL:jackwu(at)zongruichina.com |  |
FAQ
Q: WHAT’S THE PRODUCT RANGE?
A: Printing machine,such as mini offset printing machine, heavy-duty offset printing machine, flexo&plate lable
printing machine,tape printing machine and some small machine like pre-press and post-press.
Q: ARE YOU A MANUFACTURE?
A: Yes, we are located in weifang, shandong province which close to qingdao port.
Q: HOW DOES YOUR FACTORY DO REGARDING QUALITY CONTROL?
A: Most our machine mechanical parts are processed by ourselves.So we can better control our quality from
beginning.Electrical Part we had cooperated with good foreign brand, such as UBC, Yaskawa, Siemens, NSK,
Delta, Panasonic etc.And all our machine will do running test before shipping.
Q: WHAT’S THE PAPER FEED SYSTEM AND DELIVERY SYSTEM?
A: Multi-sucker universal feeder/Chain Delivers with three gripper Bars.

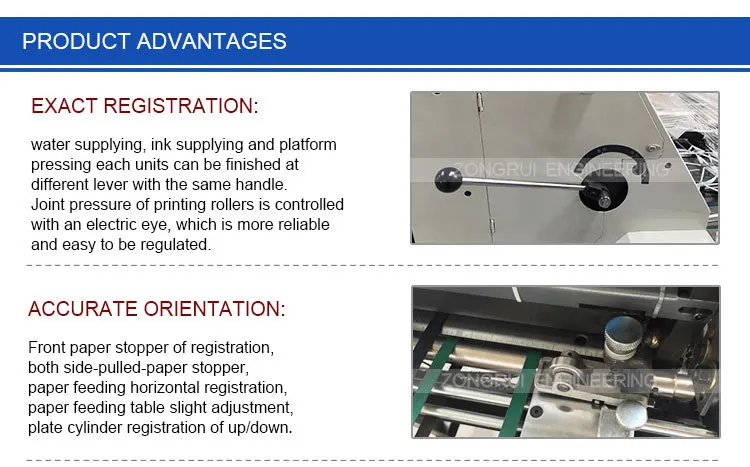

Q: WHAT’S THE REGISTRATION?
A: Wheel-type pull side/front side.
Q: WHAT’S THE DIFFERENT BETWEEN THE OFFSET PRINTING AND FLEXOGRAPHY?
A: Offset printing: Toppan printing (PS plate, resin plate).Flexography: Intaglio printing .
The offset printing is more precision than flexography.
Q: WHAT’S THE THE DIFFERENT BETWEEN SATELLITE MODEL AND 2 COLOR UNIT MODEL ?
A: Satellite model : one imprint, two ink duct. Suitable for printing normal two-color prints.
2 color unit model : two imprints. Suitable for printing high quality prints.
