Infrared Catalytic Gas Flameless Burner for Meat roasting machine
- Category: >>>
- Supplier: Chongqing Haodong Technology Co. Ltd.
Share on (60733345759):
Product Overview
Description
Our Company
Chongqing HaoDong Technology Co.,Ltd
Established in2005, Chongqing Haodong Technology Co., Ltd is a manufacturer specialized in the research, development and production of infrared catalytic burner,and also the first and only company now in China who apply rare-earth catalytic combustion technology in infrared burner.The infrared burner applied in coating, foods drying and baking, drying process, heating at low and middle temperatures, warming, heat preservation and so on.
Our Certifications
Product Description
There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, BBQ Infrared Catalytic Gas Flameless Burner can save 10~20% gas energy and cost.
Model | Dimension | N.G. | Gas Type | Heat output | Gas Comsuption | power | ||||
mm | KG | NG/LPG | BTU/h | Kcal/hr | NG(m2/h) | LPG(kg/h) | kw | |||
HD220 | 220*170*60 | 0.9 | NG/LPG | 10000 | 2520 | 0.31 | 0.22 | 2.94 | ||
THD405 | 405*80*55 | 0.77 | NG/LPG | 8278 | 2065 | 0.24 | 0.21 | 2.4 | ||

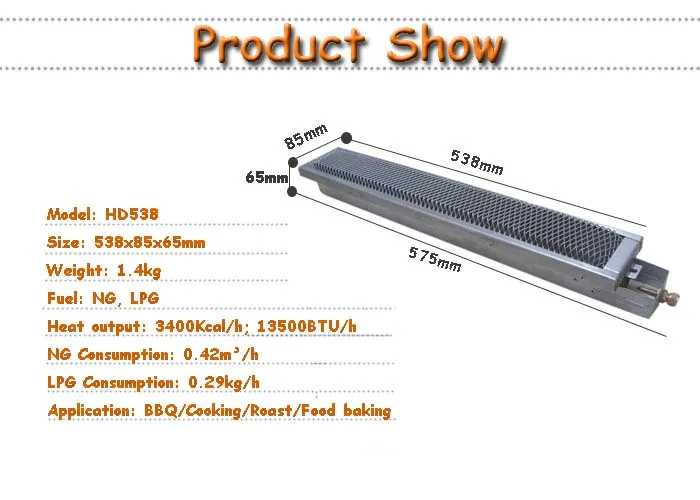

HD538 | 538*85*65 | 1.4 | NG/LPG | 13500 | 3400 | 0.42 | 0.29 | 3.9 | ||
THD700 | 760*265*300 | 1.5 | NG/LPG | 16210 | 4052 | 0.46 | 0.38 | 4.7 | ||
HD270 | 270*85*65 | 0.5 | NG/LPG | 9030 | 2300 | 0.28 | 0.2 | 2.72 | ||
HD10 | 170*65*60 | 0.42 | NG/LPG | 7500 | 2100 | 0.21 | 0.16 | 1 | ||
HD20 | 300*65*60 | 0.65 | NG/LPG | 9500 | 2800 | 0.27 | 0.2 | 1.8 | ||
HD30 | 340*65*60 | 0.85 | NG/LPG | 10000 | 2900 | 0.29 | 0.22 | 2 | ||
Products Detail

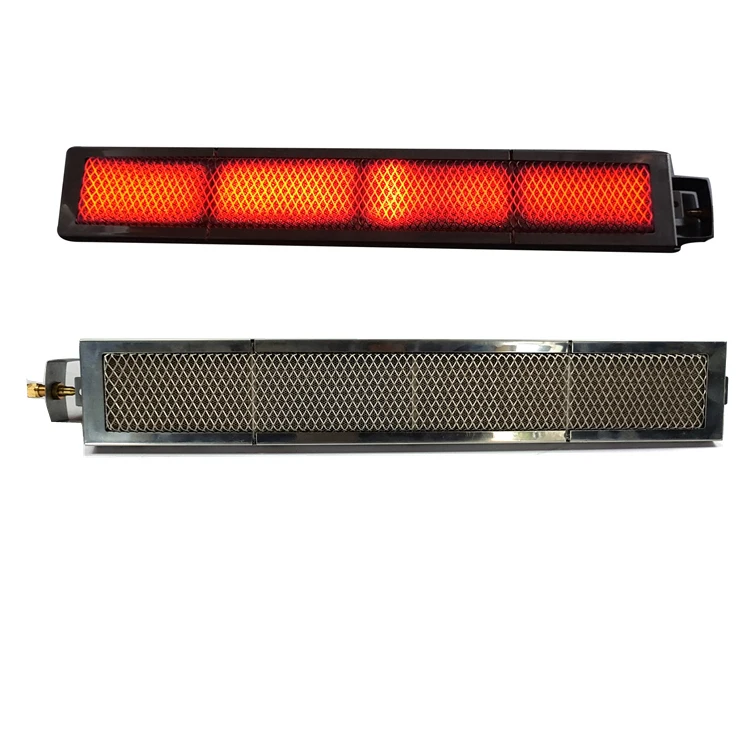

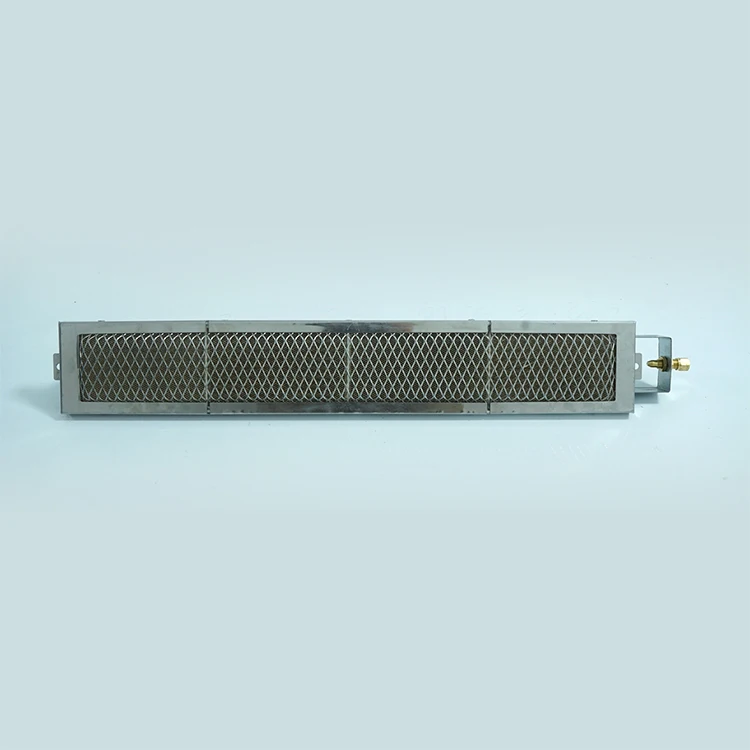

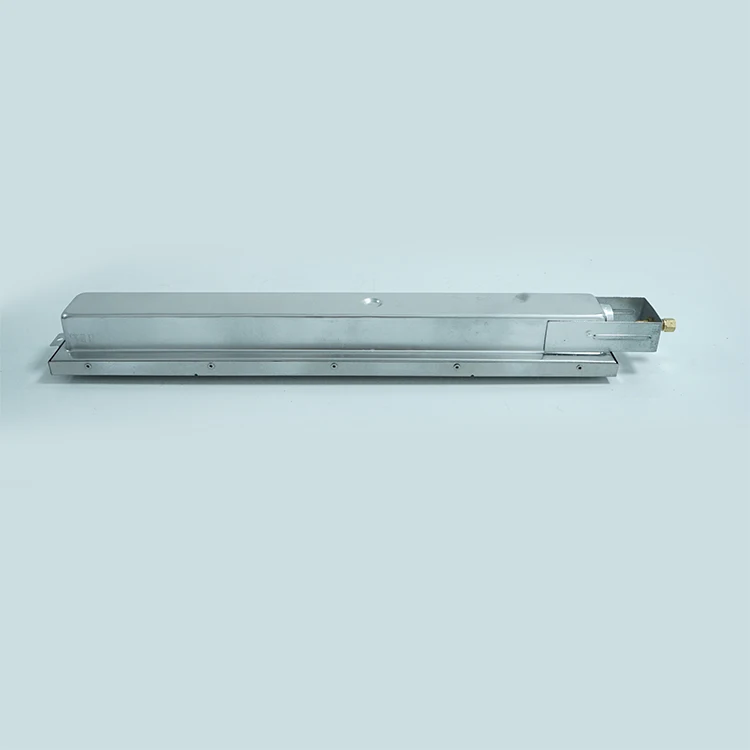

BBQ Infrared Catalytic Gas Flameless Burner Advance
1.Flameless combustion, also suitable for powder products baking process
2.Energy saving:conversion rate:≥90%
3.Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4.Taking full usage of heat:95% of energy released in the form of infrared ray ;heating the objects directly
5.Long life:≥11000hr
6.Easily installed
Infrared Catalytic Gas Burner Application Scope

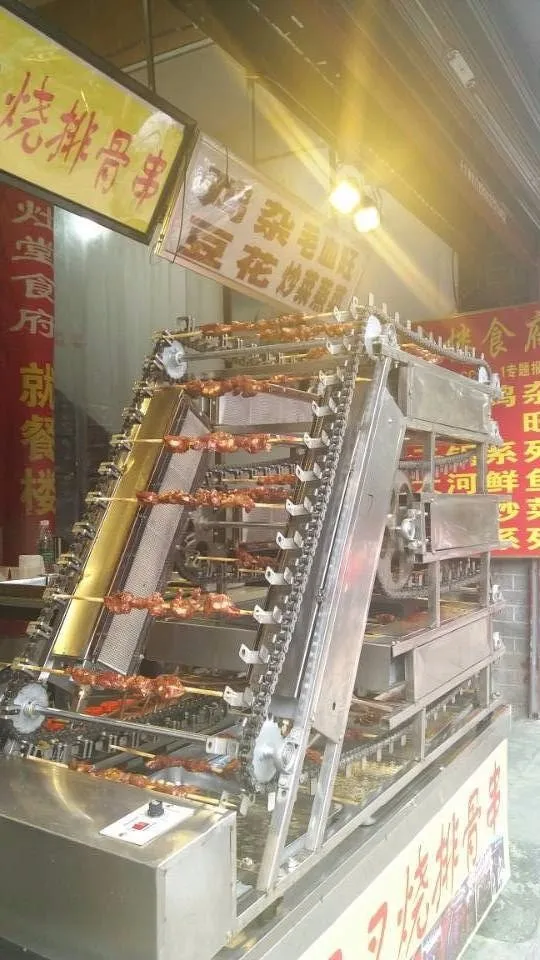

This series is specially made for barvecue oven,grill,chicken gas roaster,shawarma
/doner kebab/gyros machine,bread oven,cake bakery equipment,cheese baking machine..
It can be installed at all direction,but at bottom with a heat-resistance glass cover is best.
FAQ
Q: What is working pressure of HD538 bbq Gas Fired Burner ?
A: 2000pa(NG)/2800pa(LPG)~~5000pa
Q: bbq Infrared Catalytic Gas burner surface Temperature Range ?
A: 35℃-500℃.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.

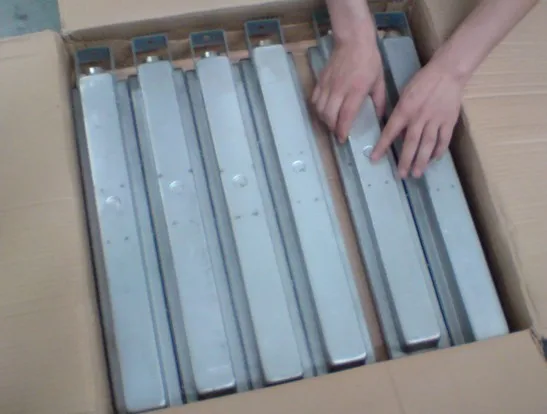

Packing & Delivery
Packing Details :
Selling Units: Single Item
Carton Size :610X550X200mmPackage Type: 12 Pieces packaged in one carton
