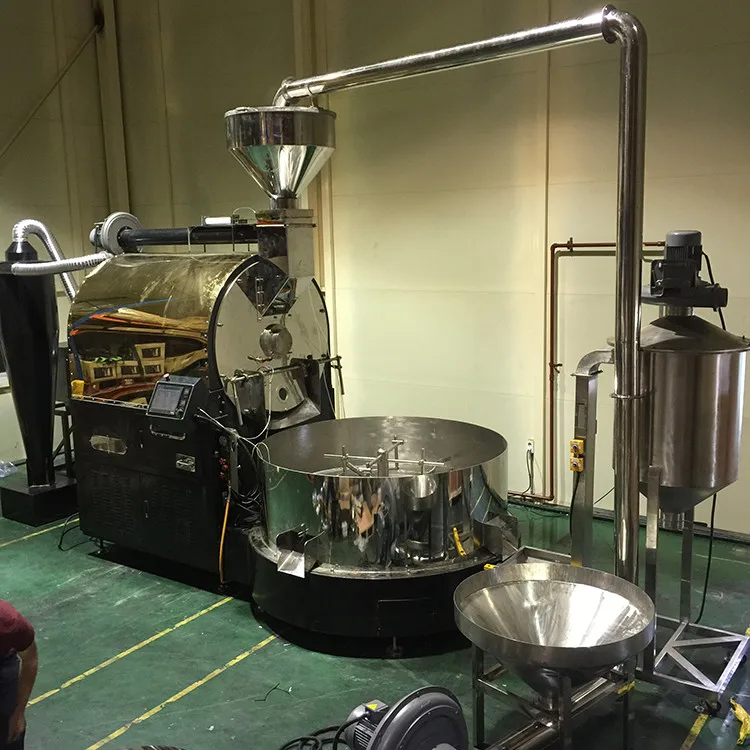

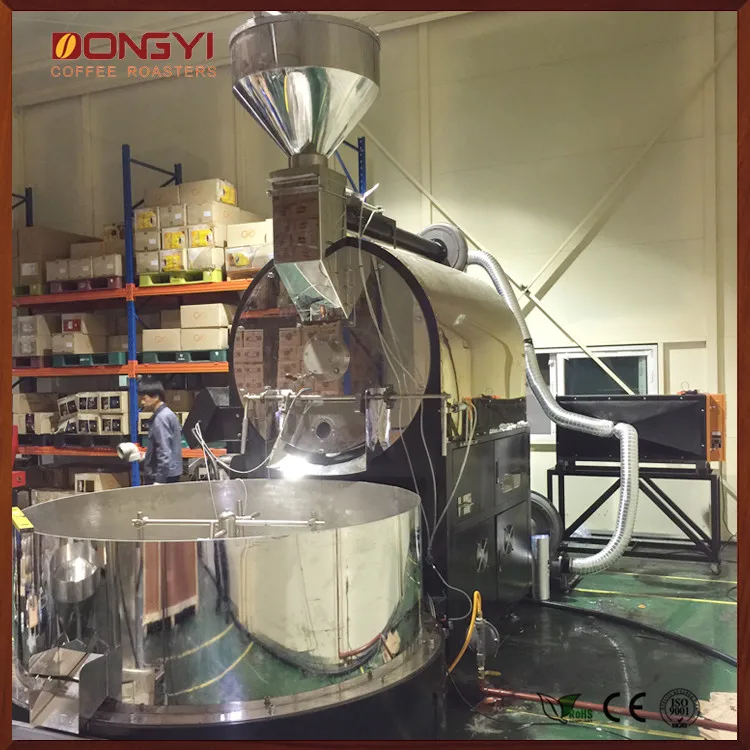

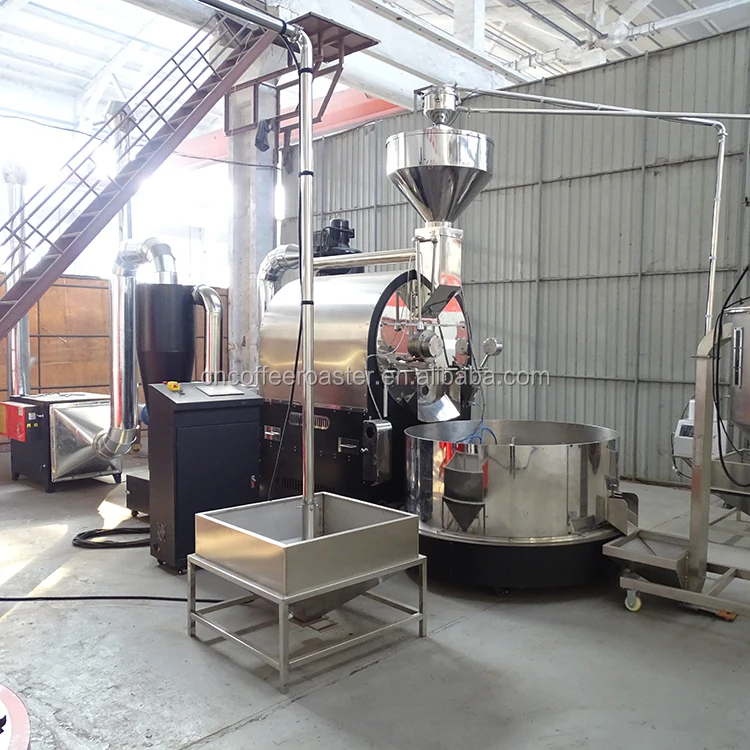

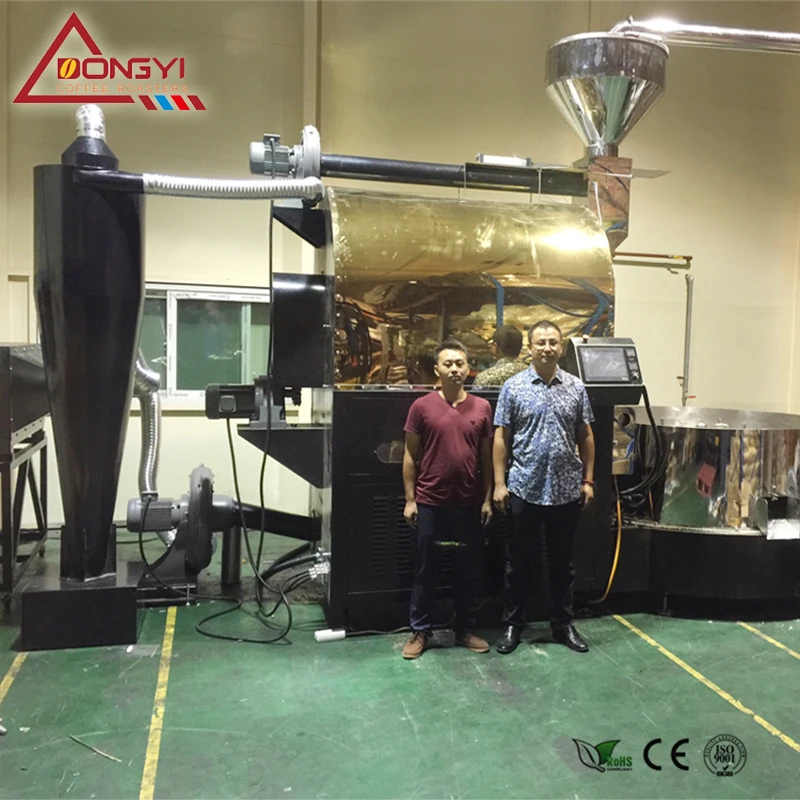

200kg Industrial Coffee Roaster Machine/Probat Coffee Roaster Best Price
- Category: >>>
- Supplier: Nanyang Dongyi Machinery Equipment Co. Ltd.
Share on (60733350049):
Product Overview
Description
Quick Specifications DONGYI PRO commercial Roaster Machine | ||
Roaster Model | DY-200KG | |
Overview | - Includes stand-alone chaff collector * 2 - Automated charge and discharge via air assist - Dual water quench fire supression system in roaster & chaff collector - Requires power, gas , exhaust venting, and compressed air - PLC control system ( SIEMENS or OMRON 12" ) | |
Capacity/Output | ||
Drum Load Capacity | 200-225KG - green coffee beans | |
Roasting Method | Half hot air blast & half direct fire | |
Roasting Time | ≤20 minutes | |
Output Capacity | 1485 lb / hr, 11880 lb / day (675 kg/h, 5400 kg/day) | |

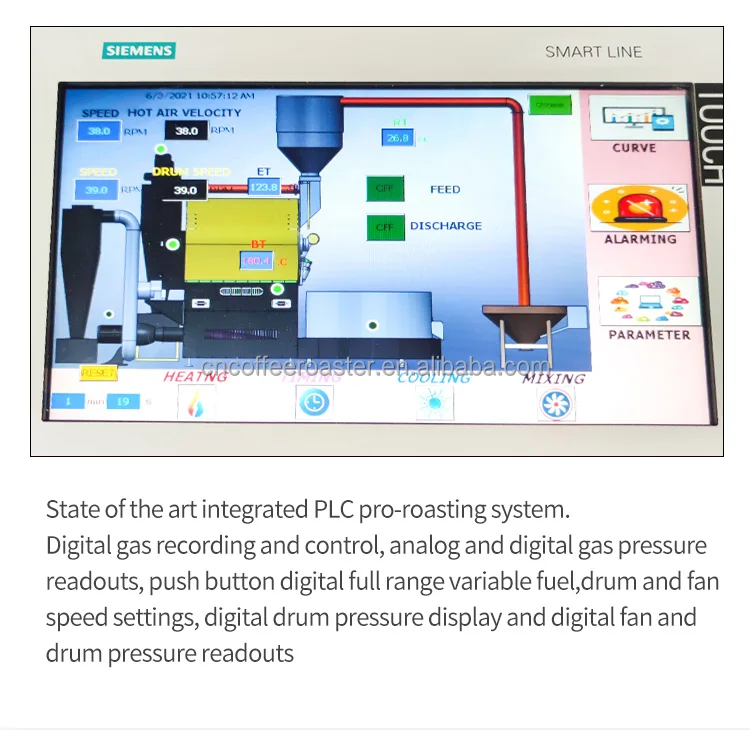

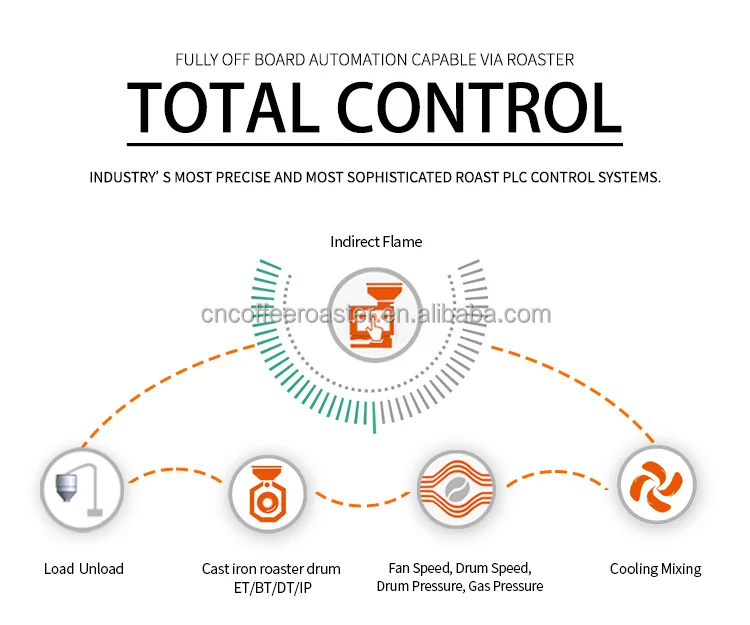

PLC data Roasting | ||
Connection | Integrated connection via PLC system | |
Temperature Data | Bean temperature ( BT), environment temperature (ET) software data drum temperature(DT) incoming air pressure (IP) -- digital meters | |
Roaster Data | Fan speed, drum speed, drum pressure, gas pressure | |
Dimension & Clearances | ||
Coffee Roaster | 189 in * 71 in * 142 in (480 cm * 180 cm * 370 cm) | |
Chaff Cyclone Collector | 19.8 in * 19.8 in * 103 in (500 * 500 * 2600mm) | |
Destoner machine for Option Match | 47 in * 28 in * 103 * in (1200 * 700 * 2600mm) | |
Weight | N.W 5150KGS, G.W 6150KGS | |
Roaster electrical & Gas Power | ||
Service Required | Roaster: Three phase, 380/220V AC, 40A, 50- 60HZ Loader: Three phase, 380/220V AC, 20A, 50-60HZ | |
Gas Consumption | --6kg/hours (LPG gas), --7kg (city pipeline natural gas) | |
Gas Burner Parameters | Inlet pipe 1/2", 1-10kpa range output 100kwt max gas pressure require: LPG gas ≥ 10kpa LNG ≥ 6kpa | |
Compressed Air | ||
Air Pressure | 1.60 cfm at 40 psi ( for air assist charge & discharge) | |

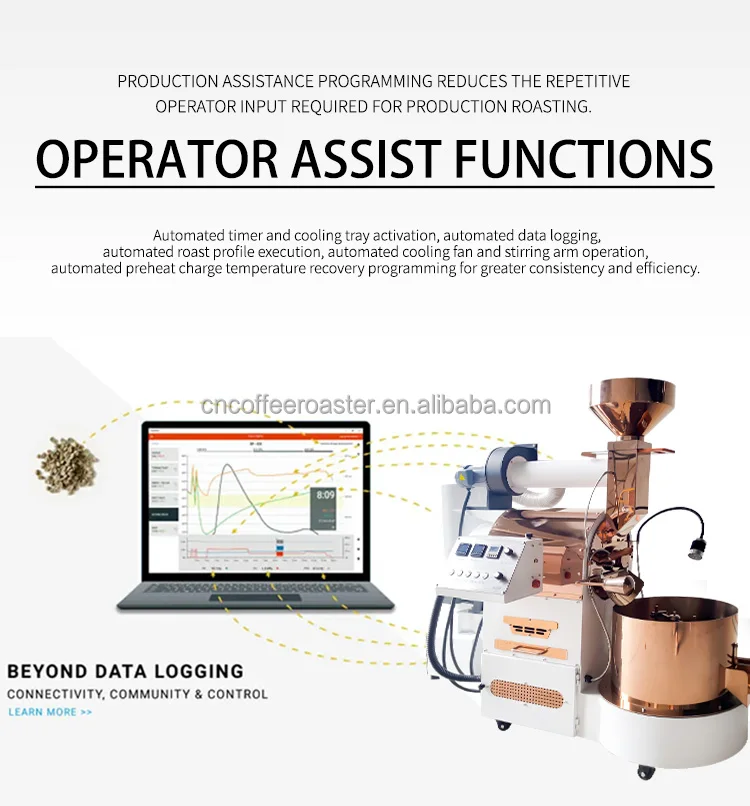

Operator Assist | ||
Feature | - Automated charge, discharge, cooling function - Automated machine shut down cooling cycle | |
Workplace Safety | ||
Details | - Cooling tray cover with automated stop - Manual drum crank in case of power outage - 100% food safe production path - Optional quick connect kits for easy vent cleaning | |
Ocean Shipment Package Delivery | 19 M3 LCL or FUL 40 GP | |

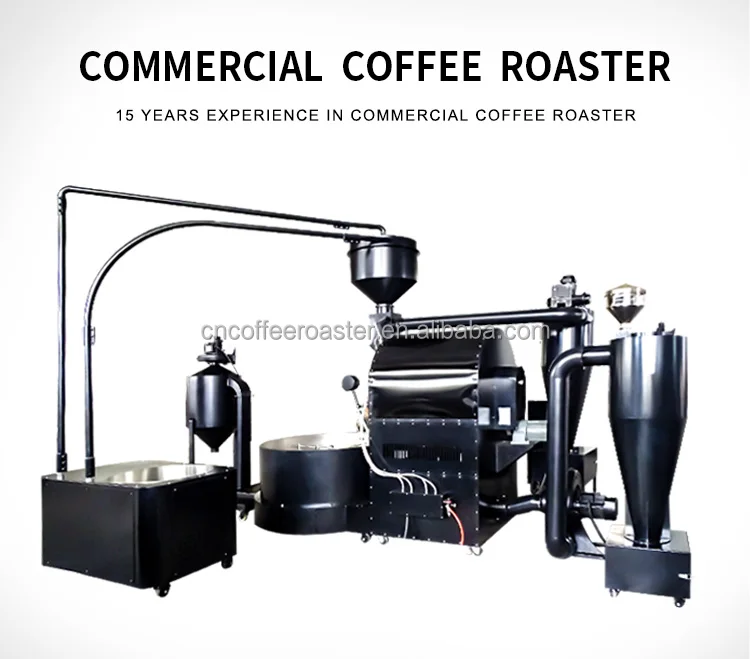

Automatic industrial coffee roaster 60kg coffee bean roaster machines with CE & Rohs
1. Automatic computer controlling from uploading, roasting, ejection, cooling and uploading
2. Special DONGYI Pro-roasting high efficiency heat energy cycle management and utilization design, enery-saving effect is remarkable.
3. OMRON pneumatic servo system is applied, the machine is smart when operated, low failure rate, stable and durable and long time use.
4. OMRON PLC colorful touch panel micro-computer system associated with human-computer interface makes operation more easy and multilingual interface switch is available.
5. Chaff collector 2 pcs included

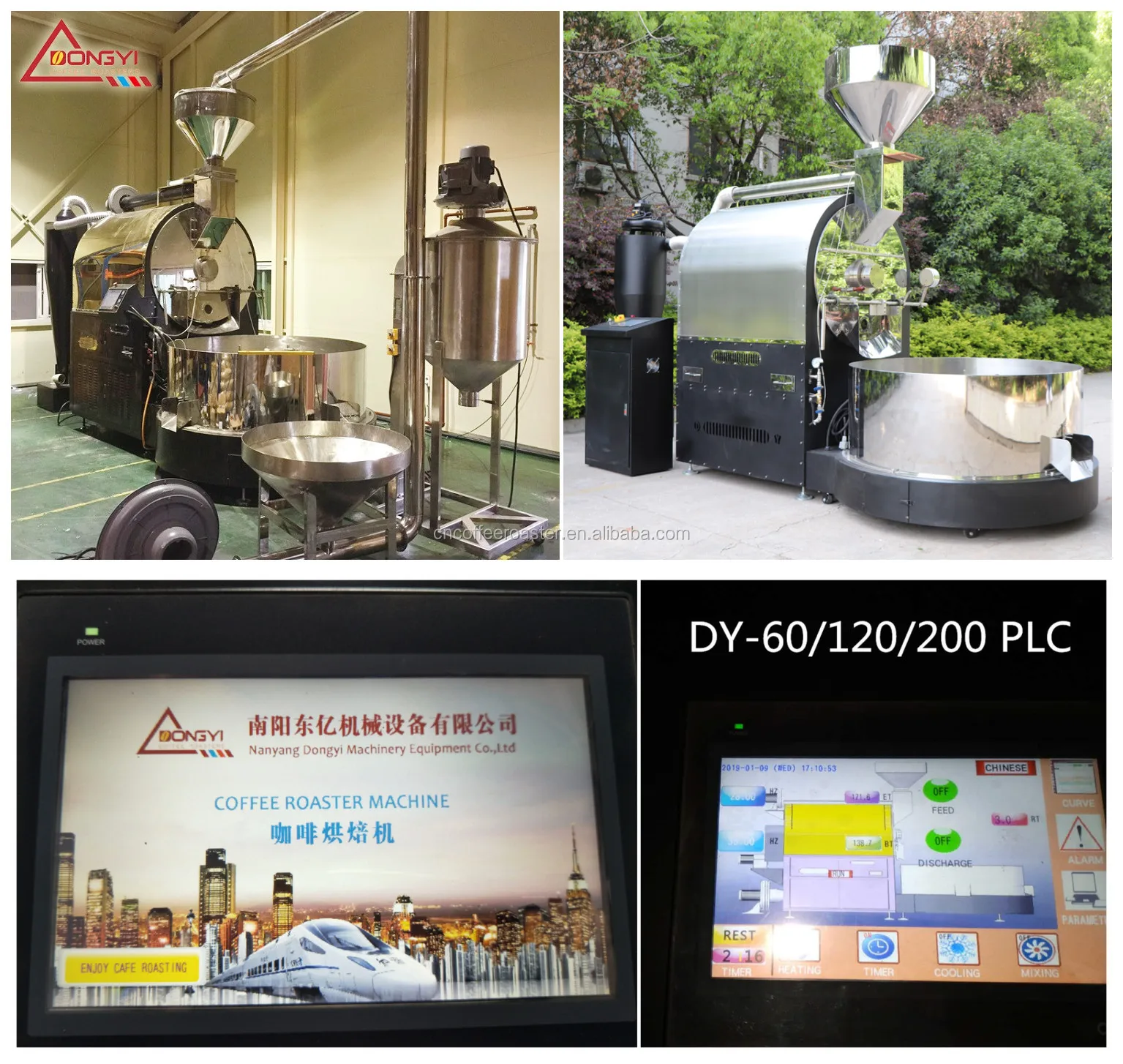

6. PLC 12“ touch screen controller included

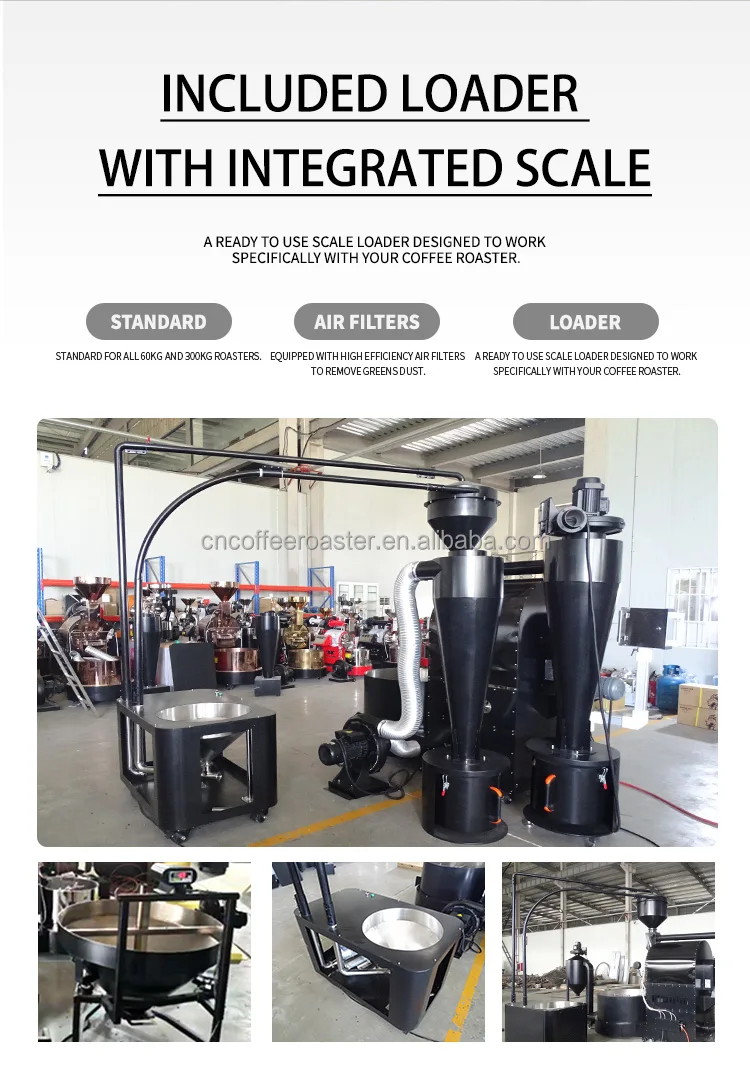

7. Feeder machine included
1. Automatic computer controlling from uploading, roasting, ejection, cooling and uploading
2. Special DONGYI Pro-roasting high efficiency heat energy cycle management and utilization design, enery-saving effect is remarkable.
3. OMRON pneumatic servo system is applied, the machine is smart when operated, low failure rate, stable and durable and long time use.
4. OMRON PLC colorful touch panel micro-computer system associated with human-computer interface makes operation more easy and multilingual interface switch is available.
5. Chaff collector 2 pcs included
6. PLC 12“ touch screen controller included
7. Feeder machine included
New-Technology advantages
The latest 2019 DY series coffee bean roaster, classic appearance, seiko quality,coffee shop treasure. Barista baking competition designated equipment sponsors
1. All bean contact body are made of High temperature resistant stainless steel.
2. Including cyclone dust collector and exhaust pipe.
3. Import rosewood bean sampling handler.
4. Large independent stirring plate, cooling rapidly (1-2minutes), continuous roasting.
6. Omron PID Double Temperature instrument. precised long using life.
7. hot air regulation system. you can adjust hot-wind speed.
8. 304 stainless steel made gas valve regulator you can adjust fire volume precise.
9. ADDKA Japan motor. Equipped with infinitely adjustable-speed system
10. Fuse and leakage protector on application
11. LED deluxe Lamp.
The latest 2019 DY series coffee bean roaster, classic appearance, seiko quality,coffee shop treasure. Barista baking competition designated equipment sponsors
1. All bean contact body are made of High temperature resistant stainless steel.
2. Including cyclone dust collector and exhaust pipe.
3. Import rosewood bean sampling handler.
4. Large independent stirring plate, cooling rapidly (1-2minutes), continuous roasting.
5. Electric igniter.
6. Omron PID Double Temperature instrument. precised long using life.
7. hot air regulation system. you can adjust hot-wind speed.
8. 304 stainless steel made gas valve regulator you can adjust fire volume precise.
9. ADDKA Japan motor. Equipped with infinitely adjustable-speed system
10. Fuse and leakage protector on application
11. LED deluxe Lamp.

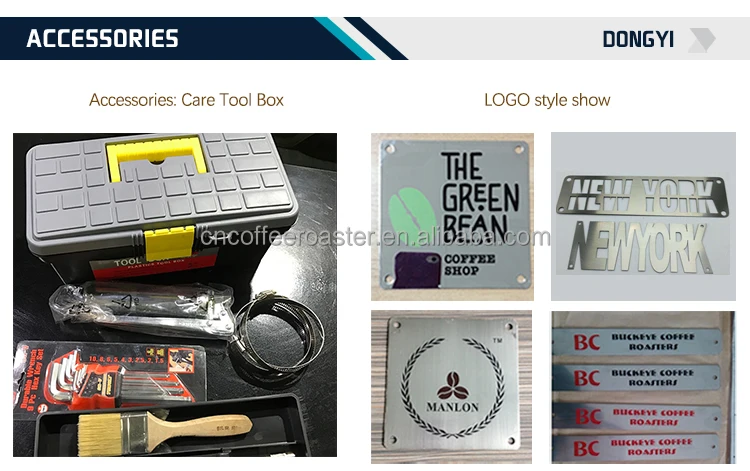

1.Every machine, we attached the care tool box for your easy clean and maintain, this is cost free
2.Logo, we can make your company logo on the machine to create your own brand.
2.Logo, we can make your company logo on the machine to create your own brand.

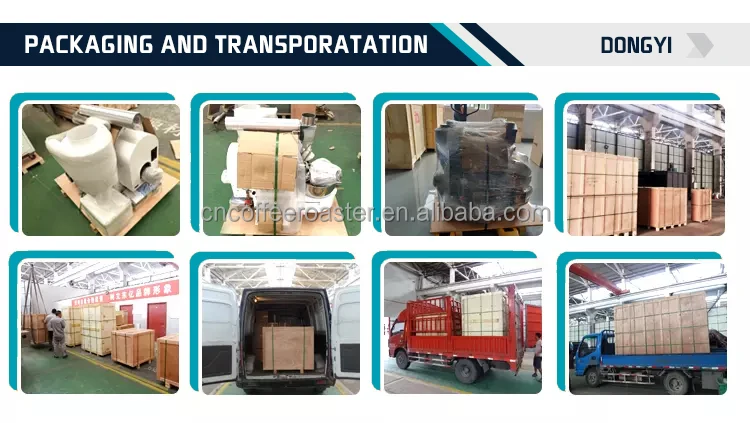

*Fumigation free wooden box with standard export packing.
*Nylon belt and screws fixing the roaster with wooden crates to prevent the roaster shaking.
*Steel belt fixing the wooden crates.
*All of the productions are inspected carefully by QC before delivery.
*Nylon belt and screws fixing the roaster with wooden crates to prevent the roaster shaking.
*Steel belt fixing the wooden crates.
*All of the productions are inspected carefully by QC before delivery.
As a professional coffee roaster manufacturer in China, we are able to provide OEM & ODM
1.Prompt shipment: complete production and assembly lines to ensure customer prompt shipment for each order.
2.Cargoes photo: stirct QC quality control and inspect before shipment, cargoes photo will be provided to customers before andafter loading.
3.Packing: machine packed in sturdy and strong wooden case, nailed and secured by overall nylon strapping; or packed as customers' special request.
4.Best service after shipment with email: 24/7 lifetime phone & online tech support to offer our customers the best service after shipment.
5.Feedback email after end-users received the cargo
6.Trade assurance service as a trade safe guards
1.Prompt shipment: complete production and assembly lines to ensure customer prompt shipment for each order.
2.Cargoes photo: stirct QC quality control and inspect before shipment, cargoes photo will be provided to customers before andafter loading.
3.Packing: machine packed in sturdy and strong wooden case, nailed and secured by overall nylon strapping; or packed as customers' special request.
4.Best service after shipment with email: 24/7 lifetime phone & online tech support to offer our customers the best service after shipment.
5.Feedback email after end-users received the cargo
6.Trade assurance service as a trade safe guards
1. Are you the manufacturer factory or trading company?
We are the manufacturer with professional produce experience on roaster machines more than 15 years. We have both Domestic and international sales department.
2. Where is your factory located? How can I visit there?
Our factory is located in Nanyang City, Henan Province, China,
Airport : Nanyang airport.
Rail Station: Nanyang Station
We will pick you up by car from above.
3. What are your main products?
Our main products include: 1kg-6kg small commercial coffee roaster/6-120kg industrials automatic coffee roasting machine/electric nuts roasting machine / grain seeds gas roaster/ Nuts and grain continuous electric roasting dryer/coffee bean feeding machine /de-stone conveyor / grinder
4. What payment types do you accept?
We accept T/T in advance (30% of deposit before production and 70% balance before delivery), bank transfer, Paypal or credit card under Alibaba online trade assurance or offline payment. We also accept L/C.
5. How to distribute your products?
If you are dealing coffee business and have interests in us.
if you want to be our wholesaler or distributor in your place,we are very willing to share profits together with you and we
promise here you will get
A: Min order quantity up to 5 units (can be mixing color and model ), we can offer best distributor price again
B: free DIY color and customer logo on roasters ( I have indicated some done color before, also welcome new color require by Pantone color lists)
C: factory costs price supply spare parts for distributor stock
D: distributor markets Special protection policies
E: quick delivery and other more priority NEW products share items
6. How do your quality control systems operate?
We have professional designer team and experienced engineers to strictly guarantee the production from beginning to shipment.
7. What is your delivery time and cost?
For goods in stock, can arrange fast delivery around 5-10 working days after collect the full payment. In the case of out of
stock and large quantity, production time varies about 15-30 working days depending on the situation.
We have customized special delivery package for certain markets, such like US, UK, Australia, Southeast Asia, Europe, South America etc. Contact sales to get further information.
8. How long is your warranty and after-sale service?
One-year limited warranty. Additionally, all of our roasters come with guaranteed personal support for the roaster’s entire
lifetime. While it is rare for our machines to face problems, our teams is always available to troubleshoot and answer
questions. Simple call or email us and a member of our support team will provide the necessary assistance in a quick, succinct manner.
9. Does your company offer worldwide distribution?
Yes, we are proud to be a global company. We ship our products all around the world.
Welcome to contact us any time and welcome to our company!
We are the manufacturer with professional produce experience on roaster machines more than 15 years. We have both Domestic and international sales department.
2. Where is your factory located? How can I visit there?
Our factory is located in Nanyang City, Henan Province, China,
Airport : Nanyang airport.
Rail Station: Nanyang Station
We will pick you up by car from above.
3. What are your main products?
Our main products include: 1kg-6kg small commercial coffee roaster/6-120kg industrials automatic coffee roasting machine/electric nuts roasting machine / grain seeds gas roaster/ Nuts and grain continuous electric roasting dryer/coffee bean feeding machine /de-stone conveyor / grinder
4. What payment types do you accept?
We accept T/T in advance (30% of deposit before production and 70% balance before delivery), bank transfer, Paypal or credit card under Alibaba online trade assurance or offline payment. We also accept L/C.
5. How to distribute your products?
If you are dealing coffee business and have interests in us.
if you want to be our wholesaler or distributor in your place,we are very willing to share profits together with you and we
promise here you will get
A: Min order quantity up to 5 units (can be mixing color and model ), we can offer best distributor price again
B: free DIY color and customer logo on roasters ( I have indicated some done color before, also welcome new color require by Pantone color lists)
C: factory costs price supply spare parts for distributor stock
D: distributor markets Special protection policies
E: quick delivery and other more priority NEW products share items
6. How do your quality control systems operate?
We have professional designer team and experienced engineers to strictly guarantee the production from beginning to shipment.
7. What is your delivery time and cost?
For goods in stock, can arrange fast delivery around 5-10 working days after collect the full payment. In the case of out of
stock and large quantity, production time varies about 15-30 working days depending on the situation.
We have customized special delivery package for certain markets, such like US, UK, Australia, Southeast Asia, Europe, South America etc. Contact sales to get further information.
8. How long is your warranty and after-sale service?
One-year limited warranty. Additionally, all of our roasters come with guaranteed personal support for the roaster’s entire
lifetime. While it is rare for our machines to face problems, our teams is always available to troubleshoot and answer
questions. Simple call or email us and a member of our support team will provide the necessary assistance in a quick, succinct manner.
9. Does your company offer worldwide distribution?
Yes, we are proud to be a global company. We ship our products all around the world.
Welcome to contact us any time and welcome to our company!
