press for Rubber vulcanizing press rubber vulcanizer

Product Overview

Description



WELCOME TO OUR FACTORY VISIT AND NEGOTIATION

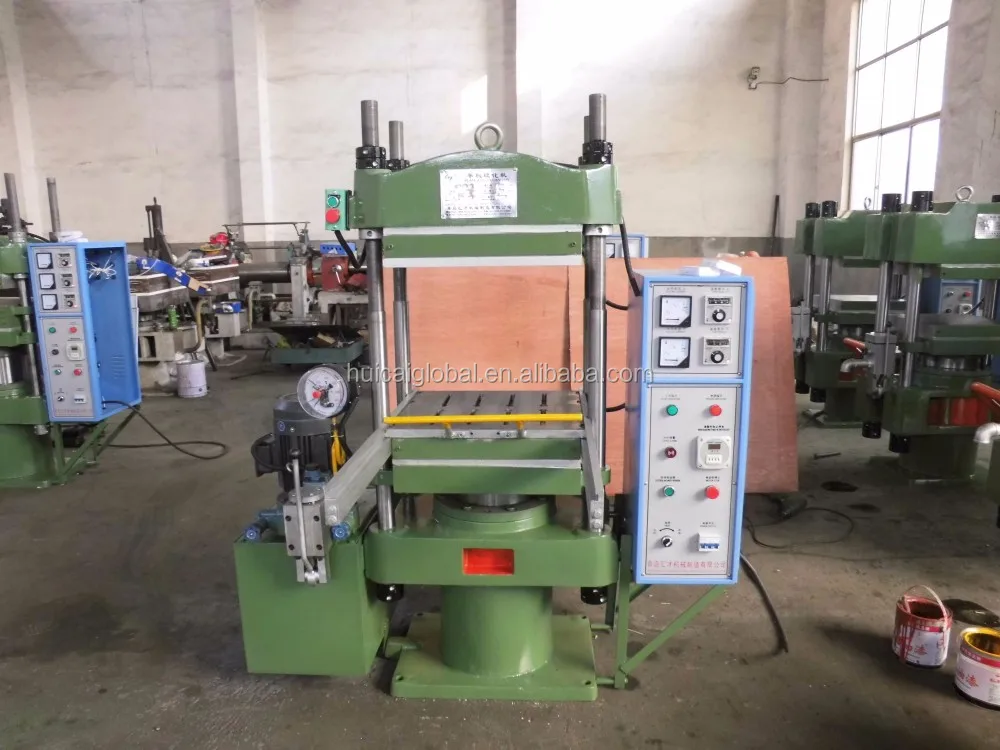

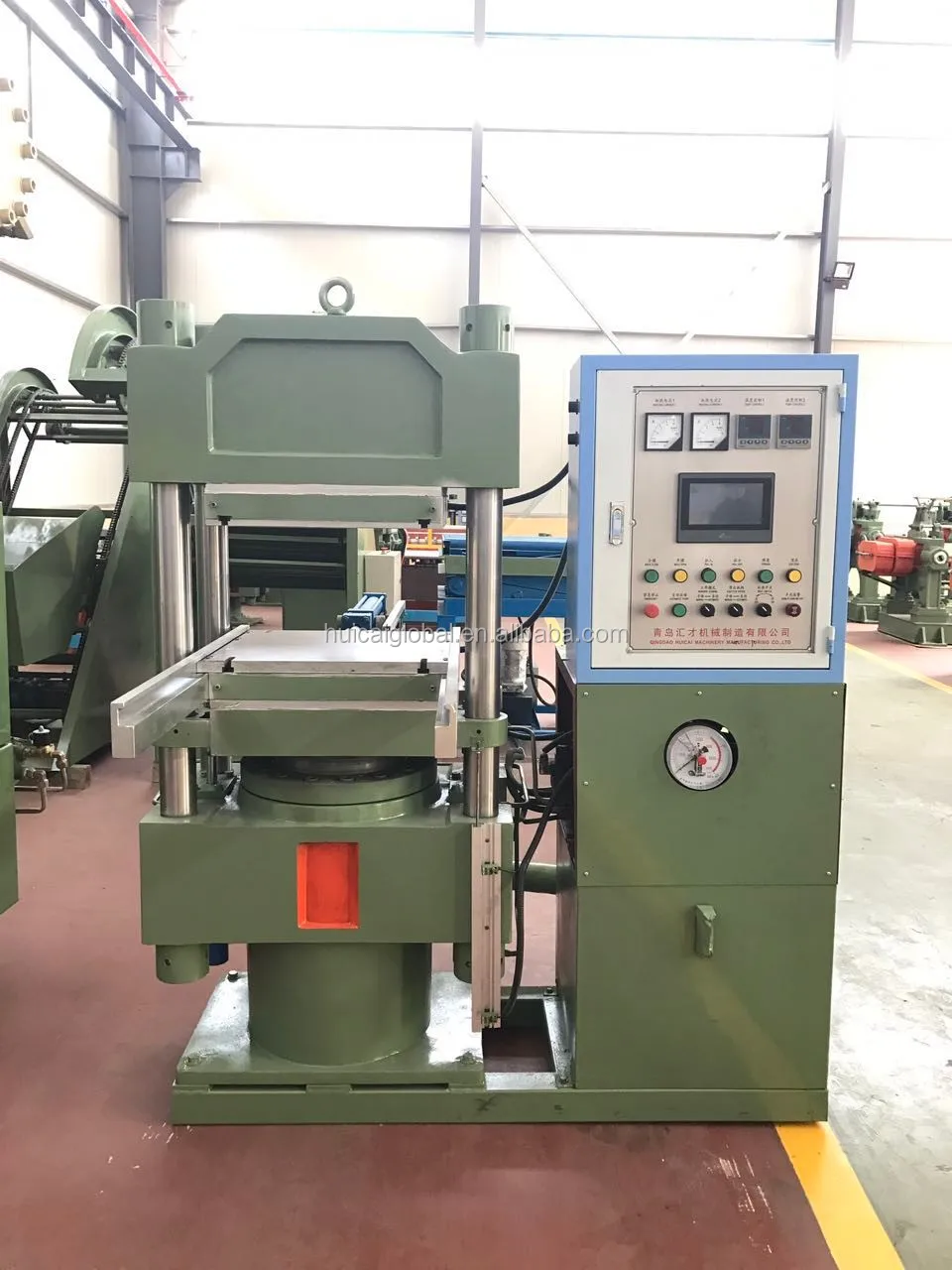

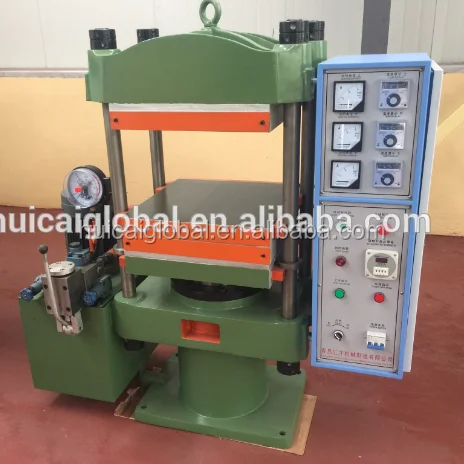

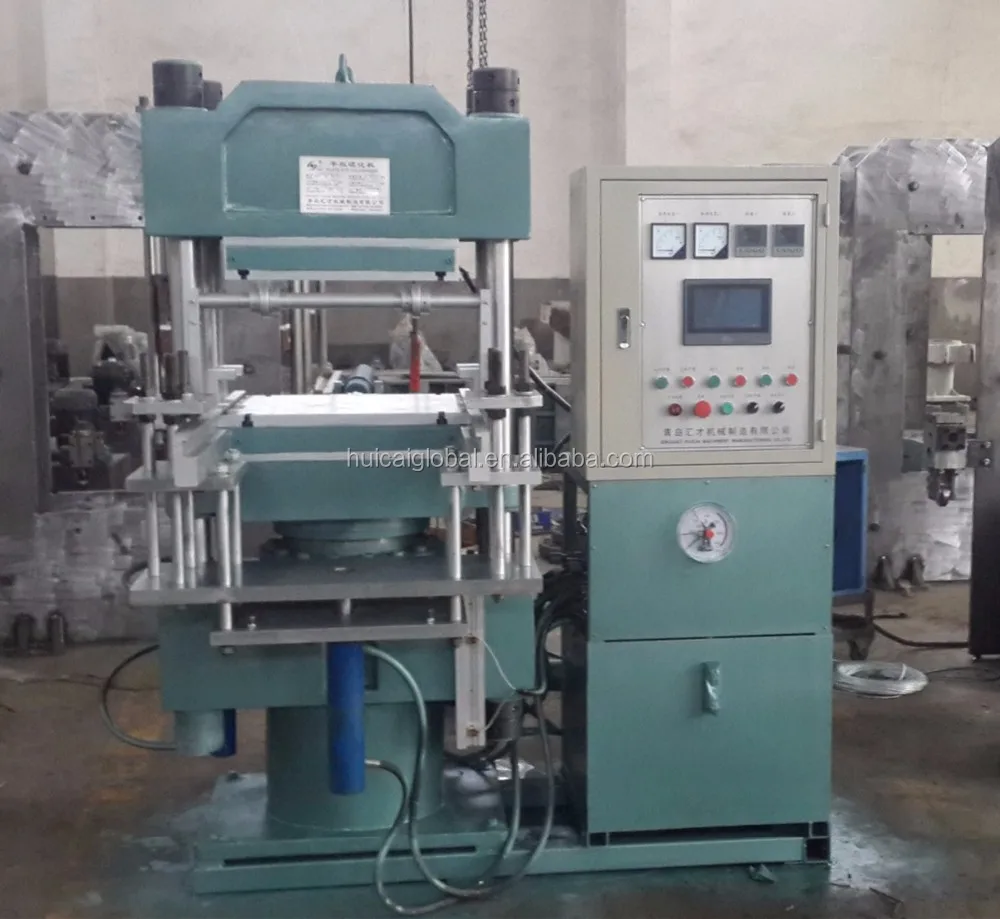

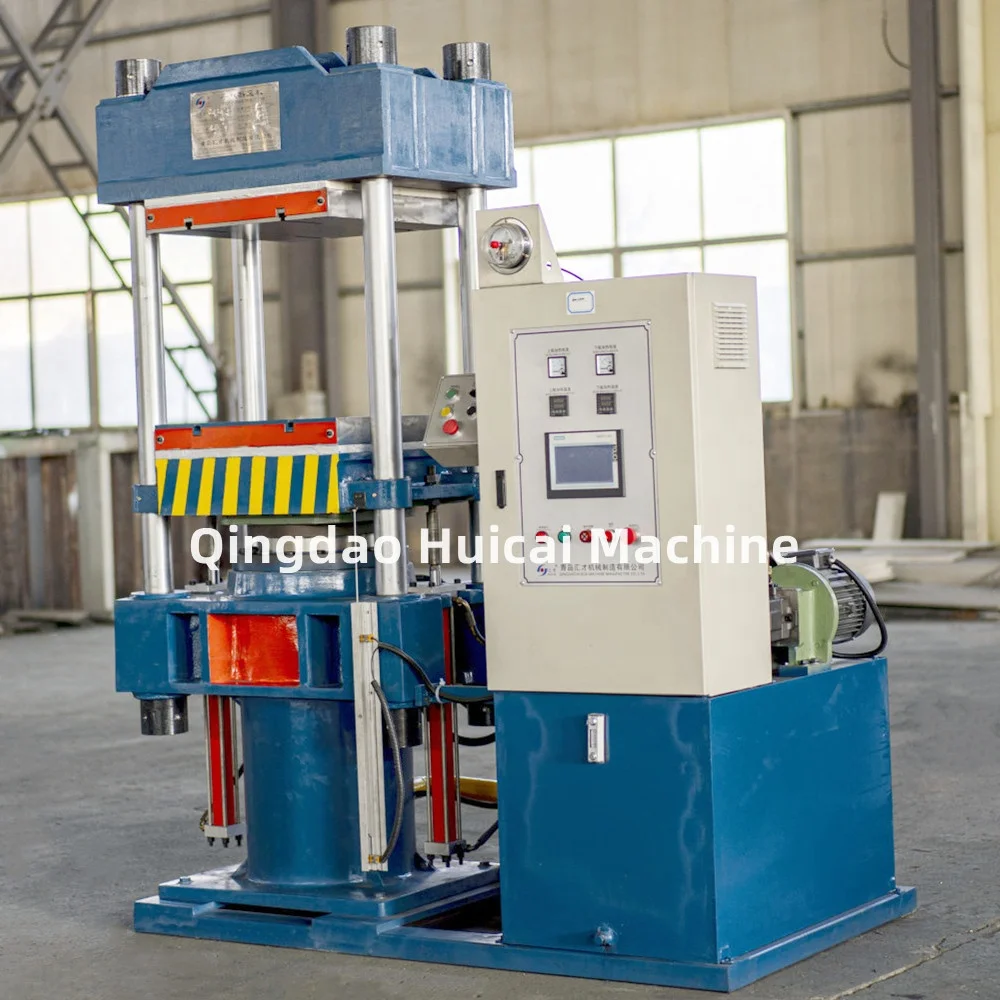

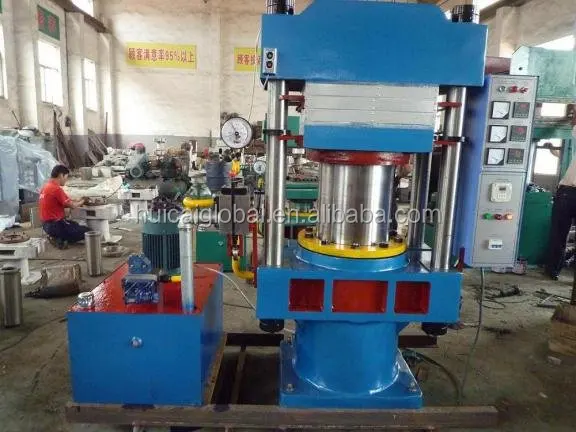

This rubber vulcanizing machine is belongs to medium-sized plate vulcanizing machine series, mainly for the rubber vulcanization, generally USES the pillar type and frame type structure, compact structure, beautiful modelling, and mold force is great. This machine is with its unique double temperature station structure and high pressure adapts to manufacturing all kinds of rubber products, such as Silicon Wristbandrubber tile,solid tire, rubber slippers, shoe sole, rubber stamp, etc.we also manufacture large vulcanizing machine forband .etc.

Features

1. High speed open/close molds, high production efficiency

2. Automatic in/out mold and ejector device, low labor strength

3.Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption

4. The electric system adopt PLC programming control, which is easy to be operated



Type	XLB-D(Y)350x350x2	XLB-D(Y)400x400x2	XLB-D(Y)500x500x2
(MN)Nominal molding power	0.25	0.5	0.6,0.8
Working layer number	2	2	2
(mm)Piston stroke	250	250	250
(Mpa)Plate pressure	2.04	3.13	3.2
(KW)Main motor power	1.5	2.2	2.2
(mm)Plate distance	125-200	125-200	125-200
Calefaction manner	Electricity (Oil)	Electricity (Oil)	Electricity (Oil)
Configuration	Column, Frame	Column, Frame	Column, Frame
Electric pipe heating power (KW)	1.8	2.7	3
Type	XLB-D(Y)450x450x2	XLB-D(Y)500x1000x1	XLB-D(Y)750x850x1
	XLB-D(Y)600x600x2/4	XLB-D(Y)600x800x1	XLB-D(Y)800x800x1
(MN)Nominal molding power	1	1	1.6
Working layer number	2	2/ 4	2
(mm)Piston stroke	300	300	300
(Mpa)Plate pressure	4.94/ 2.78	2.00/ 2.08	2.51/ 2.5
(KW)Main motor power	2.2	2.2	2.2
(mm)Plate distance	125-250	125-250	125-250
Calefaction manner	Electricity (Oil)	Electricity (Oil)	Electricity (Oil)
Configuration	Column, Frame	Column, Frame	Column, Frame
Electric pipe heating power (KW)	2.7,3.6	5.4/ 4.8	4.8



We are professional manufacturer of machinery



About us--

Qingdao HUICAI Machine Manufacture Co., LTD.



1. has specialized in machine manufacture almost 20 years;(since 1996)

2.100% real manufacture meet all your requests;

3.CE,ISO Certification;

4.provide one year quality guarantee and long-term technical support;

5.provide all kinds of rubber machine:

Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutter etc;

6.our machine are welcome by the world,popular in lots of markets



About Us:

We are a successful manufacturer and foreign trade company that has a good reputation of providing our customers with the best service and online buying experience in the business. Please feel free to email us or call us . Your email

will be appreciate and we reply you as soon as possible.



Notice:

we can accept FOB,CIF,CFR,EXW,etc.

Payment Item:30%TT in advance,70% balance before shipment.

Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter

Packing:bare packing, some parts are packed in wooden case.
