TES1 01702 12*12Mini thermoelectric cooler peltier module cooler suppliers

Product Overview

Description

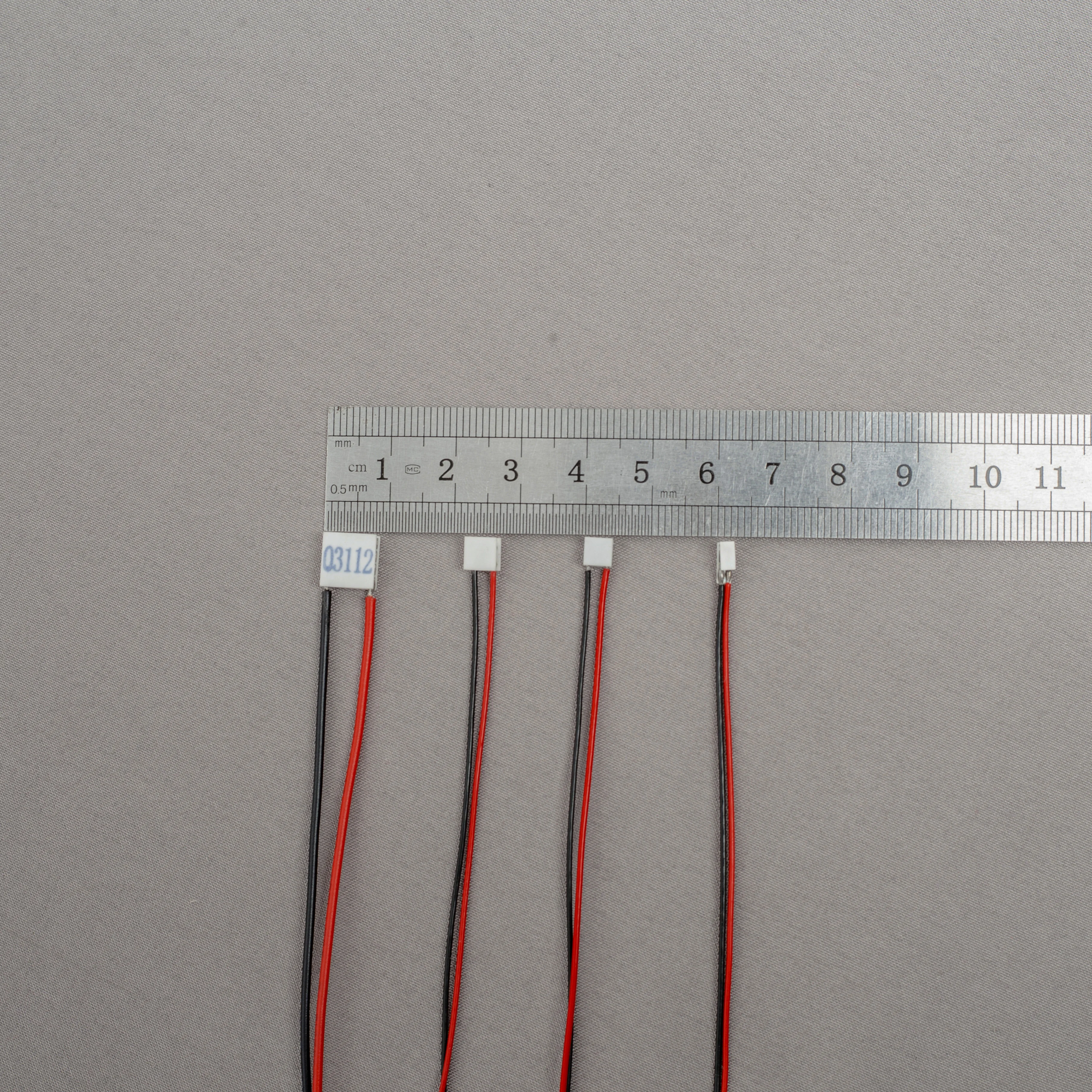

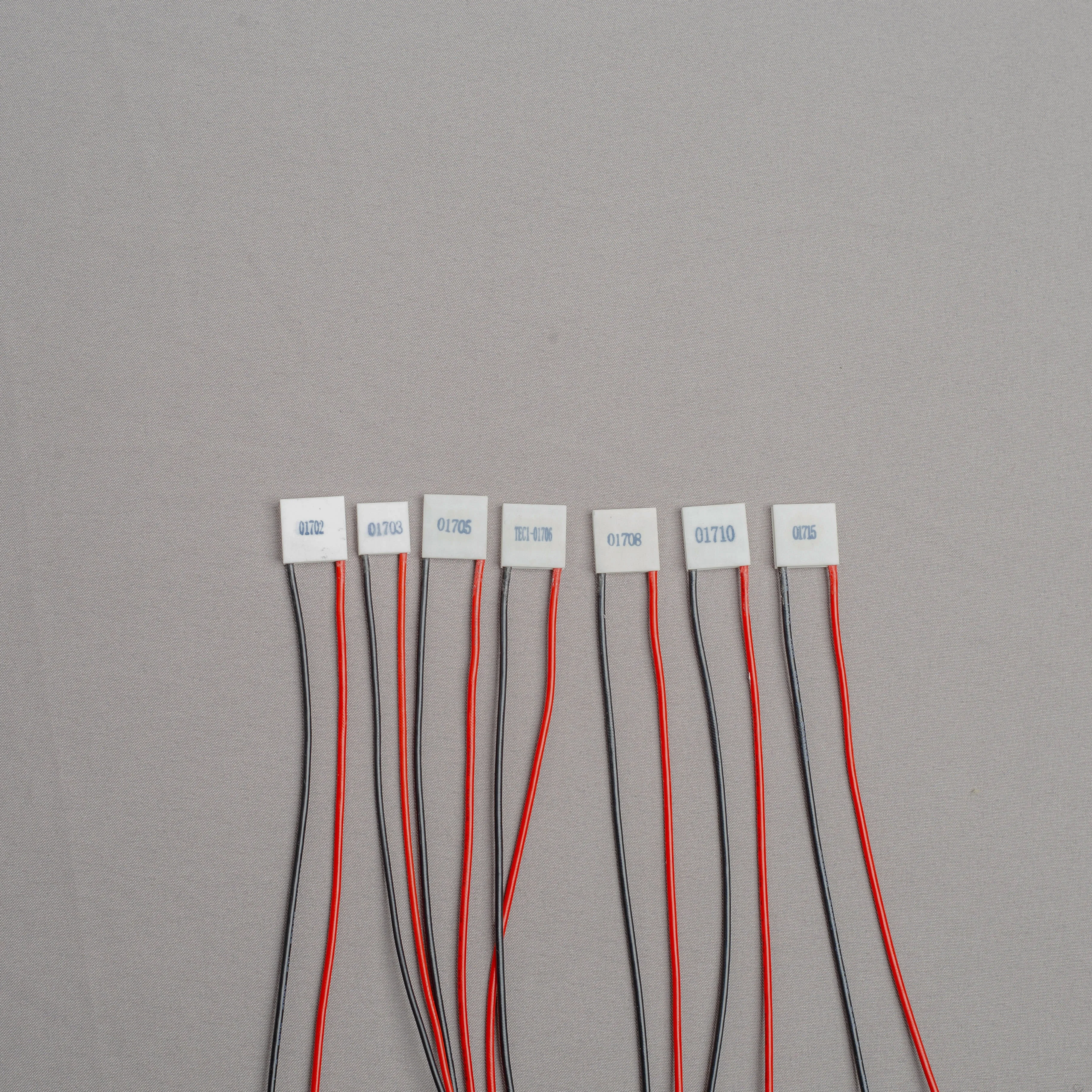

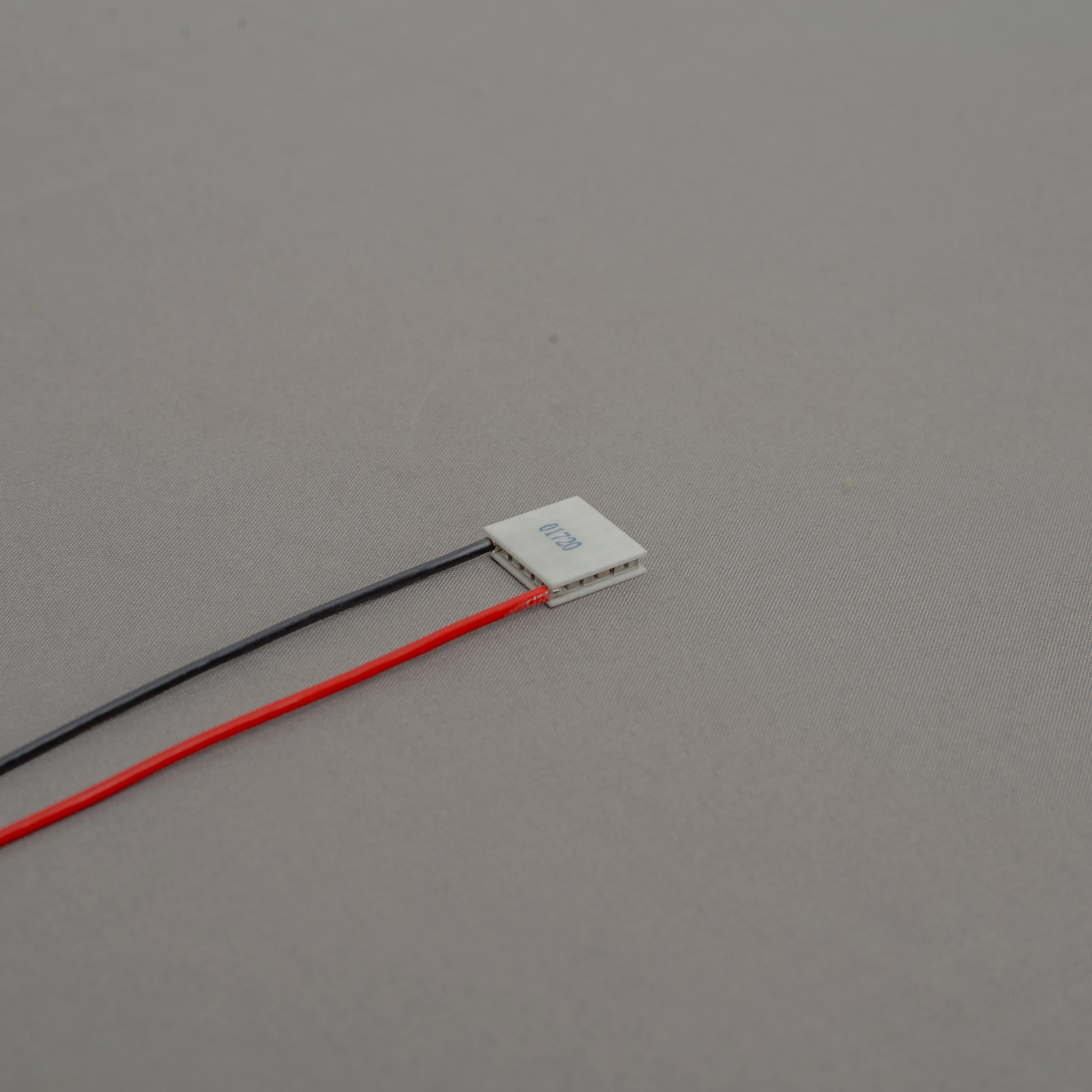

TES1-01702 12*12Mini thermoelectric cooler peltier module cooler suppliers

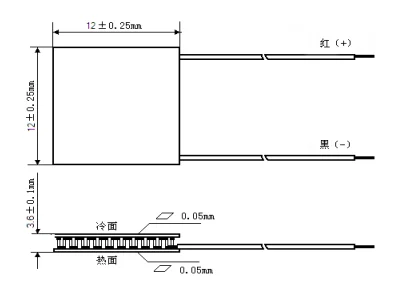

   Ⅰ,TE Module Drawing:



  Ⅱ,Materials

1.Ceramic plate: 96%Al2O3 white color

2.Seal: Sealed with 704 RTV

3.Thermolectric material: Bismuth Telluride

  Ⅱ,Materials

1.Ceramic plate: 96%Al2O3 white color

2.Seal: Sealed with 704 RTV

3.Thermolectric material: Bismuth Telluride

Ⅲ,TE Module Specification

Item	Specification		Note
Max Current	Imax	2A	Th=30℃
Max Voltage	Vmax	2V	Th=30℃
Max Deta T	ΔTmax	≥63	QC=0, Th=30℃
Max cooling POwer	Qcmax	2.3W	ΔT=0℃, Th=30℃
Working Temp	TR	-50-80℃
Power Wire	22AWG  CSA 1007  L=150mm or require

    IV.Reliability

Reliability requirements	1. Service Life: The service life of the product is 300000h under the prescriptive conditions of operation method, transportation and storage.
	2. Test method: the cooling and heating alternating Test . A cycle period of the product is 6s working with electricity and 18s pause, then 6s working with reverse electricity and 18s pause. The total testing time is 12h during which the temperature at the end of the 6th second reaches 80℃ by adjusting the current. The absolute value of change rate of the internal resistance should be no more than 5% after testing.
	3. Storage life: The storage life is 5 years if the product is preserved in dry, ventilated, non-corrosive-gas warehouse with   -10-40℃ and no more than 80% relative humidity.
package	Styrofoam box and carton

  V.The correct installation/assemble method.

1.There is cooling fin in one side of the peltier cooling module, and the other side install cooling system, the planeness of the install surface can’ t over 0.03mm,the surface need to be deburred and clean the dirty.

2.The module, cooling fin and cooling system should contact with each other very well, the touch surface need cover with heat-conducting glue.

3.Locate the module, apply the force evenly, make sure not over-force, avoid crushing the module.

VII. The correct working condition.

1.Use direct-current main, the voltage do not over the nominal voltage. The power supply ripple under 10%.

2.The electric current can’t over rated current.

3.Do not give a backward voltage suddenly when the module is working(after 5 min can do this)

4.Not into the water inside of the module.

5.The humidity around the module do not over 80%.
