PM9833A гармонический Тип 3 фазы измеритель мощности
- Category: Electrical Instruments >>>
- Supplier: Dongguan NAPUI Electronic Technology Co. Ltd.
Share on (60733377496):
Product Overview
Description

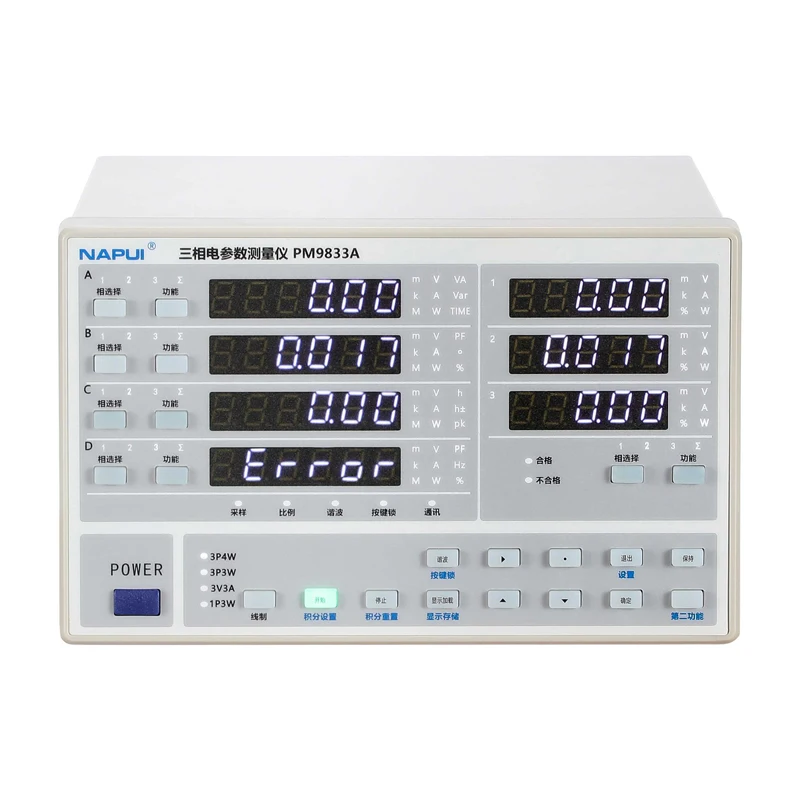

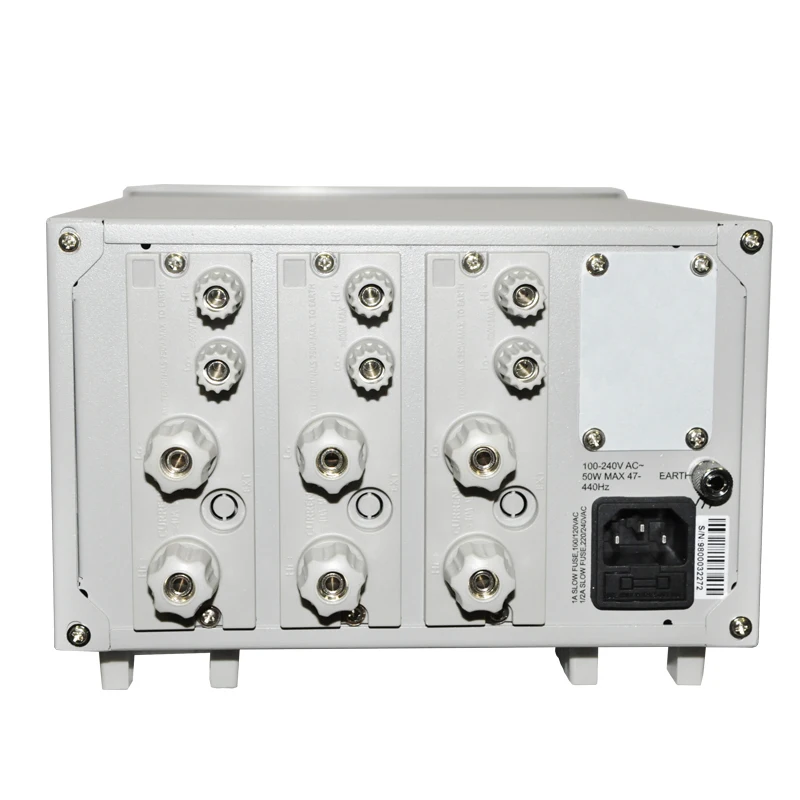

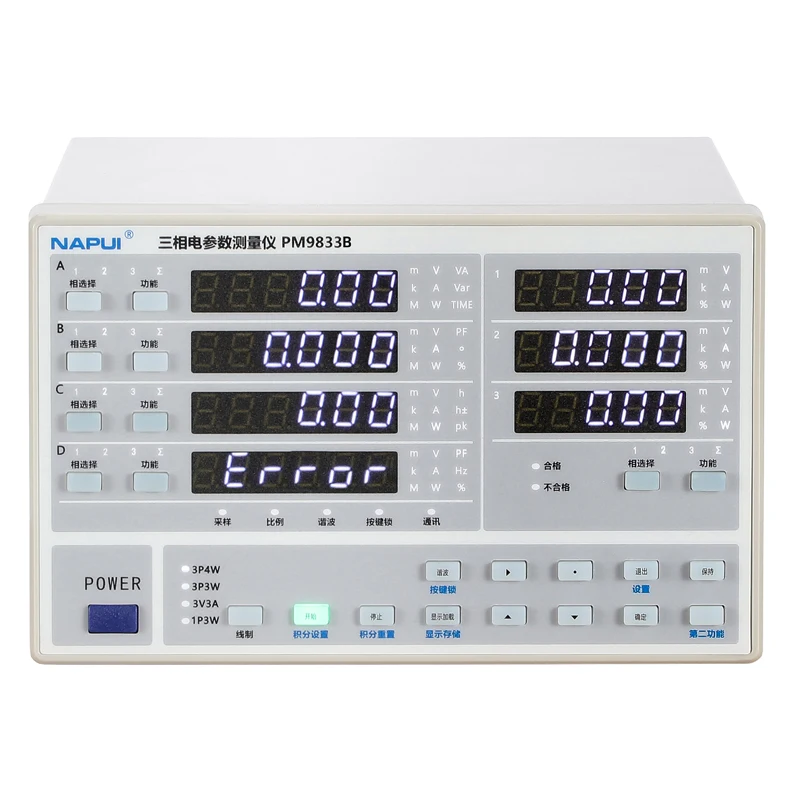

PM9833A Harmonic type 3 phase power meter
Products Features:
1. LED digital screen display, voltage, current, power, power factor/frequency
2. All measurements are Trms
3. Automatic range
4. Accuracy: 0.5
5. Not affected by external noise
6. Support data locking
7. Can be set current and power lower and upper alarm function, PASS the light is Green, NG the light is Red, Easy to distinguish
Areas of Application:
Power consumption test for household appliance
Power consumption test for the air-condition
Power consumption for light products
Power consumption test for LED Lamps
Test for electric machine and Motor
Test for chargers and switching power supply
Connection | Single Phase, three-phase three-wire system two-unit method, three-phase three-wire three-unit method and three-phase four-wire system |
Display | LED Digital screen |
Measuring items | Voltage-V, current-A, active power-W, reactive power Var, apparent power VA, power factor PF, Frequency Hz, Phase angle ph |
Measuring form | TRMS |
Voltage Range | 5V-600V AC(Switch the range automatically |
Current Range | 10mA-20A AC(Switch the range automatically) Peak current:26A AC Min. test current :10mA AC |
Power Range | 0.1W-12KW (Note: the ranges of active power, reactive power, apparent power are consistent) |
Power factor range | 0.001-1.000 Compute mode: watt(W)/[Voltage(V)*current(A)]=Power factor(PF) |
The frequency range | 45-65Hz |
Basic Accuracy | ±0.4% reading +0.1%range+1 digit |
Measuring Speed | Five times per second |
Input Impedance | About 2MΩ(All voltage) |
Power Supply | AC (100-250)V 45/400Hz, DC (100-300)V |
Volume and weight | 430mm(L)*360mm(W)*155mm(H), 9.0KG |

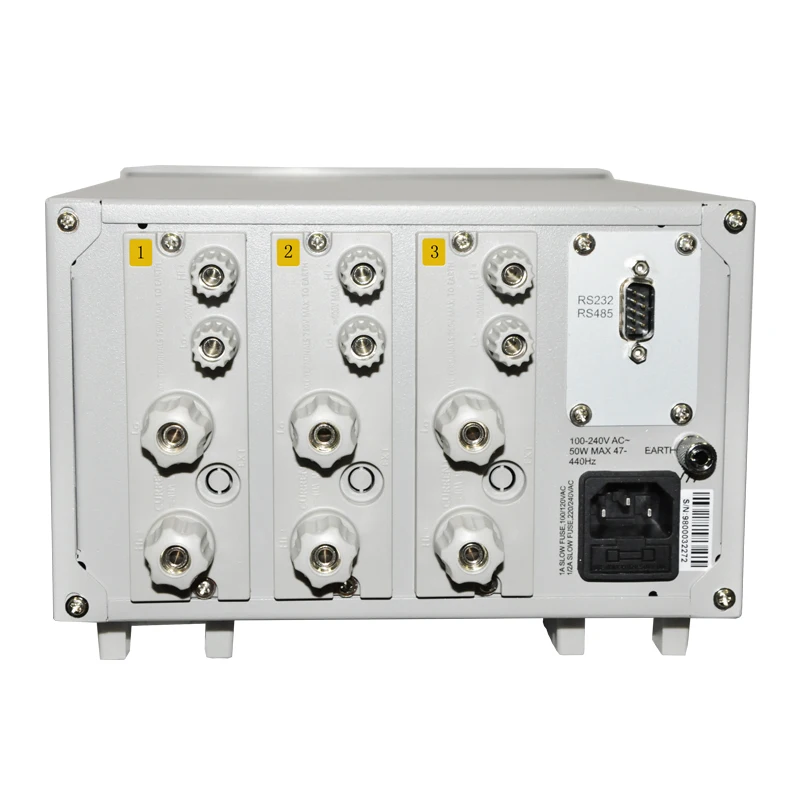

Attachment | Power wire, the warranty card, specification;Optional RS232 or RS485 |
