0,25 мм 0,43 мм черная огнестойкая поликарбонатная пленка UL94 V0 для электрической изоляции

Product Overview

Description

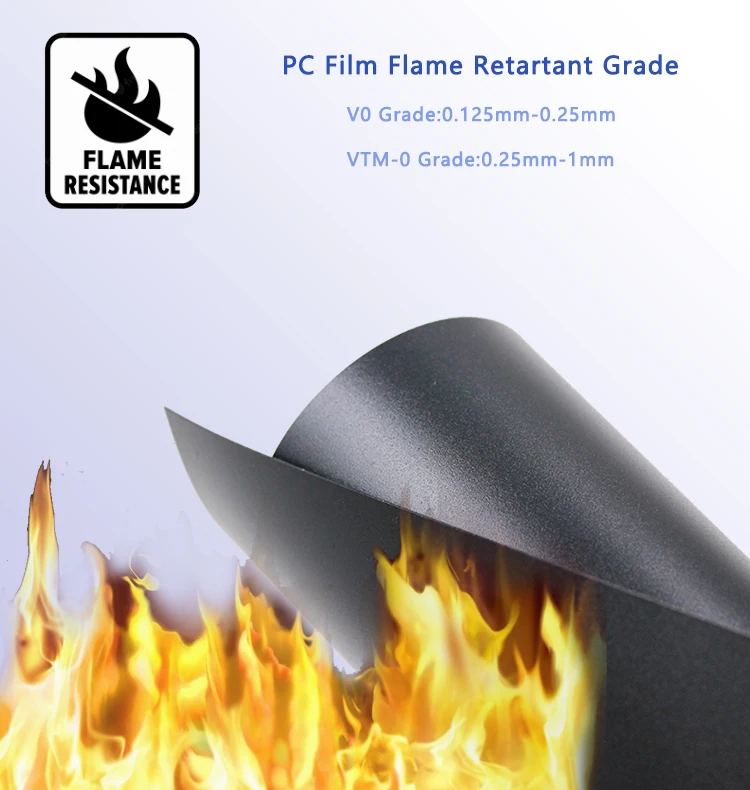

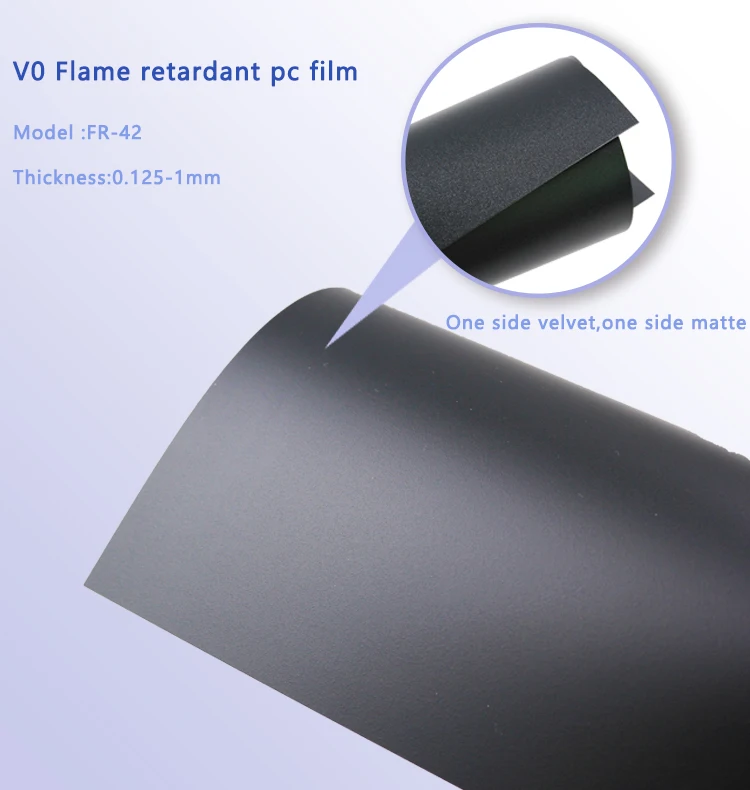

PW-FR42 is a black, one side matte, one side velvet flame-retardant polycarbonate film with a UL94 V-0 listing at 0.250 mm-1mm. VTM-0 at 0.1mm -0.25mm.This film has formability, excellent mechanical properties, good dimensional stability at high temperatures and a high flammability rating, making it good for applications such as power supply insulation, disc drive insulation, bus-bar insulation, TV/monitor insulation, PC board insulation, business equipment insulation and has insulation and EMI/RFI shielding when laminated with metal foil.



Flame retardant Grade	Model	Filter By Finish	Color
VTM-0(0.125mm -0.25mm )     V0(0.25mm-1mm)	FR-41	velvet/polished	Black
	FR-42	velvet/matte
	FR-43	velvet/fine velvet

















Item	Property	Value	Unit	Test Method
Physical	Density	1.23	g/cm3	ISO 1183
	Haze	-	%	ASTM D1003
	Light Transmission	-	%	ASTM D1003
Mechanical	Tensile Strength	60	Mpa	ISO 527
	Elongation	>50	%	ISO 527
	Beng Strength	91	Mpa	ISO 178
	Tensile Modulus	2400	Mpa	ISO 178
	Surface Tension	≥34	Dyn/cm	Test fluid
Electrical	Dielectric Constant	3	-	IEC 60250
	Resistant Puncture Voltage	30	KV/mm	IEC 60243
	Surface resistivity	1.00E+16	Ω/square	IEC 60093
	Volume resistitity	1.00E+17	Ω-cm	IEC 60093
Thermal	Coefficient of Thermal Expansion	5.8	×10-5/℃	ISO 11359
	Thermal Conductivity Rate	0.2	W/(m*K)	ASTM D5470
	Thermal Shrikage(150℃)	0.5~0.7	%	ASTM D1204
	Tg	152	℃	ISO306
Flammability	Grade of resistant flame	VTM-0/V-0		UL94

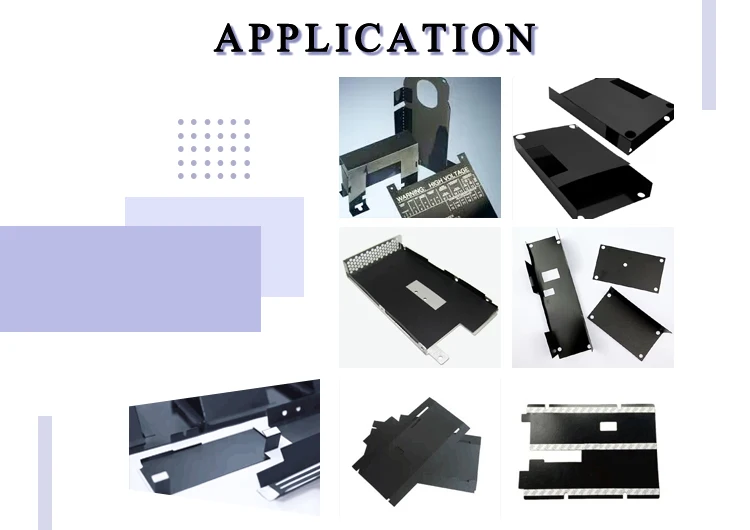

Features:	Application:
Formability	Power supply insulation
Excellent mechanical properties	Disc drive insulation
Good dimensional stability at high temperatures	Bus-bar insulation
High flammability rating	TV/monitor insulation
No halogen	Business equipment insulation
Environmental	PC board insulation

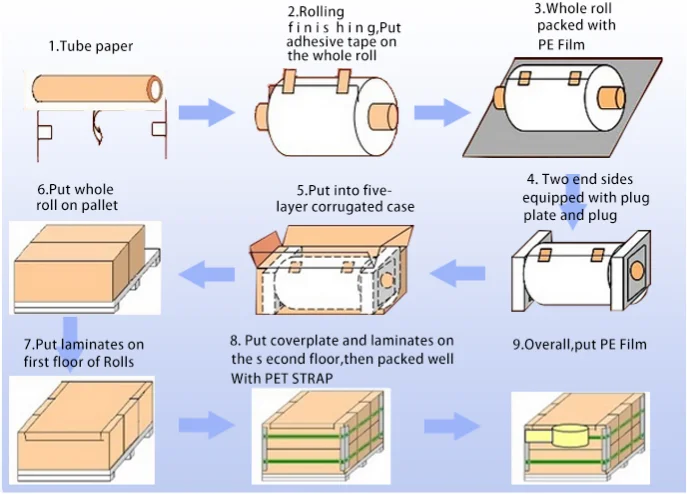

Model	Thickness(mm)	Width x Length (mm x m)	Thickness(inch)	Width x Length  foot x foot	Packing standard
ZS-FR42	0.1	930 x 1000	0.004"	3' x 1640'	Roll and Piece
	0.125	930 x 400	0.005"	3'x1312'
	0.175	930 x 350	0.007"	3'x1148'
	0.25	930 x 300	0.010"	3'x984'
	0.375	930 x 200	0.015"	3'x656'
	0.43	930 x 175	0.017"	3'x574'
	0.5	930 x 150	0.02"	3'x492'
		1220 x 2.44
	0.76	930 x 100	0.03“	3'x328'
		1220 x 2.44
	1	930 x 80	0.04”	3'x262'
		1220 x 2.44
	UL94 V0 Flame Retardant Polycarbonate Film For Electrical Insulation











Q:Is your company a factory or trade company?

---Zhengshun has own factory and on this business more than 10 years. As the source of many pc manufacturer, we believe can do most of what you need about polycarbonate sheet.

Q:Do you take special orders?

---Yes. We accept customized producted.And we also accept small order.

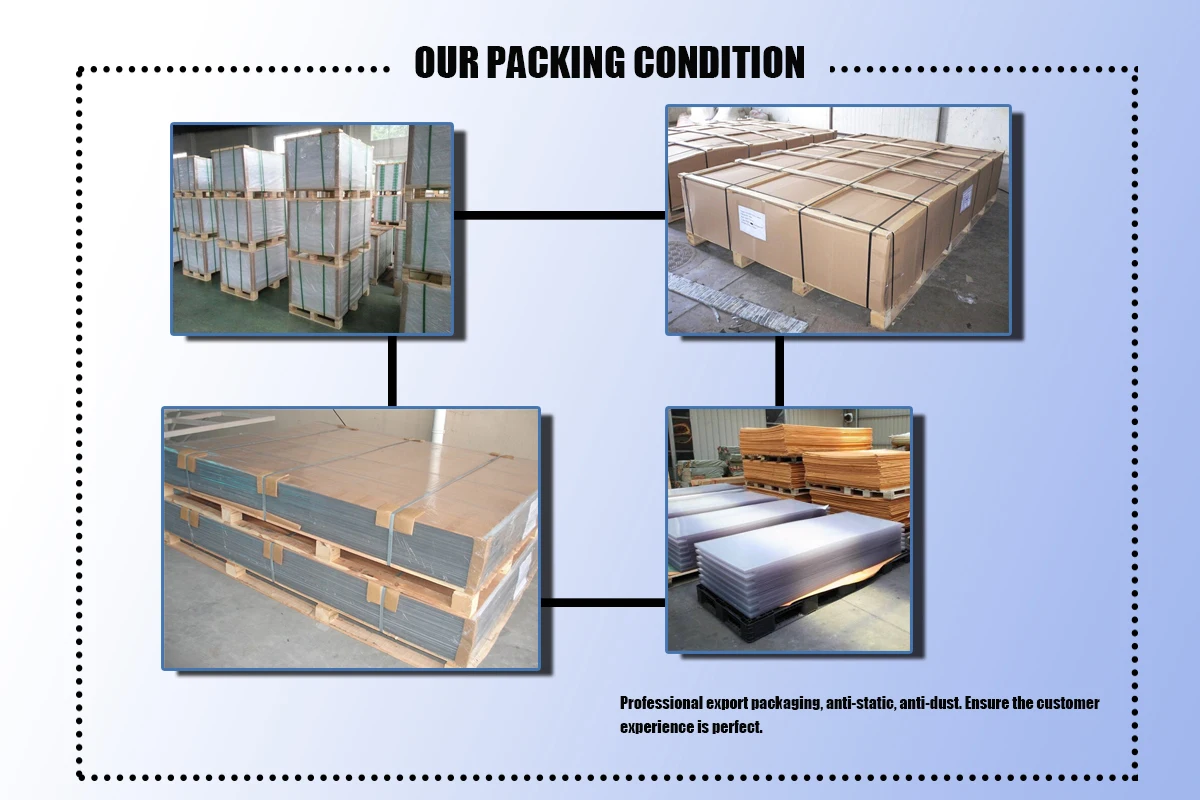

Q:What are the shipping and storage requirment?

---Store project solid sheet away from direct sunlight. Avoid contact with chemicals,paintsand solvents due to their incompatibility with polycarbonate.

Q: Can the polycarbonate sheets be curved?

---Yes. Sheets can be cold-curved and serve in arched shapes, provided the relewant ZHENGSHUN specifications can be found in the installation instructions of the relevant sheets.

Q: How to choose the suitable sheets ?

---If you are not sure which kind of sheet that you will use, please contact us and tell us your application, we have professinal technicians and salesman who are always at your service
