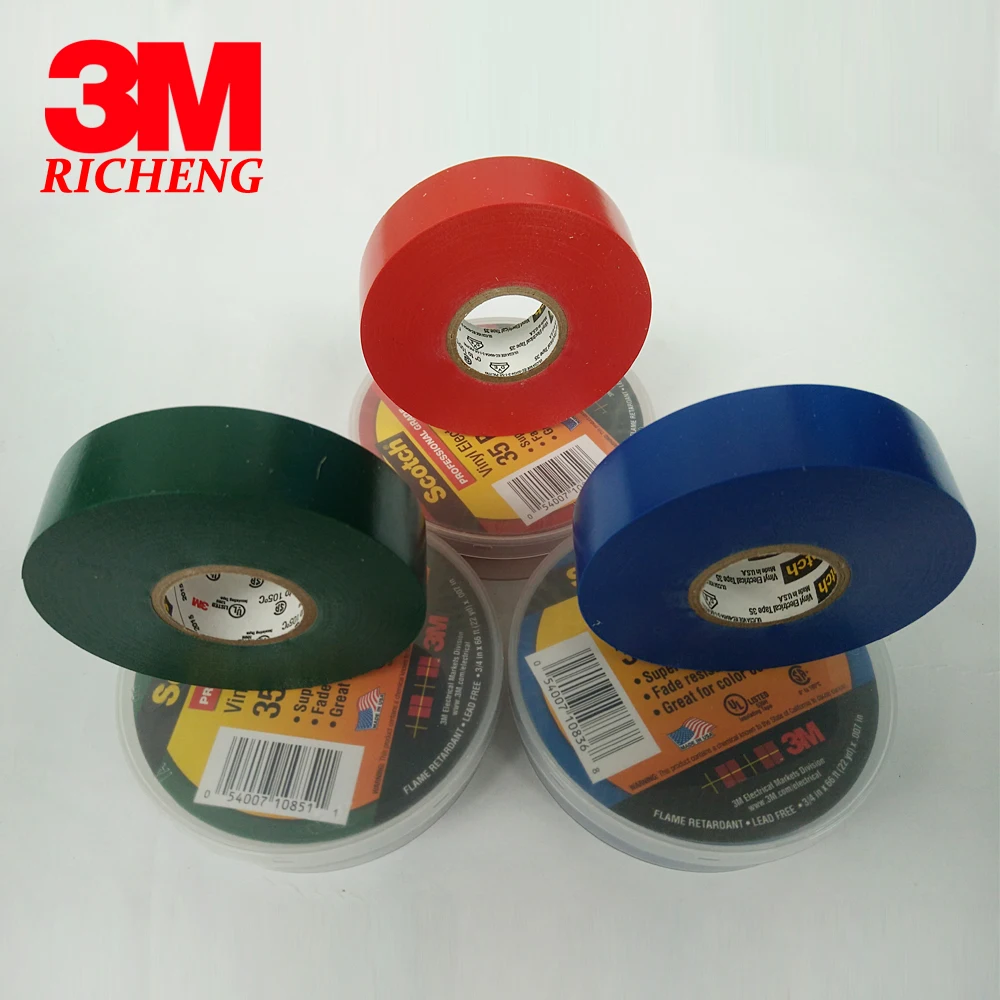

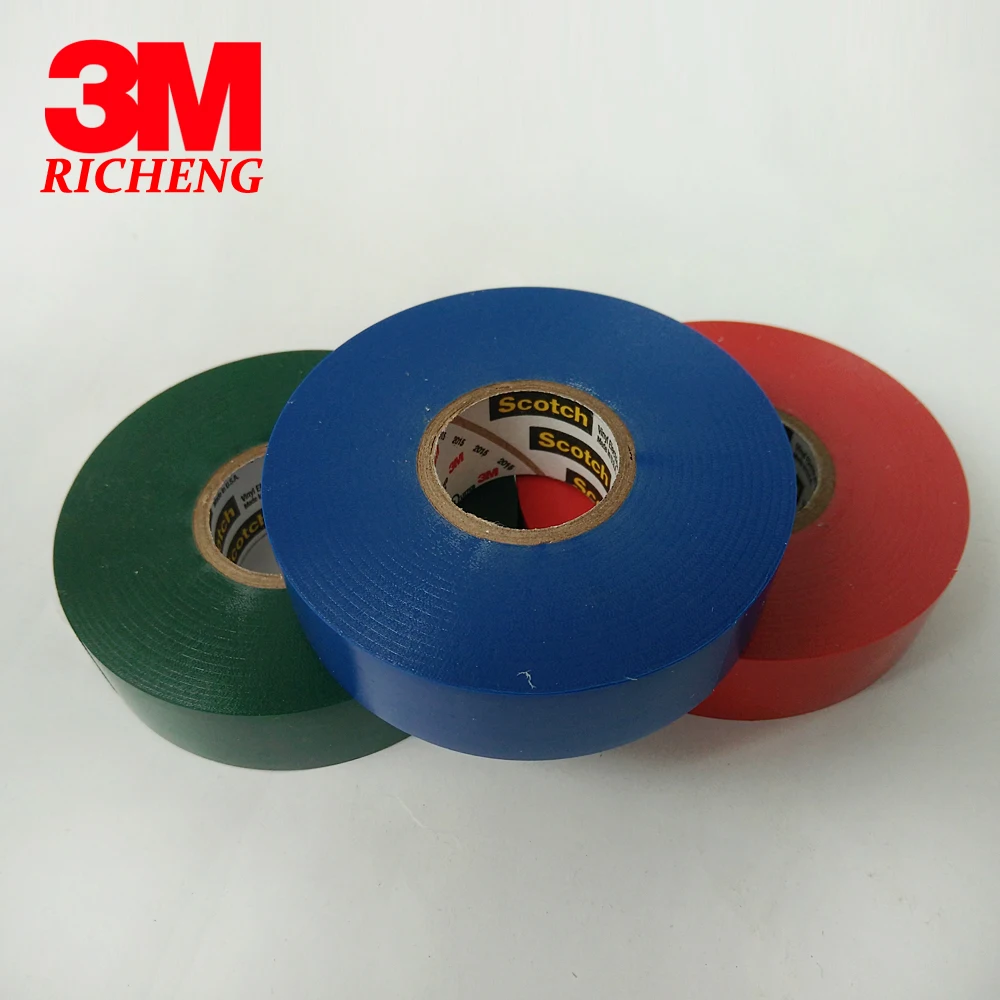

3M Vinyl Color Coding Electrical Tape 3M 35 Vinyl Color Coding Electrical Tape china wholesale insulating tape electrical
- Category: >>>
- Supplier: Shenzhen Richeng Electronic Matrial Co. Ltd.
Share on (60733451680):
Product Overview
Description
Product Description
3M Vinyl Color Coding Electrical Tape 3M 35 Vinyl Color Coding Electrical Tape china wholesale insulating tape electrical
Specifications
Attribute Name | Value |
|---|---|
Adhesion Strength | 30 Ounce, 40 Ounce |
Adhesion to Steel | 2,2 N/cm, 20 oz/in (2,2 N/cm) |
Adhesion to Steel oz/in (N/100 mm) | 30 (33), 40 (44) |
Adhesive Material | Rubber Resin |
Adhesive Type | Rubber |
Agency Approvals | CSA Certified, UL Listed |
Applications | Electrical Maintenance |
Backing Material | Polyvinyl Chloride, Vinyl |
Backing Thickness (metric) | 0.18 mm |
Brand | 3M, 3M® |
Breaking Strength | 17 lb/in |
Case Quantity | 10 Rolls |
Chemical Resistant | Yes |
Color | Blue, Brown, Gray, Green, Multi-Color, Orange, Pink, Red, Violet, White, Yellow |
Dielectric Strength | 1250 V/mil |
Dielectric Strength (V/mil) | 1250, 1250 V/mil |
Electrolytic Corrosion Factor | 0.9 |
Elongation | 2.25 %, 225 % |
Elongation at Break | 2.25, 225% |
Family | 3M® Vinyl Color Coding Electrical Tape 35 |
Flame Retardant | Yes |
High Temperature Rating | 221°F (105°C) |
Insulated | Yes |
Insulation Resistance | > 10^6 megohms |
Length | 20 Linear Foot, 66 Linear Foot |
Length (Metric) | 20 m, 20.1, 20.1 m, 6.1 m |
Low Temperature Rating | 32°F (0°C) |
Lubricant Type | Gel |
Material | PVC |
Maximum Operating Temperature (Celsius) | 105 Degree Celsius |
Maximum Operating Temperature (Fahrenheit) | 221 Degree Fahrenheit |
National Stock Number | 5970003391290, 5970007882131, 5970003391291, 5970010177389, 5970003391292, 5970004822559, 5970010139366, 5970010139367, 5970010139368, 5970014167205, 5970010139369, 5970010155060, 5970010177388, 5970010230170, 5970011121833, 5970011745651, 5970015611848 |
Operating Temperature (Celsius) | 0 °C to 105 °C, Up to 105 Degree Celsius |
Operating Temperature (Fahrenheit) | 32 °F to 220 °F |
Operating Temperature Range (Celsius) | 0 °C to 105 °C |
Operating Temperature Range (Fahrenheit) | 32 °F to 220 °F |
Performance Level | Professional Grade |
Product Markets | Electrical Construction, Electrical Equipment Manufacturing, Electrical MRO, Power Distribution |
Product Type | Vinyl Electrical Tapes |
Recovered Wall Thickness | 0.113 Inch |
RoHS 2011/65/EU Compliant | Yes |
RoHS EU Comments | |
Rolls per Carton | 10 |
Rolls per Case | 100 |
Round Size (Diameter) | 15 kV), 2-1/2 to 4 Inch (for 5 kV |
Self-Extinguishing | No |
Self Sticking/Amalgamating | No |
Shelf Life | 5 Year |
Solution for | Wireless Network: Infrastructure Accessories |
Specifications | VDE 0340-TEIL1 |
Suitable for High Voltage | For marking only |
Tape Grade | Premium |
Tape Length (metric) | 33 m, 55 m |
Tape Total Thickness | 7 Milli-inch |
Tape Total Thickness (metric) | 0.177 mm |
Tape Type | Vinyl |
Tape Width (metric) | 12 mm, 19 mm |
Tensile Strength lb/in (N/100 mm) | 9 (158), 90 (1577) |
Thickness | 7, 7 mil |
Thickness (Metric) | 0.177, 0.177 mm, 0.178 mm |
Total Thickness | 0.18 mm |
Trademark | 3M™, 3M, 3M® |
UL File Number | E129200 |
UV Resistant | Yes |
Voltage | 35 kV, 600 V |
Voltage Application | Low Voltage |
Voltage Range | 0 - 600 V |
Voltage Rating | 600 V |
Vulcanizing | No |
Width | 0.5 Inch, 0.75 Inch |
Width (Metric) | 12 mm, 12.7 mm, 19, 19 mm, 19.05 mm |
Details
- Excellent electrical and mechanical protection from combined pressure-sensitive, rubber-resin adhesive and PVC backing
- Pressure sensitive rubber adhesive bonds easily and securely
- Suitable for use in phase identification, color coding of motor leads and piping systems and for marking safety areas
- Tensile strength rating of 17 lbs. per inch meets professional electrical standards
- Available in blue, brown, gray, green, orange, red, violet, white, yellow, and pink
- Withstands a temperature range of 32 to 221 degrees F (0 to 105 degrees C)
- UL Listed, VDE, CSA Certified and RoHS 2011/65/EU Compliant

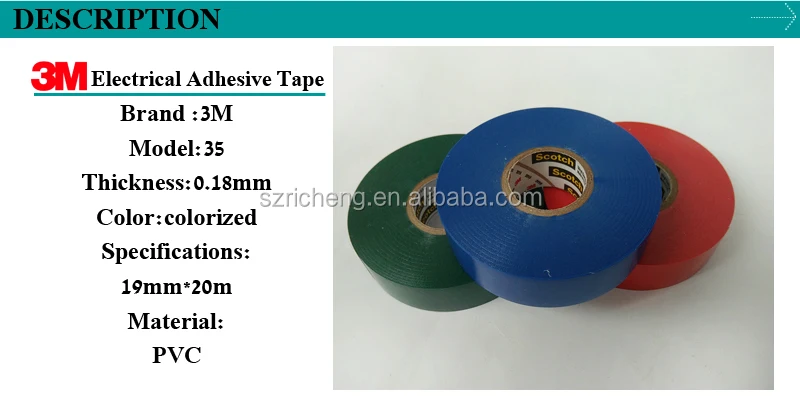

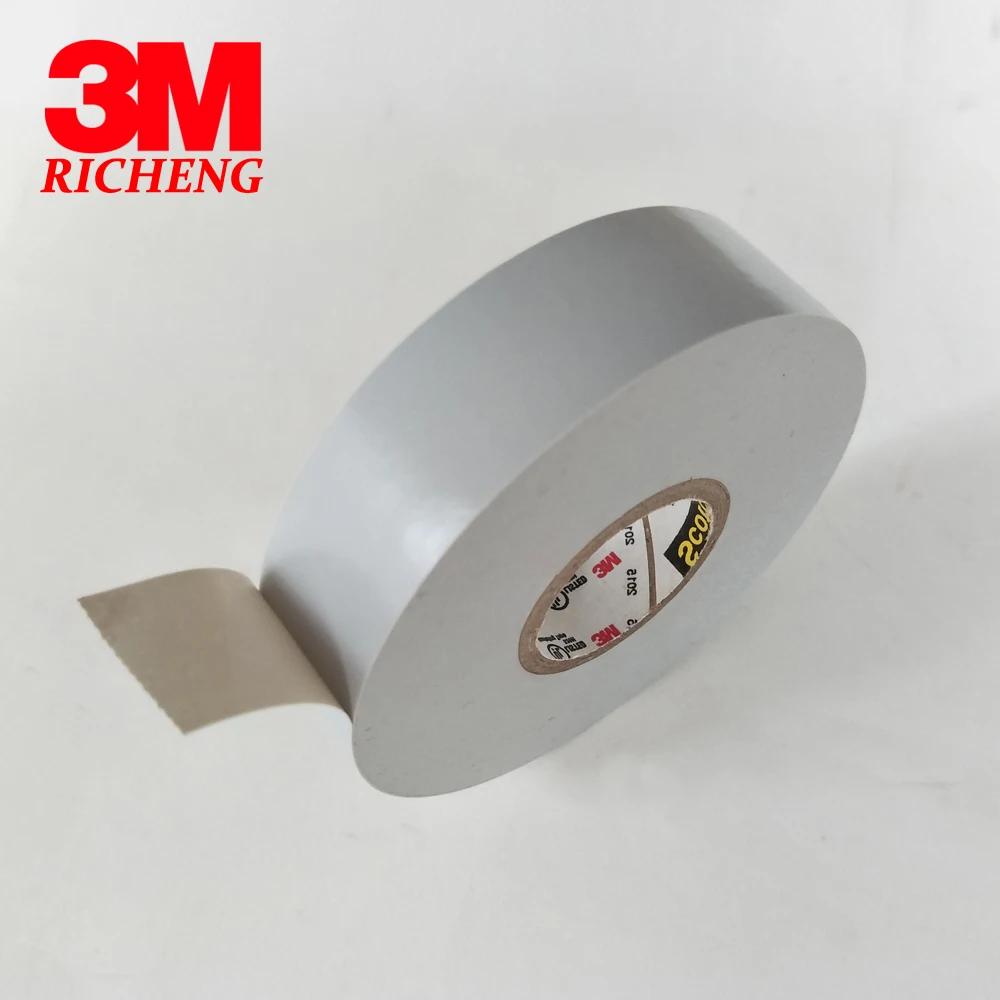

3M® Vinyl Electrical Tape 35 is a premium-grade, 7-mil thick polyvinyl chloride (PVC) color-coding tape. Outstanding electrical and mechanical properties make this tape excellent for use in phase identification, color coding of motor leads and piping systems.
3M® Vinyl Electrical Tape 35 provides electrical and mechanical protection with the combination of an aggressive, pressure-sensitive, rubber-resin adhesive and an elastic PVC backing. This tape is flame-retardant and is highly resistant to UV rays, abrasion, moisture, alkalis, acids, solvents and varying weather conditions. It stretches easily and adheres virtually in any shape. Ideal for insulating electrical wires and is compatible with synthetic cable insulations, jackets and splicing compounds. UL Listed, VDE, CSA Certified and RoHS 2011/65/EU Compliant.
Our Services
We can offer professional die cutting service according to customer’s request or drawing (any shape and any size) with above cutting machines. If any question, please do not hesitate to contact with us.
Company Information
SHENZHEN RICHENG is established in April 2012, we are specialized in selling 3M brand products, including 3M double sided tape, VHB tape, PE/PU foam tape, 300LSE/ 200MP tape, 3M bumpon, 3M dual lock, 3M masking tape, 3M electrical tape, 3M adhesive /glue and so on.
We also have different cutting machines and professional team to offer good die cutting service according to your request and drawing.
Contact us
Q1. If you can provide samples?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1 day, mass production time needs 1-3 days for order quantity more than 1000 rolls
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. What is the customer order process
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
