Product Overview
Description
Product Description
Introduction of snapmaker
3D printers are amazing. Unfortunately, they used to be hulking, complicated, expensive, and with limited functions. We’ve been hearing about and experiencing the pain of setting up the difficult-to-use DIY 3D printer kit and being limited by the standard plug-and-play 3D printer. We are hoping to change that. So we came up with an idea: create an all-metal 3D printer, which is easy-to-use for beginners, expandable for makers, and truly affordable for everyone.
That’s why we designed Snapmaker to be all-metal and all-in-one.
Product description
BASIC SPECS:
Depth : 335 mm (13.2”)
Height : 289 mm (11.4”)
Width : 272 mm (10.7”)
Weight : 4.5 kg (10 lbs)
Frame material : aluminum Alloys
File transfer : microSD card, USB cable
Power requirement : 100 - 240V AC 3.5"
Supported os : macOS, Windows
3D PRINTING:
Heated bed : up to 80°C
Build volume : 125 x125 x125 mm (4.9” x 4.9” x 4.9”)
Print head travel speed : up to 100 mm/s
Layer resolution : 50 - 300 microns
Nozzle diameter : 0.4 mm
Supported mateials : non-proprietary 1.75 mm PLA, ABS, etc.
Nonsupported materials : alumide, graphite, etc.
Supported file types : stl, obj
Software : snap3D. You can also use 3rd party software: Cura, Simplify 3D, Slic3r.
LASER ENGRAVING:
Work area : 125 x125 mm (4.9” x 4.9”)
Laser power : 500 mW
Wave length : 405 nm
Safety class : class 3B
Supported materialsUPPORTED MATERIALS : wood, bamboo, leather, plastic, fabric, paper, non-transparent acrylic, etc.
Nonsupported materials : metal, glass, gem, transparent material, reflective materials, etc.
Supported file types : SVG, JPEG, PNG, etc.
CNC CARVING:
Work area : 90 x90 x50 mm (3.5” x 3.5” x 2.0”)
Shank diameter : 3.175 mm
Input voltage : 24V DC
Supported materials : wood, acrylic, PCB, carbon fiber sheet
Nonsupported materials : metal, glass, gem, plexiglass, etc.
Spindle speed : up to 19,000 RPM.
Supported file types: SVG, STEP, IGES, IGS, DWG, DXF, etc.
Notice:The specifications listed might be slightly changed in any meaningful way when we refine this product.

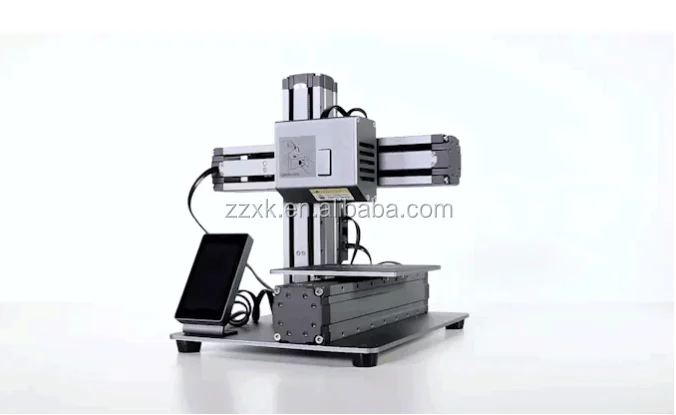

After many stages of analyzing the mechanical design and making prototypes, we’ve developed the Snapmaker 3D Printer to provide an enjoyable user experience. Moreover, It's also a desktop makerspace, a combination of 3D printer, laser engraver, and CNC machine with interchangeable heads. We can't wait to share it with the Kickstarter community and have you help nurture this unique machine with us.
Metal dealing process

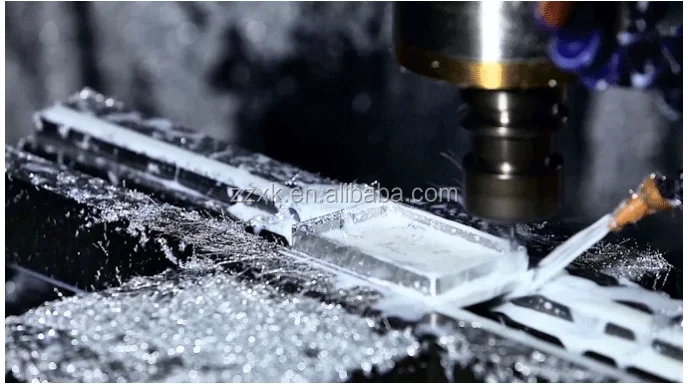

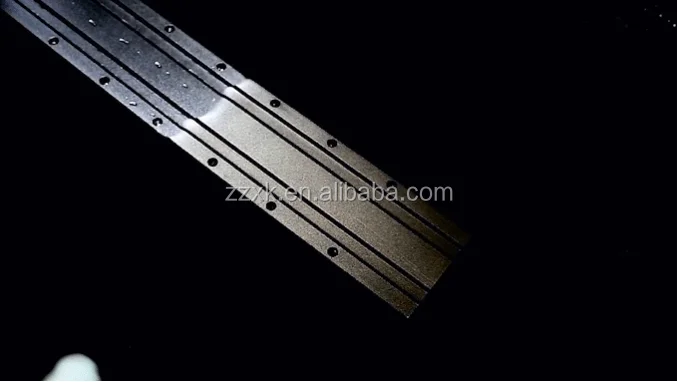

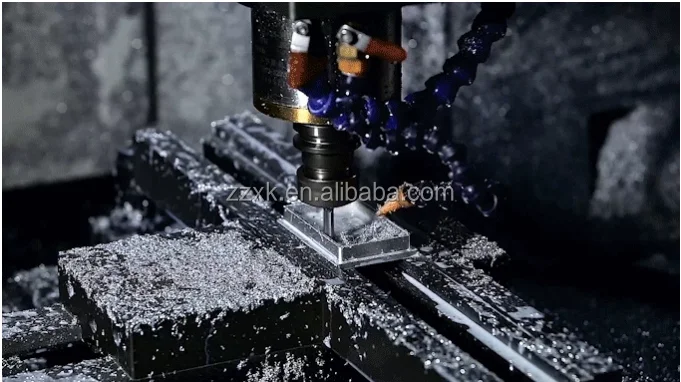

Snapmaker is entirely made of metal, ensuring a high quality and reliable 3D printing experience. Along with a rock-solid aluminum alloys frame, all major components are CNC machined. It uses the precision acme lead screw as a drive mechanism to boost the precision and capacity. The all-metal build also translates into a premium industrial outlook.

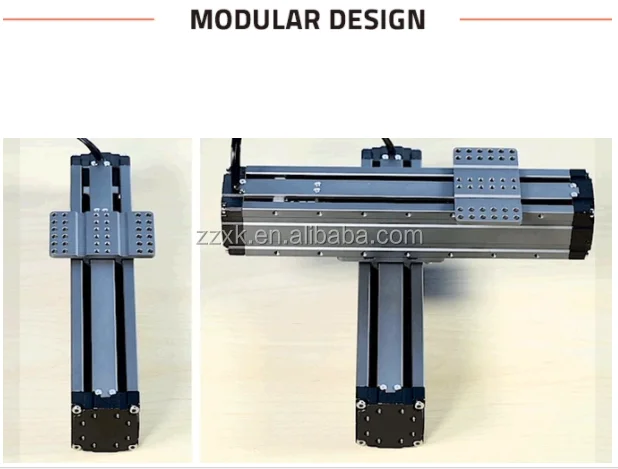

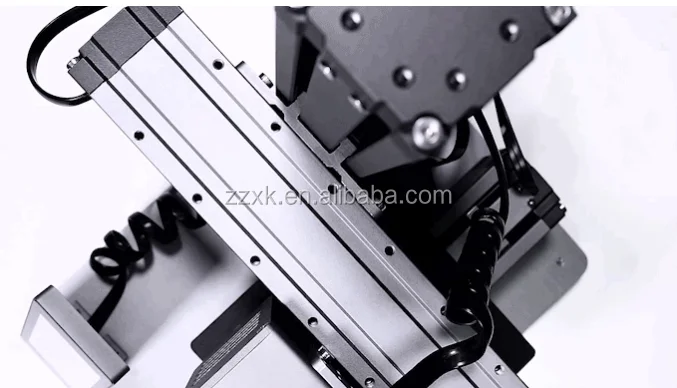

Snapmaker has an innovative modular design, which enables a flat-packed and low-cost shipping, quick assembly, strong expandability and manufacturing cost reduction. In particular, we designed a new type of linear module, which can be used in any of x, y, z direction and performs high precision linear motion.

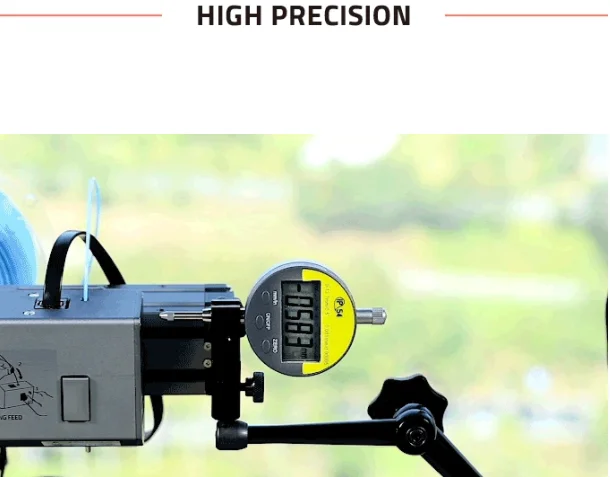

The key to high precision is the combination of a streamlined structure, CNC precision parts, and an improved mechanical design. Snapmaker is capable of high quality printing with excellent details.
A timelapsed video of Snapmaker 3D printing a vase (L 64.5 x W 64.5 x H 80.0mm). We used 1.75mm PLA filament and 0.2mm layer height. It took approximately 1 hour and 19 minutes.
