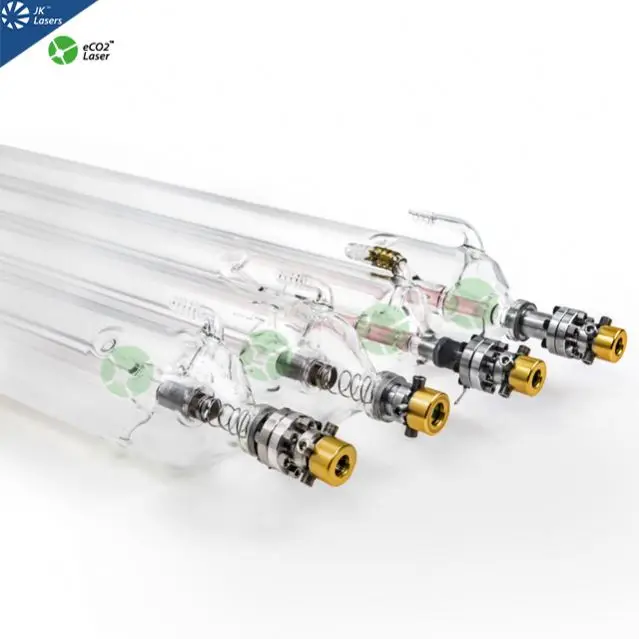

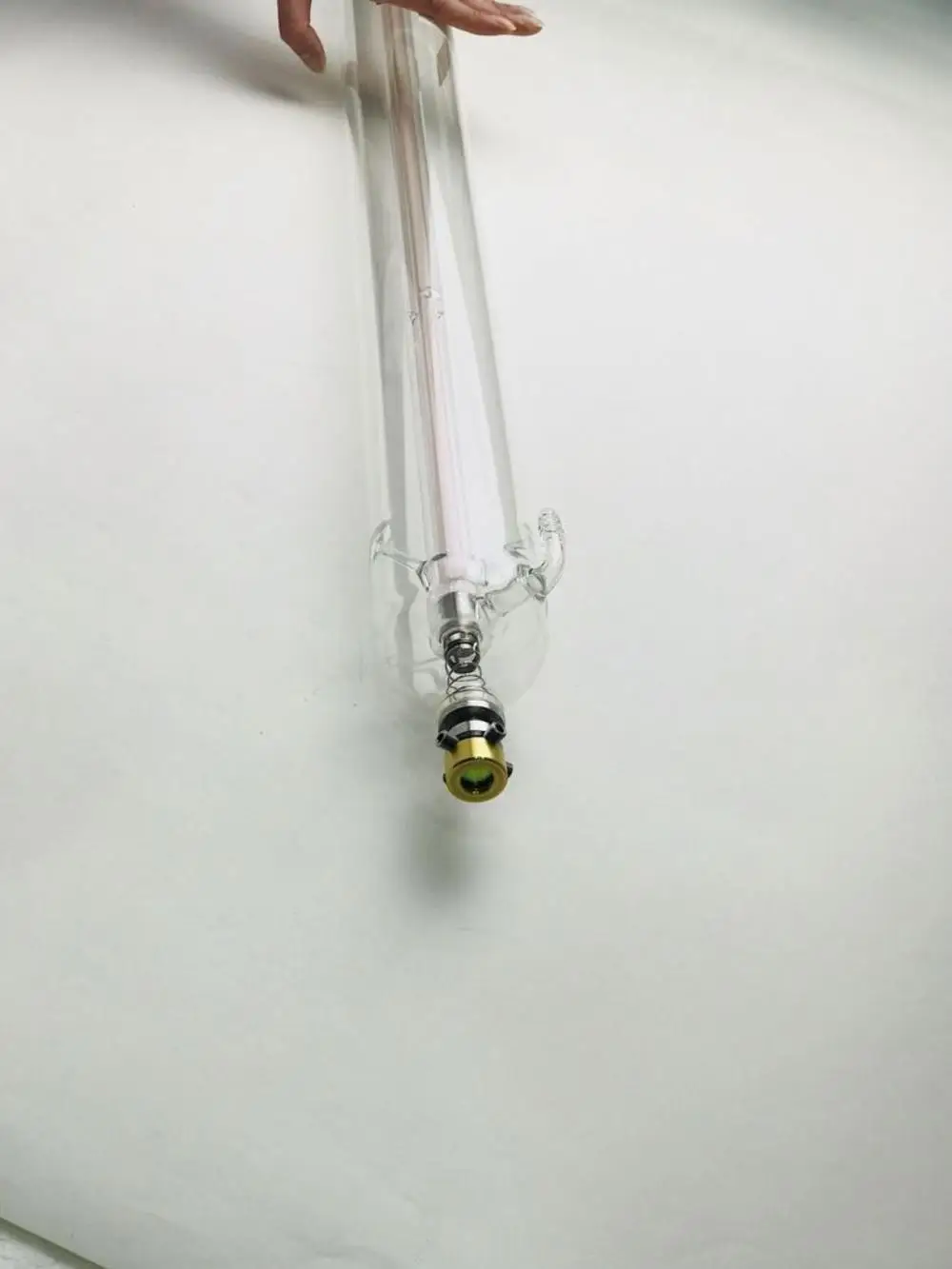

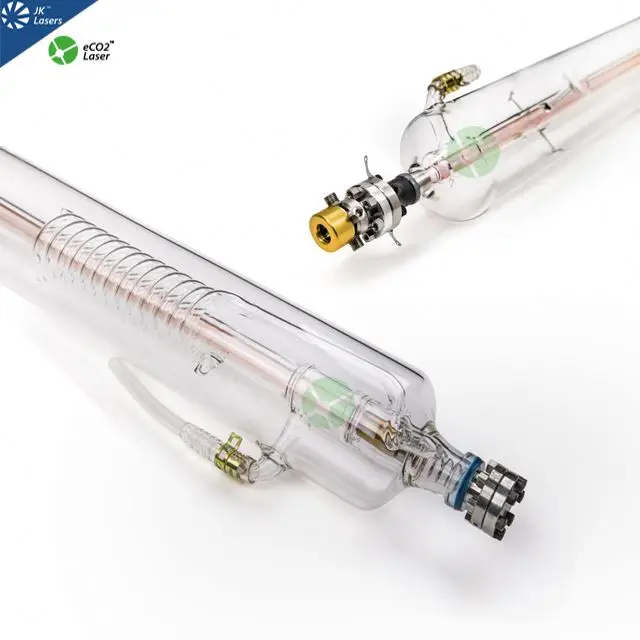

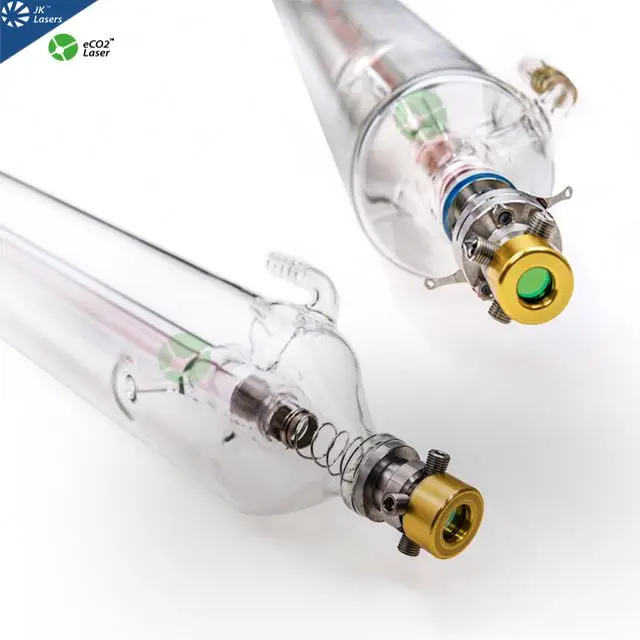

co2 laser tube 200w eastern 40w 50w 60w 70w 80w 90w co2 laser tube 25w co2 laser gynecology medical tube made in china

co2 laser tube 200w head will be installed polarizing lens and Lser tube with Negative high Voltage Structure

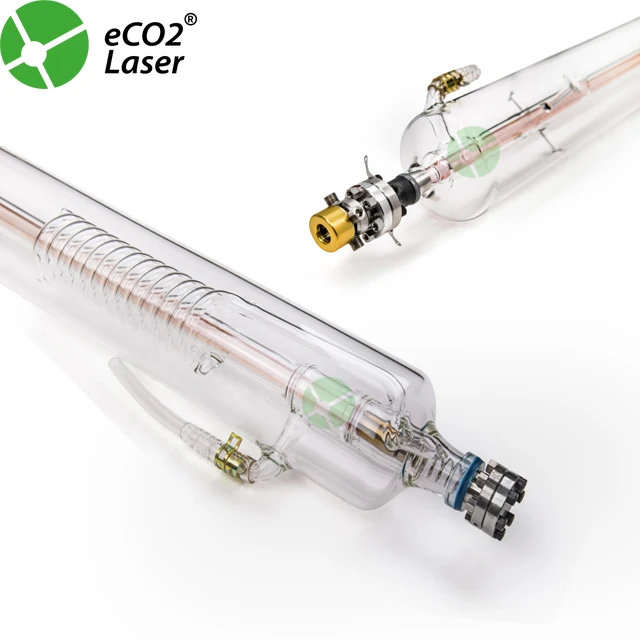

eastern 40w 50w 60w 70w 80w 90w co2 laser tube Widely used to kinds of laser cutting machine,laser flat bed, cnc laser cutter etc. Laser Tube max.power is 150 watts. The main advantage of  co2 laser tube 200w eastern 40w 50w 60w 70w 80w 90w co2 laser tube 25w co2 laser gynecology medical tube made in china is enough power, steady, long life time etc. And we can offer the technology consulting and installation guide before your purchase in order to purchase the best product for you.

The equipment components are horny glass, resonance and electrode horny glass: this Part is make up by discharge tube, water-cooling set , gas storage set and trachea with GG17 material. CO2 Seal laser instrument is three layers pipe. The inside is Discharging tube, the middle is water-purify set and the out layer is gas storage. go back trachea is  in charge of and store the trachea to discharge to feed through to use for resonance: This part is make up by all and output speculum. optical glass as basis, golden membrane surface, the reflection rate of the gold membrane speculum near 10.6um is more than 98%; Output speculum adopt 10.6um of radiation as basis as well as the multi-layer medium membrane.

Part of the electrode: CO2 laser instrument generally adopts the cold cathode, cylindrical shape, the negative pole material selection has great influence on life-span and the basic requirement is that low sputter rate, small gas absorption rate and used metal material is the nickel.

Performance

   Based on Strict Inspection

   PERFECT LAESR SPOT ON ACRYLIC

             Patent Technique

Model	rated power(w)	Max Power(w)	Length(mm)	Dia(mm)	Catalyst	Warranty
JK2	90W	100~110w	1250±5	Φ80±2	YES	12 Month
JK4	100W	120~130w	1450±5	Φ80±2	YES	12 Month
JK6	130W	150~160w	1650±5	Φ80±2	YES	12 Month
JK8	150W	170~180w	1850±5	Φ80±2	YES	12 Month

Packing & Delivery

co2 laser tube 200w eastern 40w 50w 60w 70w 80w 90w co2 laser tube 25w co2 laser gynecology medical tube made in china

With professional packing to avoid the damage, We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. once receiving payment, we post the goods and provide the airway bill number for on-line tracking within 24 hours, including the weekend.

1. GSI original Production Equipment

2. High Efficiency Production Capacity

3.Great  Laser Spot On Thermal Paper

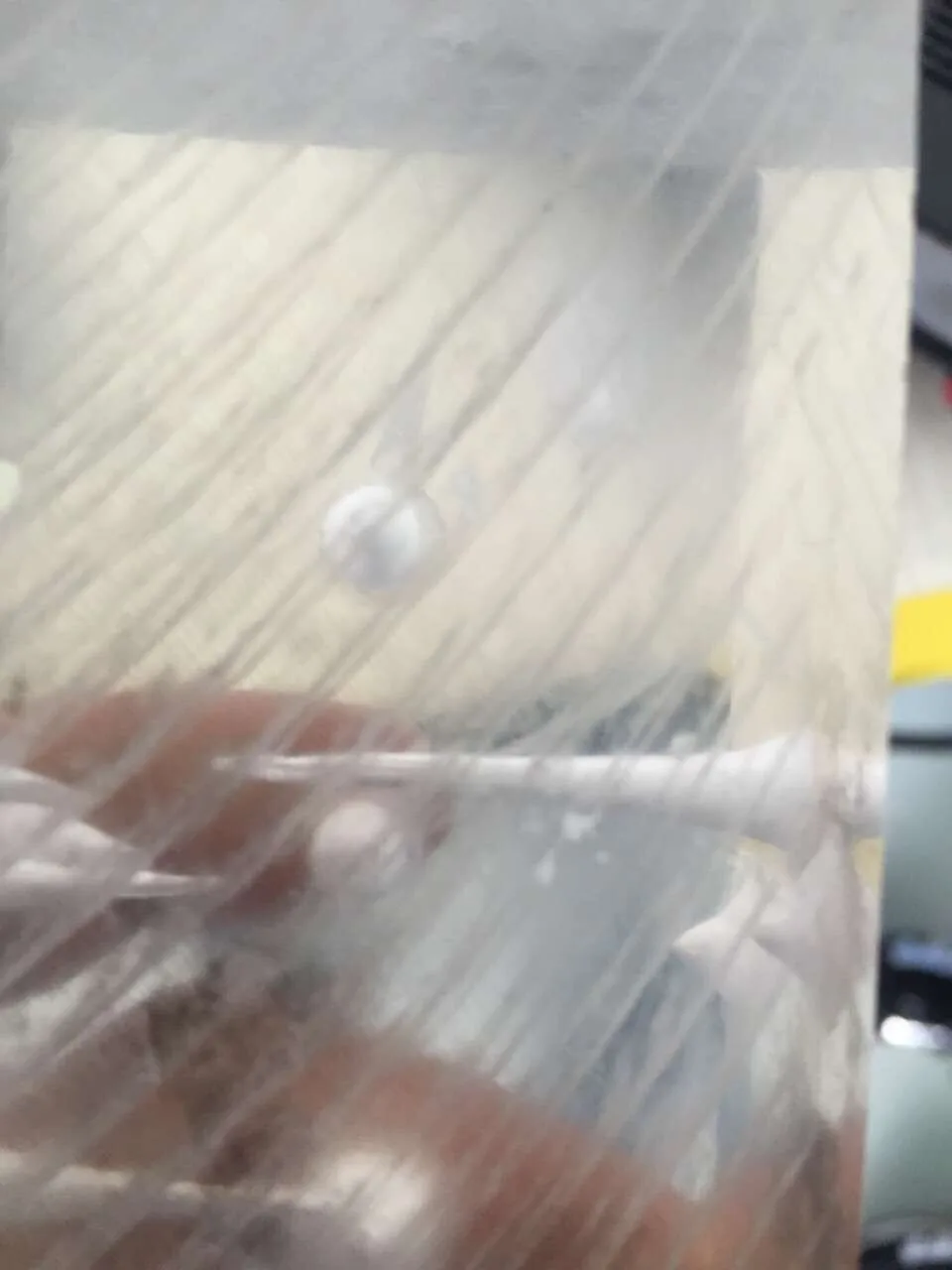

4. Perfect Laser Spot On Acrylic

5.  Strong Listed Company

6. Strict quality-assurance

Our Company

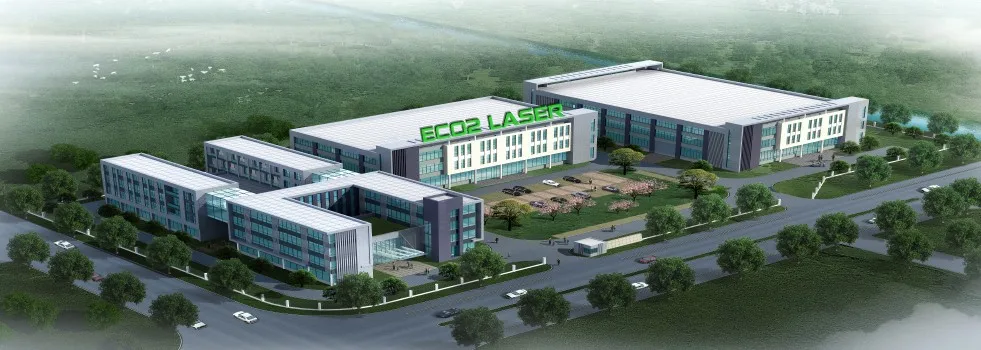

Factory

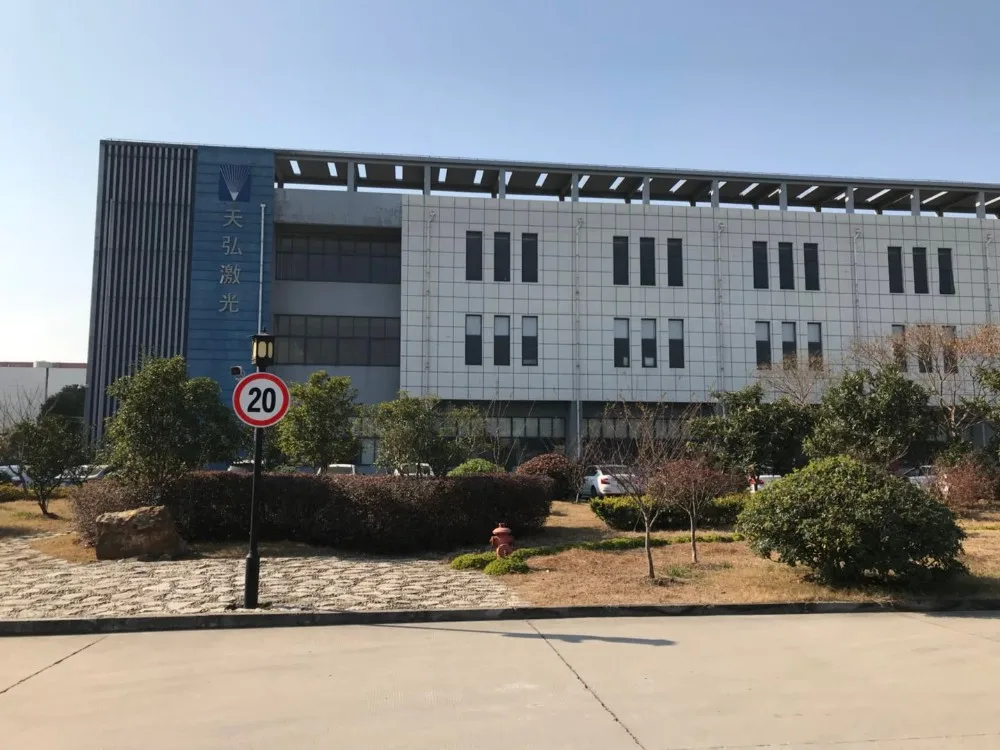

Our Factory

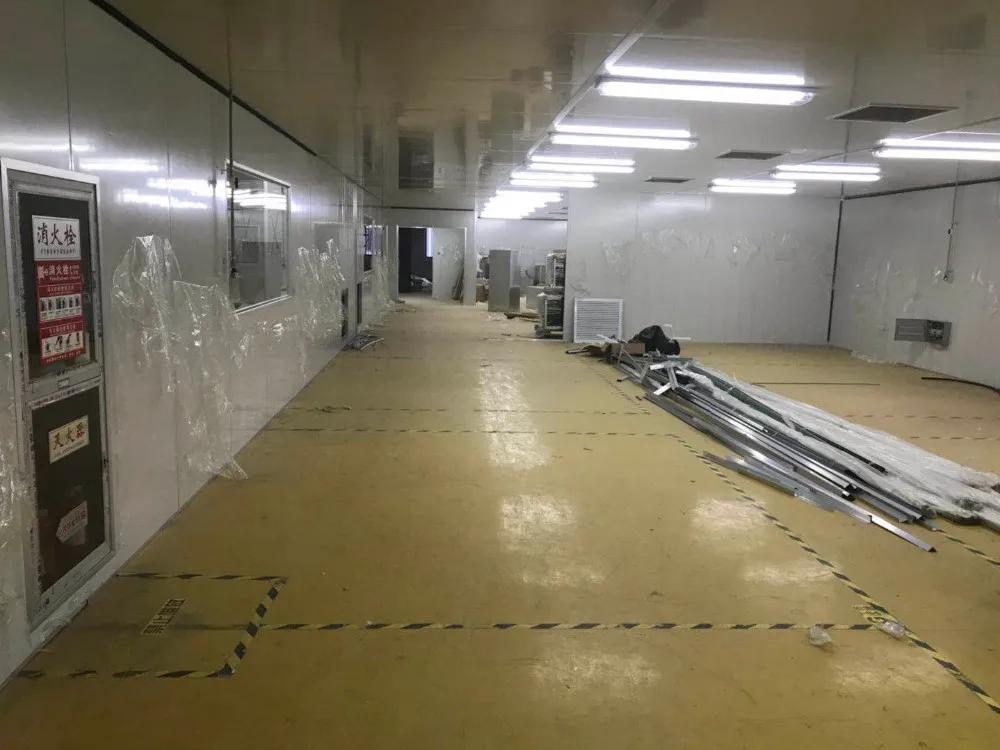

Workshop

Our Workshop

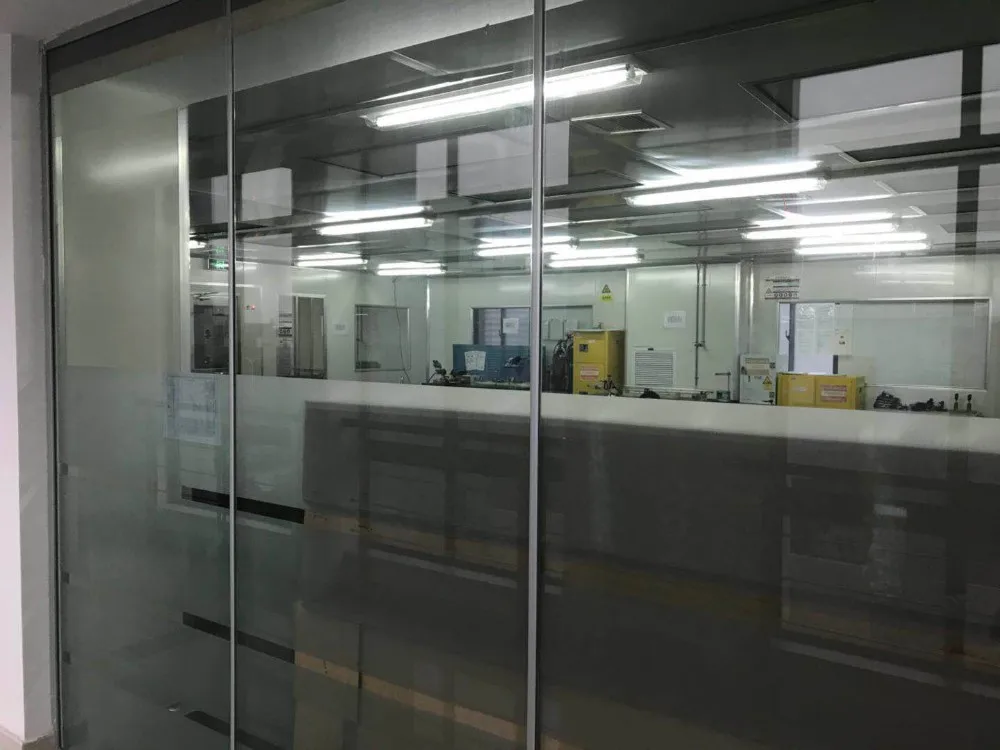

Warehouse

Our Warehouse

Our Team

Our Team

FAQ

Q: How much power do I need ?

A:   60-80 Watts - High production power level provides increased throughput, deep engraving and cutting. Ideal for precision engraving and cutting.

100-180 Watts - Very high production power level that is ideal for heavy cutting and deep, higher throughput engraving. For example, if you want to cut acrylic of thickness of over 3mm (include 3mm); you can choose high power lasers.

Q: How To Install co2 laser tube 200w eastern 40w 50w 60w 70w 80w 90w co2 laser tube 25w co2 laser gynecology medical tube made in china ?

(1) Firstly, connect the water pipe to laser water chiller, adjust the outlet water pipe position according to the principle of laser water flowing from lower position to higher position direction. Ensure the laser water is full of the laser tube and don’t have bubble. Then, open the laser power supply.

Notice:
The laser cooling water is distilled water or pure water, the temperature should be 20-30. In summer, the water temperature is high, should change the laser water chiller or stop the machine for a while. In cold area, don’t let the water freezing, especially don’t let the water stay in laser tube if the laser machine not work. (Attentions: customers who use alternating current must let the water box grounded).
